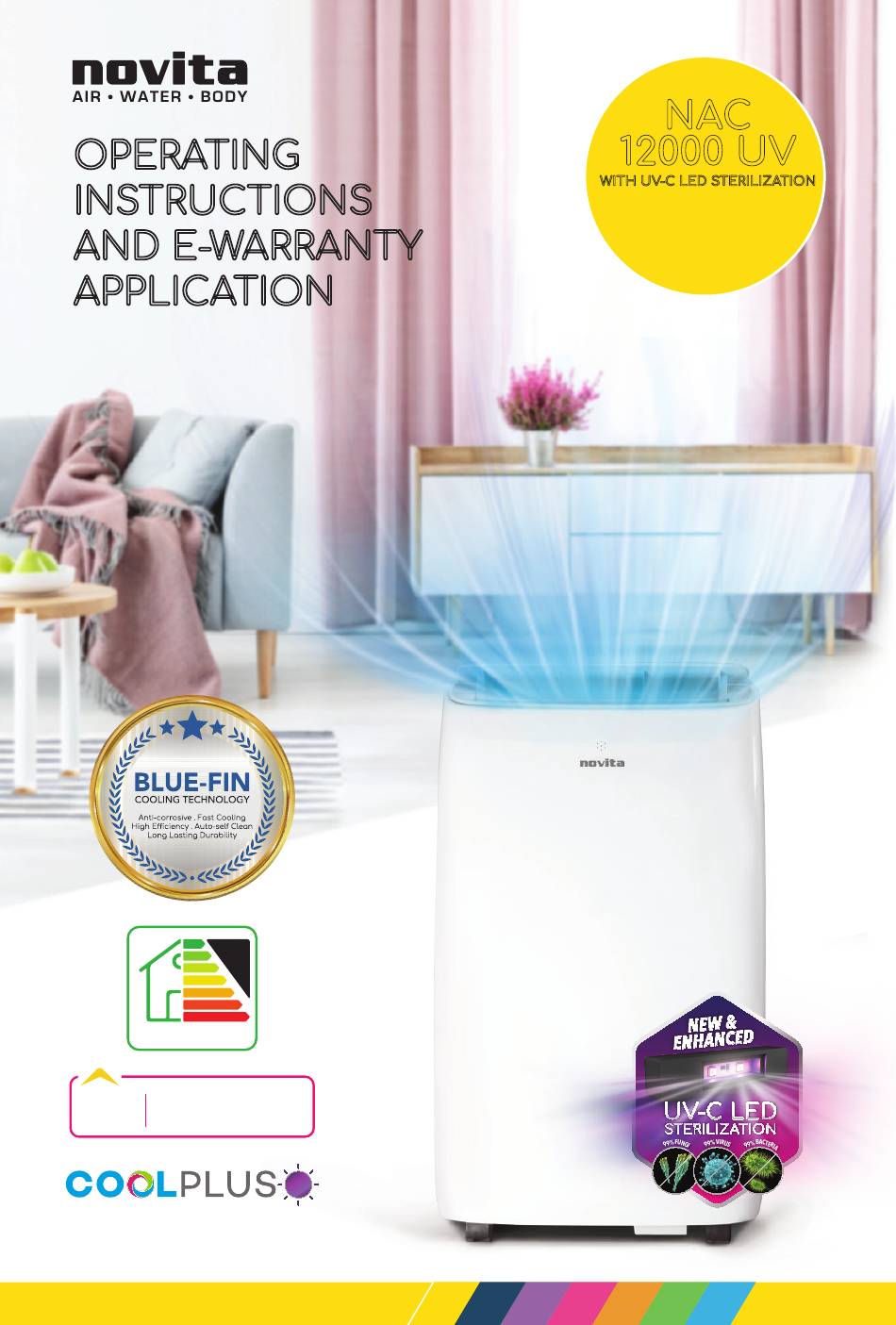

- Page 1 12000 UV OPERATING INSTRUCTIONS WITH UV-C LED STERILIZATION 3-IN-1 PORTABLE AND E-WARRANTY AIR CONDITIONER APPLICATION Please read instructions before using the 3-In-1 portable air conditioner GRADE ENERGY EFFICIENCY 12000 BTU HIGH CAPACITY COOL.FAN.DRY...
-
Page 2: Table Of Contents
• 1 x Window Slider Kit • 1 x Remote Control with Battery • 1 x PVC Drainage Hose (1 Metre) • novita Portable Air Conditioner NAC12000 UV Operating Instructions & e-Warranty Application (e-Copy) • Starter Guide * Please contact us immediately if any of the above-mentioned items are not included. -
Page 3: Product Description
PRODUCT DESCRIPTION FRONT VIEW BACK VIEW 01. Control Panel 05. Remote Control Receiver 09. Continuous Drainage 02. Handle (Both Sides) 06. Upper Air Inlet Grille 10. Power Cord & Plug 03. Easy Roll Castors 07. Exhaust Hose Connector 11. Built-In UV-C LED 04. -
Page 4: Control Panel Description
CONTROL PANEL DESCRIPTION Timer Control Fan Speed / UV Control Decrease Setting Increase Setting Prog. Mode (Cool, Dry, Fan or Smart) Power Control Timer Indicator Fan Speed Indicator (High or Low) Auto Fan Speed Indicator Display Screen Dehumidifying Mode Indicator Fan Mode Indicator Cool Mode Indicator UV Indicator... -
Page 5: Remote Control Description
REMOTE CONTROL DESCRIPTION 02 03 04 05 REMOTE CONTROL DISPLAY SCREEN Cool Indicator Dry Indicator Fan Indicator Heat Indicator (Not Applicable for This Model) • When this mode is selected, unit will operate under fan mode. Smart Mode Temperature Display Unit Childlock Indicator (To Lock Remote Control) Pre-Set Cool Mode Indicator... -
Page 6: Technical Specification
TECHNICAL SPECIFICATIONS MODEL NAC12000 UV Rated Power 1370 Watts Rated Current 6.8 A UV-C LED Power 2 Watts 26.3 Kg Net Weight 358 x 419 x 688 mm Dimension (W x D x H) 220-240 V~/ 50 Hz Voltage/Frequency 12,000 BTU... -
Page 7: Using The Novita 3-In-1 Portable Air Conditioner
USING THE NOVITA 3-IN-1 PORTABLE AIR CONDITIONER Installation & Setting Up This product purchase is not inclusive of installation service. For installation, please engage the optional outsource installation services to arrange for appointment and quotation directly. • EXHAUST HOSE INSTALLATION The 3-In-1 portable air conditioner must be placed proximity to a window or opening to channel out the warm exhaust air when operating under cool or dry mode. - Page 8 3-PIECE WINDOW SLIDER Slide panel B and C into panel A and size it to the window opening width. When sizing the window width, ensure the window slider assembly is free from gaps or any air pockets for accurate installation and fitment. Fasten the screws into the corresponding holes.
-
Page 9: Operating Notes
• ELECTRICAL CONNECTIONS Before plugging the unit into the power supply, please check the followings: • The main power supply corresponds to the specifications indicated on the product label at the back of the unit. • The power source and electrical circuit are adequate for the appliance. •... - Page 10 03. FAN MODE Press the button consecutively to select . Then, press the button consecutively to select the desired - - - - - - fan speed (High or Low • Under Fan Mode, the exhaust hose does not need to be installed to the unit. •...
- Page 11 06. SLEEP MODE (Function can only be activated via the Remote Control) Press the button on the remote control and the indicator illuminates on the remote control display screen and indicator illuminates on the unit control panel. At Sleep Mode, unit will continue to operate based on preceding operating mode (Cool, Dry or Smart), with dimmed display screen and low fan speed.
-
Page 12: Assemble/Replace Remote Control Batteries
09. TEMPERATURE DISPLAY Degree Celsius ( Fahrenheit ( Press and hold both the buttons on the control panel for 3 seconds to toggle between (°C) Degree Celsius or (°F) Fahrenheit temperature display. Alternatively, user may press button on the remote control. Remote Control 10. -
Page 13: Water Condensation Drainage Method
Water Condensation Drainage Method When there is excess water condensation inside the unit, the unit stops operating and the indicator will illuminate on the display screen. This indicates that the water condensation needs to be drained using the following procedures. MANUAL DRAINAGE FOR COOL &... -
Page 14: Cleaning & Maintenance
MIDDLE DRAINAGE FOR DRY MODE Unplug the unit from the power supply. Prepare a drain pan to collect the residual water that may be discharged from the unit after the middle drain cap is being removed. Connect the 1 metre drainage hose (1/2” or 12.7 mm). - Page 15 Hold onto the top middle groove of the Upper Air Inlet Grille Lower Air Inlet Grille pre-filter screens and pull upwards gently to release it from the air inlet grille catch. Pre-Filter Screen Pre-Filter Screen Slide and remove the pre-filter screens from Upper Air Inlet Grille Lower Air Inlet Grille the air inlet grilles.
-
Page 16: Troubleshooting
• Insert the power plug into the main turned on. supply again. • The internal safety device has tripped. • Contact novita Customer Care Centre. The unit can only • There are bends at the air exhaust hose. • Position the air exhaust hose properly... -
Page 17: Safety Precautions
If water contact with the unit. This is to enters the unit, unplug it prevent damage to the surface immediately and contact novita finishing. Use only soft cloth to Customer Care Centre. clean the unit. novita... -
Page 18: Safety Instructions
SAFETY INSTRUCTIONS Read the operating instructions carefully before using the portable air conditioner and keep it for later reference. Persons who are not familiar with the operating instructions, as well as children under 8 years old & persons under the influence of medication, alcohol or drugs are not advised to operate the dehumidifier, or are only advised to operate it under supervision. -
Page 19: Novita Customer Service Guarantee
Service Trekking* With everyone’s busy schedule, it’s sometimes hard to keep track of everything. Sit back, relax and leave the fussing to us. Instead of calling and checking up on the status of your product, let novita keeps you updated. -
Page 20: Limited Warranty Terms & Conditions
negligence. - Page 21 Replacement parts and Products assume the remaining original limited warranty. In the event that the Product is out of stock, obsolete or beyond repair, novita reserves all rights to replace the Product with another similar value as deem appropriate, subject to availability.
-
Page 22: Product Warranty - Upgrade/Convert To Onsite Warranty
EXTENDED WARRANTY PERIOD Portable Air Conditioner NAC12000 UV NEXT 12 MONTHS S$150/Unit T & C Updates Commission/Effective from 08 Dec 2023 • All Information is accurate at the point of print. novita reserves all rights to update the information without prior notice. - Page 23 COPYRIGHT © 2022 NOVITA SG BW/M/NAC12000UV/V1...
