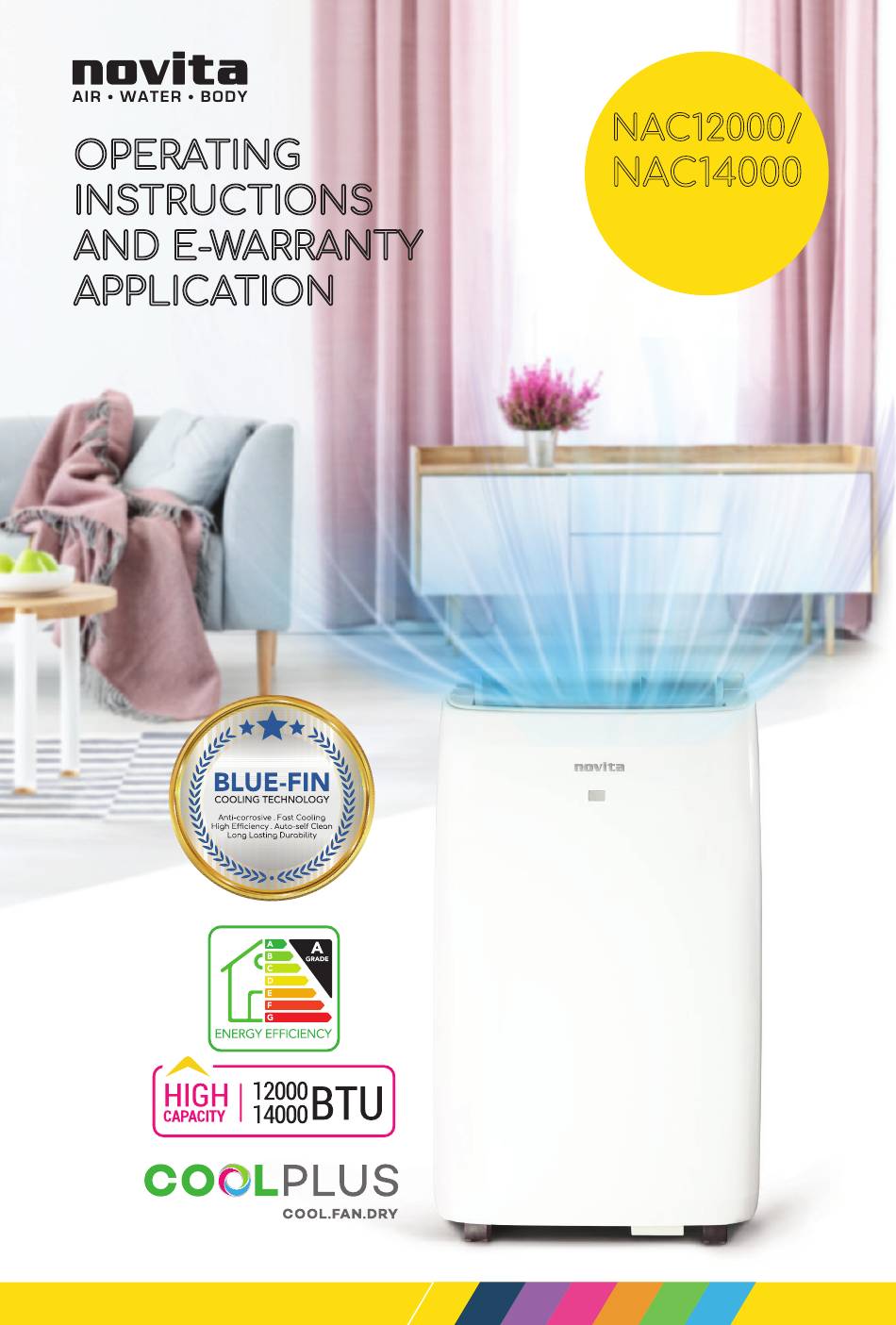

- Page 1 NAC12000/ OPERATING NAC14000 INSTRUCTIONS 3-IN-1 PORTABLE AND E-WARRANTY AIR CONDITIONER APPLICATION Please read instructions before using the 3-In-1 portable air conditioner...
-
Page 2: Table Of Contents
• 1 x Window Slider Kit • 1 x Remote Control with Battery • 1 x PVC Drainage Hose (1 Metre) • novita Portable Air Conditioner NAC12000/NAC14000 Operating Instructions & e-Warranty Application (e-Copy) • Starter Guide * Please contact us immediately if any of the above-mentioned items are not included. -
Page 3: Product Description
PRODUCT DESCRIPTION FRONT VIEW BACK VIEW 01. Control Panel 05. Remote Control Receiver 09. Continuous Drainage 02. Handle (Both Sides) 06. Upper Air Inlet Grille 10. Power Cord & Plug 03. Easy Roll Castors 07. Exhaust Hose Connector 11. Middle Drainage 04. -
Page 4: Control Panel Description
CONTROL PANEL DESCRIPTION Timer Control Fan Speed Control Decrease Temp. Setting Control Increase Temp. Setting Control Prog. Mode (Cool, Dry, Fan or Smart Mode) Power Control Timer Indicator Fan Speed Indicator (High, Medium, Low or Auto) Display Screen Operating Mode Indicator Sleep Mode Indicator... -
Page 5: Remote Control Description
REMOTE CONTROL DESCRIPTION 02 03 04 05 REMOTE CONTROL DISPLAY SCREEN Cool Indicator Dry Indicator Fan Indicator Heat Indicator (Not Applicable for This Model) • When this mode is selected, unit will operate under fan mode. Smart Mode Temperature Display Unit Childlock Indicator (To Lock Remote Control) Turbo Mode... -
Page 6: Technical Specifications
TECHNICAL SPECIFICATIONS Model NAC12000 NAC14000 Rated Power 1400 Watts 1560 Watts Rated Current 6.8 A 7.9 A Net Weight 32.7 Kg 33.3 Kg Dimension (W x D x H) 450 x 396 x 745 mm 450 x 396 x 745 mm... -
Page 7: Using The Novita 3-In-1 Portable Air Conditioner
USING THE NOVITA 3-IN-1 PORTABLE AIR CONDITIONER Setting Up • This product purchase is not inclusive of installation service. For installation please engage the distributors installation contractors to arrange for appointment and quotation directly. EXHAUST HOSE INSTALLATION The 3-In-1 portable air conditioner must be placed proximity to a window or opening to channel out the warm exhaust air when operating under cool or dry mode. - Page 8 2-PIECE WINDOW SLIDER Slide Panel B into Panel A and size it to the window opening width. When sizing the window width, ensure the window slider assembly is free from gaps or any air pockets for accurate installation and fitment. Fasten the screws into the corresponding holes.
-
Page 9: Operating Notes
ELECTRICAL CONNECTIONS Before plugging the unit into the power supply, please check that: •The main power supply corresponds to the specifications indicated on the product label at the back of the unit. • The power source and electrical circuit are adequate for the appliance. •... - Page 10 • Ensure the exhaust hose is installed properly before operating Cool Mode. • The fan speed setting difference is more obvious under Fan Mode than Cool Mode. • Auto fan speed setting is only available under cool mode, dry mode and smart mode only. Unit Display Screen Remote Control Display Screen...
- Page 11 05. Smart Mode Under Smart Mode, unit automatically select the operating mode (Cool or Fan Mode) in accordance to the surrounding temperature. Surrounding Temperature Operating Mode Below 23 Fan Mode Above 23 Cool Mode Press the button consecutively until the unit display sreen shows the followings. Then select the preferred fan speed (High, Medium, Low or Auto) by pressing the button.
- Page 12 Unit Display Screen Remote Control Display Screen Press button twice to select prog. timer, select timer duration with button. Timer to Auto Turn on Automatic Turn Off When the unit is operating, press the button and the indicator and the timer hours start to flash on the display screen.
-
Page 13: Assemble/Replace Remote Control Batteries
Assemble/Replace Remote Control Batteries Remove the rear cover of the remote control. Insert 2 x AAA 1.5V battery with the “+” and “-“ pointing in the correction direction accordingly to the polarity markings. • DO NOT mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. -
Page 14: Cleaning & Maintenance
• Please ensure the height of the drain hose must not be higher than the drain outlet, as this may obstruct the drainage path to maintain a smooth flow and operation. Obstruction-free Stable & Level Surface MIDDLE DRAINAGE FOR DRY MODE Unplug the unit from the power supply. -
Page 15: Cleaning & Maintenance Of The Pre-Filter Screens
Cleaning & Maintenance of the Pre-Filter Screens For optimum performance, it is recommended to clean the Pre-Filter Screens once every week. Remove both the upper and lower air inlet grilles from the unit. • To avoid accidental cut, avoid contacting the metal parts of the unit when Upper Air removing or reattaching the filter. -
Page 16: Troubleshooting
• Insert the power plug into the main turned on. supply again. • The internal safety device has tripped. • Contact novita Customer Care Centre. The unit can only • There are bends at the air exhaust hose. • Position the air exhaust hose properly... -
Page 17: Error Code Troubleshooting
The unit will start up again automatically when the defrosting process is completed. • Please contact novita Customer • Probe Failure (Sensor Damaged) Care Centre. • Full Tank • Please follow the water condensation drainage instructions to drain and discard the water. -
Page 18: Safety Precautions
If water contact with the unit. This is to enters the unit, unplug it prevent damage to the surface immediately and contact novita finishing. Use only soft cloth to Customer Care Centre. clean the unit. novita... -
Page 19: Safety Instructions
SAFETY INSTRUCTIONS Read the operating instructions carefully before using the portable air conditioner and keep it for later reference. Persons who are not familiar with the operating instructions, as well as children under 8 years old & persons under the influence of medication, alcohol or drugs are not advised to operate the dehumidifier, or are only advised to operate it under supervision. -
Page 20: Novita Customer Service Guarantee
Service Trekking* With everyone’s busy schedule, it’s sometimes hard to keep track of everything. Sit back, relax and leave the fussing to us. Instead of calling and checking up on the status of your product, let novita keeps you updated. -
Page 21: Limited Warranty Terms & Conditions
S$36 is applicable. To the fullest extent permitted by law, novita shall not be in any way liable for any incidental or consequential, direct, indirect damages whatsoever caused by the breach of any express, implied or statutory warranty or condition. -
Page 22: Product Warranty - Upgrade/Convert To Onsite Warranty
Replacement parts and Products assume the remaining original limited warranty. In the event that the Product is out of stock, obsolete or beyond repair, novita reserves all rights to replace the Product with another similar value as deem appropriate, subject to availability. In no event shall any recovery against novita exceed the actual price paid for the purchase of the Product. -
Page 23: Product Warranty Extension - Extended Carry-In Warranty
• Extended limited warranty commencement date is inferred from product purchase date or installation; notwithstanding the extended warranty purchase date. EXTENDED WARRANTY PERIOD Portable Air Conditioner NAC12000/NAC14000 NEXT 12 MONTHS S$150/Unit • All Information is accurate at the point of print. novita reserves all rights to update the information without prior notice. - Page 24 COPYRIGHT © 2020 NOVITA SG BW/M/NAC12000-NAC14000/V2/051120...
