S21-063

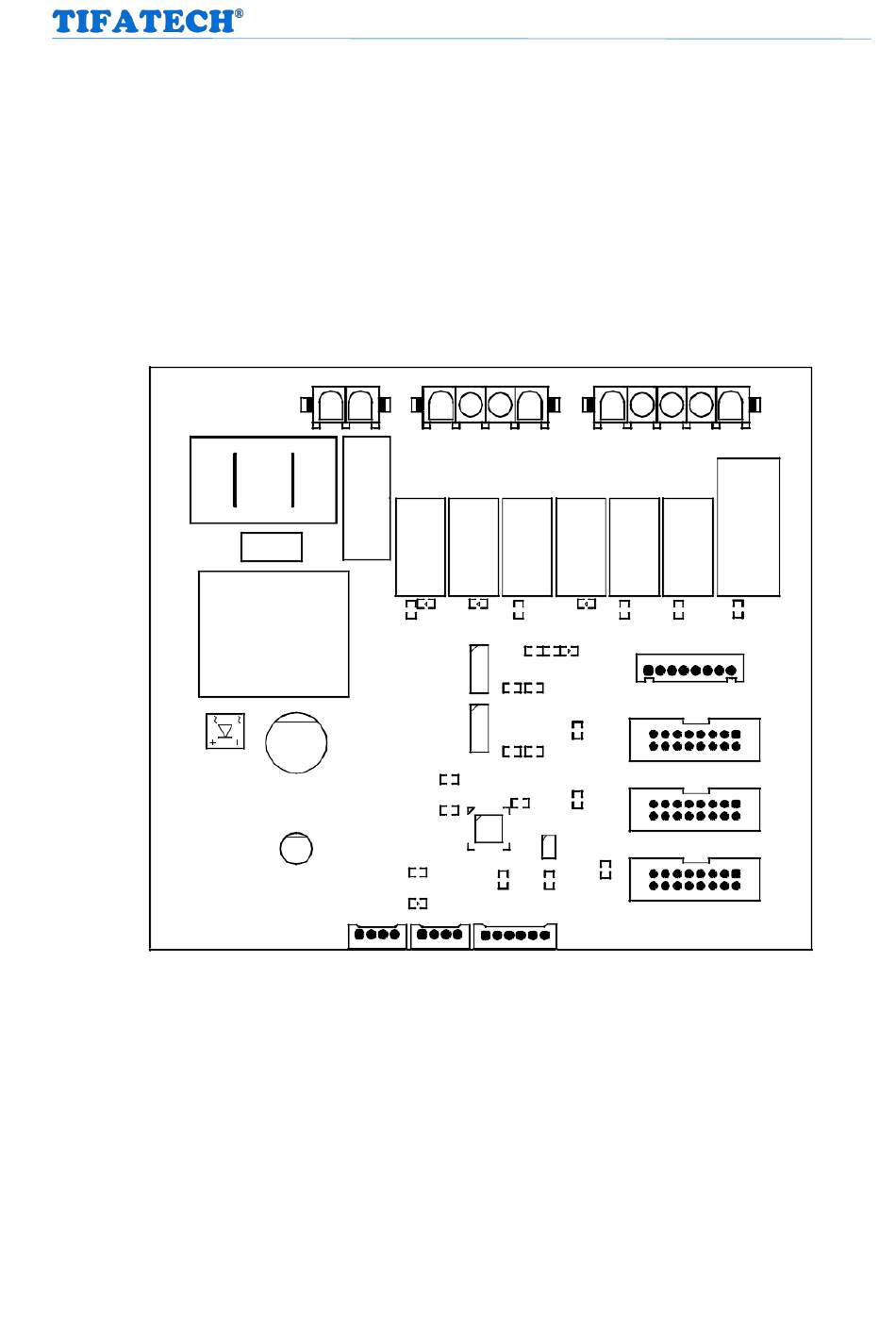

Coffee Machine Control Board
RCO3G
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RCO3G and is the answer not in the manual?

Questions and answers

Related Manuals for TIFATECH RCO3G

Summary of Contents for TIFATECH RCO3G

  • Page 1 S21-063 Coffee Machine Control Board RCO3G Instruction Manual...

  • Page 2: Hazard Intensity Levels

    S21-063 PREFACE Thank you for purchasing our RCO3G, Control board for the Coffee machine. This manual contains instructions for the mounting, functions, operations, and notes when operating the RCO3G. To ensure safe and correct use, thoroughly read and understand this manual before using this instrument.
  • Page 3  This board is intended to only use for the espresso coffee machine control board. Do not use it for any other purpose. PRECAUTIONS  Installation precautions Read thoroughly the following conditions before installing the RCO3G board to the coffee machine. The mounting location must be:  No flammable, explosive gases ...
  • Page 4 S21-063  Ensure the board surface is completely dry before powering.  Periodic cleaning will reduce the risk of damaging the board.

  • Page 5: Table Of Contents

    S21-063 *** CONTENTS *** GENERAL ......................1 1. Introduction ......................1 II. TECHNICAL SPECIFICATIONS ..............1 1. Dimensions (mm) ....................1 2. Specifications ....................... 1 III. WIRING ......................... 2 IV. PROGRAMMING AND USE ................3 1. Programming standard dose ................. 4 2.

  • Page 6: General

    GENERAL 1. Introduction  This manual contains important instructions regarding the safe intended use of the machine.  If any damaged or loss to this manual, request a copy from the TIFATECH manufacturer. II. TECHNICAL SPECIFICATIONS 1. Dimensions (mm) 2. Specifications ...

  • Page 7: Wiring

    S21-063 Note: Please contact us if your country doesn’t support the power supply required above. III. WIRING (1): ACN (4): EVGR2 (7): FILL (10): PUMP (2): ACL (5): EVGR1 (8): TEA (3): EVGR3 (6): ACN (9): HEAT (1): Flux + Level (2): Gr3 Key (3): Gr2 Key (4): Gr1 Key...

  • Page 8: Programming And Use

    S21-063 Important: Any mistake in connecting actuators will affect the normal operation of the coffee machine, and even cause damage. Terminal Description AC(L), AC(N) Power supply AC 220V EVGR3 Solenoid valve of group3 EVGR2 Solenoid valve of group2 EVGR1 Solenoid valve of group1 FILL Solenoid valve of filling Solenoid valve of hot water...

  • Page 9: Programming Standard Dose

    S21-063 1. Programming standard dose Buttons will be identified by a number between 1 and 5 like the image above. To program coffee doses dispensed automatically by each drink button, follow the steps below: Step 1: Press and hold the button 5 for 10 seconds to enter the setting mode. Step 2: Press the dispensing option that you wish to program.

  • Page 10: Automatic Group Cleaning

    S21-063 4. Automatic group cleaning  Keep pressing button 3 for 5 seconds to perform auto-cleaning on the group.  The pump and group valve will begin to turn on in 5 seconds then turn off in the next 5 seconds. This process repeats 5 times before finishing. ...

  • Page 11: Solution

     Tried restarting the machine and check for the level sensor, filling solenoid valve or the water supply source if the situation continue. TIFATECH Co., Ltd Address: 14 Tran Tu Binh Street, Hoa Chau Ward, Hoa Vang District, Da Nang City, Viet Nam Email: tifatech.vn@gmail.com...
