S21-037
Coffee Machine
LA TIFALENO
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LA TIFALENO and is the answer not in the manual?

Questions and answers

Related Manuals for TIFATECH LA TIFALENO

Summary of Contents for TIFATECH LA TIFALENO

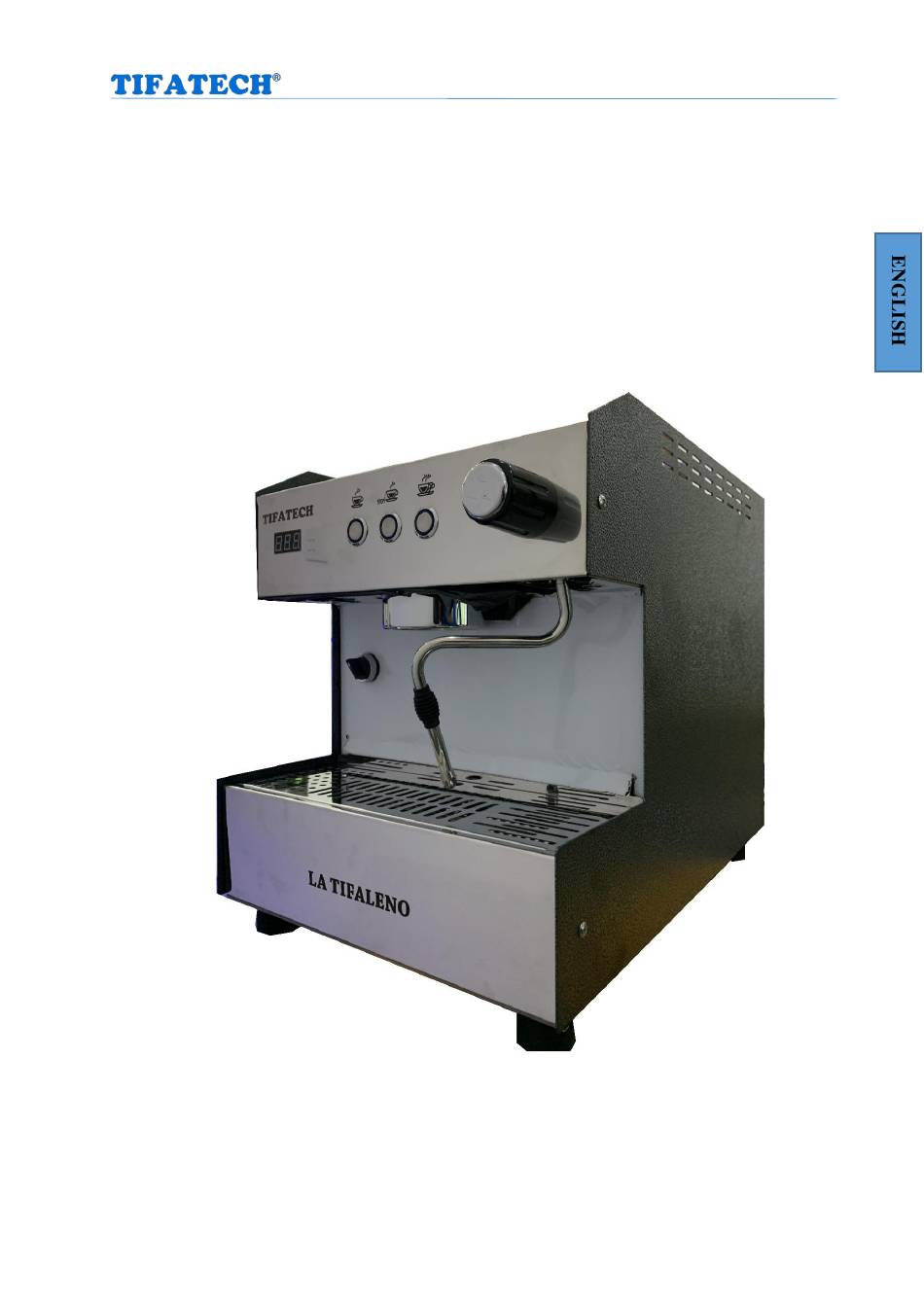

  • Page 1 S21-037 Coffee Machine LA TIFALENO Instruction Manual...
  • Page 2 S21-037 PREFACE Thank you for purchasing La Tifaleno, a coffee machine product from Tifatech. This manual contains instructions for the mounting, functions, operations, and notes when operating La Tifaleno coffee machine. To ensure safe and correct use, thoroughly read and understand this manual before using this product.
  • Page 3 ▪ This product needs to be wrapped appropriately before transport. A user manual, accessories, and a La Tifaleno coffee maker should all be included in the delivery. Please get in touch with us right away for assistance if any listed items are missing.
  • Page 4 S21-037 The mounting location must be: ▪ No flammable, explosive gases ▪ No exposure to water. ▪ An ambient temperature of 0 to 70°C that does not change rapidly, and no icing. ▪ An ambient non-condensing humidity of 35 to 85 %RH. ➢...

  • Page 5: Table Of Contents

    S21-037 *** CONTENTS *** GENERAL ......................1 1. Introduction ......................1 TECHNICAL SPECIFICATIONS ..............1 III. INSTALLATION ....................2 1. Position ......................... 2 2. Electrical connection .................... 3 3. Water connection ....................3 USE ........................3 1. Start the machine ....................3 2.
  • Page 6 S21-037 3. Cleaning the group gasket .................. 13 4. Automatic group cleaning .................. 14 VII. TROUBLESHOOTING ................15...

  • Page 7: General

    S21-037 GENERAL 1. Introduction The La Tifaleno coffee machine by Tifatech is a one group coffee machine with cutting edge features including pre-infusion, automatic group cleaning, and many more innovative functions. Note: ▪ This manual contains important instructions regarding the safe intended use of the machine.

  • Page 8: Installation

    S21-037 Steam boiler operating 0.8 - 1.2 pressure(bar) Ambient noise(dB) < 70 Ambient temperature (°C) 0 - 70 Ambient humidity (%) < 70 III. INSTALLATION 1. Position • Put the machine in place on a level surface. Make sure the feet are adjusted so that the coffee is distributed equally among the cups.

  • Page 9: Electrical Connection

    S21-037 2. Electrical connection • Ensure that the electrical specifications of the main supply match the specifications of the power supply required of machine. • The power supply should be equipped with circuit breaker to protect against unexpected system failure. 3.

  • Page 10: Re-Filling The Boiler

    S21-037 2. Re-filling the boiler The filling operation will start automatically when the water level falls below the minimum threshold and stop when the level probe is reached. Note: The water source should always be available for filling operation. 3. Heating the boiler •...
  • Page 11 S21-037 Follow these procedures to before starting to dispensing coffee: Step 1: Unlock and remove the portafilter from the group head, fill the filter basket with a proper amount of ground coffee. Step 2: Press the coffee with a moderate force use coffee tamper. Step 3: Insert the portafilter into the unit with the knob facing to the left, then turn to the right until it lock to the correct position.

  • Page 12: Steaming And Frothing Milk

    S21-037 • Press the 1 shot espresso button or 2 shot espresso button to dispense a preset coffee dose that is previously programmed (page 7). Important: • Ensure that the portafilter is correctly locked into the brewing group before beginning any dispensing operation. •...

  • Page 13: Programming

    S21-037 V. PROGRAMMING 1. Programming standard dose Follow the instructions below for programming coffee dosage for drink buttons. Step 1: Press and hold the 1 Shot espresso button or 2 Shot espresso buttons for 3 seconds to start to program on that one. Siren sounds and the selected button begin flashing.

  • Page 14: Temperature Setting

    S21-037 Button Name Replace function 1 shot espresso Increase (+) 2 shot espresso Decrease (-) Stop Change/Confirm Temperature setting Press and hold the 1 shot espresso and 2 shot espresso simultaneously for 3 seconds until the siren sound. The display starts to alternate between two states like the image below. Use the increase/decrease button to adjust the threshold temperature of the boiler heating process.

  • Page 15: Other Parameters Setting

    S21-037 Other parameters setting Press and hold the 2 shot espresso and the Stop button simultaneously for 3 seconds until the siren sound. The 2 shot espresso light begins to flash. • Use the Increase/Decrease button to adjust the parameter value. •...
  • Page 16 S21-037 ➢ Table of parameters explanation : Parameter Range Step Default Description Propotional coefficient 0 - 100 (Recommend: P = 0) The smallest temperature 1 - 10 difference required to activate the heating element 1 - 10 Auto cleaning time Period of the cleaning 1 - 10 process...

  • Page 17: Advanced Setting (For Technician Only)

    S21-037 4. Advanced setting (For techinician only) Press and hold all buttons simultaneously for 3 seconds until the siren sound. The 2 shot espresso light begins to flash. • Use the Increase/Decrease button to adjust the parameter value. • Use Confirm/Change button to save your changes and move on to set a new parameter.

  • Page 18: Cleaning And Maintenance

    S21-037 ➢ Table of parameters explanation : Parameter Range Step Default Description Calibration value of -5 ÷ 5 temperature sensor Unit: °C Checking boiler’s temperature with LPT 0 ÷ 200 period Unit: minute The minimum temperature difference 0 ÷ 999 required at every LPT checking period.

  • Page 19: Cleaning The Filter Basket

    S21-037 2. Cleaning the filter basket • Remove the basket filter from the portafilter, then also use provided brush to get rid of the residual coffee. • If the filter get clogged up and you're not able to clean it normally, burn any coffee particles with a bare flame.
  • Page 20 S21-037 Step 1: Insert the blind basket into the portafilter Step 2: Place the portafilter into group head and start to discharge water by pressing Stop button. Step 3: Briefly opening and closing the portafilter so that the water run out. Keep your hands and other body parts out of the water to prevent burns.
  • Page 21 S21-037 VII. TROUBLESHOOTING Note: The following mistakes will result in the siren sounding continuous and the deactivation of all machine operations. When there is no error, the machine will operate normally. Error Display Cause Purpose Solution code status Supplement water for tank. Tank is out of To protect Check the water source.
  • Page 22 S21-037 TIFATECH Co., Ltd Address: 14 Tran Tu Binh Street, Hoa Chau Ward, Hoa Vang District, Da Nang City, Viet Nam Email: tifatech.vn@gmail.com Tel: +84(0)899.600.009 Website: https://tifatech.vn/ https://hardtech.vn/...
