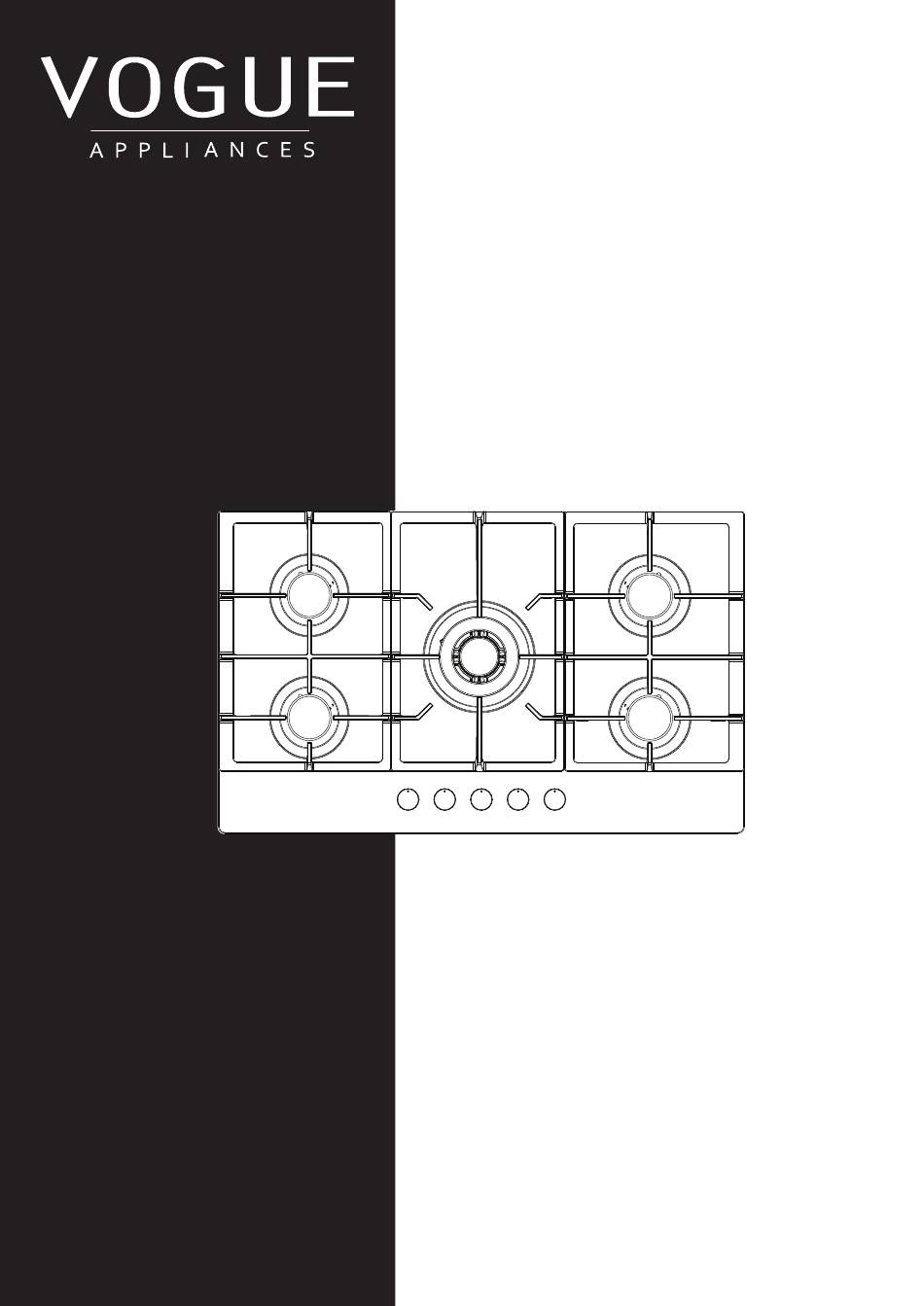

GAS COOKTOP
900MM
Warning notices: Before using this product,
please read this manual carefully and keep
it for future reference. The design and
specifications are subject to change without
prior notice for product improvement.
Consult with your dealer or manufacturer
for details.
INSTALLATION INSTRUCTIONS
& USER GUIDE
320340 & 320345
Advertisement
Table of Contents
Related Manuals for VOGUE APPLIANCES 320340
Summary of Contents for VOGUE APPLIANCES 320340
- Page 1 Warning notices: Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. 320340 & 320345 Consult with your dealer or manufacturer for details.
- Page 2 Table of Contents...
- Page 3 Trade Depot will NOT bear any responsibilities for any property loss and personal injury due to improper use of this appliance. The followings must be strictly adhered to in order to avoid bodily harm, fire and/or personal injury: This gas hob is designed for domestic kitchen use only ( not-intended for Commercial and / or Industrial usage) and MUST NOT be installed anywhere else ( such as bedroom, laundry, basement, etc.) where it can easily be flammable, corrosive and explosive.
- Page 4 1.Do not spray aerosols in the vicinity of this Hob while in operation. Some propellant gases can break down when heated and produce corrosive vapours which can be harmful. 2.Articles which are made from flammable materials should not be stored in drawers or cupboards immediately below this hotplate.
-
Page 5: Installation
APPLIANCE CERTIFCATIONS This gas appliance has been certified. IAPMO GasMark (Certificate No. GMK10606) UNPACKING ・ DO NOT carry out installation if gas hob is found damaged during delivery. Please report to supplier or manufacturer immediately! Check contents in Packing List (below). Pease report to supplier or manufacturer immediately if any ・... -
Page 6: Specifications
Specifications 5-Burner Models 320345 & 320340 Certifcations/Approvals GMK10606 Tempered Glass Stainless Steel Panel 1× Wok Burner:14.4MJ/h Burners Power 1× Rapid Burner:10.8MJ/h 2× Semi-rapid Burner:6.3MJ/h 1× Auxiliary Burner:3.6MJ/h Cast Iron in Enamel Finish Pan Support Gas Type NG/ULPG 21Kg/17.5kg Net Weight 880×520×110(W×D×H) -
Page 7: Parts Names
Parts names 5 Burner Model 1. Hob 2. Wok Burner 3. Rapid Burner 4. Semi-rapidBurner 5. Auxiliary Burner 6. Pan Support 7. Control Knobs Burners A-Burner cap B-Burner Head C-Burner Base D-Thermocouple(where fitted) E-Electrode... -
Page 8: Installation Procedures
・ IMPORTANT: When installing model in combustible 320345 material such as wooden countertops you must install the S58668A/ five metal spacers on the rear and 320340/ 320345/ 320345/ right sides as depicted in this S58668C S58666A/B S38626/ S58666A/B S46038A/B/C diagram; flush with the top of the... - Page 9 (applicable to model S46038A/S46038B/S46038C) ・ ・ 12. The height of the top of the pan support with respect to the bench top surface: 59±2mm (320345), 41±2mm (320340).
- Page 10 SAFETY USE OF A FLEXIBLE CONNECTION LEAK TESTING WARNING: DO NOT TEST FOR LEAKS WITH A NAKED FLAME AND NEVER TURN ON YOUR APPLLIANCE DURING TESTING. After connecting the gas hob, check the joints for any leaks. ・ Natural Gas: the supplied regulator must be fitted to the appliance inlet connection. Gas pressure must be adjusted to 1.0kPa when approximately 50% of the burners are on high flame, the appliance test point is located on the regulator.
- Page 11 Electrical Diagrams Technical Information 320340 & 320345 A:Auxiliary AR:Semi-rapid R:Rapid DC:Double crown OPERATING 220-240V:50-60Hz，0.6W VOLTAGE CATEGORY Natural gas 1.0 kPa or Universal LPG 2.75kPa GAS USAGE On GAS HOB 41.4 MJ/h...
- Page 12 Nozzle Table FAULT ISOLATION CHART FAULT CAUSES REMEDY 1.Air in gas line Purge gas line 2.Blockage in line Check and clear Burner does not light up 3.Ignition not sparking Check lead and electrode 4.Flame failure device faulty Replace thermocouple and test 1.Excessive lint up of burner Remove and clean burner mixing tube...
-
Page 13: Maintenance
OPERATING INSTRUCTIONS IGNITION This hotplate is equipped with electronic ignition to each of the burners and is operated by individual control knob and turning it a quarter turn anti-clockwise. depressing the individual control knob and turning it a quarter turn anti-clockwise. EXTINGUISHMENT Turn the knob clock wise to its original“OFF”position to extinguish the flame and simultaneously turn off the burner. -
Page 14: Power Supply
HINTS ON USING HOTPLATE e appliance may result. Do not remove the pan support and enclose the burner with a work stand as this will concentrate the flame and deflect the heat onto the hotplate not use on to the hotplate. Locate pan centrally over burner so that it is stable and does not overhand the appliance Use only wok support supplied or recommended by the manufacturer of the appliance. -
Page 15: After-Sale Service
After-sale Service ・ Do not attempt to make any modifications to gas hob internal structures, chassis and wiring connections. Do not re-wire any connections and/or to be re-used for any other purposes apart from it’s ・ designated use. ・ The manufacturer, supplier and resellers will not bear any responsibility for any financial loss, bodily harms and damages to products due to improper use/operation.
