Zebronics ZEB-ASTRA 40 User Manual

Portable bt speaker

Advertisement

Quick Links

P o r t a b l e B T S p e a k e r
ASTRA
P o r t a b l e B T S p e a k e r
ASTRA
User Manual
www.zebronoics.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZEB-ASTRA 40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Zebronics ZEB-ASTRA 40

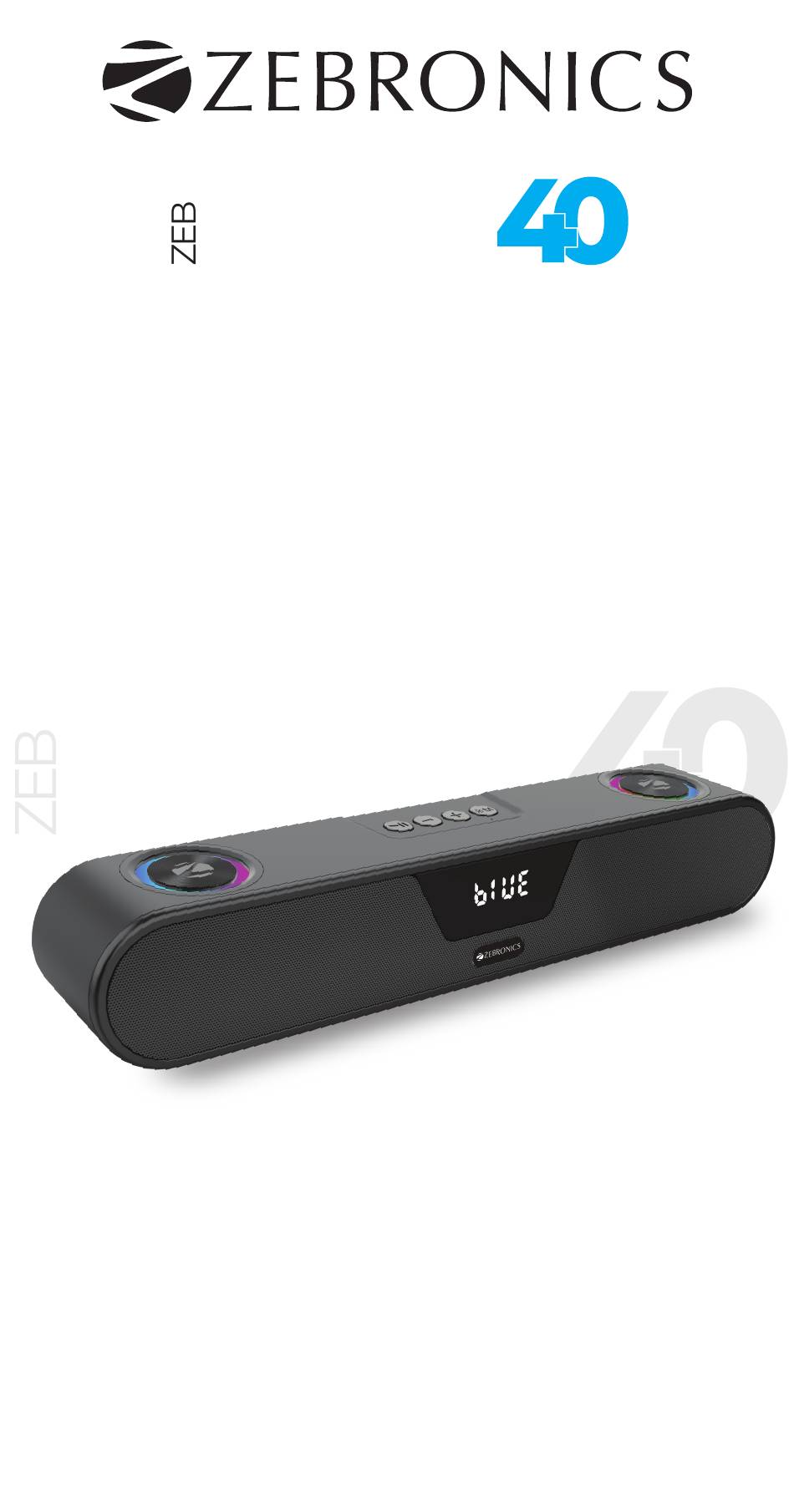

  • Page 1 P o r t a b l e B T S p e a k e r ASTRA P o r t a b l e B T S p e a k e r ASTRA User Manual www.zebronoics.com...
  • Page 2 Thank you for purchasing ZEB-ASTRA 40 Speaker. Please read this user manual carefully and keep it for future reference. Note: • Avoid the usage of this product at the high temperature and high humidity environment. • Avoid the self-disassembly of the products or it results in the voiding the product's Warranty.
  • Page 3 Specifications: Model No : ZEB-PSPK 44 Output Power (RMS) : 20W (10W + 10W) BT Version : 5.3 Driver Size : 52mm x 2 Speaker Impedance : 3Ω Frequency Response : 100Hz-20kHz S/N Ratio : ≥75dB Separation : ≥45dB Max Supported USB/mSD memory size : 32GB Supported Audio formats : MP2, MP3, WMA, APE, FLAC,...
  • Page 4 Control panel image: Buttons: 1. "M" Button:- Single press:- switching modes. Long press this button to change LED , colors 2. "+"Button: - Long press for next track / Single press for volume up 3. "-" Button: - Long press for previous track / Single press for volume down "...
  • Page 5 Rear Panel functions 1.Power On/Off switch 2. Aux input 3.mSD input 4. USB input 5.Charging input 6.Charging indicator General Instructions Charging Instructions • Connect the one end of the power cable to speaker and connect the other end to a rated DC 5V adapter.
  • Page 6 BT devices, • Search for the BT name "ZEB-ASTRA 40"and tap to connect it. • >Short Press the + to increase the volume and long press the + button to switch to next track.
  • Page 7 connector to the speaker and the other end of the cable to an audio source. The speaker automatically detects. • The speaker automatically switches to USB input mode when a USB flash drive is inserted into the speaker. • The songs from the USB audio source can be heard through the speaker (this mode isn't selectable on the speaker unless a USB flash drive is connected).

This manual is also suitable for:

Zeb-pspk 44
