Summary of Contents for Zebronics ZEB-BARREL 150

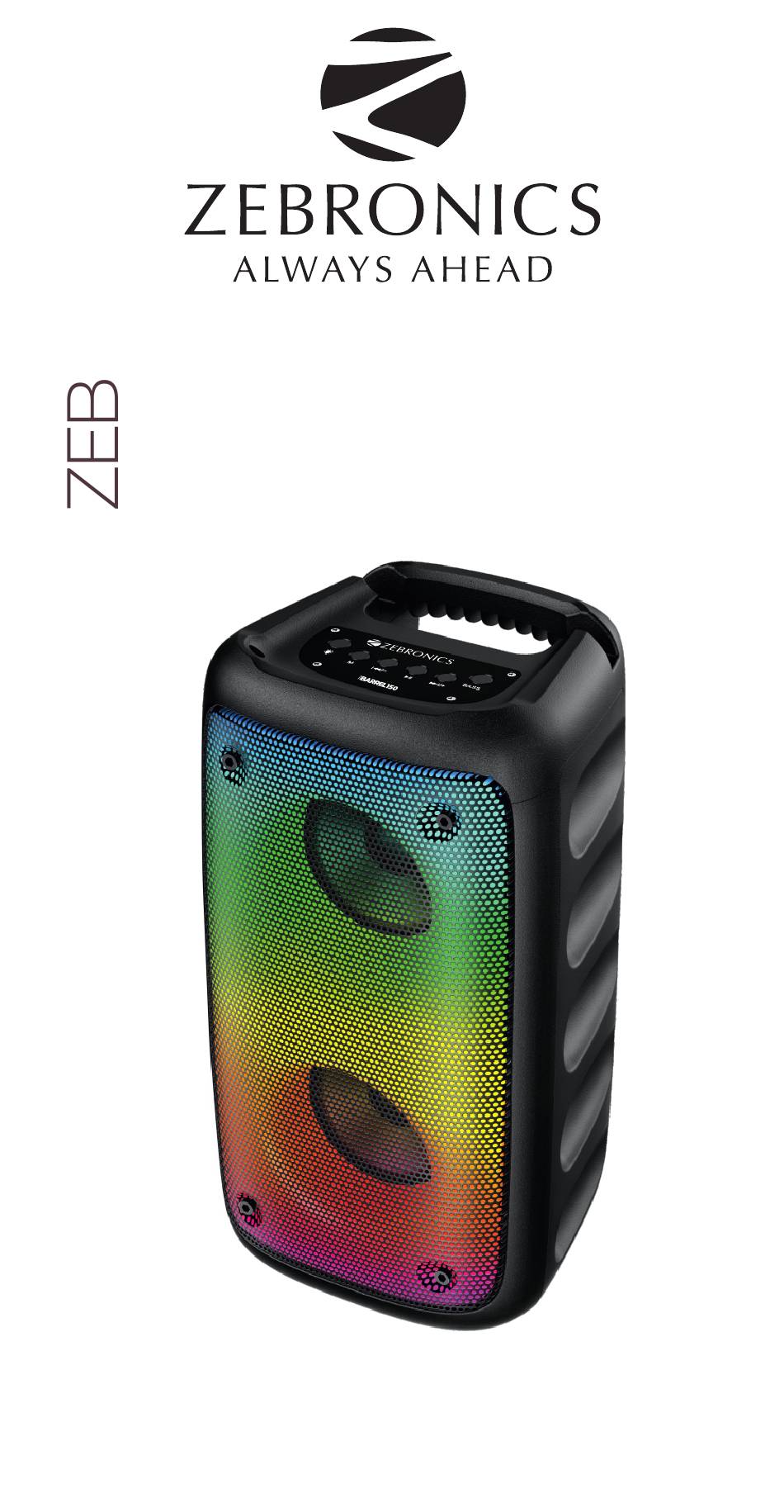

- Page 1 Portable BT Speaker BARREL 150 User Manual www.zebronics.com...
- Page 2 Warranty. • Turn off the speaker when the speaker is not in use. To know more about Terms and conditions for warranty policy, please visit https://zebronics.com/pages/warranty-policy Features: Wireless BT v5.0 Supports USB & mSD Built-in FM Radio AUX Input TWS Function 6.3mm Microphone input...
- Page 3 Specifications: Output Power (RMS) : 20W BT Versionv : 5.0 Driver Size : 7.62cm Speaker Impedance : 4Ω Frequency Response : 150-18kHz S/N Ratio : ≥80dB Max Supported USB/mSD memory size : 32GB Supported Audio formats : MP3 Charging time : 3.5h Playback time : 5.5h*...
- Page 4 Button Description: 1.LED Button 2.Mode button / TWS button 3. Previous / volume – button 4.Play/Pause button 5.Next / volume + button 6.Bass control button Rear panel function : DC 5V ON/OFF...
- Page 5 BT Mode. Switch ON BT on your phone or tablet and search for nearby BT devices, Search for the BT name “ZEB-BARREL 150“ and tap to connect it. TWS Function • Turn on two ZEB-BARREL 150 speakers. • Press and hold the “M" button for few seconds on any one speaker to activate TWS function.
- Page 6 • Now, search for nearby BT device in your mobile and Tap on the BT name ZEB-BARREL 150 to pair the speaker. Note: Requires two ZEBRONICS ZEB-BARREL 150 speakers for TWS feature. AUX mode Connect the speaker to an audio source (Phone/Laptop) using a 3.5mm to 3.5mm AUX...
- Page 7 Speaker automatically plays the First channel of the FM. Press to switch to previous FM channel and Press to switch to next FM channel. LED Light control Press and hold the LED button to Turn ON/OFF the LED Lights. ISO 9001:2015 Certified Company www.zebronics.com...
