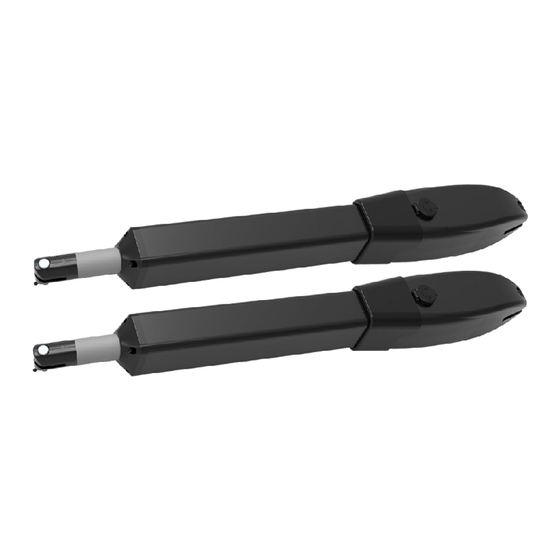

- Page 1 Swing Gate Opener User Manual Model: PKM-C026-400 ★ Thank you for purchasing this product ★ Please read and follow all warnings, precautions and instructions before installation and using ★ Periodic checks of the opener are required to ensure safe operation...
-
Page 2: Table Of Contents
Smart Swing Gate Opener - PKM-C026-400 Table of Contents Safety Installation Information ································ 1-2 Single/Dual Swing Gate Opener Part List ················· 3-4 Technical Specification ············································ 5 Installation ······························································· 6 • Installation Overview ················································· 6 • Dual Gate Overview ·················································· 6 •... -
Page 3: Safety Installation Information
Smart Swing Gate Opener - PKM-C026-400 Safety Installation Information Caution If you use it for a single door, please connect the Motor 2 only. At the same time, the PG mode of the control panel menu needs to be set to 1 (single motor).Please reference the page 19 and 28 to do it. - Page 4 Smart Swing Gate Opener - PKM-C026-400 9. For an installation utilizing non-contact sensors, see the product manual on the placement of non-contact sensors (safety sensors) for each type of application. a. Care shall be exercised to reduce the risk of nuisance tripping, such as when a vehicle trips the safety sensor while the gate is still moving.
- Page 5 Smart Swing Gate Opener - PKM-C026-400 Single Swing Gate Opener Part List Gate Opener Control Box Control Box Screws Pack Remote Control Manual Release 1 pcs 1 pc 2 pcs Key 1 pcs Pivot Arc M10*150 Bolts, Nuts, & Washers 4 pcs...
-
Page 6: Single/Dual Swing Gate Opener Part List
Smart Swing Gate Opener - PKM-C026-400 Dual Swing Gate Opener Part List Gate Opener Control Box Control Box Screws Pack Remote Control Manual Release 2 pcs 1 pc 2 pcs Key 2 pcs Pivot Arc M10*150 Bolts, Nuts, & Washers 8 pcs... -
Page 7: Technical Specification
Smart Swing Gate Opener - PKM-C026-400 • Tools Required Technical Specification Specifications Input power 110V DC Motor voltage 24V DC Power Actuator speed 2.4 cm/s 400mm Max. Actuator travel 400KG Max single-leaf weight 1.2~5 meters Max single-leaf length Ambient Temperature -22°C ~ +55°C... -
Page 8: Installation
Smart Swing Gate Opener - PKM-C026-400 Installation Clevis Pin (O) • Installation Overview M8*70 Bolts, & Washers (N) Pivot Arc Bracket (H) M10*150 Bolts (I) Front Pivot Post Bracket (M) M10*150 Nuts, Brackets (L) & Washers (I) Manual Release Key (E) -
Page 9: Installation Step
Smart Swing Gate Opener - PKM-C026-400 • Installation Step There are two installation types for the gate opener, check for Proper Gate Installation & Direction of Gate. Your Property Your Property Pull-to-Open Option Push-to-Open Option NOTE: Ensure the gate does not open into public areas. - Page 10 Smart Swing Gate Opener - PKM-C026-400 Step 3. Install the Motor Fixed-End to the Gate Post-Bracket (1). Attached the gate bracket and post bracket assembly to the opener by inserting a clevis pin. Secure the clevis pins using the hairpin clips.
- Page 11 Smart Swing Gate Opener - PKM-C026-400 Step 4. There are two installation types for the gate opener, check for Proper Gate Installation & Direction of Gate. Pull-To-Open Installation Mode: The installation possition of the bracket is very important. Please refer to the figure to measure according to the angle you need to open.
- Page 12 Smart Swing Gate Opener - PKM-C026-400 Push to Open Installation Mode The installation possition of the bracket is very important. Please refer to the figure to measure according to the angle you need to open. determine the center point of the shaft and mark it.
- Page 13 Smart Swing Gate Opener - PKM-C026-400 (1). According to the diagram, the post bracket plate is attached the fixed bracket with an appropriate angle. Take out the gate opener arm to install 2pcs Pivot Arc Bracket (H) and Post Pivot Bracket (J) on the gate post.
- Page 14 Smart Swing Gate Opener - PKM-C026-400 (2). Fully open the gate (take 90°as an example) and retract the arm of the gate opener to the shortest position (when determining the position of the gate bracket on the gate, make the gate and the wall when the rear bracket is vertical).
- Page 15 Smart Swing Gate Opener - PKM-C026-400 (2). Motor drainage hole angle adjustment Figure left, Power Cable And Rain Figure right, Power Cable And Rain Drainage Aperture Placed Correctly Drainage Aperture Placed Incorrectly Post Rear Fixed Bracket Lock in Power Cable...
-
Page 16: Mounting & Wiring The Control Box
Smart Swing Gate Opener - PKM-C026-400 Step 6. Gate Rubber Stoper Installation Step 7. Emergency Release Function The schematic diagram of opening the gate body when there is no power is shown above. Please use the emergency release key to loosen the gate brecket and the arm of the gete opener. Then lift it up. -
Page 17: Connection Of Power Supply
Smart Swing Gate Opener - PKM-C026-400 Fix control box to a secure surface by using mounting holes and screws. Connection of Power Supply WARNING: NEVER connect the gate opener to the power supply before all the installation have been done. - Page 18 Smart Swing Gate Opener - PKM-C026-400 Motor1 Motor2 The terminal can be take out from the control board for connecting the wire with external devices, then plug into the control again. NOTE! If the gate opens and closes in the wrong direction or the open/close indicator LED color are wrong when you control the gate operator, please cut off the power, reverse the wires of the wrong motor and reconnect it to the Motor port, then power on again.
- Page 19 Smart Swing Gate Opener - PKM-C026-400 • Type 2: Solar Power Mode Connection (Solar panel, charger and batteries are not included) (Please note the positive and negative poles) • Type 3: By AC Electricity, Solar Panels and Back-up Batteries (Solar panel,...
- Page 20 Smart Swing Gate Opener - PKM-C026-400 1. MOTOR 1: Slave gate, close first & open last.This terminal connects 1st red wire (counted from your left-hand side to your right-hand side). 2. MOTOR 2(Main): Master gate, open first & close last.This terminal connects 2nd blue wire (counted from your left-hand side to your right-hand side).
- Page 21 Smart Swing Gate Opener - PKM-C026-400 • Connect of Push Button Device 10 11 12 Terminal ⑧2SIDE and ⑥COM are use to connect with push button for controlling dual gates. • Connection of Swipe Card Device 10 11 12 Terminal ⑫VCC and ⑩COM are used to supply power to swipe card device.
- Page 22 Smart Swing Gate Opener - PKM-C026-400 • Connection of Photocell Sensor Device 10 11 12 Jumper Terminal ⑫VCC and ⑩COM are used to supply power to safety beam sensor device. So, connect terminal ⑫VCC with the “+” of the safety beam sensor RX and TX device.
-
Page 23: How To Program Or Erase The Remote
Smart Swing Gate Opener - PKM-C026-400 • Connection of electric lock device - Lock + - Lamp + 13 14 15 16 Terminal ⑬LOCK- is used to connect with electric lock blue wire. Terminal ⑭LOCK+ is used to connect with electric lock red wire. -
Page 24: Function Description Of The Control Board
Smart Swing Gate Opener - PKM-C026-400 Erase remote control: ● Hold press the [Learn] button for about 6 seconds. If the buzzer sound with a long beep, release the button and the digital display will show 00, which means remove all remotes successfully. - Page 25 Smart Swing Gate Opener - PKM-C026-400 The safety beam mode can be be selected by menu PF, the default mode is 0, it is normal open mode. 1.While the gate is closing, if the infrared signal meets an obstruction, the gate Safety beam mode will rebound to open.
- Page 26 Smart Swing Gate Opener - PKM-C026-400 1.The system will automatically identify whether it is a 12V or 24V system every time it is powered on. If the power supply voltage is changed, power on again. 2.When the voltage of one battery is less than 13.5V±0.5 and the voltage of two batteries is less than 27V±0.5, the charging function will automatically start and the...
-
Page 27: Control Board Parameters Setting
Smart Swing Gate Opener - PKM-C026-400 Control Board Parameters Setting Check again for complete and correct assembly of your swing gate opener and gate. Plug the Power Grounded Cord into the nearest AC outlet or with Solar Power System. After power on, digital display will self-check from 00-99 with buzzer sound. - Page 28 Smart Swing Gate Opener - PKM-C026-400 Setting of 2Side terminal Please read the details from the table of Setting of 1Side “function description of the control board”. terminal Safety beam mode 1（NO） 0: NC mode, normal close. 0：NC 1: NO mode, normal open.
-
Page 29: Reset The System
Smart Swing Gate Opener - PKM-C026-400 Reset the system If you need to reset the system, please enter the digital display menu setting, select the Po, and press the [Inc/Smart] to increase the value to 5, then press the [Fun] to store it. The system will reset. -
Page 30: Trouble Shooting
Smart Swing Gate Opener - PKM-C026-400 Trouble Shooting Problems Possible Reason Solutions The gate doesn't open or 1.The power is off. 1.Switch on the power supply. close properly, and LED in the 2.Fuse is burn. 2.Check the fuse,change it if it control board doesn't light. - Page 31 Smart Swing Gate Opener - PKM-C026-400 Feedback & Review Your comments and suggestions are important to us as they help us provide the best possible service. Should you have any need to contact us, the info below will help you get in touch INSTALL ATION STEPS CONTACT US Kindly include your Product Model, Purchasing Date &...
Need help?
Do you have a question about the PKM-C026-400 and is the answer not in the manual?
Questions and answers
How do I get double gate to open simultaneously, they're only opening individually not synchronized
To synchronize the opening of double gates on the Jujiang PKM-C026-400:
1. Connect Motor 1 and Motor 2 correctly:
- Motor 1 (Slave gate): Blue wire to “MOTOR 1 +”, red wire to “MOTOR 1 -”.
- Motor 2 (Master gate): Red wire to “MOTOR 2 +”, blue wire to “MOTOR 2 -”.
2. Motor 2 (Master) will open first and close last. Motor 1 (Slave) will close first and open last.
3. Ensure the control panel is set for dual motor operation (not single motor mode).
4. After wiring and mode setup, use the remote control:
- Press once to open both gates in sequence (Motor 2 first).
- Press again to close both gates in sequence (Motor 1 first).
This setup ensures synchronized and sequential operation of both gates.
This answer is automatically generated
@Mr. Anderson Thank you so much that did it.
I’ve installed my gate opener, but it’s not getting power anywhere
The Jujiang PKM-C026-400 gate opener may not be receiving power because it should never be connected to the power supply before all installation steps are completed. If this step is skipped or not done correctly, the unit may remain unpowered. Additionally, the control box must be properly mounted and wired, using copper conductors, and the power supply must be correctly connected as per the instructions.
This answer is automatically generated
Do I have to connect my intercom to the swipe card option or to the 2 side on the control box so that I can open my gate using the intercom swipe card reader
To use the swipe card option with the Jujiang PKM-C026-400, connect the intercom as follows:
- Connect terminal ⑫ (VCC) and terminal ⑩ (COM) to supply power to the swipe card device.
- Connect terminal ⑦ (CARD) and terminal ⑥ (COM) to control the gate using the swipe card.
This answer is automatically generated
I installed an automatic gate lock per the manual diagram, however the latch only opens when I close the gate, not when it opens. Completely opposite of what I need it to do.
The issue could be due to incorrect wiring or configuration of the gate lock latch. The latch should be triggered to release when the gate begins to open, but if it only activates when closing, it may be connected to the wrong control signal or terminal on the control board. Another possibility is that the control logic is reversed or the settings are not correctly programmed for the latch release timing.
This answer is automatically generated
Where is the open limit
The opening limit for the Jujiang PKM-C026-400 Smart Swing Gate Opener is 100°.
This answer is automatically generated

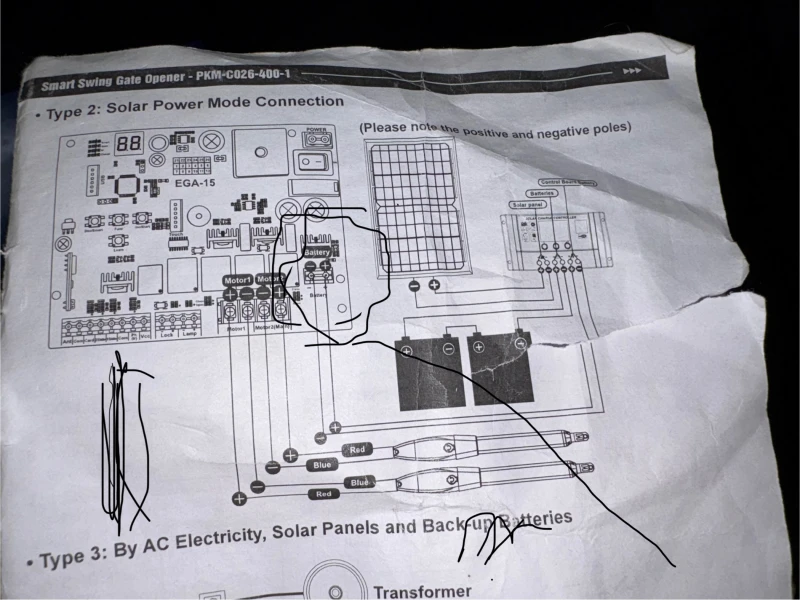

I have no power everything seems to be wired correctly my question is there’s a cord that came out of the bottom I wired it to the solar control box and was I supposed wired the battery in the control box that is in the photo
Yes, the Jujiang PKM-C026-400 solar control box is supposed to have the battery wired into it. The manual states that when the control board connects with the main power (AC power or solar panel) and backup battery, the battery will be charged. Additionally, it mentions voltage thresholds for charging and disconnecting the battery to prevent overcharging.
This answer is automatically generated
i can not get my model tkm-01 keypad to work with a ega-15 controller. also the 2 digit display does not work. does this mean the circuit board is bad? the key fob buttons operate the gates.
How do I set the auto-closing?
Can you program the gate remote to the Homelink system in your car? I cannot get the system to recognize the gate remote.
How I can pair my lock to the system and how I can control the limit the think they both close at the same time and get stuck I think they should be close one first andr second right behind the other to close properly but that’s didn’t happen
