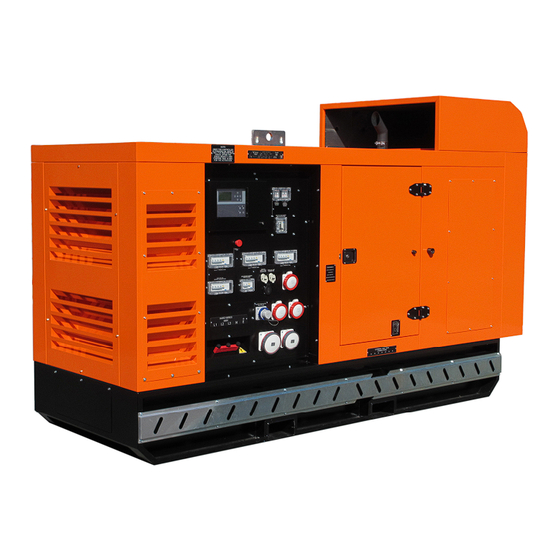

Trime MGTP 100 SSI-5 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MGTP 100 SSI-5
USE MANUAL
Manual code: RP361-100TS4
Revision level: 00 – 31/03/2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MGTP 100 SSI-5 and is the answer not in the manual?

Questions and answers

Related Manuals for Trime MGTP 100 SSI-5

Summary of Contents for Trime MGTP 100 SSI-5

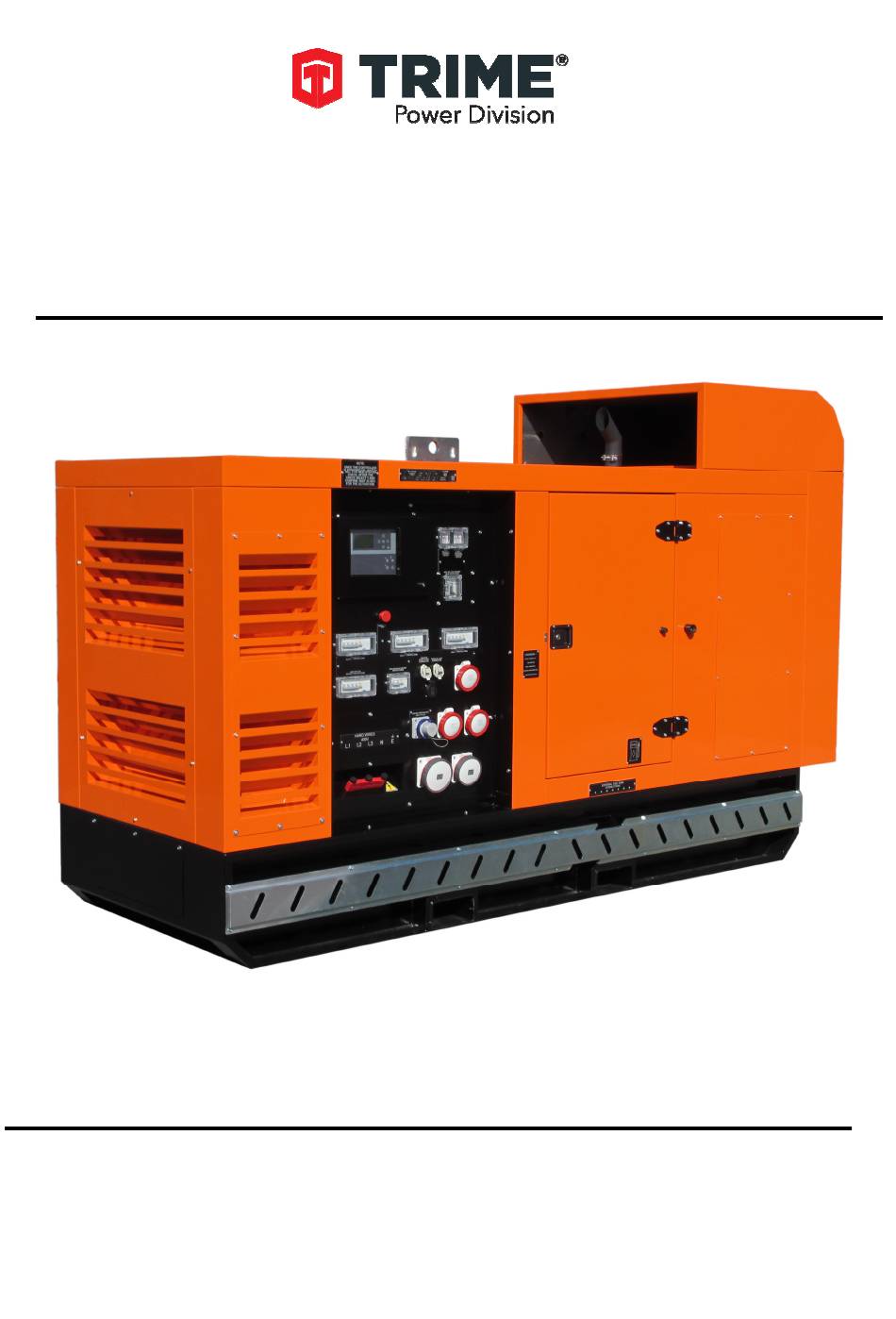

  • Page 1 MGTP 100 SSI-5 USE MANUAL Manual code: RP361-100TS4 Revision level: 00 – 31/03/2023...
  • Page 2 MGTP 100 SSI-5 INDEX 1-TECHNICAL SPECIFICATIONS 1.1- Alternator 1.2- Engine 1.3- Dimensions and weight 2- CONTROLS DESCRIPTION 3- USING MANUAL 3.1- Earth connection 3.2- Use of the generator 3.3- Engine regeneration 3.4- DEF tank 3.5- Motorized main circuit breaker 4- SPARE PARTS 4.1- Base frame spare parts...

  • Page 3: Technical Specifications

    MGTP 100 SSI-5 1- TECHNICAL SPECIFICATIONS 1.1 GENERATOR Type STAMFORD UC274C Single phase power 100 kVA 400V Frequency 50 Hz Cosφ Insulation class Mechanical protection IP 23 1.2 ENGINE Engine type Iveco F36ETVP03.A94 N° cylinders Displacement 3600 cm Power 126 HP Engine speed 1500 r.p.m.

  • Page 4: Controls Description

    MGTP 100 SSI-5 2- CONTROLS DESCRIPTION Pct.2.1...

  • Page 5: Emergency Stop Button

    MGTP 100 SSI-5 N° Description DEIF controller Main circuit breacker Main residual current device 400V 2Ph 125A socket residual current device DEIF supply switch Regeneration in progress signal lamp Manual regeneration starting button Manual regeneration enabling switch 400V 125A socket MCB protections...

  • Page 6: Use Of The Generator

    MGTP 100 SSI-5 3- USING MANUAL 3.1 EARTH CONNECTION Connect the unit to the earth, means the suitable clamp. Earth Leakage Relay. The product is equipped with an Earth Leakage Relay (ELR) which guarantees user protection against electric shocks due to unwanted connect with live parts of the circuit or insulation fault.
  • Page 7 MGTP 100 SSI-5 ISOLATED FUNCTIONING SYSTEM ACTIVATION • Switch ON the DEIF supplying switch (n°5 pct.2.1); The controller will perform the new systems check operation (about 50 sec.). During this check the DEIF monitor will show: • After this operation the controller will ask confirmation, use the menu navigation button (n°3 pct.3.2) to select Y and then push OK.
  • Page 8 MGTP 100 SSI-5 ISOLATED MANUAL FUNCTIONING • Push the SEMI-AUTO button on the DEIF controller (n°7 pct.3.2). • To start the engine push the START button (n°1 pct.3.2). The monitor will show: • To return at the data screen push the OK button (n°3 pct.3.2) •...
  • Page 9 MGTP 100 SSI-5 PARALLEL FUNCTIONING SYSTEM ACTIVATION • Connect the controllers of the 2 units each other by the Parallel Unit Connector n°15 pct.2.1. • Connect the power outputs of the two units each other by the Hard Wires n°21 pct.2.1.
  • Page 10 MGTP 100 SSI-5 PARALLEL MANUAL FUNCTIONING • Push the SEMI-AUTO button on the DEIF controller (n°7 pct.3.2) on both the units. • To start the engines push the START button (n°1 pct.3.2) on both the units. The monitors will show: •...

  • Page 11: Automatic Regeneration

    MGTP 100 SSI-5 3.3 ENGINE REGENERATION The STAGE V engine equip a DPF that needs to be regenerated periodically. AUTOMATIC REGENERATION During the normal functioning of the machine the engine controller will launch the automatic regenerating procedure. This does not affect the performance of the machine in any way.

  • Page 12: Manual Regeneration

    MGTP 100 SSI-5 MANUAL REGENERATION If the automatic regeneration fail, or however when needed, the machine can ask to perform a manual regeneration cycle. The DEIF controller monitor will show: The shown values may change To start the manual regeneration: •...
  • Page 13 MGTP 100 SSI-5 If the manual regeneration is not done in a short time, the soot level in the DPF will continuously increase and the machine will continue to ask a manual regeneration with the following message: The shown values may change If the manual regeneration is not done in a short time from the STAT 3, the engine will block, and it will necessary the intervention of specialized personnel from FPT.
  • Page 14 MGTP 100 SSI-5 3.5 MOTORIZED MAIN CIRCUIT BREAKER Pct. 3.5 The motorized circuit breaker disarms when: • Emergency stop button is pushed • Differential relay has detected earth leakage • 125A socket or Hardwire has a fault (short circuit) • With engine on, the Deif controller is switched off •...

  • Page 15: Spare Parts

    MGTP 100 SSI-5 4- SPARE PARTS 4.1 BASEFRAME SPARE PARTS...
  • Page 16 MGTP 100 SSI-5 N° Code Description 419-122 Lifting beam 419-017 Fuel filter bracket C006-522 Fuel filter 419-121 Racor filter bracket C003-1752 Racor coupling C003-1750 Racor filter C003-019 Battery switch 352-499 Battery switch housing 352-500 Battery switch closure 419-123 Tie rod...
  • Page 17 MGTP 100 SSI-5 4.2 POWER PACK SPARE PARTS...
  • Page 18 MGTP 100 SSI-5 N° Code Description 331-230-SX Alternator cover 331-230 Alternator cover C010-025 Stamford UC274C 017-643 Oil discharge hose cap 419-163 Oil discharge hose C006-515 Iveco F36ETVP03.A94 419-139 Radiator pan bracket 419-149 Exhaust flexy-pipe 419-148 Exhaust escape 419-049 Exhaust elongation...
  • Page 19 MGTP 100 SSI-5 4.3 CANOPY SPARE PARTS...
  • Page 20 MGTP 100 SSI-5...
  • Page 21 MGTP 100 SSI-5 N° Code Description 419-137 Air duct 419-083 Canopy top Z331-072 Lifting hook C003-777 Manhole 419-050 Inox platen 419-105 Bulkhead 352-512-B Alluminium platen 419-138 Alluminium platen 419-126 Air intake grid 419-042 Edge 419-084 Front right corner 419-128 Air intake grid...
  • Page 22 MGTP 100 SSI-5 4.4 CABINET SPARE PARTS...
  • Page 23 MGTP 100 SSI-5 N° Code Description C006-546 Engine interface box C001-197 10 poles connector 419-052 Cover Z331-071 Hard wires closure C001-032 Security switcjh C003-066 Wire crossing Z334-042 Platen 419-088 Cabinet Z334-056 Alluminium platen C003-144-200 Omega bar C003-1241 Clamp C003-1715 Clamp closer...
  • Page 24 MGTP 100 SSI-5 4.5 CONTROL PANEL SPARE PARTS...
  • Page 25 MGTP 100 SSI-5...
  • Page 26 MGTP 100 SSI-5 N° Code Description C003-1036 Lockage 352-479 Door C001-1416 DEIF controller C003-744 Circuit breaker cover C003-030 Circuit breaker cover 419-093 Circuit breaker bracket C001-1437 C001-115 3 way switch C001-867 Red signal lamp C001-291-1 Green button 1NO C001-788 125A 4 poles MCCB with tripping coil...

  • Page 27: Wiring Diagrams

    MGTP 100 SSI-5 WIRING DIAGRAMS...
  • Page 28 MGTP 100 SSI-5...
  • Page 29 MGTP 100 SSI-5...
  • Page 30 MGTP 100 SSI-5 6- GENERAL USE INSTRUCTION 6.1 TRANSPORTATION The machine must be fixed carefully to the motor vehicle if it has to be moved to the place of use. Raise the machine using the lifting eye if the model foresees it;...
  • Page 31 MGTP 100 SSI-5 Strada per Robecco – 20080 Cassinetta di Lugagnano (MI) Italy Tel. +39 029421724...
