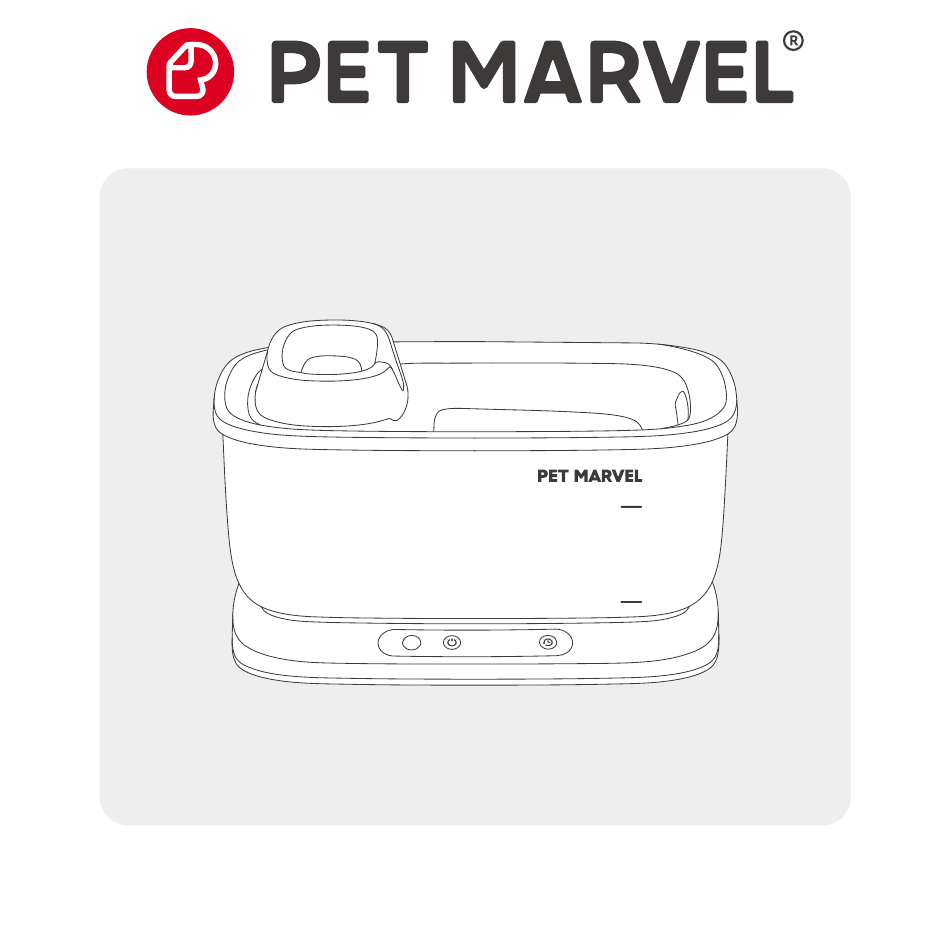

- Page 1 Auto Pet Water Fountain [F2 V2 WIRELESS]...
- Page 2 If you have any questions during use, please feel free to contact User Service Department: customerservice@petmarvel.com Or directly contact the distributor who you bought this product from. Scan the QR code below or search "PET MARVEL" in App Store/Google Play to download our App to find more products. Scan to download App...
-
Page 4: Safety Instructions
❶ User Information Dear User, thank you for purchasing the Pet Marvel Auto Pet Water Fountain [F2 V2 WIRELESS]. · Before use, please read this manual carefully. By installing or using this product, you agree to the following safety guidelines. - Page 5 Note · Clean or maintain the device only when it is turned off or disconnected from power. · Do not use the device in environments below 0°C or above 40°C. · Keep away from fire and high-temperature sources. · Use the device indoors and do not expose it to direct sunlight. ·...
- Page 6 ❷ Product Overview Water Outlet Tray Stainless Steel Drinking Tray Filter Cartridge Box Water Outlet Pipe Water Pump Indicator Light Power Button Filter Reset Button Water Tank Base Charging Port FEEDING SERIES...
-
Page 7: Button Operations
Button Operations Button Operation Status Press for 3 seconds Turn on/off Power Button Double click Switch water modes Filter Reset Button Press for 3 seconds Reset filter replacement timer Light Descriptions Indicator Color Status Status light Blue Sensor mode active Status light Green Timer mode active... - Page 8 ❸ Package Contents Note After opening the package, please ensure that the product is intact and compare the accessories with the diagram below to confirm their completeness. Due to ongoing productup- dates and iterations, some accessories may undergo adjustments. Please refer to the actual items for accuracy.
-
Page 9: Installation
❹ Usage Installation 1. Assemble the water outlet tray and filter according to the diagram. (① Rinse the filter with clean water and soak it for 2 minutes before use to remove dust on the surface. ② For optimal filtration, replace the filter every four weeks.) 2. - Page 10 3. Connect the water pipe to the pump and pour in clean drinking water. Note: Do not exceed the MAX water line. 4. Finally, install the drinking tray, and the device is ready for use. FEEDING SERIES...
- Page 11 Operation Power On/Off Touch the power button for 3 seconds to turn on/off. Usage Modes After powering on，the default is set sensor mode. Sensor Mode: The dispenser will activate a water fountain immediately, then every 2 hours for cleaning. When a pet is detected nearby, it will activate the fountain, indicated by a blue light.
- Page 12 Charging The red battery icon flashes when the battery is low. Connect the charger to ensure normal operation. While charging, the white battery icon flashes. When fully charged, the battery icon turns off. Note: Fully insert the rubber plug into the charging port groove when not using the power cord.
- Page 13 ❺ Maintenance & Cleaning Apart from the base, other parts can be washed with water. Replace the filter and pump sponge every four weeks. Clean the water tank and drinking tray every three days. Regularly check and clean the pump. How to Clean the Pump Remove the pump cover, impeller cover, and impeller as shown in the...
- Page 14 ❻ Specifications Product Name: Capacity: 7L N.W.: ≈2.3kg Auto Pet Water Fountain[F2 V2 WIRELESS] Product Model: NDSWD001 Input: 5V Main Materials: ABS, SUS304 Battery Capacity: 5200mAh Product Size: 370*300*206mm Product Grade: Qualified FEEDING SERIES...
-
Page 15: Troubleshooting Guide
❼ Troubleshooting Guide Fault Description Solution The product ran out of Due to the characteristics of lithium batteries, the power shortly after original battery is set to around 50% and may slowly receiving it. decrease over time. It is recommended to fully charge the battery after receiving it. - Page 16 Dear customers, thank you for purchasing this product, please read the below warranty terms carefully before using: Only apply to eligible purchases made directly from the Pet Marvel authorized distributors. Warranty coverage applies to the original owner and the original product only. And is not transferable.
- Page 20 Note: Pictures on this brochure are for reference only, and the product is subject to the real object.
