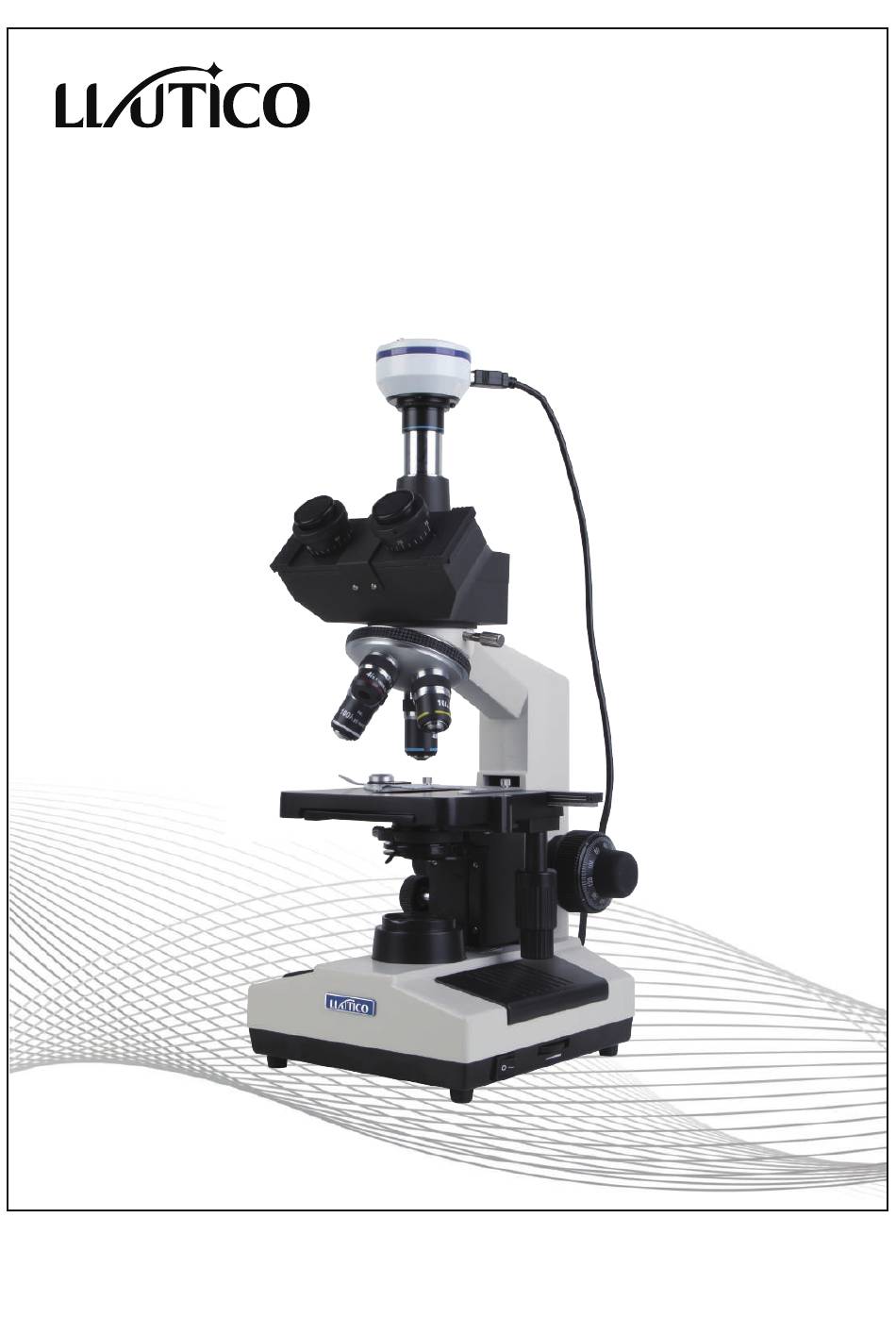

Biological Microscope
Model Number:XSZ-N107T-DE
User Manual
Store Name：LluticoDE
Contact：+8618106639615
Email：lluticoeu@outlook.com
This manual is written for Biological Microscope of XSZ-N107T-DE.
For safety and for exerting the best performance, making you familiar with the instrument entirely,
it is strongly recommended that you read this manual carefully before using the microscope.
Advertisement
Related Manuals for Llutico XSZ-N107T-DE
Summary of Contents for Llutico XSZ-N107T-DE
- Page 1 Contact：+8618106639615 Email：lluticoeu@outlook.com This manual is written for Biological Microscope of XSZ-N107T-DE. For safety and for exerting the best performance, making you familiar with the instrument entirely, it is strongly recommended that you read this manual carefully before using the microscope.
-
Page 2: Table Of Contents
Contents XSZ-N107T-DE Contents ......................1. User Notices ....................1. Safety Precautions ................... 2. Maintenance and Storag ............... 2. Name of Components ................3. Installation ....................3.1 Installing Diagram.................. 3.2 Microscope Working Environment ........... 3.3 Input Voltage Check ................3.4 Installing Setps .................. -
Page 3: User Notices
1. Use Notices XSZ-N107T-DE Ⅰ. Safety Precautions 1. Carefully open the box, avoid the accessories, like lens, dropping to ground and being damaged. 2. Do keep the instrument from direct sunlight, high temperature or humidity, dusty and easy shaking environment. Make sure the stage is smooth, horizontal and firm enough. -
Page 4: Name Of Components
2. Name of Components XSZ-N107T-DE Trinocular Eyepiece Observation Tube Setting Screw Main Frame Revolving Nosepiece Mechanical Ruler Objective condenser Collector lens Stage Microscope Body Brightness Controller Main Switch Biological Microscope XSZ-N107T-DE... -
Page 5: Installation
3. Installation XSZ-N107T-DE 3.1 Installing Diagram The following figure shows the installation sequence of the components. The number in the figure shows the assembly steps. ★ Before installing, be sure every components is clean, do not score any parts or glass surface. -
Page 6: Microscope Working Environment
XSZ-N107T-DE 3.2 Microscope Working Environment a）Humidity Range: +10℃へ40℃ b）R.H. Rang: 30%～75% c）Atmosphere Pressure Range: 700hpa～1060hpa d）Power Supply: AC 100-240V 50/60Hz 3.3 Input Voltage Check Be sure the input voltage which signed on the back of the microscope is consistent with the power supply voltage, or it will bring a serious damage to the instrument. - Page 7 XSZ-N107T-DE 3.4.3 Installing the Objective（Fig.5&6） 1. Adjusting the coarse focus knob until the support device of the mechanical stage reaches its low limit position. 2. Screw the lowest magnification objective into the nosepiece from the left or the right side, then revolve Fig.5...
- Page 8 XSZ-N107T-DE 3.4.5 Connecting the Power Adapter (Fig.8-10) ★ The cable and cords are vulnerable when bent or twisted, never subject the Power Adapter to excessive force. 1. Before connecting the Power Adapter, switch the main ① switch① to “O”(off ).
-
Page 9: Adjustment And Operation
4. Adjustment and Operation XSZ-N107T-DE 4.1 Diagram of Controls（Fig.15&16） Locking Set Diopter Adjustment Ring Interpupillar Distance Indicator Left Coarse Focus Knob Left Fine Focus Knob Longitudinal Adjustment Knob Transversal Adjustment Knob Condenser Adjustment Knob Aperture Diaphragm Adjustment Lever Fig.13 Locking set... -
Page 10: Using The Controls
XSZ-N107T-DE 4.2 Using the controls 4.2.1 Adjusting the brightness（Fig.15） 1. Connect the power supply, turn on the main switch ① (figure 16) to “-” (on) state. 2.Turning the brightness adjustment knob② anti-clockwise, the voltage raise, and the brightness ② strengthen; turning it clockwise, the voltage decline, ①... - Page 11 XSZ-N107T-DE ● The tightness of the tension adjustment collar has been adjusted before leaving factory, if finding it’ s loosing (the mechanical stage drop itself because of deadweight), please turning the tension adjustment collar③ until the tightness is in order.
- Page 12 XSZ-N107T-DE ● Generally, we can get the good quality image with sufficient contrast when the aperture diaphragm opened to the 70～80% of the objective’s numerical aperture. If the opening of the aperture diaphragm too small, then it will lead to low ①...
-
Page 13: Technical Specification
5. Technical Specification XSZ-N107T-DE 5.1 Electrical Parameters 1) Voltage input: AC100-240V 50/60 Hz 2) Fuse rating: T250V 500mA 3) Illuminator: S- LED W1 5.2 Mechanical tube: 160mm 5.3 Objective Numerical Value Cover Glass Focal Length Working Magnification aperture Type Thickness (mm) （mm）... - Page 14 XSZ-N107T-DE Product Name Specification Standard outfit Main frame ● Main body Double-Layers Mechanical stage ● Condenser holder ● Viewing head ● Sliding binocular inclined at 45° Abbe condenser NA=1.2 ● Condenser Dark field condenser( dry) 〇 Dark field condenser(oil) 〇...
-
Page 15: Trouble Shooting
6. Trouble Shooting XSZ-N107T-DE 6.1 Optical Part PROBLEMS REASON FOR PROBLEMS SOLUTION The nosepiece is not in the Adjust it into the located position located position( The objective is not ( turning the objective to let it in the 1. The edge of the... -
Page 16: Mechanical Part
XSZ-N107T-DE The opening of aperture diaphragm is too small Adjust it again 6. The brightness The position of condenser is too low Adjust its position is not enough The surface of the lens has contaminant Clean the lens (condenser、objective、 eyepiece、... -
Page 17: Warranty
8. Warranty XSZ-N107T-DE 90-Day Money Back You May Return Your Product For A Full Refund Within The First 90 Days Of Your Purchase. 1-year parts warranty If you encounter any quality problem with this product within one year after using it, please contact us.
