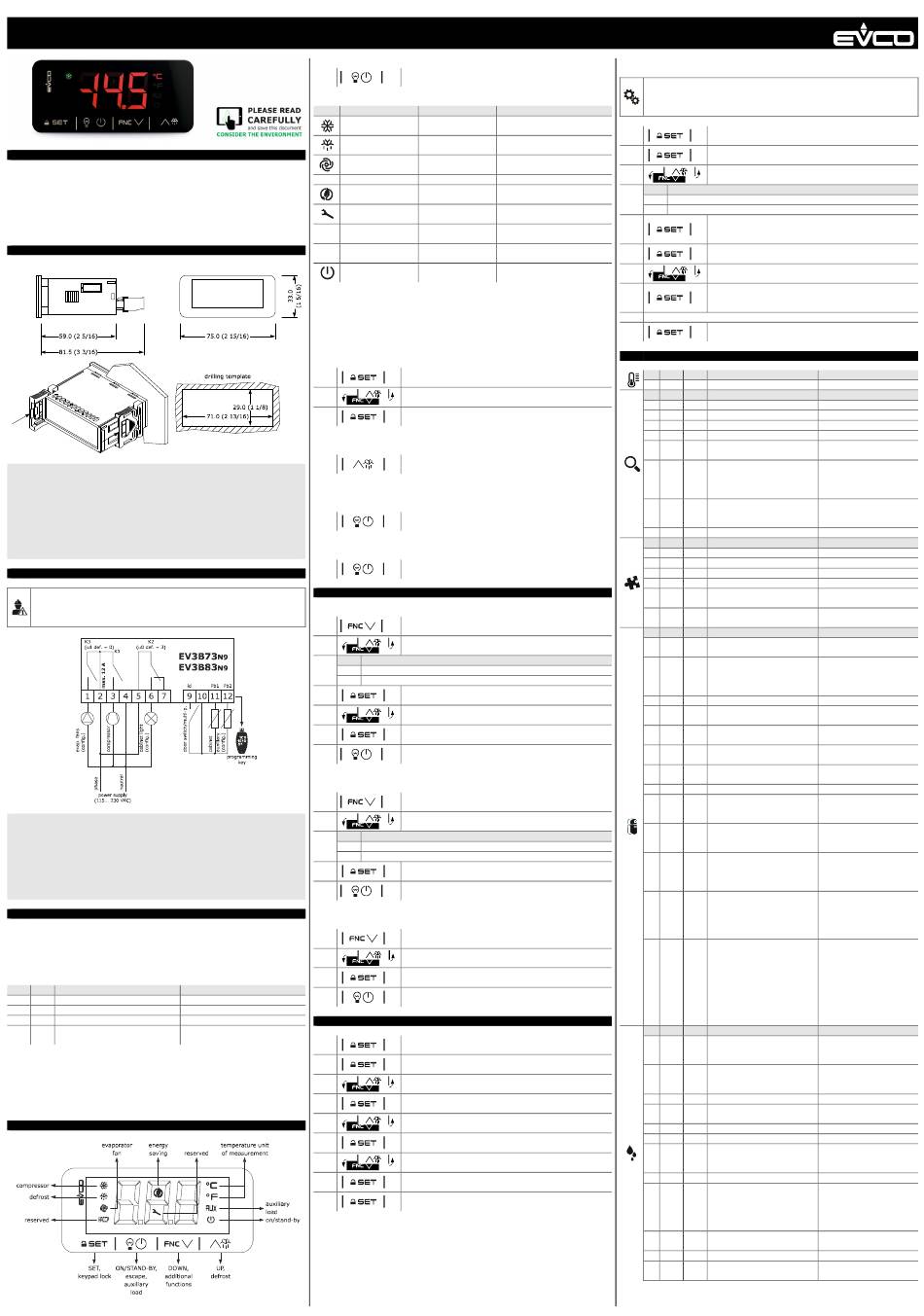

Evco EV3B73 Quick Start Manual

EVCO S.p.A. | EV3B73/EV3B83 | Instruction sheet ver. 1.0 | Code 1043B73E103 | Page 1 of 2 | PT 37/21
EV3B73/EV3B83
E ENGLISH
- Controllers for low temperature units
- Power supply 115... 230 VAC
- Cabinet probe and auxiliary probe (PTC/NTC)
- Door switch/multi-purpose input
- Compressor relay rated 16 res. A @ 250 VAC (EV3B73) or 30 res. A @ 250 VAC
(EV3B83)
- Compressor protection against mains voltage fluctuations
- Cooling or heating operation
1 MEASUREMENTS AND INSTALLATION
Measurements in mm (inches). To be fitted to a panel, snap-in brackets provided.
INSTALLATION PRECAUTIONS
- The thickness of the panel must be between 0.8 and 2.0 mm (1/32 and 1/16 in)
- Ensure that the working conditions are within the limits stated in the TECHNICAL
SPECIFICATIONS section
- Do not install the device close to heat sources, equipment with a strong magnetic field,
in places subject to direct sunlight, rain, damp, excessive dust, mechanical vibrations
or shocks
- In compliance with safety regulations, the device must be installed properly to ensure
adequate protection from contact with electrical parts. All protective parts must be
fixed in such a way as to need the aid of a tool to remove them
2 ELECTRICAL CONNECTION
N.B.
- Use cables of an adequate section for the current running through them
- To reduce any electromagnetic interference connect the power cables as far away
as possible from the signal cables
PRECAUTIONS FOR ELECTRICAL CONNECTION
- If using an electrical or pneumatic screwdriver, adjust the tightening torque
- If the device has been moved from a cold to a warm place, the humidity may have
caused condensation to form inside. Wait about an hour before switching on the power
Make sure that the supply voltage, electrical frequency and power are within the set
-
limits. See the section TECHNICAL SPECIFICATIONS
- Disconnect the power supply before doing any type of maintenance
- Do not use the device as safety device
For repairs and for further information, contact the EVCO sales network
-
3 FIRST-TIME
1. Install following the instructions given in the section MEASUREMENTS AND INSTALLA-
TION.
2. Power up the device as shown in the section ELECTRICAL CONNECTION and an internal
test will be run.
The test normally takes a few seconds, when it is finished the display will switch off.
3. Configure the device as shown in the section Setting configuration parameters.
Recommended configuration parameters for first-time use.
PAR. DEF. PARAMETER
SP 0.0 setpoint
P0 1 probe type
P2 0 temperature unit of measurement
d1 0 defrost type
Then check that the remaining settings are appropriate; see the section CONFIGURA-
TION PARAMETERS.
4. Disconnect the device from the mains.
5. Make the electrical connection as shown in the section ELECTRICAL CONNECTION with-
out powering up the device.
6. Power up the device.

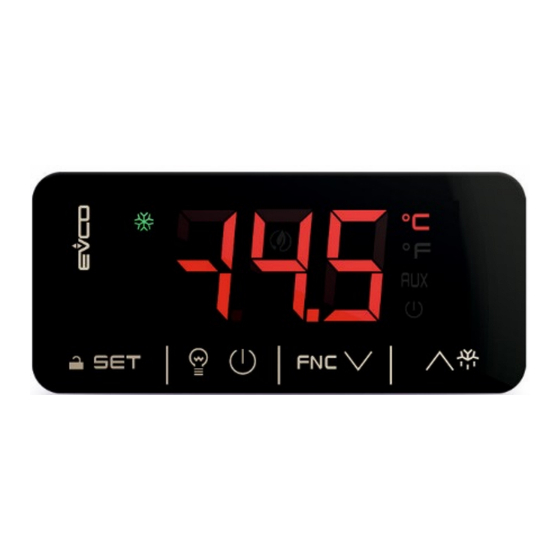

4 USER INTERFACE AND MAIN FUNCTIONS
Controllers for refrigerated units,
with compressor protection against mains voltage fluctuations
4.1 Switching the device on/off
1.
If the device is switched on, the display will show the P5 value ("cabinet temperature" default);
if the display shows an alarm code, see the section ALARMS.
LED ON
compressor on
defrost active
evaporator fan on
HACCP reserved
energy saving active
riservato
view temperature
°C/°F
cabinet light or button-
AUX
operated load on
device off
If 30 s have elapsed without the keys being pressed, the display will show the "Loc" label and
the keypad will lock automatically.
4.2 Unlock keypad
Touch a key for 1 s: the display will show the label "UnL".
4.3 Set the setpoint
Check that the keypad is not locked.
1.
2.
3.
4.4 Activate manual defrost (if r5 = 0, default)
Check that the keypad is not locked and that overcooling is not active.
1.
If P4 = 1 (default), defrost is activated provided that the evaporator temperature is lower than
the d2 threshold.
4.5 Cabinet light on/off (if u0 = 3, default or if u1 = 3)
1.
4.6 Button-operated load on/off (if u0 = 1)
Check that the keypad is not locked.
1.
5 ADDITIONAL FUNCTIONS
5.1 View/delete compressor functioning hours
Check that the keypad is not locked.
1.
2.
LAB.
CH
rCH
3.
4.
5.
6.
5.2 View the temperature detected by the probes
Check that the keypad is not locked.
1.
2.
LAB.
Pb1
Pb2
3.
4.
5.3 View the mains voltage
Assicurarsi che la tastiera non sia bloccata.
1.
2.
3.
MIN... MAX.
4.
r1... r2
0 = PTC 1 = NTC
0 = °C 1 = °F 6 SETTINGS
0 = electric 1 = hot gas 6.1 Setting configuration parameters
2 = compressor stopped
1.
2.
3.
4.
5.
6.
7.
8.
9.
If POF = 1, touch the ON/STAND-BY key for 4 s.
OFF FLASHING
compressor off - compressor protection active
- setpoint setting active
- - defrost delay active
- dripping active
evaporator fan off evaporator fan stop active
- -
- -
- -
- -
cabinet light or button- - cabinet light on by digital input
operated load off - auxiliary load delay active
device on device on/off active
Touch the SET key.
Touch the UP or DOWN key within 15 s to set the value within
the limits r1 and r2 (default "-40... 50")
Touch the SET key (or do not operate for 15 s).
Touch the UP key for 2 s.
Touch the ON/STAND-BY key.
Touch the ON/STAND-BY key (for 2 s if u1 = 3).
Touch the DOWN key for 4 s.
Touch the UP or DOWN key within 15 s to select a label.
DESCRIPTION
view compressor functioning hours (hundreds)
delete compressor functioning hours
Touch the SET key.
Touch the UP or DOWN key to set "149" (when label "rCH" is se-
lected).
Touch the SET key.
Touch the ON/STAND-BY key (or do not operate for 60 s) to exit
the procedure.
Touch the DOWN key for 4 s.
Touch the UP or DOWN key within 15 s to select a label.
DESCRIPTION
cabinet temperature
auxiliary temperature
Touch the SET key.
Touch the ON/STAND-BY key (or do not operate for 60 s) to exit
the procedure.
Touch the DOWN key for 4 s.
Touch the UP or DOWN key within 15 s to select "UOL".
Touch the SET key.
Touch the ON/STAND-BY key (or do not operate for 60 s) to exit
the procedure.
Touch the SET key for 4 s: the display will show the label "PA".
Touch the SET key.
Touch the UP or DOWN key within 15 s to set the PAS value (de-
fault "-19").
Touch the SET key (or do not operate for 15 s): the display will
show the label "SP".
Touch the UP or DOWN key to select a parameter.
Touch the SET key.
Touch the UP or DOWN key within 15 s to set the value.
Touch the SET key (or do not operate for 15 s).
Touch the SET key for 4 s (or do not operate for 60 s) to exit the
procedure.
6.2 Restore the factory settings (default) and store customized settings as default
N.B.
- Check that the factory settings are appropriate; see the section CONFIGURATION
PARAMETERS
- the storing of customized settings overwrites the default
1. Touch the SET key for 4 s: the display will show the label "PA".
2. Touch the SET key.
3. Touch the UP or DOWN key within 15 s to set the value.
VAL. DESCRIPTION
149 value to restore the factory settings (default)
161 value to store customized settings as default
Touch the SET key (or do not operate for 15 s): the display will
4. show the label "dEF" (when value "149" is set) or the label
"MAP" (when value "161" is set).
5. Touch the SET key.
6. Touch the UP or DOWN key within 15 s to set "4".
Touch the SET key (or do not operate for 15 s): the display will
7. show for 4 s "- - -" flashing, then the device will exit the proce-
dure.
8. Interrupt the power supply to the device.
Touch the SET key 2 s before action 6. to exit the procedure be-
9.
forehand.
7 CONFIGURATION PARAMETERS
N. PAR. DEF. SETPOINT
1 SP 0.0 setpoint
N. PAR. DEF. ANALOGUE INPUTS
2 CA1 0.0 cabinet probe offset
3 CA2 0.0 auxiliary probe offset
4 P0 1 probe type
5 P1 1 enable °C decimal point
6 P2 0 temperature unit of measure-
ment
7 P4 1 auxiliary probe function
8 P5 0 value displayed
9 P8 5 display refresh time
N. PAR. DEF. REGULATION
10 r0 2.0 setpoint differential
11 r1 -40 minimum setpoint
12 r2 50.0 maximum setpoint
13 r4 0.0 setpoint offset in energy saving
14 r5 0 cooling or heating operation
15 r12 0 position of the r0 differential
N. PAR. DEF. COMPRESSOR
16 C0 0 compressor on delay after pow-
er-on
17 C2 3 compressor off minimum time
18 C3 0 compressor on minimum time
19 C4 0 compressor off time during cabi-
net probe alarm
20 C5 10 compressor on time during cabi-
net probe alarm
21 C6 80.0 threshold for high condensation
warning
22 C7 90.0 threshold for high condensation
alarm
23 C8 1 high condensation alarm delay
24 C14 190 mains voltage threshold below
which the compressor is not
switched on
25 C15 180 mains voltage threshold below
which the compressor is switched
off
26 C16 260 mains voltage threshold above
which the compressor is not
switched on or switched off
27 C17 5 consecutive duration of the per-
manence of the mains voltage
outside the thresholds C15 and
C16 due to the compressor being
switched off
28 C18 5 consecutive number of
compressor starts due to the
mains voltage outside
thresholds C14 and C16 such as
to cause the forced start-up of
the compressor
N. PAR. DEF. DEFROST (if r5 = 0)
29 d0 8 automatic defrost interval
30 d1 0 defrost type
31 d2 2.0 threshold for defrost end
32 d3 30 defrost duration
33 d4 0 enable defrost at power-on
34 d5 0 defrost dealy after power-on
35 d6 2 value displayed during defrost
36 d7 2 dripping time
37 d8 0 defrost interval counting mode
38 d9 0.0 evaporation threshold for auto-
matic defrost interval counting
39 d11 0 enable defrost timeout alarm
40 d15 0 compressor on consecutive time
for hot gas defrost
MIN... MAX.
r1... r2
MIN... MAX.
-25... 25 °C/°F
-25... 25 °C/°F
0 = PTC 1 = NTC
0 = no 1 = yes
0 = °C 1 = °F
0 = disabled
1 = evaporator probe (de-
frost + fan)
2 = condenser probe
0 = cabinet temperature
1 = setpoint
2 = auxiliary temperature
0... 250 s : 10
MIN... MAX.
1... 15 °C/°F
-99 °C/°F... r2
r1... 199 °C/°F
0... 99 °C/°F
0 = cooling
1 = heating
0 = asymmetric
1 = symmetric
MIN... MAX.
0... 199 min
0... 199 min
0 = protection against mains
voltage fluctuations dis-
abled
0... 199 s
0... 240 min
0... 240 min
0... 199 °C/°F
differential = 2 °C/4 °F
0... 199 °C/°F
0... 15 min
0... 300 V
the device attempts to switch
on every 30 s
0... 300 V
if satisfied C17 time
0... 300 V
if satisfied C17 time
the device attempts to switch
on every 30 s
0... 60 s
failed 0... oo
0 = protection against mains
the voltage fluctuations dis-
abled
oo = the device never makes
the forced start-up of
the compressor
the interruption of the power
supply resets the count
MIN... MAX.
0... 99 h
0 = only manual
if d8 = 3, maximum interval
0 = electric
1 = hot gas
2 = compressor stopped
-99... 99 °C/°F
0... 99 min
se P4 = 1, maximum duration
0 = no 1 = yes
0... 199 min
0 = cabinet temperature
1 = display locked
2 = dEF label
0... 15 min
0 = device on hours
1 = compressor on hours
2 = hours evaporator tem-
perature < d9
3 = adaptive
-99... 99 °C/°F
0 = no 1 = yes
0... 99 min
