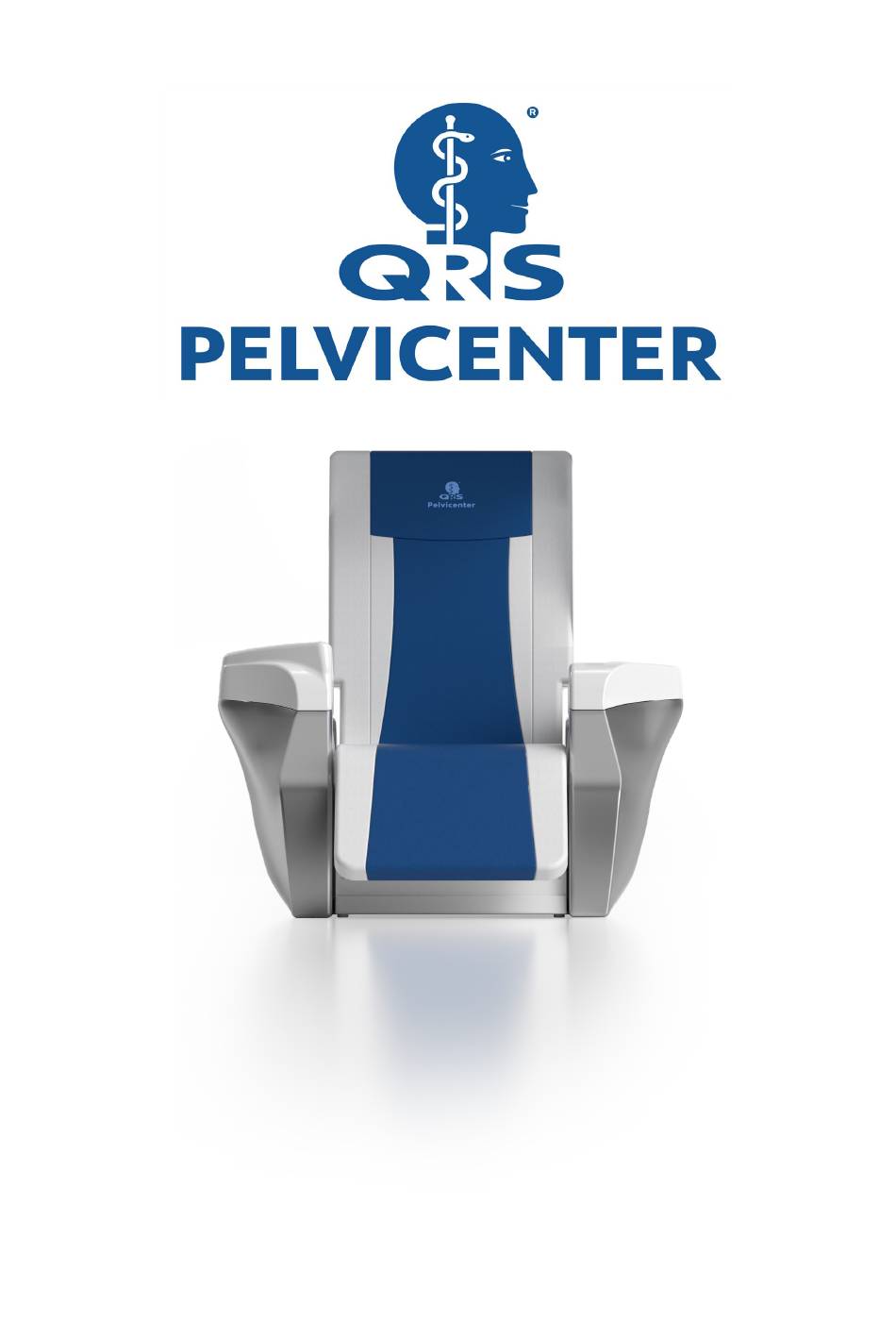

- Page 1 USER MANUAL BASIC MODEL QRS MAGNOVIT AG | INDUSTRIERING 3 | 9491 RUGGELL | LIECHTENSTEIN | USER MANUAL BASIC MODEL...
- Page 2 Nevertheless, it raises no claim to completeness. All information and data are subject to be changed without previous announcement. Without explicit written approval of the QRS Magnovit AG no part of this manual may be copied or transferred for any purposes, no matter, in which way or with which technology this happens, electronically or mechanically.
- Page 3 QRS 1010 Pelvicenter | User Manual | Basic-Modell Pictograms Warning! The warnings have absolutely to be followed! Attention! Follow the instructions! Note! Information which simplify your work. © QRS Magnovit AG 2023 Manual Pelvicenter Page 3 of 34...
-
Page 4: Table Of Contents
QRS 1010 Pelvicenter | User Manual | Basic-Modell TABLE OF CONTENTS 1 INTRODUCTION ........................6 1.1 Intended use ..............................6 1.2 Indications ................................ 6 1.3. Patient Setting ..............................6 1.3 Device overview ............................... 7 1.5 Notes to the operating staff..........................8 1.6 Description right control panel ......................... - Page 5 QRS 1010 Pelvicenter | User Manual | Basic-Modell 6.4 Dispose of the device and accessories ......................25 7. CONTRAINDICATIONS AND SAFETY PRECAUTIONS ..............26 7.1 Contraindications ............................26 7.2 Patient safety ..............................26 7.3 Systems safety ..............................27 7.4 Usage by children or teenagers ........................27 7.5 Safety precautions and cautionary notes ......................27...
-
Page 6: Introduction
QRS 1010 Pelvicenter | User Manual | Basic-Modell 1 Introduction 1.1 Intended use The QRS ® Pelvicenter serves an adjuvant treatment of incontinence with a muscle stimulation by the "REPETITVE PERIPHAL MAGNETIC STIMULATION" (rPMS). The rPMS procedure is based on the Faraday's principle of the magnetic induction so that a pulsating magnetic field is generated. -
Page 7: Device Overview
QRS 1010 Pelvicenter | User Manual | Basic-Modell 1.3 Device overview Electronic moveable back section Washable textile leather Left control panel with chipcard slot Big size seat with 65 cm Electronic moveable rPMS magnetic flux stimulator 16 cm Electronic moveable Footer Right control panel for adjusting therapy settings ©... -
Page 8: Notes To The Operating Staff
QRS 1010 Pelvicenter | User Manual | Basic-Modell 1.5 Notes to the operating staff The uses of the device may occur only by a medical specialist. 1.6 Description right control panel Operating field of the QRS - Pelvicenter ® Modification keys... -
Page 9: Description Of The Display
QRS 1010 Pelvicenter | User Manual | Basic-Modell 1.6.1 Description of the Display The QRS ® Pelvicenter has a 40-figure display. The shown contents, depending on the current function of the device and is described closer in chapter 3. Display during the therapy... -
Page 10: Description Left Control Panel
QRS Pelvicenter version QRS 101P. ® ® Basic settings like the time and the language can be changed in the QRS 101P by a ® special sequence. (see 1.7.1 and 1.7.2) The QRS Pelvicenter is switched on and switched off by plugging in and taking out the chip card. -
Page 11: Setting The Clock
QRS 1010 Pelvicenter | User Manual | Basic-Modell 1.7.1 Setting the clock In the QRS ® Pelvicenter is in the left armrest the QRS ® 101P control system with a clock integrated (battery- buffered clock). This clock can set by the menu. -
Page 12: Setting The Language
QRS 1010 Pelvicenter | User Manual | Basic-Modell 1.7.2 Setting the language The user guide of QRS ® 101P can be provided in different national languages. For the changing of the national language the operating face of the device makes available a suitable menu guidance. You can reach this menu, by •... -
Page 13: Description Of The Display
QRS 1010 Pelvicenter | User Manual | Basic-Modell 1.9 Description of the display After the plug in of the chip card the QRS ® 101P system is started with the following notification Pelvicenter VX.X system check ... System OK Please wait The messages indicate the software version, and gives you information about the current state to the operator. -
Page 14: Transport And Assembly
QRS 1010 Pelvicenter | User Manual | Basic-Modell 2 Transport and assembly 2.1 Device installation The QRS ® Pelvicenter is a local-bound, mains-operated device which is not moved during the appropriate use. As a setup site every level surface is suitable. The device may not be put up in front of a heater or warm blower (keep about 1m of distance). -
Page 15: Turning On The Device
The head part can be moved down if the patient should also receive a light therapy. For this, the key „head part down“ can be pressed until the head part is completely lowered down. Now the therapy can be started with help of the start key on the QRS ® Pelvicenter operating feature. -
Page 16: Interruption Of The Therapy
The applicator for this therapy is integrated into the back support. At the end of the treatment duration of the magnetic field, the therapy stops and a beep in the QRS 101P ®... -
Page 17: Switching Off The Device
Pelvicenter, the QRS ® Pelvicenter can be switched off. For this you pull out the programmed chip card from of the card slot of the QRS ® 101P in the left armrest. The ® 101P automatically switches off immediately and the display becomes black. The disconnection of the operating feature in the right armrest occurs with delay. -
Page 18: Functional Characteristics
3. Functional characteristics 3.1 Basic functions Basically the QRS ® Pelvicenter is activated by inserting the chip card into the card slot of the QRS ® 101P. The therapy is started by pressing the key and can be interrupted or stopped at any time by pressing repeatedly. -
Page 19: Setting The Flux Frequency
QRS 1010 Pelvicenter | User Manual | Basic-Modell 3.1.2 Setting the flux frequency The QRS ® Pelvicenter offers the setting of the frequency in 1-Hz steps from 1Hz to 50Hz. Freq. The selected frequency is indicated on the display as a numerical value under Press the key to get into the menu prompt of the display. -
Page 20: Setting The Position Of The Back Support
QRS 1010 Pelvicenter | User Manual | Basic-Modell 3.1.5 Setting the position of the back support The QRS ® Pelvicenter offers the possibility to adjust the inclination of the back support. The adjustment can be bent from 90° to the bearing surface up to 25° to the back and this is the basic adjustment after having turned on the device. -
Page 21: Setting The Footer Position
Pelvicenter the control device QRS ® 101P is integrated. This device runs the complete system with the support of a programmed treatment card. Insert the card in such way into the card slot of the QRS ® 101P, that the writing is visible upwards and the white arrow shows in the direction of the card slot. -
Page 22: Therapy
QRS 1010 Pelvicenter | User Manual | Basic-Modell 4. Therapy 4.1 Incontinence therapy For this the patient has to sit comfortably on the chair. The therapy should be started with a low intensity. It should generally be pleasant for the patient. The patient feels muscle stimulation in the area of the pelvic ground up to the muscles in the thigh, if necessary also up to the breech and lower back. -
Page 23: Error Messages On The Display
CARD INVALID The chip card does not show any credit, if it is inserted in a wrong way or is damaged mechanically. Check whether the chip card is inserted correctly. Insert the card in the card slot of the QRS ®... -
Page 24: Maintenance
QRS 1010 Pelvicenter | User Manual | Basic-Modell 6. Maintenance The performance, reliability and the safety properties of the device are guaranteed only with designated use, according to the operating instructions. Security examinations, servicing works, repair and changes may be carried out only by an authorized person and or one an authorized service provider. The components, which influence the security of the device can be replaced only with original spare parts in case of malfunction. -
Page 25: Cleaning, Disinfection And Care
QRS 1010 Pelvicenter | User Manual | Basic-Modell 6.3 Cleaning, disinfection and care For the cleaning and disinfection of the device and the accessories no cleaning materiel should be used which contains amounts of carbolic acid derivatives, alcohol, chlorine compounds or peracetic acid. -
Page 26: Contraindications And Safety Precautions
QRS 1010 Pelvicenter | User Manual | Basic-Modell 7. Contraindications and safety precautions 7.1 Contraindications With the following contraindications the therapy must not be applied Pregnancy Electronic or metallic implants between knee and neck Epilepsy Surgical operations since less than 4 weeks ... -
Page 27: Systems Safety
QRS 1010 Pelvicenter | User Manual | Basic-Modell 7.3 Systems safety Warning! Don’t put the system close to high energy or ultrahigh frequency generators. Please keep a distance of 3m. The device is not identified for the operation in explosive areas. If it is used in ... -
Page 28: Explanation Of The Signs Used
QRS 1010 Pelvicenter | User Manual | Basic-Modell 8. Explanation of the used signs CE Conformity sign with the identifying number of the notified body for medical products. Attention! Follow the operating instructions! Application part ungrounded, protection degree Type BF This product complies with WEEE Directive 2002/96/EG about electric- and electronic old devices (waste electrical and electronic equipment WEEE). -
Page 29: Technical Data
QRS 1010 Pelvicenter | User Manual | Basic-Modell 9. Technical data Main voltage and frequency: 230V ~, 50Hz Power consumption: max. 1265 VA Fuse: 2× T6,3A L 250V Battery (in QRS 101P): CR2032 ® Output signal: Magnetic field incontinence seat... -
Page 30: Accessories
QRS 1010 Pelvicenter | User Manual | Basic-Modell 10. Accessories Article description Order number 033-0-1003 ® - Pelvicenter BASIC Standard scope of supply: Pelvicenter incl. operating panel ® Operating instructions + warning board Mains feeder Operating instructions QRS - Pelvicenter 033-7-0044 ®... -
Page 31: Appendix
QRS 1010 Pelvicenter | User Manual | Basic-Modell 11. Appendix Notes according to the EG-directive for the medical device directive The QRS Pelvicenter is a mains-powered magnetic field therapy device of protection class I. ® The device is in accordance with the EG directive for medical device (93 / 42 / EWG) and, carries the CE sign with the registration number of the notified body for medical devices. - Page 32 QRS 1010 Pelvicenter | User Manual | Basic-Modell Guidance and manufacturer's declaration of the electromagnetic emissions The equipment is intended for use in the electromagnetic environments specified below. The consumer of the user of the equipment should assure that it is used in such an environment.
- Page 33 QRS 1010 Pelvicenter | User Manual | Basic-Modell Guidance and manufacturer's declaration of the electromagnetic immunity The equipment is intended for use in the electromagnetic environments specified below. The consumer of the user of the equipment should assure that it is used in such an environment.
-
Page 34: Index
QRS 1010 Pelvicenter | User Manual | Basic-Modell 12. Index anesthesia room 29 Mobile phones 29 Metal implants 29 Basic functions 18 Metallic pieces (jewelry) 29 Mains voltage 14 Caution 14, 15, 16, 17, 25, 28, 31 Cautionary notes 30...
