Panasonic SA-XH73GA Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Home Theater System
  5. SA-XH73GA
  6. Service manual

Panasonic SA-XH73GA Service Manual

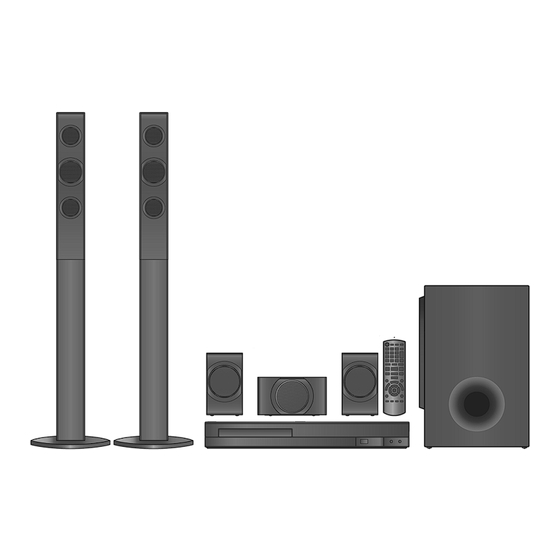

Dvd home theater sound system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Note: Please refer to the original service manual for:
DVD Mechanism Unit (BRS1D), Order No. PSG1012001CE
Speaker system SB-XH73GA-K (For SA-XH73GA/GAX-K), Order No. PSG1204029CE
Speaker system SB-XH75EP-K (For SA-XH75GA/GAX/GS-K), Order No. PSG1203061CE
Speaker system SB-XH75GK-K (For SA-XH75GK-K), Order No. PSG1204027CE

TABLE OF CONTENTS

1 Safety Precautions----------------------------------------------- 3
1.1. General Guidelines---------------------------------------- 3
1.2. Before Repair and Adjustment ------------------------- 4
1.3. Protection Circuitry ---------------------------------------- 4
1.5. Caution For Fuse Replacement------------------------ 6
1.6. Safety Part Information----------------------------------- 6
2 Warning -------------------------------------------------------------- 7
DVD Home Theater Sound System
Model No.
Product Color: (K)...Black Type
PAGE
2.2. Precaution of Laser Diode -------------------------------8
3 Service Navigation --------------------------------------------- 12
3.1. Service Information -------------------------------------- 12
4 Specifications ---------------------------------------------------- 13
© Panasonic Corporation 2012. All rights reserved.
Unauthorized copying and distribution is a violation
of law.
SA-XH73GA
SA-XH73GAX
SA-XH75GA
SA-XH75GAX
SA-XH75GK
SA-XH75GS
PSG1204018CE
PAGE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SA-XH73GA and is the answer not in the manual?

Questions and answers

Related Manuals for Panasonic SA-XH73GA

Summary of Contents for Panasonic SA-XH73GA

  • Page 1: Table Of Contents

    Note: Please refer to the original service manual for: DVD Mechanism Unit (BRS1D), Order No. PSG1012001CE Speaker system SB-XH73GA-K (For SA-XH73GA/GAX-K), Order No. PSG1204029CE Speaker system SB-XH75EP-K (For SA-XH75GA/GAX/GS-K), Order No. PSG1203061CE Speaker system SB-XH75GK-K (For SA-XH75GK-K), Order No. PSG1204027CE...
  • Page 2 4.1. Others (Licences) ---------------------------------------- 14 15.3. System Control ------------------------------------------- 80 5 General/Introduction ------------------------------------------- 15 15.4. Audio and Video ----------------------------------------- 81 5.1. Power-Saving Features -------------------------------- 15 15.5. Power Supply --------------------------------------------- 82 5.2. Linked Operations with the TV (VIERA Link™ 16 Wiring Connection Diagram -------------------------------- 84 “HDAVI Control™”) -------------------------------------- 16 17 Schematic Diagram -------------------------------------------- 85 5.3.

  • Page 3: Safety Precautions

    1 Safety Precautions 1.1. General Guidelines 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

  • Page 4: Before Repair And Adjustment

    1.2. Before Repair and Adjustment Disconnect AC power to discharge unit AC Capacitors as such (C5702, C5703, C5704, C5705, C5706) through a 10 Ω, 10 W resis- tor to ground. Caution: DO NOT SHORT-CIRCUIT DIRECTLY (with a screwdriver blade, for instance), as this may destroy solid state devices. After repairs are completed, restore power gradually using a variac, to avoid overcurrent.

  • Page 5: Caution For Ac Cord (For Gs Only)

    1.4. Caution For AC Cord (For GS only)

  • Page 6: Caution For Fuse Replacement

    1.5. Caution For Fuse Replacement 1.6. Safety Part Information Safety Parts List: There are special components used in this equipment which are important for safety. These parts are marked by in the Schematic Diagrams, Exploded View & Replacement Parts List. It is essential that these critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire or other hazards.

  • Page 7: Warning

    2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatic Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor “chip”...

  • Page 8: Precaution Of Laser Diode

    2.2. Precaution of Laser Diode Caution: This product utilizes a laser diode with the unit turned “on”, invisible laser radiation is emitted from the pickup lens. Wavelength: 655 nm (DVD)/790 nm (CD) Maximum output radiation power from pickup: 100 µW/VDE Laser radiation from the pickup unit is safety level, but be sure the followings: 1.

  • Page 9: Service Caution Based On Legal Restrictions

    2.3. Service caution based on Legal restrictions 2.3.1. General description about Lead Free Solder (PbF) The lead free solder has been used in the mounting process of all electrical components on the printed circuit boards used for this equipment in considering the globally environmental conservation. The normal solder is the alloy of tin (Sn) and lead (Pb).

  • Page 10: Handling Precautions For Traverse Unit

    2.4. Handling Precautions for Traverse Unit The laser diode in the optical pickup unit may break down due to static electricity of clothes or human body. Special care must be taken avoid caution to electrostatic breakdown when servicing and handling the laser diode in the traverse unit. Cautions to Be Taken in Handling the Optical Pickup Unit 2.4.1.

  • Page 11: Grounding For Electrostatic Breakdown Prevention

    Grounding for electrostatic breakdown prevention 2.4.2. Some devices such as the DVD player use the optical pickup (laser diode) and the optical pickup will be damaged by static electric- ity in the working environment. Proceed servicing works under the working environment where grounding works is completed. 2.4.2.1.

  • Page 12: Service Navigation

    3 Service Navigation 3.1. Service Information This service manual contains technical information which will allow service personnel’s to understand and service this model. Please place orders using the parts list and not the drawing reference numbers. If the circuit is changed or modified, this information will be followed by supplement service manual to be filed with original service manual.

  • Page 13: Specifications

    4 Specifications Exif Ver 2.1 JPEG Baseline files Picture resolution: Main unit 16:9 min. size 4 x 4, max. size (720 x 8) x (405 x 8); AMPLIFIER SECTION 4:3 min. size 4 x 4, max. size (720 x 8) x (540 x 8) RMS Output Power: Dolby Digital Mode The total combined maximum number of recognizable audio, pic- Front Ch...

  • Page 14: Others (Licences)

    4.1. Others (Licences) 4.1.1. Licences (For GA/GAX/GK) 4.1.2. Licences (For GS)

  • Page 15: General/Introduction

    5 General/Introduction 5.1. Power-Saving Features...

  • Page 16: Linked Operations With The Tv (Viera Link™ "Hdavi Control™")

    5.2. Linked Operations with the TV (VIERA Link™ “HDAVI Control™”)

  • Page 17: Disc Information

    5.3. Disc Information 5.3.1. Media that can be played (For GA/GAX/GK)
  • Page 18 5.3.2. Media that can be played (For GS)
  • Page 19 5.3.3. File Extension Type Support (MP3/JPEG/DivX) (For GA/GAX/GK) 5.3.4. File Extension Type Support (MP3/JPEG/Xvid) (For GS)

  • Page 20: Divx Information (For Ga/Gax/Gk)

    5.4. DivX Information (For GA/GAX/GK)

  • Page 21: Location Of Controls And Components

    6 Location of Controls and Components 6.1. Remote Control Key Button Operations...

  • Page 22: Main Unit Key Button Operations

    6.2. Main Unit Key Button Operations...

  • Page 23: Installation Instructions

    7 Installation Instructions Turn off all equipment before connection and read the appropriate operating instructions. Do not connect the AC power supply cord until all other connections are completed. 7.1. Speaker Connections...

  • Page 24: Radio Antenna Connection

    7.2. Radio Antenna connection...

  • Page 25: Connection With An Arc Compatible Tv

    7.3. Connection with an ARC compatible TV...

  • Page 26: Operating Instructions

    8 Operating Instructions 8.1. Removing of disc during abnormality 8.1.1. Using main unit key buttons. 8.1.1.1. When the power can be turned off. 1. Turn off the power and press & hold [OPEN/CLOSE] button on main unit and [SKIP FWD] button on remote for 5 seconds 8.1.1.2.
  • Page 27 3. Gently pull out the tray. 4. Remove disc...

  • Page 28: Service Mode

    9 Service Mode 9.1. Cold-Start Here is the procedure to carry out cold-start for initialize to shipping mode. 1. Unplug AC power cord 2. Press & hold [ ] button 3. Plug AC power cord while [ ] button being pressed FL Display will show “_ _ _ _ _ _ _ _”...
  • Page 29 Product Series Country Region Broadcasting Selected Region Display Code OSD Menu Language Code System TV System (Default) Default USA, Canada, English (NA), Spanish (NA), P, PC, PX, NTSC AUTO2 (*A) English US Military Canadian French (blank) Japan NTSC AUTO2 (*A) Japanese Japanese, English English (EU), French, German,...
  • Page 30 9.2.2. Setting of Panel Code Step 1 Press [OPEN/CLOSE] button on main unit, follow by [4] and [7] on remote control (to enter Doctor Mode). Step 2 Press [CANCEL] button on remote control, then press [2], [2], [8] and [0] on remote control. Step 3 Key in new panel code using remote control (refer to Figure 9.2.2).

  • Page 31: Self Diagnostic

    9.3. Self Diagnostic By pressing various button combinations on the main unit and remote control unit, you can activate the various service modes for checking. Special Note: • Due to the limitations of the no. characters that can be shown on the FL Display, the “FL Display” button on the remote control unit can be used to show the two display pages.
  • Page 32 9.3.2. Self Diagnostic Table 2 (For DVD) Item Key Operation FL Display Mode Name Description Front Key DVD laser DVD laser drive current measurement. In STOP (no disc) mode, drive current For DVD laser drive current, refer to press [OPEN/CLOSE] measurement Troubleshooting Guide (Section 10.2) button on the main unit,...
  • Page 33 9.3.3. Self Diagnostic Table 3 (For DVD) Item Key Operation FL Display Mode Name Description Front Key Micro-processor Micro-processor firmware version In STOP (no disc) (Display 1) firmware version display & EEPROM checksum display. mode, press display & EEPROM checksum is only available [OPEN/CLOSE] button on EEPROM due to existence of EEPROM IC.
  • Page 34 9.3.4. Self Diagnostic Table 4 (For DVD) Item Key Operation FL Display Mode Name Description Front Key Region and DVD firmware version is displayed on In STOP (no disc) Firmware the FL Display. mode, press version display [OPEN/CLOSE] button on the main unit, and [8] button on the remote control unit.

  • Page 35: Self Diagnostic Table

    9.3.5. Self Diagnostic Table 5 Item Key Operation FL Display Mode Name Description Front Key Press & hold Self-Diagnostic To enter into self-diagnostic checking [OPEN/CLOSE] on main Mode unit, follow by [4] then [9] on remote control. (When no disc in tray) Error code will display Error code System will perform a check on...

  • Page 36: Error Code

    9.4. Error Code 9.4.1. Error Code Table 1 Error Diagnosis Description of error Automatic FL Display Remarks Code Contents The abnormalities In normal operation, when DCDET2 goes to Press [OPEN/CLOSE] in the Power Amp L, immediately PCNT is set to L (not normal on main unit for next output or power POWER OFF sequence), and Error Code...
  • Page 37 9.4.2. Error Code Table 2 Error Diagnosis Description of error Automatic FL Display Remarks Code Contents Tray loading error The tray opening and closing is abnormal. Press [OPEN/CLOSE] on CLOSE and OPEN of the tray cannot be main unit for next error. carried out properly.

  • Page 38: Sales Demonstration Lock Function

    9.5. Sales Demonstration Lock Function This function prevents discs from being lost when the unit is used for sales demonstrations by disabling the disc eject function. “LOCKED” is displayed on the unit, and ordinary operation is disabled. 9.5.1. Setting • Prohibiting removal of disc 1.

  • Page 39: Firmware Version-Up Information

    9.6. Firmware Version-Up Information 9.6.1. Process Flow (1/2) Item FL/ GUI Display Remarks Process Description Collect ROM Step 1 Display 1: User can put both files Files Unzip the firmware update file. into the same root (Copy files into Step 2 directory.
  • Page 40 9.6.2. Process Flow (2/2) Item FL/ GUI Display Remarks Process Description To initialize, press and hold GUI Display 1.3: Update Completed main unit [OPEN/CLOSE] If firmware software update then press remote control completes successfully: key [ 10]. GUI Display 1.3: "Firmware update is completed, please open the tray and remove the disc."...

  • Page 41: Troubleshooting Guide

    10 Troubleshooting Guide 10.1. Troubleshooting Guide for F61 and/or F76 This section illustrates the checking procedures when upon detecting the error of “F61” and/or “F76” after power up of the unit. It is for purpose of troubleshooting and checking in SMPS P.C.B.. Symptom(s) Possible Fault(s) Checking items...
  • Page 42 10.1.1. SMPS P.C.B. AC Inlet Jack : P5701 Regulator IC : Thermal Diode : Photocoupler : IC2900 D5706 PC701 Fuse : F1 Connector : H2016 H2016 Transformer : T5701 Fig. 1. SMPS P.C.B.
  • Page 43 10.1.2. Main P.C.B. (Side A of Main P.C.B.) Transistor:Q100 D114 Chip Jumper:K105 Chip Jumper:K304 Chip Jumper:K102 (Side B of Main P.C.B.) DC/DC CONVERTER IC: IC106 Inductors : L125 Connector:CN100 IC107 Transistor:Q107 Connector:CN203 Fig. 2. Main P.C.B.

  • Page 44: Dvd/Cd Laser Diode Current Measurement

    10.2. DVD/CD Laser Diode current measurement This section will illustrate proceddures of measuring & deriving DVD/CD Laser Diode Current. Item Description Checking Item/Formula Remarks 1. Measurement the voltage (V ) on the testpoints CL8530(+) & CL8531(-). Refer to 10.2.1. CD Laser Diode Current Measurement Backend P.C.B.
  • Page 45 10.2.1. Backend P.C.B. (Side A of Backend P.C.B.) R8566 R8556 (Side B of Backend P.C.B.) CL8530, CL8531, CL8532 Fig. 3. Backend P.C.B.

  • Page 46: Basic Troubleshooting Guide For Traverse Unit (Backend P.c.b.)

    10.3. Basic Troubleshooting Guide for Traverse Unit (Backend P.C.B.) Problems Checking Points Checking components 1) Distorted picture or a) Check SDRAM address, data IC8051 abnormal sound is head bus, CLK and other control signals during the initialization waveform b) Check video signals i) IC8001 Pin 61, 63, 65, 66 ii) L4002, L4003, L4004, L4005 iii) JK4001...

  • Page 47: Basic Troubleshooting Guide For Hdmi Av Output

    10.4. Basic Troubleshooting Guide for HDMI AV output Problems Checking Points Checking components 1) TV does not have any 1) Check setting of the set in * This year HDMI always ON. display. Set FL display shows Setup Menu whether the HDMI No need to check Setup Menu.

  • Page 48: Service Fixture & Tools

    11 Service Fixture & Tools Prepare service tools before process service position. Ref. No Service Tools Remarks SFT1 Main P.C.B. (CN201) - Backend P.C.B. (FP8101) RFKZXH150PK2 (50P FFC)

  • Page 49: Disassembly And Assembly Instructions

    12 Disassembly and Assembly Instructions Caution Note: • This section describes the disassembly and/or assembly procedures for all major printed circuit boards & main compo- nents for the unit. (You may refer to the section of “Main components and P.C.B Locations” as described in the service manual) •...

  • Page 50: Disassembly Flow Chart

    12.2. Disassembly Flow Chart Main Unit 12.4. Top Cabinet 12.5. Tray Ornament 12.16. DVD Mechanism 12.6. Front Panel Block 12.9. Rear Panel Unit (BRS1D) Assembly 12.10. SMPS P.C.B. 12.17. Traverse Unit 12.7. Panel P.C.B. 12.11. Current Limiting 12.8. Power Button Switch (Q5701) P.C.B.

  • Page 51: Main Components And P.c.b. Locations

    12.3. Main Components and P.C.B. Locations...

  • Page 52: Disassembly Of Top Cabinet

    12.4. Disassembly of Top Cabinet Step 4 Slightly lift both sides of the Top Cabinet in an outward direction about 30°. Step 1 Remove 2 screws. Step 2 Remove 3 screws. Step 5 Press the catches and remove the Top Cabinet as arrow shown in sequence.

  • Page 53: Replacement Of Tray Ornament

    Caution: During assembling, ensure that the Top Cabinet 12.5. Replacement of Tray Ornament is inserted into the Front Panel Block Assembly. Step 1 Use a Paper Clip and insert into the hole on the bottom of the unit. Step 2 Push the Paper Clip sideway in the direction of the arrow to eject the Tray.
  • Page 54 Step 4 Upset the Unit. Caution: During assembling, ensure that the Tray Orna- ment rib is inserted properly onto the Tray. Step 5 Release 2 catches. Caution: During assembling, ensure that the Tray Orna- ment is inserted and fully catched onto the Tray. Step 6 Remove the Tray Ornament in the direction of arrow.

  • Page 55: Disassembly Of Front Panel Block Assembly

    12.6. Disassembly of Front Panel Step 5 Release 3 tabs at the Bottom Chassis. Caution: Do not exert strong force when releasing the tabs. Block Assembly • Refer to “Disassembly of Top Cabinet”. • Refer to “Replacement of Tray Ornament”. Step 1 Detach 5P Wire at the connector (FP9001) on Backend P.C.B..

  • Page 56: Disassembly Of Panel P.c.b

    Step 6 Remove the Front Panel Block Assembly. Step 3 Release the 3P Cable from the ribs of the Front Panel Block Assembly. Caution: During assembling, ensure that the 3P Cable is inserted properly into the ribs of the Front Panel Block Assembly as diagram shown.

  • Page 57: Disassembly Of Power Button P.c.b

    Step 6 Desolder the 3P Cable at the cable holder (H902) on 12.8. Disassembly of Power Button Panel P.C.B.. P.C.B. Step 7 Remove the Panel P.C.B.. • Refer to “Disassembly of Top Cabinet”. • Refer to “Replacement of Tray Ornament”. •...

  • Page 58: Disassembly Of Rear Panel

    Step 3 Release the 3P Cable from the ribs of the Front Panel Step 2 Release the tabs of each side of the Rear Panel in the Block Assembly. direction of arrow. Caution: During assembling, ensure that the 3P Cable is properly dressed into the ribs of the Front Panel Block Assembly as diagram shown.

  • Page 59: Disassembly Of Smps P.c.b

    12.10. Disassembly of SMPS P.C.B. Step 3 Remove 4 screws. • Refer to “Disassembly of Top Cabinet”. Step 1 Remove 1 screw. Step 4 Lift up to remove the SMPS P.C.B.. Caution: Handle the SMPS P.C.B. with care. Avoid touching the heatsink due to its prolong use.

  • Page 60: Replacement Of Current Limiting Switch (Q5701)

    Caution: Replace the Bottom PC Sheet if broken. Ensure Step 2 Remove 1 screw from the Current Limiting Switch that it is pasted on the Bottom Chassis properly. (Q5701). Step 3 Remove the Current Limiting Switch (Q5701) from the Heatsink Ext A. Caution: Avoid touching Heatsink Ext A due to its high temperature after prolonged use.

  • Page 61: Replacement Of Diode (D5706)

    Step 4 Solder pins of the Current Limiting Switch (Q5701) on Step 2 Remove 1 screw from the Diode (D5706). the solder side of the SMPS P.C.B.. Step 3 Remove the Diode (D5706) from the Heatsink Ext B. Caution: Avoid touching Heatsink Ext B due to its high temperature after prolonged use.

  • Page 62: Disassembly Of Main P.c.b

    Step 4 Solder pins of the Diode (D5706) on the solder side of Step 3 Detach 12P Cable at the connector (CN100) on Main the SMPS P.C.B.. P.C.B.. Step 4 Detach 17P FFC at the connector (CN203) on Main P.C.B.. Step 5 Detach 50P FFC at the connector (CN201) on Main P.C.B..

  • Page 63: Replacement Of Digital Amplifier Ic (Ic403/ Ic404/Ic405)

    Step 7 Slightly lift up to remove the Main P.C.B.. 12.14. Replacement of Digital Ampli- fier IC (IC403/IC404/IC405) • Refer to “Disassembly of Top Cabinet”. • Refer to “Disassembly of Main P.C.B.”. 12.14.1. Disassembly of Digital Amplifier IC (IC403/IC404/IC405) Caution: Handle the Main P.C.B. with caution due to it’s high temperature after prolonged use.
  • Page 64 Step 3 Lift up the Main P.C.B. as arrow shown. 12.14.2. Assembly of Digital Amplifier IC Caution: Keep the Heatsink Spacers in safe place. Avoid (IC403/IC404/IC405) denting it, place it back during assembling. Step 1 Fix the Digital Amplifier IC (IC403) onto the Main P.C.B.. Step 2 Solder pins of Digital Amplifier IC (IC403).

  • Page 65: Disassembly Of Backend P.c.b

    Step 5 Upset the Main P.C.B.. 12.15. Disassembly of Backend P.C.B. Step 6 Fix 3 screws. • Refer to “Disassembly of Top Cabinet”. Note: For assembling of Digital Amplifier IC (IC404) & (IC405), repeat the (Step 1) to (Step 6) of 12.14.2. Step 1 Remove 7 screws.

  • Page 66: Disassembly Of Dvd Mechanism Unit (Brs1D)

    Step 8 Remove 2 screws. 12.16. Disassembly of DVD Mecha- nism Unit (BRS1D) • Refer to “Disassembly of Top Cabinet” • Refer to “Replacement of Tray Ornament” Step 1 Detach 24P FFC at the connector (FP8531) on Backend P.C.B.. Step 2 Detach 6P FFC at the connector (FP8251) on Backend P.C.B..

  • Page 67: Replacement Of Traverse Unit

    Step 5 Slightly lift up and remove the DVD Mechanism Unit 12.17. Replacement of Traverse unit (BRS1D) in the direction of arrow. • Refer to “Disassembly of DVD Mechanism Unit Caution: During assembling, ensure that the DVD Mecha- (BRS1D)”. nism Unit (BRS1D) is properly inserted & fully seated on Caution: Refer to 2.4 “Handling Precaution for Traverse the Bottom Chasiss before screwing.
  • Page 68 Step 2 : Slide the tray out fully. Step 4 : Release the guide as shown & slide the Traverse Slide Plate to the end. Step 3 : Release the catches & remove the tray. Step 5 : Release the 24P FFC from the slot.
  • Page 69 Step 6 : Lift up the Traverse Unit by approximately 45°. 12.17.2. Assembly of Traverse Unit Step 7 : Slide out the traverse unit as arrow shown. Step 1 : Release the guide as shown & slide the Traverse Slide Plate to the end.
  • Page 70 Step 2 : Insert the Traverse unit at approximately 45° into the Step 3 : Insert the Traverse Unit into the grooves. mecha chassis as arrow shown. Step 4 : Slide the Traverse Slide Plate to lock the Traverse Unit as shown.
  • Page 71 Step 5 : Insert the 24P FFC into the slot. Step 7 Align and insert the grooves of the Tray into the guides Caution : Ensure that the 24P FFC are properly inserted as picture shown. into the slots as shown. Step 6 Slide the Traverse Slide Plate until it stop at the Guide.
  • Page 72 Step 9 Slide the tray in fully.

  • Page 73: Service Position

    13 Service Position Note: For description of the disassembly procedures, see 13.2. Checking & Repairing of SMPS the Section 12. P.C.B. 13.1. Checking & Repairing of Panel Step 1 Remove Top Cabinet. P.C.B. Step 2 Remove SMPS P.C.B.. Step 3 Place the SMPS P.C.B. on the insulated material. Step 1 Remove Top Cabinet.

  • Page 74: Checking & Repairing Main P.c.b

    13.3. Checking & Repairing Main Step 6 Upset the Main P.C.B. and place it onto the insulated material. P.C.B. Step 7 Proceed to check and repair side A of Main P.C.B.. 13.3.1. Checking & Repairing Main P.C.B. (Side A) Step 1 Remove Top Cabinet. Step 2 Remove Main P.C.B..

  • Page 75: Checking & Repairing Of Backend P.c.b

    Step 4 Lift up the Main P.C.B. as arrow shown. Step 5 Place the Main P.C.B. back to unit. Step 6 Connect 12P Cable at the connector (CN100) on Main P.C.B.. Step 7 Connect 17P FFC at the connector (CN203) on Main P.C.B..
  • Page 76 13.4.2. Checking & Repairing of Backend Step 5 Upset the Backend P.C.B. and place it onto insulated material as diagram shown. P.C.B. (Side A) Step 6 Proceed to check and repair Side A of Backend P.C.B.. Step 1 Remove Top Cabinet. Step 2 Remove 7 screws.

  • Page 77: Overall Simplified Block Diagram

    14 Overall Simplified Block Diagram TUNER MAIN BLOCK FRONT L HDMI D-IN FRONT R MCLK,BCLK,SRCK SURR L Video HDMI SURR R Buffer FLASH Zoran 976 CENTER SELECTOR SDRAM +5.3V SUBWOOFER Motor UART Driver +5.3V DIGITAL AMP (TI Solution) MICROPROCESSOR PCONT,ECO CTL DC-DET DVD Mechanism (BRS1D) Vref 3.3V...

  • Page 78: Block Diagram

    REV 7 FROM/TO SYSTEM CONTROL FP8252 FP8101 CN201 CLOSE SW CLOSE SW CLOSE SW CLOSE SW FP8101 CN201 FP8252 OPEN SW OPEN SW OPEN SW OPEN SW NOTE: “ * ” REF IS FOR INDICATION ONLY SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS BACKEND BLOCK DIAGRAM...

  • Page 79: Ic Terminal Chart

    MDQ 4 MDQ 5 MDQ 6 MDQ 7 MDQ 8 MDQ 9 DQ10 MDQ 10 DQ10 DQ11 MDQ 11 DQ11 DQ12 MDQ 12 DQ12 DQ13 MDQ 13 DQ13 DQ14 MDQ 14 DQ14 DQ15 MDQ 15 DQ15 SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS IC TERMINAL CHART...

  • Page 80: System Control

    SUPPLY SWITCH FROM/TO SYNC SYNC SYNC 3.3V POWER SUPPLY DC DET1 Q900 DC DET1 DCDET1 LED VOLTAGE CN203 CN901 USB OC LED CTRL LED CTRL USB OC CONTROL USB OC LED CTRL SWITCH FOR GK SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS SYSTEM CONTROL BLOCK DIAGRAM...

  • Page 81: Audio And Video

    BST D VALID JK401 VALID 7 RST AB OUT D SUBWOOFER JK401 17 RST CD OUT C BST C DC DETECT DC DET2 DC DET2 23.5V CIRCUIT Q114,Q116,Q500,Q501 FROM DC DET2 DC DET2 POWER SUPPLY SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS AUDIO & VIDEO BLOCK DIAGRAM...

  • Page 82: Power Supply

    Q5841 D402 DC DETECT DC DET2 DC DET2 AUDIO & VIDEO DZ5701 TH5702 D110 D111 D112 D115 Q105 Q106 PRIMARY SECONDARY DC DETECT DC DETECT NOTE: “ * ” REF IS FOR INDICATION ONLY SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS POWER SUPPLY (1/2) BLOCK DIAGRAM...
  • Page 83 VREF VREF VREF 3.3V CN203 CN901 PW FL- PW FL+ CN203 CN901 PW -VP CN203 CN901 CN203 CN901 3.3V 3.3V PW 3.3V D 3.3V 3.3V NOTE: “ * ” REF IS FOR INDICATION ONLY SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS POWER SUPPLY (2/2) BLOCK DIAGRAM...

  • Page 84: Wiring Connection Diagram

    TO uP DOWNLOADER (SIDE B) 220V-240V SMPS P.C.B. T2900 50Hz...GK SURROUND SWITCHING (SOLDER SIDE) 110V-240V TRANSFORMER 50/60Hz...GA/GAX/GS CN100 7 6 5 4 FRONT H2016* SPEAKERS CENTER SUBWOOFER NOTE: " * " REF IS FOR INDICATION ONLY. SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS WIRING CONNECTION DIAGRAM...

  • Page 85: Schematic Diagram

    17 Schematic Diagram 17.1. Schematic Diagram Notes • Voltage and signal line : +B signal line • This schematic diagram may be modified at any time : -B signal line with the development of new technology. : Audio output signal line Notes: : Video output signal line S901:...

  • Page 87: Backend Circuit

    CL8022 CL8017 K8005...GS K8010...GS CL8020 CL8015 D8301 DA3X101F0L R8324 R8323 R8321 R8322 JK8301 VGND VGND L2802 R8325 C2823 R8326 LB8317 VIDEO OUT 100P J0JBC0000015 VIDEO (YEL) TO BACKEND CIRCUIT (2/6) R9082 PW_D+3R3V CL9802 TO BACKEND CIRCUIT (4/6) SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS BACKEND CIRCUIT...
  • Page 88 C8051 UART_RX OPEN_SW OPEN SW CLOSE_SW CLOSE_SW VBUS_EN IC8051 VBUS_EN USB_OC C8055 C3ABPG000163 USB_OC AMUTE 64M SDRAM AMUTE ADGND MIC_IN MIC_IN VGND VGND iPod_VIDEO iPod_SW TO BACKEND TO BACKEND CIRCUIT (1/6) CIRCUIT (3/6) TO BACKEND CIRCUIT (5/6) SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS BACKEND CIRCUIT...
  • Page 89 R8622 220K H0J270500131 K8301 R8311 C8621 1000P L8302 G1C100M00049 C8006 100P C8029 1000P LB3902 TO BACKEND J0JHC0000045 C8028 0.01 CIRCUIT (2/6) PW_VDDP_HDMI LB3901 J0JHC0000045 PW_DAC LB8301 J0JHC0000045 C3902 C3901 C8301 6.3V100 6.3V100 6.3V100 TO BACKEND SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS CIRCUIT (6/6) BACKEND CIRCUIT...
  • Page 90 FOR FIRMWARE +3.3V VOLTAGE REGULATOR +1.8V VOLTAGE SUPPLY REGULATOR DUPRDO DOWNLOAD DGND DGND 1.8V R8103 C8113 FP8002 C8101 VDD_3R3V DUPTDI R8104 DUPTDI FOR FIRMWARE DUPRDI CL8101 DUPRDI R8101 DEBUG 270K DGND DOWNLOAD DOWNLOAD C8112 C8111 R8102 130K DGND SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS BACKEND CIRCUIT...
  • Page 91 RFIN_P D1H456020001 R8542 RF_A RX8532 RF_B D1H456020001 RF_F R8537 PD GND TO OPTICAL PICKUP UNIT VC(REF) (DVD MECHANISM UNIT BRS1D) LB8531 C8533 RF_E R8538 DVD_MD R8531 VR-CD LB8561 R8532 VR-DVD J0JDC0000102 CD-LD LB8551 J0JDC0000102 DVD-LD GND-LD CD_MD SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS BACKEND CIRCUIT...
  • Page 92 CLK- R3905 CLKGND HDMI AV OUT CLK+ CLK+ (ARC) D0GND D1GND C3968 D2GND C3971 K3901 FRAME G3 G4 K3902 R3955 R3958 K3903 LB3909 J0JHC0000045 C3972 R3959 R3956 C3970 C3967 IC3953 R3900 100K GPIO34 R3957 C0JBAB000986 DUAL INVERTER SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS BACKEND CIRCUIT...

  • Page 93: Main Circuit

    AGND CN202 PW_3.3VREF VREF BUSY BUSY CLOCK CLOCK LB200 TO uP DOWNLOADER LB201 C214 VOUT 0.47 SYS5VGND DGND RESET CNVSS PW_SYS6V CNVSS STBY IC202 C205 C0DBGYY02930 0.47 +3.3V VOLTAGE REGULATOR RESET C219 0.01 TO MAIN CIRCUIT (5/8) SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS MAIN CIRCUIT...
  • Page 94 C411 C401 OPEN_SW R400 OPEN SW CLOSE_SW CLOSE_SW VBUS_EN C453 VBUS_EN 0.01 USB_OC USB_OC AMUTE AMUTE ADGND C451 K105 MIC_IN C452 VGND L427 VGND J0JBC0000014 R435 iPod_VIDEO iPod_SW K158 TO MAIN CIRCUIT (3/8) TO MAIN CIRCUIT (6/8) SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS MAIN CIRCUIT...
  • Page 95 C202 DVD_TX R233 DVD_RX RX201 R222 150K D1H81014A024 CNVSS R201 FLD_STB CLOSE_SW CK_FLD ECO_CNTRL FLD_OUT R232 SYNC RESET TUN_INT TUN_SCLK X201 H2D500400006 TUN_SDIO TUN_REST LED_CTRL R223 R294 R239 TO MAIN 5.6K CIRCUIT (2/8) TO MAIN SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS CIRCUIT (7/8) MAIN CIRCUIT...
  • Page 96 PWM_FR- C509 0.01 PWM_D PVDD_D C519 PVDD_D 25V330 C455 L409 0.01 G0A100H00018 R452 C510 0.033 SP_FR+ BST_D R506 R453 GVDD_C GVDD_D SP_SL- C190 1000P C433 C432 C431 C567 C514 1000P K157 R454 CHASSIS TO MAIN CIRCUIT (8/8) SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS MAIN CIRCUIT...
  • Page 97 220P 220P 680P C309 680P TV_R R311 C312 TUN-LCH R307 C313 R309 R310 TUN-RCH R308 C314 IC300 C0JBAR000367 AUDIO SELECTOR C315 C317 C316 R317 Q301 B1GBCFJJ0041 R315 SELECTOR SWITCH R312 R313 R318 R316 Q300 B1GBCFJJ0041 SELECTOR SWITCH SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS MAIN CIRCUIT...
  • Page 98 FL_IC_DAT (CN901) R702 CK_FLD R136 FL_IC_CLK PW_SW5V_ADC IN SCHEMATIC FLD_STB R137 FL_IC_STB DIAGRAM - 15 LB704 LED_CTRL G1C100M00049 LED_CTRL KEY1 KEY1 C708 KEY2 6.3V47 KEY2 PW_FL+ R139 PW_FL- R141 PW_-VP R142 TO MAIN CIRCUIT (7/8) LB703 J0JCC0000388 SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS MAIN CIRCUIT...
  • Page 99 R293 B1ABCF000231 G0A330G00016 DZ2J07500L DC DETECT Q100 C135 R152 0.01 B1DGDC000002 C198 C142 R150 SWITCH C138 C141 C143 C129 25V4.7 0.47 25V470 SYS5VGND K107 D116 K104 Q101 B0JCPG000028 PW_SW5V_D K106 B1GBCFJJ0041 PCONT SWITCH PW_SW5V_ADC K102 R196 K101 SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS MAIN CIRCUIT...
  • Page 100 PWM_D PVDD_D 25V330 PVDD_D L405 G0A100H00018 SP_SR+ R461 C550 0.033 BST_D PW_+12V R462 GVDD_C GVDD_D C439 C438 C437 C551 C441 K303 16V33 PW_PVDD_D R463 C802 C803 C512 HEATSINK* NOTE: “ * ” REF IS FOR INDICATION ONLY SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS MAIN CIRCUIT...

  • Page 101: Panel And Power Button Circuit

    DIAGRAM - 1 DGND FOR GK R951 LB950 R952 POWER BUTTON CIRCUIT CHASSIS : +B SIGNAL LINE H901 S902 POWER DGND KEY1 VREF_LED R907...GK D900...GK B3AAA0000803 SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS PANEL / POWER BUTTON CIRCUIT NOTE: “ * ” REF IS FOR INDICATION ONLY...

  • Page 102: Smps Circuit

    R2908 C5725 C2912 DZ2J36000L D2906 16V33 16V820 25V100 6.3V100 B0EAMM000057 R5735 C5727 C5726 1000P 0.33 R5731 R5729 R5730 4.7K IC5702 C0DBZMC00006 SHUNT REGULATOR TO SMPS R5817 CIRCUIT (2/2) NOTE: “ * ” REF IS FOR INDICATION ONLY SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS SMPS CIRCUIT...
  • Page 103 C5719 0.22 OPTMR ZA5703* R5724 HEATSINK 180K C5720 C5715 0.01 IC5701 C0DBZYY00448 SWITCHING MODE POWER SUPPLY CONTROL D5705 TH5701 B0BC02700039 D4CC11040013 R5723 10K...GK 12K...GA/GAX/GS TO SMPS CIRCUIT (1/2) NOTE: “ * ” REF IS FOR INDICATION ONLY SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS SMPS CIRCUIT...

  • Page 104: Printed Circuit Board

    C8024 R8255 R8256 IC8111 R8253 R8254 D8101 L8251 C8252 D8102 L8252 R8259 FL8103 C9006 FL8101 R8260 FL8104 FP8252 IC9006 LB9002 FP9001 (TO LOADING PCB (DVD MECHANISM FP8101 UNIT BRS1D)) 0680C 0680C 0680C 0680C (SIDE A) (SIDE B) SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS BACKEND P.C.B.

  • Page 105: Main P.c.b

    C214 C189 C501 C502 C132 R142 R530 C187 R195 C191 R157 R156 C197 Q100 C522 C523 C192 D114 C186 C198 Q101 C181 C182 C472 C183 C184 C129 C473 C185 C486 C135 K109 C512 0729B 0729B (SIDE A) SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS MAIN P.C.B.
  • Page 106 C476 R435 C424 30 32 SUBWOOFER R469 C412 L418 R442 C411 1-SW+ IC106 R411 RX404 RX405 C410 C415 R404 R444 C479 X400 R443 C425 C505 C420 R445 C138 C413 L419 C441 L125 C143 0729B 0729B (SIDE B) SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS MAIN P.C.B.

  • Page 107: Panel And Power Button P.c.b

    R924 W929 CN951* R951 R913 D901 13 15 R950 W933 CN901 SENSOR PORT POWER BUTTON P.C.B. (REP4765A...GA/GAX/GS) (REP4765B...GK) H901 R907...GK D900...GK 0731BB 0731BB S902 (POWER) NOTE: " * " REF IS FOR INDICATION ONLY. SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS PANEL / POWER BUTTON P.C.B.

  • Page 108: Smps P.c.b

    C2912 Q2900 R5702 T5701 C5705 W1039 W1033 (MAIN TRANSFORMER) H2016* R5704 R5703 0730B 0730B CAUTION RISK OF ELECTRIC SHOCK AC VOLTAGE LINE. PLEASE DO NOT TOUCH THIS P.C.B NOTE: " * " REF IS FOR INDICATION ONLY. SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS SMPS P.C.B.

  • Page 109: Appendix Information Of Schematic Diagram

    STANDBY IC8001 REF NO. MODE HDMI STANDBY IC8001 REF NO. MODE HDMI STANDBY IC8001 REF NO. MODE HDMI STANDBY IC8001 REF NO. MODE HDMI STANDBY IC8001 REF NO. MODE HDMI STANDBY IC8051 REF NO. MODE HDMI STANDBY SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS BACKEND P.C.B...
  • Page 110 REF NO. IC8651 MODE HDMI STANDBY REF NO. IC9006 MODE CD PLAY STANDBY Q3901 Q3902 Q3903 Q3904 Q8552 REF NO. MODE HDMI STANDBY SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS BACKEND P.C.B 19.1.3. Backend P.C.B. (3/3) REF NO. Q8562 Q8565 MODE CD PLAY STANDBY SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS BACKEND P.C.B...
  • Page 111 STANDBY REF NO. IC200 MODE POWER ON STANDBY REF NO. IC200 MODE POWER ON STANDBY REF NO. IC201 MODE POWER ON STANDBY IC202 REF NO. MODE POWER ON STANDBY IC300 REF NO. MODE SELECTOR -5.0 STANDBY -5.0 SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS MAIN P.C.B...
  • Page 112 CD PLAY 12.0 12.0 12.0 10.1 20.3 20.3 20.3 10.2 10.2 20.3 20.3 STANDBY 12.0 12.0 12.0 10.1 20.3 20.3 20.3 10.2 10.2 20.3 20.3 REF NO. IC404 MODE CD PLAY 20.3 10.2 12.0 STANDBY 20.3 10.2 12.0 SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS MAIN P.C.B...
  • Page 113 POWER ON -5.0 -6.0 -5.6 STANDBY Q106 Q107 Q114 Q116 Q500 REF NO. MODE POWER ON 12.1 10.0 20.6 STANDBY 12.1 10.0 20.6 Q501 REF NO. MODE POWER ON STANDBY Q300 Q301 REF NO. MODE SELECTOR STANDBY SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS MAIN P.C.B...
  • Page 114 IC901 MODE POWER ON -22.9 -22.8 STANDBY -22.9 -22.8 REF NO. Q900 Q901 MODE POWER ON STANDBY SA-XH73GA/GAX,SA-XH75GA/GAX/GK/GS PANEL P.C.B 19.1.8. SMPS P.C.B. IC2900 REF NO. MODE POWER ON 23.5 STANDBY 23.5 12.2 IC5701 REF NO. MODE POWER ON 20.9 STANDBY 16.4...

  • Page 115: Waveform Table

    19.1.9. Waveform Table (1/2) 1.5Vp-p(50nsec/div) 2Vp-p(50nsec/div) 0.4Vp-p(200usec/div) 0.06Vp-p(2usec/div) 1.25Vp-p(2usec/div) 0.15Vp-p(2usec/div) 0.05Vp-p(2usec/div) 2Vp-p(20nsec/div) 1Vp-p(20nsec/div) 3.2Vp-p(500nsec/div) 3.6Vp-p(500nsec/div) 6Vp-p(1usec/div) 6Vp-p(500nsec/div) 6Vp-p(1usec/div) 32Vp-p(1usec/div) 6Vp-p(1usec/div) 6Vp-p(1usec/div) 32Vp-p(1usec/div) 6Vp-p(1usec/div) 32Vp-p(1usec/div)
  • Page 116 19.1.10. Waveform Table (2/2) 0.4Vp-p(200usec/div) 4.8Vp-p(2usec/div) 1.25Vp-p(50usec/div) 5Vp-p(1usec/div) 2Vp-p(20nsec/div)

  • Page 117: Illustration Of Ics, Transistor And Diode

    19.2. Illustration of ICs, Transistor and Diode C0DBAYY00927 (8P) C0DBEYY00175 (8P) C0CBCDC00063 C0DBAYH00005 C0DBGYY02930 C0DBZMC00006 C0DBZYY00311 C0DBZYY00448 (8P) C0DBEYY00215 C0FBAK000026 (16P) C0EBE0000504 C0JBAR000367 (16P) C1AB00003217 (44P) C3ABPG000163 (54P) C3EBFY000030 (8P) No.1 RFKWFXH170E (8P) C0GBY0000117 C0HBB0000057 (44P) C0JBAB000986 C1AB00003477 (128P) VUEALLPT040 (20P) RFKWMXH70EB (100P) C1AB00003610 (64P)

  • Page 118: Terminal Function Of Ics

    19.3. Terminal Function of ICs 19.3.1. IC200 (RFKWMXH70EB): IC MICRO- Pin No. Terminal Name I/O Function No Connection PROCESSOR No Connection +3.3V System Supply No Connection Pin No. Terminal Name I/O Function System Ground CLOSE_SW Close Switch for Mechanism No Connection ECO_CONTRL O Control Voltage Supply of D-AMP for NRST O ADC Reset...

  • Page 119: Display Driver

    19.4. IC901 (C0HBB0000057): IC FL Display Driver Terminal Name Function USB RIP LED No Connection No Connection No Connection No Connection Oscillator Input DOUT No Connection Data Input Clock Input Serial Interface Strobe Key Data Input 1 (No Connec- tion) Key Data Input 2 (No Connec- tion) Power Supply (+5V)

  • Page 121: Exploded View And Replacement Parts List

    (SMPS P.C.B.) T2900 ZJ5701 FL901 ^^29 H901 SA-XH73GA/GAX-K NOTE: " * " PART IS NOT SUPPLIED / REF IS FOR INDICATION ONLY. SA-XH75GA/GAX/GK/GS-K " ^ " PART IS FOR GA/GS ONLY. CABINET DRAWINGS " ^^ " PART IS FOR GK ONLY.
  • Page 122 20.1.2. Packaging (For SC-XH73GA/GAX-K) ACCESSORIES BAG AC CORD A1-1 SA-XH73GA/GAX AC CORD OI BOOK SB-XH73GA FM INDOOR ANTENNA VIDEO CABLE F R O N T POLYFOAM (LEFT) POLYFOAM (RIGHT) NOTE: "**" PARTS ARE NOT SUPPLIED. SC-XH73GA/GAX-K PACKAGING DRAWINGS...
  • Page 123 20.1.3. Packaging (For SC-XH75GA/GAX/GK/GS-K) (FOR GS ONLY) ACCESSORIES BAG A1-1 AC CORD (FOR GA ONLY) SA-XH75GA/GAX/GK/GS **SPACER PAD AC CORD (FOR GA/GAX ONLY) AC CORD (FOR GK ONLY) SB-XH75EP/GK OI BOOK FM INDOOR ANTENNA VIDEO CABLE F R O N T POLYFOAM (LEFT) POLYFOAM (RIGHT) NOTE: "**"...

  • Page 125: Mechanical Replacement Part List

    20.1.4. Mechanical Replacement Part List Safety Ref. Part No. Part Name & Qty Remarks Description Safety Ref. Part No. Part Name & Qty Remarks RKA0253-H LEG RUBBER Description RKMX1009-K TOP CABINET CABINET RKW1003-R FL FILTER CHASSIS RMCX0066 GROUND SPRING RMKX1023 BOTTOM CHASSIS REEX1249-1 (BACK-...
  • Page 126 Safety Ref. Part No. Part Name & Qty Remarks Description RPN2359 POLYFOAM 73GA/ RPN2374 POLYFOAM 75GA/ GAX/GK/ RPFX1010 MIRAMAT ACCESSORIES N2QAYB000694 REMOTE CONTROL A1-1 RKK-PM500EBK BATTERY COVER K2CA2CA00035 AC CORD 75GK K2CQ2CA00006 AC CORD 73GA/ GAX, 75GA/ K2CP2YY00061 AC CORD 73GA/ GAX, 75GA/...

  • Page 127: Electrical Replacement Parts List

    20.2. Electrical Replacement Parts List Safety Ref. Part No. Part Name & Qty Remarks Description IC401 C1AB00003610 Safety Ref. Part No. Part Name & Qty Remarks IC403 C1AB00003217 Description IC404 C1AB00003217 PRINTED CIRCUIT IC405 C1AB00003217 BOARDS IC600 VUEALLPT040 [SPG] IC700 C0FBAK000026 PCB1 REP4757B...
  • Page 128 Safety Ref. Part No. Part Name & Qty Remarks Safety Ref. Part No. Part Name & Qty Remarks Description Description Q501 B1ABCF000231 TRANSISTOR COILS AND INDUC- TORS Q900 B1GBCFJJ0041 TRANSISTOR 75GK Q901 B1ADCE000012 TRANSISTOR 75GK L125 G0A330G00016 CHOKE COIL Q2900 B1BABK000001 TRANSISTOR L291...
  • Page 129 Safety Ref. Part No. Part Name & Qty Remarks Safety Ref. Part No. Part Name & Qty Remarks Description Description PHOTO COUPLER K961 D0GBR00JA008 1/10W 75GK K3901 D0GBR00JA008 1/10W PC701 B3PBA0000579 PHOTO COUPLER K3902 D0GBR00JA008 1/10W K3903 D0GBR00JA008 1/10W K3904 D0GBR00JA008 1/10W TERMINALS...
  • Page 130 Safety Ref. Part No. Part Name & Qty Remarks Safety Ref. Part No. Part Name & Qty Remarks Description Description R209 D0GB103JA008 1/10W R440 D0GB101JA008 1/10W R210 D0GB102JA008 1/10W R441 D0GB223JA008 1/10W R214 D0GB101JA008 1/10W R442 D0GB101JA008 1/10W R215 D0GB101JA008 1/10W R443 D0GB100JA008...
  • Page 131 Safety Ref. Part No. Part Name & Qty Remarks Safety Ref. Part No. Part Name & Qty Remarks Description Description R633 D0GBR00JA008 1/10W R5728 D0GB331JA008 1/10W R658 D0GB222JA008 2.2K 1/10W R5729 D0GB153JA008 1/10W R700 D0GB101JA008 1/10W R5730 ERJ3RBD472V 4.7K 1/16W R701 D0GBR00JA008 1/10W...
  • Page 132 Safety Ref. Part No. Part Name & Qty Remarks Safety Ref. Part No. Part Name & Qty Remarks Description Description R9002 D0GAR00J0005 1/16W C307 F1H1A105A036 R9082 D0GA103JA023 1/16W C308 F1H1H681B052 680pF C309 F1H1H681B052 680pF RESISTOR NET- C312 F1H1A105A036 WORKS C313 F1H1A105A036 C314 F1H1A105A036...
  • Page 133 Safety Ref. Part No. Part Name & Qty Remarks Safety Ref. Part No. Part Name & Qty Remarks Description Description C476 F1H1H333A220 0.033uF 50V C908 F1J1V1050001 C477 F1H1H104B055 0.1uF C909 F1H1H104B055 0.1uF C478 F1H1H104B055 0.1uF C912 F1H1H103B047 0.01uF C479 F1H1H333A220 0.033uF 50V C913 F2A1H220A216...
  • Page 134 Safety Ref. Part No. Part Name & Qty Remarks Description C8028 F1G1C103A146 0.01uF C8029 F1G1H1020008 1000pF C8032 F1G1A1040006 0.1uF C8033 F1G1A1040006 0.1uF C8034 F1G1A1040006 0.1uF C8051 F1H0J105A051 6.3V C8052 F1G1A1040006 0.1uF C8053 F1G1A1040006 0.1uF C8054 F1G1H221A444 220pF C8055 F1H0J105A051 6.3V C8056 F1G1H222A830 2200pF...

This manual is also suitable for:

Sa-xh73gaxSa-xh75gaSa-xh75gaxSa-xh75gkSa-xh75gs

Table of Contents
