Land Pride FSP300 Operator's Manual

Land Pride FSP300 Operator's Manual

Broadcast spreaders
Hide thumbs
Table of Contents

Advertisement

Quick Links

Broadcast Spreaders

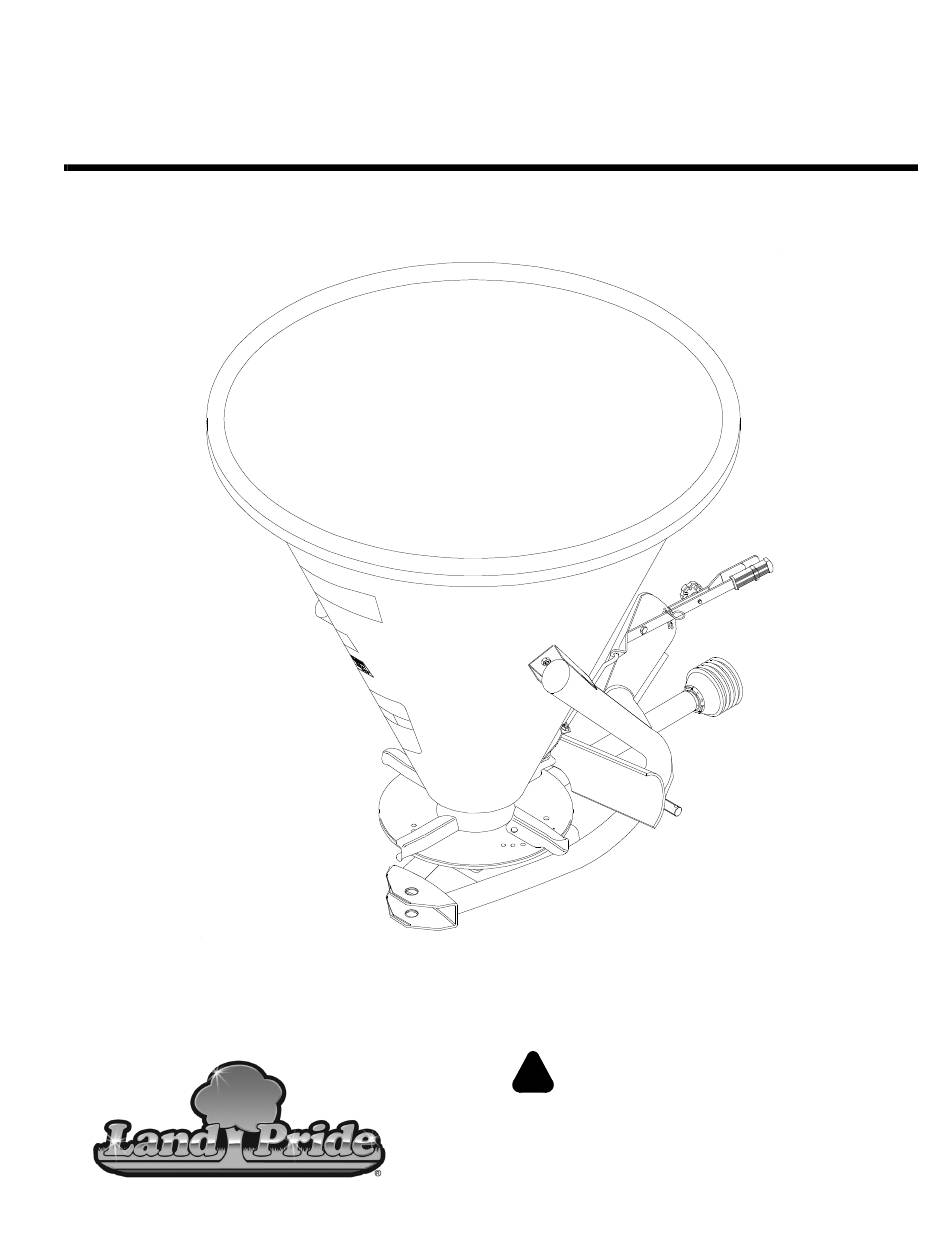

FSP300, FSP500, FSP700 & FSP1000
24974
Table of Contents
!
Read the Operator's Manual entirely. When you see this symbol,
the subsequent instructions and warnings are serious - follow
without exception. Your life and the lives of others depend on it!
Cover photo may show optional equipment not supplied
with standard unit.
For an Operator's Manual and Decal Kit in French
Language, please see your Land Pride dealer.
309-065M
Operator's Manual
Printed 11/19/24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FSP300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Land Pride FSP300

Summary of Contents for Land Pride FSP300

  • Page 1 Your life and the lives of others depend on it! Cover photo may show optional equipment not supplied with standard unit. For an Operator’s Manual and Decal Kit in French Language, please see your Land Pride dealer. Printed 11/19/24...

  • Page 2: Machine Identification

    Machine Height Machine Length Machine Width Machine Weight Delivery Date First Operation Accessories Dealer Contact Information Name: Street: City/State: Telephone: Email: California Proposition 65 WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov FSP300, FSP500, FSP700 & FSP1000 Broadcast Spreaders 309-065M 11/19/24...
  • Page 3 Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land Pride reserves the right to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect the product in the future.
  • Page 4 Download the appropriate for Land Pride products. app on your smart phone. Scan the QR Refer to Parts Manual QR code and take a picture. Locator on this page for detailed instructions. FSP300, FSP500, FSP700 & FSP1000 Broadcast Spreaders 309-065M 11/19/24...

  • Page 5: Safety At All Times

     Important Safety Information Important Safety Information Listed below are common practices that may or may not be applicable to the products described in this manual. Safety at All Times Look for the Safety Alert Symbol Careful operation is your best The SAFETY ALERT SYMBOL indicates there is a potential hazard assurance against an accident.
  • Page 6  Lower implement to the ground and  Replace parts on this implement using the correct tools and follow all shutdown procedures with genuine Land Pride parts only. equipment. before leaving the operator’s seat to Do not alter this implement in a way ...
  • Page 7 Use Seat Belt and ROPS Keep Riders Off Lights and Devices Machinery  Land Pride recommends the use of a CAB or roll-over-protective-  Never carry riders on the tractor or  A slow moving power machine structures (ROPS) and seat belt implement.

  • Page 8: Important Safety Information

    Important Safety Information Listed below are common practices that may or may not be applicable to the products described in this manual.  Be aware of and follow OSHA  If possible, change into disposable Avoid Crystalline Silica (or other local, State, or Federal) or washable work clothes at the (Quartz) Dust guidelines for exposure to airborne...
  • Page 9 Important Safety Information This page left blank intentionally. 11/19/24...
