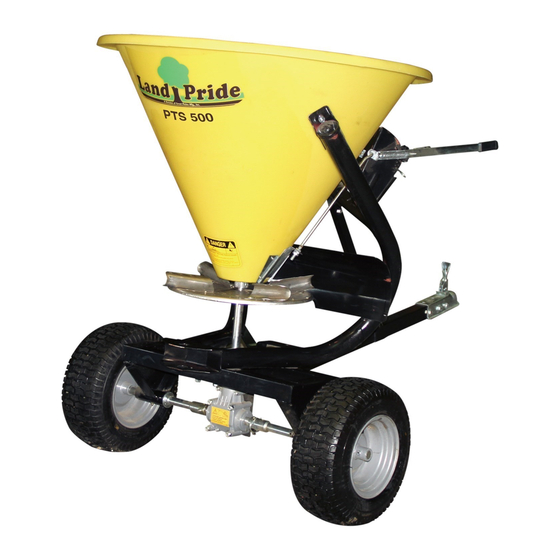

Land Pride PTS500 Operator's Manual
  1. Manuals
  2. Brands
  3. Land Pride Manuals
  4. Spreader
  5. PTS500
  6. Operator's manual

Land Pride PTS500 Operator's Manual

Broadcast spreaders
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Broadcast Spreaders
PTS500 & PTS700 (Pull-Type)
30657
Table of Contents
!
Read the Operator's Manual entirely. When you see this symbol,
the subsequent instructions and warnings are serious - follow
without exception. Your life and the lives of others depend on it!
Cover photo may show optional equipment not supplied
with standard unit.
For an Operator's Manual and Decal Kit in French
Language, please see your Land Pride dealer.
309-125M
Operator's Manual
Printed 11/29/18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PTS500 and is the answer not in the manual?

Questions and answers

Related Manuals for Land Pride PTS500

Summary of Contents for Land Pride PTS500

  • Page 1 Your life and the lives of others depend on it! Cover photo may show optional equipment not supplied with standard unit. For an Operator’s Manual and Decal Kit in French Language, please see your Land Pride dealer. Printed 11/29/18...

  • Page 2: Machine Identification

    Serial Number Machine Height Machine Length Machine Width Machine Weight Delivery Date First Operation Accessories Dealer Contact Information Name: Street: City/State: Telephone: Email: California Proposition 65 WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov PTS500 & PTS700 (Pull-Type) Broadcast Spreaders 309-125M 11/29/18...
  • Page 3 Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land Pride reserves the right to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect the product in the future.
  • Page 4 Download the appropriate App on your Refer to Parts Manual QR smart phone, open the App, point your Locator on this page for phone on the QR code and take a picture. detailed instructions. PTS500 & PTS700 (Pull-Type) Broadcast Spreaders 309-125M 11/29/18...

  • Page 5: Important Safety Information

     Important Safety Information Important Safety Information Listed below are common practices that may or may not be applicable to the products described in this manual. Safety at All Times Look for the Safety Alert Symbol Careful operation is your best The SAFETY ALERT SYMBOL indicates there is a assurance against an accident.

  • Page 6: Tire Safety

     Lower implement to the ground and  Replace parts on this implement implement. follow all shutdown procedures with genuine Land Pride parts only.  Attach the chain to the tractor before leaving the operator’s seat to Do not alter this implement in a way drawbar support or other specified perform maintenance.
  • Page 7 Use Seat Belt and ROPS Handle whenever driving on public roads. Chemicals Properly  Land Pride recommends the use of a CAB or roll-over-protective-  Protective clothing should be structures (ROPS) and seat belt worn. in almost all power machines.

  • Page 8: Safety Labels

    Spray soapy water onto the cleaned area. all damaged or missing labels. Order new labels from your Peel backing from label and press label firmly onto the nearest Land Pride dealer. To find your nearest dealer, surface. visit our dealer locator at www.landpride.com.

  • Page 9: Using This Manual

    Table of Contents Introduction Introduction Land Pride welcomes you to the growing family of new Owner Assistance product owners. This Broadcast Seeder has been The dealer should complete the Online Warranty designed with care and built by skilled workers using Registration at the time of purchase.

  • Page 10: Hitch Requirements

    NOTE: Grease zerks (#3) may be screwed in too far and interfere with installation of axles (#2 & #4) Axle & Gearbox Installation to gearbox input shafts. Unscrew grease zerks Figure 1-2 slightly if they interfere with installation. PTS500 & PTS700 (Pull-Type) Broadcast Spreaders 309-125M 11/29/18...

  • Page 11: Section 1: Assembly & Set-Up

    5. Attach small tube end of telescopic arm (#10) to Hopper Frame Installation center 3-Point clevis (#13) with pivot pin (#14). Figure 1-3 Secure pivot pin with hairpin (#15). 30664 Tongue Installation Figure 1-4 11/29/18 PTS500 & PTS700 (Pull-Type) Broadcast Spreaders 309-125M...
  • Page 12 Poly Hopper Refer to Figure 1-8 on page 9: Orient poly hopper with gate openings straddling both sides of lever mounting bracket. Land Pride decal is on back side of hopper. NOTE: Tap carriage bolts (#3 & #5) into poly hopper before installing nuts (#4 &...
  • Page 13 (A) with M12 x 35 (1 3/8") hex head cap screw (#10) and M12 hex locknut (#11). Draw locknut Gate Lift Installation up snug. Do not tighten nut. Figure 1-9 11/29/18 PTS500 & PTS700 (Pull-Type) Broadcast Spreaders 309-125M...
  • Page 14 (#4) and pull up on release handle (#5). 4. With release handle up, lower ball hitch over 2" ball. 5. Make sure ball hitch is fully on the 2" ball and then push release handle (#5) down until locked. PTS500 & PTS700 (Pull-Type) Broadcast Spreaders 309-125M 11/29/18...

  • Page 15: Operating Checklist

    (within a radius of 50 yards from the spreader). Stop application immediately should anyone come inside the danger zone. Product thrown from the spreader can cause bodily injury or death. 11/29/18 PTS500 & PTS700 (Pull-Type) Broadcast Spreaders 309-125M...
  • Page 16 4. Check distributor vanes and spreader disc for cleanliness and wear. Clean spreader disc and vanes if needed. Replace worn spreader disc and distributor vanes with genuine Land Pride parts only. 30676 Wire Retaining Pin Location 5. Make sure discharge gates open and close properly.

  • Page 17: Section 2: Operation

    Table of Contents Section 2: Operation General Operating Instructions By now you should have properly hitched your Land Pride Broadcast Spreader to your tractor/vehicle. Based on the type of material and pounds per acre you intend to broadcast, you should have referred to the spreading chart in the Operator’s Manual to determine the proper...
  • Page 18 2. Close left-hand gate by moving adjustment lever (#2) up above gate setting position #1. Dispersal Pattern 3. Move adjustment lever (#1) to the selected gate Figure 3-3 setting provided in spreading charts on page 16. PTS500 & PTS700 (Pull-Type) Broadcast Spreaders 309-125M 11/29/18...

  • Page 19: Section 3: Adjustments

    24979 Loosen M8 x 16 (5/8") round head bolt (#1). Distributor Vane Adjustment Figure 3-4 2. Rotate distributor vanes (#2) to desired hole position. 3. Retighten M8 bolts (#1). 11/29/18 PTS500 & PTS700 (Pull-Type) Broadcast Spreaders 309-125M...
  • Page 20 V specific gravity arying product sizes, , treatment of product, moisture content, inert material in product, number, and size of lumps in product, different mixtures of products and roughness of terrain. PTS500 & PTS700 (Pull-Type) Broadcast Spreaders 309-125M 11/29/18...
  • Page 21 V specific gravity arying product sizes, , treatment of product, moisture content, inert material in product, number, and size of lumps in product, different mixtures of products and roughness of terrain. 11/29/18 PTS500 & PTS700 (Pull-Type) Broadcast Spreaders 309-125M...

  • Page 22: Section 4: Accessories

    3/8" shock cord and tied to secure it in place. Land Pride Hopper Covers Part No. Part Description 891-145C PTS500 HOPPER COVER 891-146C PTS700 HOPPER COVER 27747 Polyester Hopper Cover Figure 4-1 PTS500 & PTS700 (Pull-Type) Broadcast Spreaders 309-125M 11/29/18...

  • Page 23: Section 5: Maintenance & Lubrication

    The parts on your Broadcast Spreader have been specially designed and should only be replaced with Clean the Broadcast Spreader after each use. genuine Land Pride parts. Do not alter the spreader in a way which will adversely affect its performance. Touch-Up Paint Part No.
  • Page 24 Type of Lubrication: Multi-purpose Grease 30675 Hours Axle Bearings 2 Zerks Type of Lubrication: Multi-purpose Grease 30676 Hours Ball Hitch Location: In ball receiver and handle pivot. Type of Lubrication: Spray Lubricant 30729 PTS500 & PTS700 (Pull-Type) Broadcast Spreaders 309-125M 11/29/18...

  • Page 25: Section 6: Specifications & Capacities

    All stainless steel Number of Vanes and Adjustable positions Four adjustable vanes in four different positions Hitch Type 2" Ball Net Spreadable Width 26" -40’ Ground Covered per Hour 7 to 15 acres/hr. 30677 11/29/18 PTS500 & PTS700 (Pull-Type) Broadcast Spreaders 309-125M...

  • Page 26: Section 7: Features & Benefits

    Four adjustable positions to obtain maximum spreading precision and uniformity. Stainless steel orifice doors Protects from corrosive material enabling doors to operate smoothly. Plated adjustment levers Protects from corrosive material to enhance longevity. PTS500 & PTS700 (Pull-Type) Broadcast Spreaders 309-125M 11/29/18...

  • Page 27: Section 8: Troubleshooting

    Spreading disc parts worn or damaged. Replace spreader disc and/or vanes. Roughness of terrain. Slow down and decrease gate openings. Wind is blowing the product around. Spread product on a calm non-windy day. 11/29/18 PTS500 & PTS700 (Pull-Type) Broadcast Spreaders 309-125M...

  • Page 28: Section 9: Torque & Tire Inflation Chart

    2970 2190 4820 3560 Torque tolerance + 0%, -15% of torquing values. Unless otherwise specified use torque values listed above. Tire Inflation Chart Tire Size Inflation PSI 16 x 6.5 x 8 PTS500 & PTS700 (Pull-Type) Broadcast Spreaders 309-125M 11/29/18...

  • Page 29: Warranty

    This Warranty is limited to the repair or replacement of any defective part by Land Pride and the installation by the dealer of any such replacement part, and does not cover common wear items such as blades, belts, tines, etc. Land Pride reserves the right to inspect any equipment or parts which are claimed to have been defective in material or workmanship.
  • Page 30 Corporate Office: P.O. Box 5060 Salina, Kansas 67402-5060 USA www.landpride.com...

This manual is also suitable for:

Pts700
