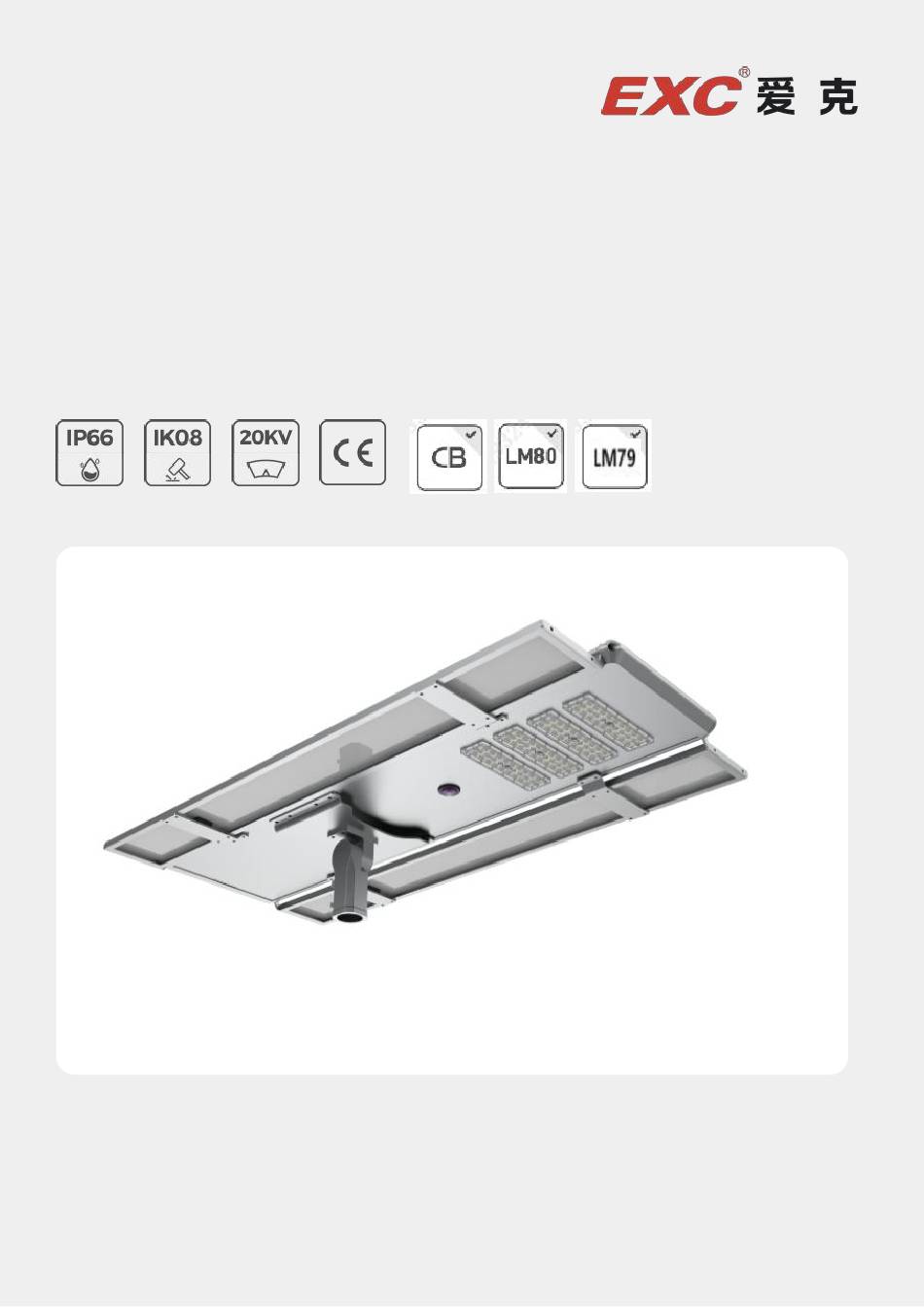

- Page 1 Solar street light EXC-CR-Z01 series Stock code: 300889 Smart Lighting and Charging Pioneer...
- Page 2 Smart Lighting and Charging Pioneer Introduction • LED lens is made of high-quality imported optical materials, with accurate light distribution, high efficiency and strong weather resistance; • The working mode can be customized, with segmented dimming design, and the induction time & power can be set. •...
- Page 3 Smart Lighting and Charging Pioneer Size Size（mm） Maximum windward Weight Power (W) area(m2) （kg） 0.354 14.18kg 1083 0.455 16.42kg 1553 0.652 20.75kg 1709 0.718 22.8kg 1553 1.216 33kg - 03 -...
- Page 4 Smart Lighting and Charging Pioneer Performance Model No. EXC-CR-Z01-020 EXC-CR-Z01-040 EXC-CR-Z01-060 EXC-CR-Z01-080 EXC-CR-Z01-120 Power 120W Lumen 3800lm 6000lm 1000lm 12000lm 20000lm Solar Panel 18V/40W 18V/60W 18V/90W 18V/100W 36V/180W LiFePO4 LiFePO4 LiFePO4 LiFePO4 Lithium Battery LiFePO425.6V/30AH 12.8V/12Ah 12.8V/18AH 12.8V/30AH 25.6V/18AH LEDs...
-
Page 5: Installation
Smart Lighting and Charging Pioneer Installation Lighting test: Open the packaging box, with the solar panel facing the dark side, press the light switch button, delay for 1-3 minutes, and the light will automatically turn on. The solar panel will automatically turn off when facing the sun for about 1 minute. Before installation, the main switch of the lamp must be turned on. - Page 6 Smart Lighting and Charging Pioneer 120W Installation: 1. Open the packaging and remove the lamp, install the sleeve, adjust the angle, lock the M16 screws on the sleeve, and align it with the hole on the lamp. 2. Use 4 pcs M10 * 30 combination screws to secure the installation sleeve to the lamp.
- Page 7 智能照明及充电领创者 Packaging Model No EXC-CR-Z01-020 EXC-CR-Z01-040 EXC-CR-Z01-060 EXC-CR-Z01-080 EXC-CR-Z01-120 L(mm) 1222 1691 1867 1711 W(mm) H(mm) Instructions for use: 1. The lamp should be installed away from fire and should not be obstructed by buildings, trees, or other objects, which may affect charging.
- Page 8 智能照明及充电领创者 Attentions: 1. Any form of installation/uninstallation or maintenance and electrical work must only be performed by a qualified electrician. 2. All wiring should be done after cutting off the power. 3. The street light must be grounded. 4. Always keep the lens/diffuser of the prodct cleaned to maintain good light transmission.
