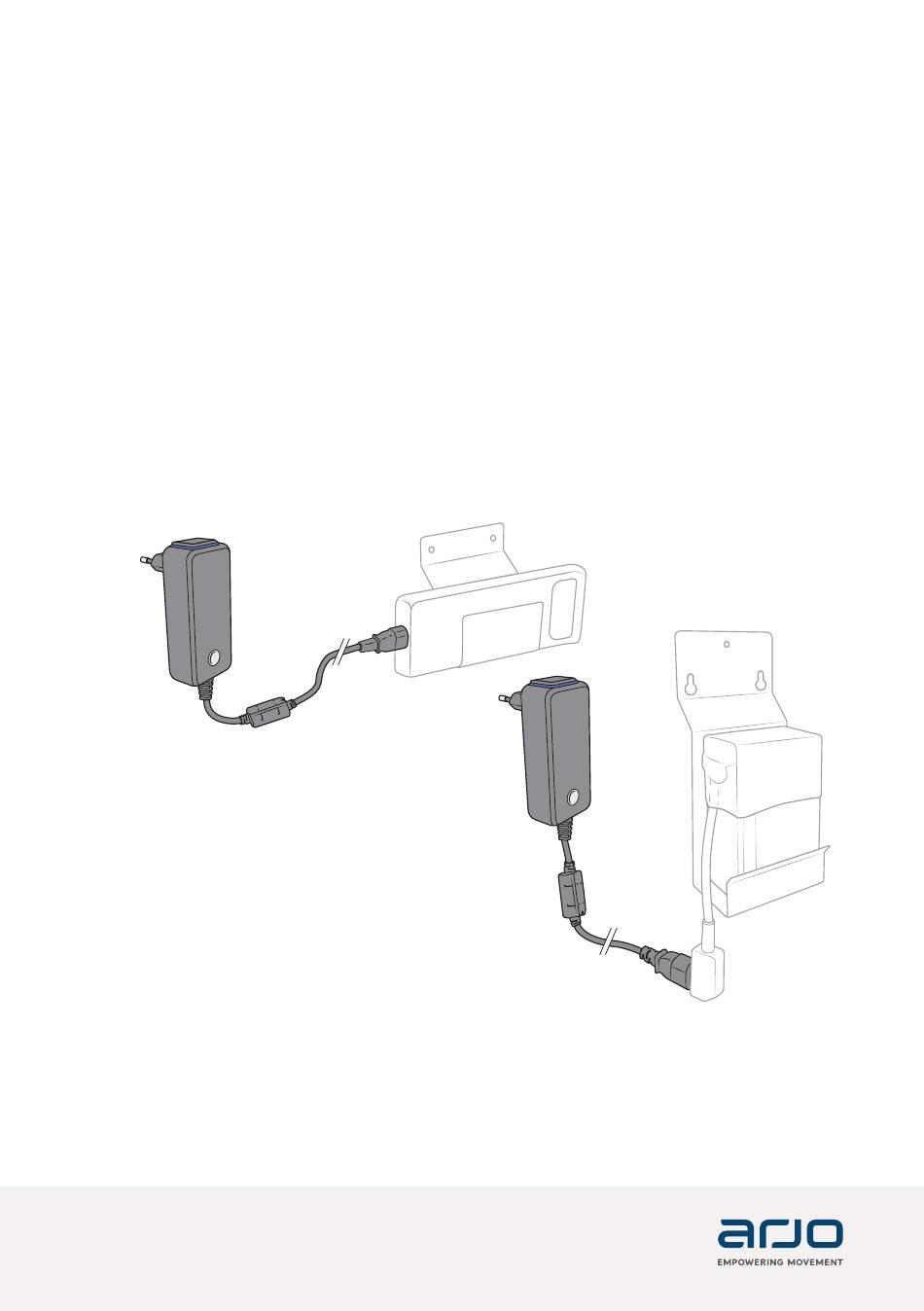

- Page 1 I NS T RU C T I O N S F O R U SE NEA8100‑WW NCA8000‑WW Battery charger 04.NA.00_01EN • 2024-03...
- Page 2 Design Policy and Copyright ® and ™ are trademarks belonging to the Arjo group of companies. © Arjo 2024. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice. The content of this publication may not be copied either whole or in...
-
Page 3: Table Of Contents
Contents Foreword..........................4 Intended use........................5 Safety instructions......................6 Preparations........................8 Parts designation......................9 Installation........................10 Using the battery charger....................11 Cleaning instructions..................... 13 Care and preventive maintenance.................14 Troubleshooting......................17 Technical specifications....................19 Labels..........................21 Electromagnetic compatibility..................23 Parts and accessories....................27... -
Page 4: Foreword
Caution means: Failure to follow these For questions regarding this product or instructions may cause damage to all or other Arjo products and services, contact parts of the system or product. Arjo, an Arjo authorised representative or visit www.arjo.com. -
Page 5: Intended Use
Intended use The battery charger NCA8000-WW is intended for charging the Arjo battery 102193 only. The battery charger NEA8100-WW is intended for charging the Arjo battery NEA0100‑083 only. Battery chargers must be used by appropriately trained caregivers with adequate knowledge in accordance with the guidelines in this IFU. -
Page 6: Safety Instructions
Safety instructions W A R N I N G W A R N I N G To prevent injury, always To prevent strangulation, make read this Instructions for use sure to never leave children and accompanied documents unattended near the product. before using the product. - Page 7 W A R N I N G To prevent injury, do NOT crush, puncture, open, dismantle or otherwise mechanically interfere with the battery. Should the battery casing crack and cause contents to come in contact with skin or clothing, rinse immediately with plenty of water.
-
Page 8: Preparations
Preparations Before first use Actions before every use Check the package for damage. If the Visually inspect the product. If any package looks damaged, contact the part is damaged - do NOT use the transport agency. Do NOT use the product. -
Page 9: Parts Designation
Parts designation Charging module Exchangeable plug/cord (country- dependent) Indicator light Wall-mounted battery holder (model- Cable dependent) Battery charger connector P A R T S D E S I G N A T I O N... -
Page 10: Installation
Install the battery holder Attach the battery holder to a suitable wall near a standard AC power outlet. • NEA8100-WW: Use two screws. • NCA8000-WW: Use three screws. I N S T A L L A T I O N... -
Page 11: Using The Battery Charger
Using the battery charger General information Charge the battery There is no on/off button on the battery charger. W A R N I N G • To get the battery charger ready for To prevent fire, do NOT use, plug it into a power outlet. A charge the battery in a sealed green flashing indicator light shows compartment. - Page 12 C A U T I O N To prevent the battery charger cable from breaking when unplugging the battery, grip the battery charger connector when pulling. Do not pull the cord. Disconnect the battery. Depending on the battery status, charging the battery can take up to 12 hours (for example if the battery is being charged for the first time after a longer storage period).
-
Page 13: Cleaning Instructions
Cleaning instructions Equipment needed for Cleaning cleaning Unplug the battery and disconnect the battery charger from the power outlet. • Dry cloths or dry disposable towels Wipe the battery charger and the cable with a dry cloth or a dry disposable towel to remove visible residue. -
Page 14: Care And Preventive Maintenance
Care and preventive maintenance Under normal use the product is subject to wear and tear. Perform the following actions when specified to make sure that the product remains within its original manufacturing specifications. W A R N I N G To prevent malfunction resulting in injury, make sure to conduct regular inspections and follow the recommended maintenance schedule. -
Page 15: Visually Check All Exposed Parts
Visually check all exposed parts Visually check the condition of the battery charger, its cable and the battery. Withdraw and replace immediately if damaged. C A R E A N D P R E V E N T I V E M A I N T E N A N C E... - Page 16 Yearly checks by qualified service personnel only W A R N I N G To prevent injury and/or unsafe product, the maintenance activities must be carried out at the correct frequency by qualified service personnel using correct tools, parts and knowledge of procedures. Qualified service personnel must have documented training in maintenance of this product.
-
Page 17: Troubleshooting
Troubleshooting If the product fails to operate correctly, the table below suggests some simple checks and corrective actions. If these steps fail to resolve the problem, contact Arjo or an Arjo approved service agent. PROBLEM POSSIBLE CAUSE ACTION DESCRIPTION The indicator light is off... - Page 18 The indicator light flashes NCA8000-WW: The NCA8000-WW: Replace red 5 times safety timer has run out. the battery. The battery is defect. NEA8100-WW: Not NEA8100-WW: Not applicable. applicable. T R O U B L E S H O O T I N G...
-
Page 19: Technical Specifications
Technical specifications GENERAL DATA NEA8100-WW NCA8000-WW Dimensions (without adapter plug) 108.5 x 49 x 29.3 mm 108.5 x 49 x 29.3 mm Weight 0.15 kg (0.33 lb) 0.15 kg (0.33 lb) Maximum charge voltage 34 V 14.7 V Maximum output power 14.4 W... - Page 20 TRANSPORT AND STORAGE CONDITIONS Temperature (ambient) -25 °C (-13 °F) to +85 °C (185 °F) Air humidity 15 % to 93 % Atmospheric pressure 700 hPa to 1060 hPa RECYCLING Package Corrugated cardboard, recyclable. Product Charger systems having electrical and electronic components or an electrical cord should be disassembled and recycled per Waste of Electrical and Electronic Equipment...
-
Page 21: Labels
Labels Data label - States technical performance and requirements. SYMBOL EXPLANATION Operating instructions - Consult Instructions for use CE marking indicating conformity with European Community harmonised legislation. Class II electrical equipment Separate electrical and electronic components for recycling in accordance with the European Directive 2012/19/EU (WEEE) UL recognized marking indicating compliance with Canadian and U.S. - Page 22 UK marking indicating conformity with UK Medical Devices Regulations 2002 (SI 2002 No 618, as amended) UK Responsible Person & UK Importer: Arjo (UK) Ltd, ArjoHuntleigh House, Houghton Regis. LU5 5XF For Northern Ireland (NI) CE marking will still apply until further amendment to applicable regulations.
-
Page 23: Electromagnetic Compatibility
Electromagnetic compatibility Medical electrical equipment needs special precautions regarding electromagnetic compatibility (EMC) and needs to be used according to the EMC information below. Portable and mobile RF communications equipment can affect the product. W A R N I N G Use of this equipment adjacent to or stacked with other equipment should be avoided because it could result in improper operation. - Page 24 EMISSIONS Emissions test Compliance level Guidance RF emissions, Group 1, Class B Suitable for use in all establishments, CISPR 11 including domestic establishments and those directly connected to the public low-voltage Harmonic emissions, Class A power supply network that supplies buildings IEC 61000‑3‑2 used for domestic purposes.
- Page 25 IMMUNITY Immunity test Compliance level Guidance Power frequency 30 A/m (50 Hz) magentic field, IEC 61000‑4‑8 Radiated fields in 30 kHz, CW, 8 A/m close proximity, 134.2 kHz, Pulse IEC 61000‑4‑39 modulation 2.1 kHz, 65 A/m 13.56 MHz, Pulse modulation 50 kHz, 7.5 A/m Conducted RF, 3 Vrms...
- Page 26 IMMUNITY Immunity test Compliance level Guidance These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people and field strengths from fixed transmitters, such as base stations for radio (cellular/ cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcasts and TV broadbasts cannot be predicted theoretically with accuracy.
-
Page 27: Parts And Accessories
Parts and accessories Parts and accessories for NEA8100-WW Battery Battery holder EU plug adapter NEA0100-083 8350891-031 HMX2110 US plug adapter UK plug adapter AU plug adapter HMX2111 HMX2112 HMX2113 Power cord for China Power cord for Brazil Power cord for Israel... - Page 28 Power cord for India HMX2107 SERVICE KITS NEA8100-INT includes: • Battery Charger NEA8100-WW • EU plug adapter HMX2110 • US plug adapter HMX2111 • UK plug adapter HMX2112 • AU plug adapter HMX2113 Parts and accessories for NCA8000-WW Battery Battery holder...
- Page 29 SERVICE KITS NCA8000-INT includes: • Battery Charger NCA8000-WW • EU plug adapter HMX2110 • US plug adapter HMX2111 • UK plug adapter HMX2112 • AU plug adapter HMX2113 P A R T S A N D A C C E S S O R I E S...
- Page 30 Intentionally left blank...
- Page 31 AUSTRALIA FRANCE POLSKA Arjo Australia Arjo SAS Arjo Polska Sp. z o.o. Building B, Level 3 2 Avenue Alcide de Gasperi ul. Ks Piotra Wawrzyniaka 2 11 Talavera Road CS 70133 PL-62-052 KOMORNIKI (Poznań) Macquarie Park, NSW, 2113, Australia FR-59436 RONCQ CEDEX...
- Page 32 At Arjo, we believe that empowering movement within healthcare environments is essential to quality care. Our products and solutions are designed to promote a safe and dignified experience through patient handling, medical beds, personal hygiene, disinfection, diagnostics, and the prevention of pressure injuries and venous thromboembolism. With over 6500 people worldwide and 65 years caring for patients and healthcare professionals, we are committed to driving healthier outcomes for people facing mobility challenges.
