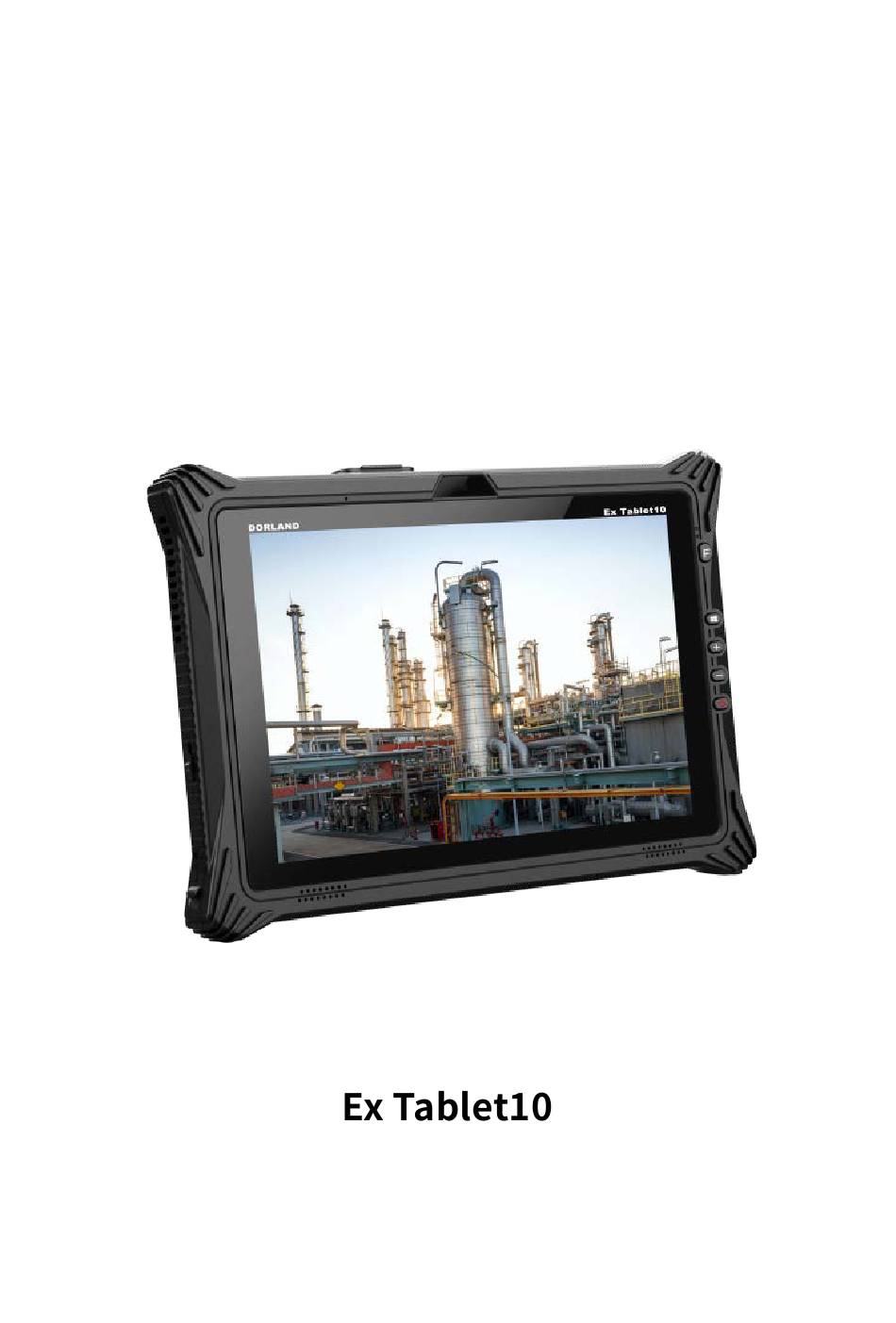

- Page 1 DORLAND ® Industrial Intrinsically Safe Tablet PC/Pad Quick User Manual...
-
Page 2: Table Of Contents
............4 Summary ............ 4 Items in the box ..........5 Safety instructions .......... 6 1.1 Basic parameters ........6 1.2 Warning for safe use ......... 8 1.3 Rules for safe use ......9 1.4 Failure and damage handling ..........9 1.5 Precautions .......... - Page 3 ....3.5 User name and password settings ........... 3.6 Personalization ........3.7 Setting completion ..........4. Desktop Layout ........ 4.1 Windows10 Start Screen ......... 4.2 Charm Menu Bar ......4.3 Introduction to APP interface ..........5. System Settings ....... 5.1 Desktop display application icon ........
-
Page 4: Summary
This document mainly introduces the body interface and system instructions of the Ex Tablet10 tablet computer, so that users can quickly understand how to use the product through picture instructions. When you encounter problems that cannot be solved in the process of use, please contact the technical personnel of Beijing Dorland to deal with them. -
Page 5: Safety Instructions
The Industrial Intrinsically Safe tablet PC/PAD Ex Tablet10 produced by Beijing Dorland has been certified by the national explosion-proof certification authority, and meets the requirements of GB3836.1-2010 explosive environment Part 1: General requirements for equipment, GB3836.4-2010... -
Page 6: Basic Parameters
1.2 Warning for safe use Only by strictly following the instructions in this section can the safety performance of Ex Tablet10, an intrinsically safe industrial explosion-proof tablet PC, be guaranteed. Be sure to carefully read the instructions in this section before use. In case of any doubt or incomprehension, please consult the manufacturer immediately. - Page 7 equipment with the service center of the equipment. The pacemaker manufacturer recommends that the distance between the product and the pacemaker should be at least 15cm to avoid potential interference of the product to the pacemaker. When carrying the product, it should not be put in the chest bag;...
-
Page 8: Rules For Safe Use
1.3 Rules for safe use The safe use of the intrinsically safe industrial explosion- proof tablet Ex Tablet10 is based on the user's compliance with the following rules. 1) The battery of this product is specially produced by the manufacturer. Only the original battery meets the intrinsic safety requirements. -
Page 9: Failure And Damage Handling
6) It is strictly prohibited to use the vibration function in explosive hazardous areas. 7) Keep away from hot areas when using this product. 1.4 Failure and damage handling The computer may lose its intrinsic safety performance due to any factor. Please stop using it in dangerous places. It is recommended to send the computer back to the manufacturer for inspection. - Page 10 b) Please do not place this product, battery and charger in the appliance with strong electromagnetic field, such as electromagnetic cooker and microwave oven, otherwise it may cause circuit failure, fire or explosion. c) Please do not place this product, battery and charger in high temperature area and low temperature area, otherwise it may cause failure, fire or explosion of this product, battery and charger.
-
Page 11: Monstrans De Droit
inch (2.5cm). The signal interference of this product may affect the adjacent TV, radio or computer. g) Please comply with the international regulations on RF radiation and use the product accessories designated by our company. h) When using this product, please abide by relevant laws and regulations, and respect the privacy and legal rights of others. - Page 12 development, the Company reserves the right to modify any product described in this manual without prior notice; c) Under no circumstances will the Company be liable for any loss of data or other aspects, or any direct or indirect damage caused by any special event or accident; d) The contents of this manual are provided as is.
-
Page 13: Six Views Of Product Appearance
1. Six views of product appearance... -
Page 15: External Interface Of Product
2. External interface of product 1. Front camera - 2 million cameras can take pictures and video; 2. F key - 1D/2D scanning key (can be defined); 3. Windows HOM key - used to open Windows shortcut; 4. Volume up+button - used to adjust the price and increase the volume;... - Page 16 hole to align and firmly connect the tablet and the base; Battery - supply power to the panel; Rear camera - 8 million cameras can take pictures and video; Expansion module slot - one out of five interfaces including network port, serial port, 1D, 2D and USB2.0; Heat dissipation fan - heats the flat panel;...
-
Page 17: Device Initialization Setting
3. Device initialization setting 3.1 Language selection Different languages are used according to different international users. When you first encounter the language setting page after booting up, users can customize the language according to their needs (the system generally defaults to English and Chinese, and the required language can be customized). -
Page 18: Input Method Selection Setting
Select the usage area according to the selected language. 3.2 Input method selection setting Choose Pinyin input method or Wubi input method according to personal usage habits, click "Yes" to go to the next step. -
Page 19: Network Settings
If a single input cannot be satisfied, another one can be added here or skipped. 3.3 Network settings Select the network you want to connect to, click, enter the password and connect (it is recommended not to directly skip connecting to the network, otherwise it may take too long because the system checks for updates). -
Page 20: User License Agreement
3.4 User License Agreement This is the license agreement of Microsoft Software License Terms. Click Accept to proceed to the next step. 3.5 User name and password settings A. Enter the next step after setting the administrator account name. -
Page 21: Personalization
B. Set your account password. After clicking Next, the device will restart. Please do not do other operations during device startup (skip without setting). 3.6 Personalization A. Whether Microsoft "Xiao Na" is set as personal assistant. -
Page 22: Setting Completion
B. Personal privacy settings. The following options can be turned on or off according to personal habits. 3.7 Setting completion Wait for the system to enter the desktop. Do not turn off the computer during this time. -
Page 23: Desktop Layout
4. Desktop Layout 21 4.1 Windows10 Start Screen Start icon - it can quickly start the installed application Search box - enter key characters to search and open web pages or applications. Task view - when multiple tasks are opened, this icon can be used to quickly switch applications. -
Page 24: Charm Menu Bar
Email - used to log in to the email account for email receiving and sending. 4.2 Charm Menu Bar In PC mode, press the Start button to open the Charm menu bar, including Start, Device, Settings, and Shared Search. Battery status icon - used to view the battery charging and discharging status and battery power. - Page 25 Stylus - Settings can be written with a stylus. Keyboard - Click to use an analog keyboard. Language - Different languages can be selected. Time and date - you can view the calendar and current time. Information notification bar - used to view the display of system notification information.
-
Page 26: Introduction To App Interface
4.3 Introduction to APP interface Click "Operation Center" - "Tablet Mode" as shown in the figure below, and you can see many programs fixed on the screen. These applications are displayed in the form of "magnets", which can be accessed by clicking once. Before the application is fully running, you need to log in to the "Microsoft"... - Page 27 Expand Users Fixed Tiles Settings All apps Power supply Add "Tile" file: all apps used - select the app icon, right-click - select Pin to Start screen - return to the pinned tile view app. Delete "Tile" files: fixed tiles - right-click and select Unpin from Start screen.
-
Page 28: System Settings
5. System Settings 5.1 Desktop display application icon A. Right click the blank area of the desktop, and select Personalization here in the interface, as shown in the figure below. B. In the personalized window, click the "Theme" option here on the left. - Page 29 C. In the related settings, select the desktop icon settings here, and click Open as shown in the figure. D. In the desktop icon window, tick the computer icon and click OK.
-
Page 30: System Information
5.2 System information Right click or touch and hold the computer icon to open the extension option. Click the attribute to view the system information, Windows system version, hardware configuration information, computer name, Windows activation and other information, as shown in the circled part above. - Page 31 1. Right click or long press the start icon to open the advanced startup interface, from which you can directly open the corresponding functions. The white lines in the above figure are selected from top to bottom 2. Applications and functions - can manage installed applications and drivers;...
- Page 32 9. Disk management - local and external disk management, partition formatting and other operations. Computer management - open computer system tools, storage, services, etc. WindowsPowerShell - CMD command running window. WindowsPowerShell (administrator) - CMD administrator command run window. Task manager - it can forcibly shut down the background running programs and services of the system and check the running status of the computer.
-
Page 33: System Settings
5.4 System Settings 1. System settings - display settings, notifications and operations, power and sleep, battery management, storage, tablet mode, multitasking, projection to this computer, sharing experience, remote desktop (not supported by Windows HOME version), about the system and other settings can be made. 2. - Page 34 4. Network and Internet - In this interface, you can view the network status, WiFi settings, mobile network settings, broadband dialing, VPN settings, flight mode, mobile hotspot, data usage, proxy and other settings. 5. Personalization - background setting, color, lock screen, theme setting, (start menu bar setting, task bar) can be set in this interface only after the system is activated.
- Page 35 9. Games - Hotkeys can be set on this interface to quickly start an option, broadcast, game mode, etc. Easy to use - narrator, magnifying glass, color and high contrast, closed caption, keyboard, mouse, etc. can be set. Cortana - General setting options of Microsoft Assistant.
-
Page 36: Contact Us
Enterprise official website Beijing Dorland System Control Technology Co., Ltd. Add: Room1107, Tower B, Tsinghua Tongfang Technology Square, No.1 Wangzhuang Road, Haidian District, Beijing, P.R.China Sales Hotline: +86-10-62164681 / 62198496 Service Hotline: +86-10-62985217 Mobliephone: +8613910650041 Website: www.dorland-tech.cn E-mail: tian@dorland.com.cn PostCode 100083...
