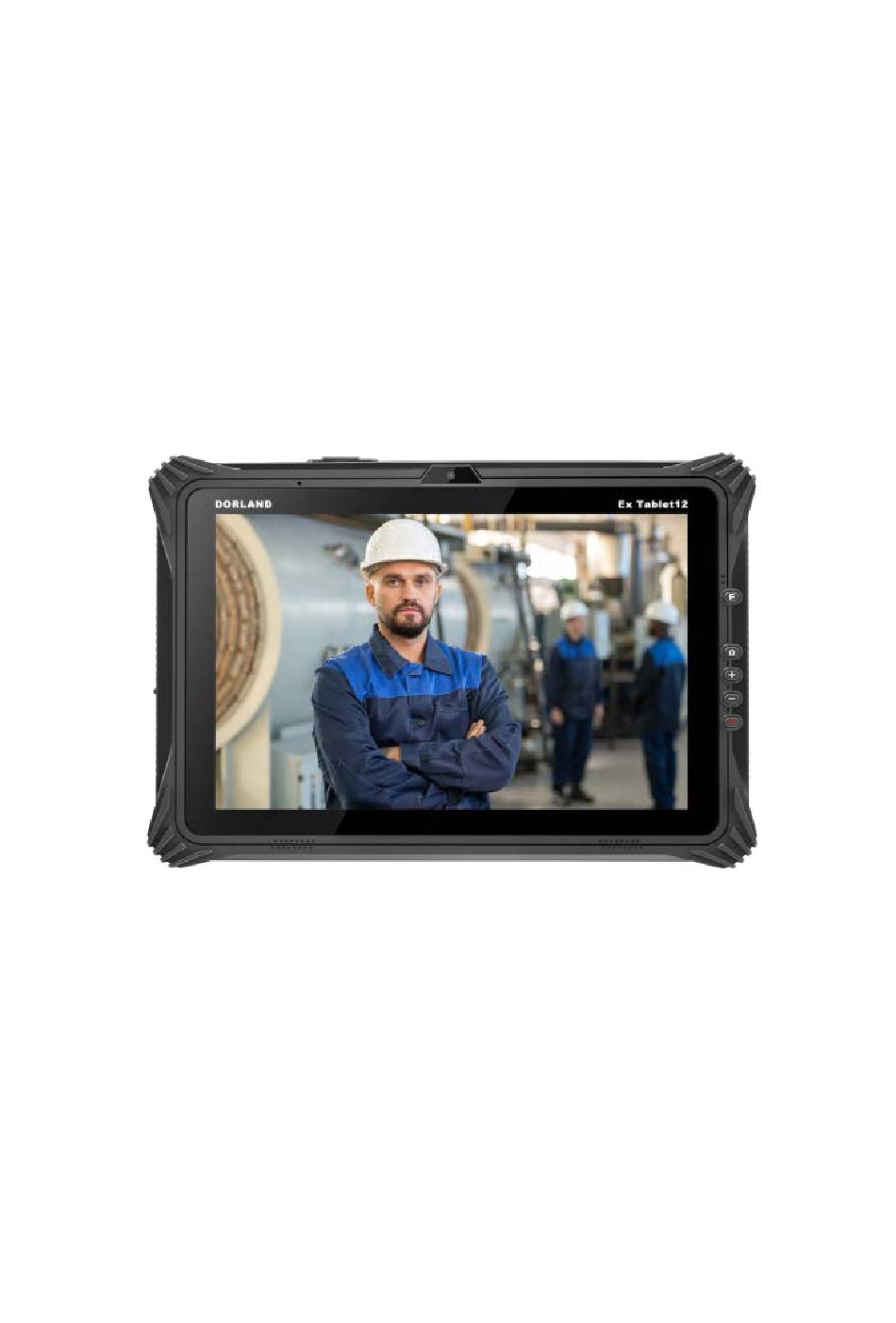

- Page 1 DORLAND ® Industrial Intrinsically Safe Tablet PC/Pad Quick User Manual Ex Tablet12...
-
Page 2: Table Of Contents
Catalogue ............Summary ............. Items in the box ..........Safety instructions ..........Basic parameters ..........Warning for safe use ..........Rules for safe use ....... Failure and damage handling ............ Precautions ..........Monstrans de droit ....... Six views of product appearance ........ - Page 3 ...... Schematic diagram of charging base ...... Schematic diagram of the car mount .......... Using the touch screen ......Using multi touch screen gestures ........Using wireless connectivity ......Using WLAN network functionality ........ Connect to wireless network ........Using Bluetooth functionality ......
- Page 4 ........Replacing the battery pack ..........Energy saving tips ..........System Expansion ........Connecting USB devices ......Connecting USB Type-C devices ........Connecting the monitor ........Connecting audio devices ............Contact us...
-
Page 5: Summary
This document mainly introduces the body interface and system instructions of the Ex Tablet12 tablet computer, so that users can quickly understand how to use the product through picture instructions. When you encounter problems that cannot be solved in the process of use, please contact the technical personnel of Beijing Dorland to deal with them. -
Page 6: Safety Instructions
(such as particles, dust or metal powder) in the air, such as gas stations, oil depots, etc. The Industrial Intrinsically Safe tablet PAD Ex Tablet12 produced by Beijing Dorland has been certified by the national explosion-proof certification authority, and meets the requirements of GB3836.1-2010 explosive environment Part 1: General... -
Page 7: Basic Parameters
Warning for safe use Only by strictly following the instructions in this section can the safety performance of Ex Tablet12, an intrinsically safe industrial explosion-proof tablet PC, be guaranteed. Be sure to carefully read the instructions in this section before use. In case of any doubt or incomprehension, please consult the manufacturer immediately. - Page 8 between the product and the pacemaker should be at least 15cm to avoid potential interference of the product to the pacemaker. When carrying the product, it should not be put in the chest bag; the ear on the side different from the one wearing the pacemaker should be used to answer the phone to reduce the potential factors causing interference.
-
Page 9: Rules For Safe Use
Rules for safe use The safe use of the intrinsically safe industrial explosion- proof tablet Ex Tablet12 is based on the user's compliance with the following rules. 1) The battery of this product is specially produced by the manufacturer. Only the original battery meets the intrinsic safety requirements. -
Page 10: Failure And Damage Handling
6) It is strictly prohibited to use the vibration function in explosive hazardous areas. 7) Keep away from hot areas when using this product. Failure and damage handling The computer may lose its intrinsic safety performance due to any factor. Please stop using it in dangerous places. It is recommended to send the computer back to the manufacturer for inspection. -
Page 11: Precautions
Precautions a) Please keep the product away from the magnetic equipment. The radiation of the product may erase the information stored on the magnetic equipment. b) Please do not place this product, battery and charger in the appliance with strong electromagnetic field, such as electromagnetic cooker and microwave oven, otherwise it may cause circuit failure, fire or explosion. - Page 12 machine to avoid affecting human health. f) To comply with RF leakage regulations, when you wear this product or use its data function, please keep the distance between the antenna and your body at least 1 inch (2.5cm). The signal interference of this product may affect the adjacent TV, radio or computer.
-
Page 13: Monstrans De Droit
Monstrans de droit a) It is strictly forbidden to copy, transfer, distribute and store any content in this User Manual in any form without the prior written permission of the Company; b) Based on the principle of continuous improvement and development, the Company reserves the right to modify any product described in this manual without prior notice;... -
Page 14: Six Views Of Product Appearance
Six views of product appearance... - Page 15 Component Description ❶ Microphone Used to receive external sounds. ❷ Stereo Speaker Make the sound of a tablet. On: The power on light is always blue, and the power off light is off; When switching the power supply of the built-in small battery, it flashes blue. ❸...
-
Page 17: Right-Side Components
Component Description ❶ Used to achieve photography and video camera recording functions. ❷ Flash Supplementary lighting and lighting use. ❸ Provide heat dissipation for the flat panel (air Cooling fan inlet). ❹ battery lock Lock the battery cover. ❺ battery The location of the large battery. -
Page 18: Left-Side Components
Left-Side Components Component Description ❶ Provide heat dissipation for the flat panel Cooling (air outlet). ❷ To serve as a protective interface, slide left Interface to open the protective cover. ❸ Connect the power adapter. ❹ 3.5mm Connect audio devices. ❺... -
Page 19: Top Components
Top Components Component Description Network port (default), serial port, USB, ❶ One out of five one-dimensional code, two-dimensional module ports code, one out of five ❷ Handle screw Install the M4 handle screw for easy position installation of the handle. Schematic diagram of the handle: (The picture is for reference only) -
Page 20: Bottom Component
Bottom component Component Description Cooperate with the positioning hole to ❶ connect the car holder and charging base for Pogo Pin expanding USB, RJ45, RS232 communication interfaces. ❷ Positioning When connecting the car holder and charging hole base, it plays a fixing role. Install SIM card and TF Card Install the Nano SIM + TF card in the following location. -
Page 21: Schematic Diagram Of Charging Base
Schematic diagram of charging base: (Image and reference only) Schematic diagram of the car mount: (The image is for reference only) -
Page 22: Using The Touch Screen
Using the touch screen Note: Do not use sharp objects such as ballpoint pens or pencils on the touch screen. Otherwise, it may damage the touch screen surface. Touch screen pens or fingers should be used. The specific model of screen is a capacitive touch screen. This type of screen responds to conductive objects, such as fingers and capacitive touch screen pens. -
Page 23: Using Multi Touch Screen Gestures
Using multi touch screen gestures You can use the movements of two fingers on the screen to communicate with the tablet. This type of action is called 'gestures', which convey commands to the tablet. Here are the multi touch screen gestures you can use: Gesture Action Description... - Page 24 Gesture Action Description Hold and Hold down and click to open the shortcut menu. click Hold down the target and then click with the second finger. The actual functionality is Double finger determined by the Click with two fingers application software that click simultaneously (the target supports this gesture.
-
Page 25: Using Wireless Connectivity
Using wireless connectivity Using WLAN wireless local area network functionality The built-in WLAN (Wireless Local Area Network) function of the tablet supports the WIFI802.11 (a/b/g/n/ac) standard. Turn on WLAN radio frequency: Click -[Settings] - [Network and Internet] - [WLAN], and turn the WLAN switch to the [On] position. -
Page 26: Using Bluetooth Functionality
4. Depending on the settings, you may need to enter a password. Please contact your network administrator or operator for information. For more information on setting up a wireless network, please refer to Windows' online help. Using Bluetooth functionality The Bluetooth function provides Bluetooth device connectivity for short distance wireless communication without the need for any cables. -
Page 27: Connect To Other Bluetooth Devices
To quickly turn off all wireless radio frequencies at once, simply turn on flight mode. Click - [Settings] - [Network and Internet] - [Flight Mode] and turn the flight mode switch to the [On] position. Connect to other Bluetooth devices 1. -
Page 28: Application Of Electricity
Application of electricity Your tablet can be powered by an external AC power source or an internal battery pack. ac adapter Attention: The power adapter is only for your tablet use. If used for other purposes, it may damage the connected electrical appliances or adapters. -
Page 29: Battery Pack
Since your tablet operates on DC power, but the power outlet usually provides AC power, the function of the power adapter is to convert the AC power from the power source into the DC power required for the tablet. When connecting the power adapter, it also automatically charges the battery. -
Page 30: Check Battery Level
progress. When the battery is fully charged, the battery indicator light turns green. Attention: After the battery is fully charged, do not immediately unplug and connect the power adapter, as the battery may be damaged as a result. Check battery level Note: The battery level display is an estimated value. -
Page 31: Low Battery
Low battery When the battery is low, please immediately connect the adapter, put the tablet into sleep mode, or turn off the tablet power. Replacing the battery pack Attention: Incorrect battery replacement may lead to an explosion. When replacing the battery, be sure to use the original battery supplied by the tablet manufacturer. - Page 32 1. Carefully flip the flat plate so that its bottom is facing upwards. 2. Turn the small battery switch to the unlock position (at this time, the small battery is powered and the front blue light is flashing). 3. Turn the large battery switch to the unlock button, and the battery can be removed at this time.
-
Page 33: Energy Saving Tips
Energy saving tips In addition to enabling the energy-saving mode of the tablet, you can also refer to the following suggestions to maximize the working time of the battery. Do not disable power management. Adjust the screen brightness to the lowest level that is acceptable to the individual. -
Page 34: System Expansion
System Expansion You can expand the functionality of the tablet by connecting external devices. When using peripherals, in addition to referring to the relevant chapters here, please be sure to read the instructions provided by the device itself. Connecting peripherals Connecting USB devices This tablet is equipped with one USB 3.0 port and can connect to USB devices such as digital cameras, scanners,... -
Page 35: Connecting The Monitor
Connecting the monitor Your tablet supports HDMI and DisplayPort interfaces. Please connect the monitor to the corresponding interface according to the specifications. Connecting audio devices Your tablet is equipped with one composite audio port, which belongs to the 3.5mm specification and can be connected to compatible headphone microphones. -
Page 36: Contact Us
Contact us Enterprise official website Beijing Dorland System Control Technology Co., Ltd. Add: Room1107, Tower B, Tsinghua Tongfang Technology Square, No.1 Wangzhuang Road, Haidian District, Beijing, P.R.China Sales Hotline: +86-10-62164681 / 62198496 Service Hotline: +86-10-62985217 Mobliephone: +8613910650041 Website: www.dorland-tech.cn E-mail: tian@dorland.com.cn...
