Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
9
Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is fitted with the
9
correct fuse.
DO NOT pull or carry the appliance by the power cable.
8
DO NOT pull the plug from the socket by the cable.
8
DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or is replaced immediately by a
8
qualified electrician.
If the cable or plug is damaged during use, switch off the electricity supply and remove from use.
9
Ensure that repairs are carried out by a qualified electrician.
9
Ensure that the insulation on all cables and the product itself is safe before connecting to the mains power supply.
9
Ensure that cables are always protected against short circuit and overload.
9
2. INTRODUCTION
Composite case with integral battery clamp storage and carry handle. Suitable for starting 12V vehicles with 8-cylinder petrol engines up
to 6L and 8-cylinder diesel engines up to 4.8L. Also suitable for starting 24V vehicles with 6 cylinder diesel engines up to 3L. Front panel
displays internal battery charge level and includes an integral LED worklight. Reverse polarity and short circuit protection. Mains charger with
automatic cut-off prevents damage to battery whilst charging. Inbuilt fuseable link protection system. Fitted with two 12V power sockets that
will accept any 12V device with a vehicle accessory socket plug.
3. SPECIFICATION
Model No: ........................................................... RS105B.V2
Auxiliary Output:................................................. 2 x 12V Port
Cable/clamp length: ....................................................... 0.7m
Cold Cranking Amps: ...........................12V/24V - 600A/300A
Fuse Rating: ..................................................................650A
Peak Amps: ...................................... 12V/24V - 3100A/1550A
Power Supply Cable Length: ............................................. 1m
Rated Capacity: .............................................................44Ah
Voltage: .................................................................... 12V/24V
Weight: ........................................................................ 14.5kg
4. OPERATION
7

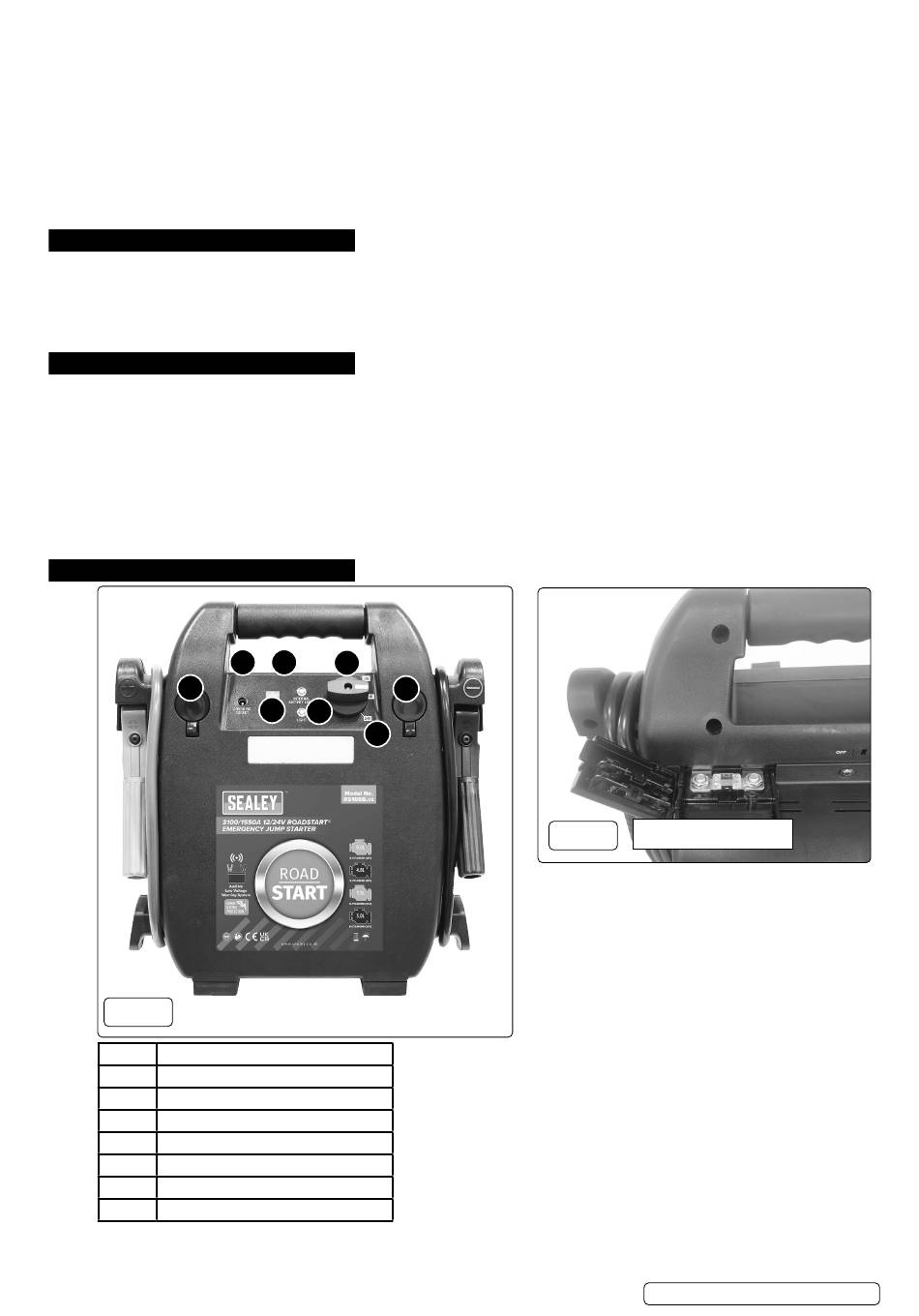

fig.1
Item
Description
1
On/Off/Selection switch
2
Internal battery level
3
Worklight switch
4
Internal battery level LED display
5
Charge socket
6
Worklight
7
12V power socket
© Jack Sealey Limited
5
2
1
7
4
3
6
Original Language Version
Charger Specification
Model No.: ................................................. RS1B.CHARGER
Input: ........................................................... 230V~50Hz 0.3A
Output: .....................................................................15V 0.8A
Plug Type: ................................................................ 3-Pin BS
fig.2
F use Box on Rear Face
F
use Box on Rear Face
RS105B.V2
Issue 3
01/03/24
