Sealey ROADSTART RS105B.V2 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Warning!
Refer to
instructions
1. SAFETY
IMPORTANT: To reduce the risk of a battery explosion, follow these instructions and those published by the battery manufacturer and the
manufacturer of any equipment you intend to use in the vicinity of the battery. Remember to review warning marks on all products and on
engines. Modern vehicles contain extensive electronic systems. Check with the vehicle manufacturer for any specific instructions regarding the
use of this type of equipment on each vehicle. No liability will be accepted for damage/injury where this product is not used in accordance with
all instructions.
1.1. SAFETY INSTRUCTIONS
Wear safety eye protection and protective clothing. Avoid touching eyes while working with a battery.
9
Wash immediately with soap and water if battery acid contacts skin or clothing. If acid enters eye, flush eye immediately with cool,
9
clean running water for at least 15 minutes and seek immediate medical attention.
Remove personal metallic items such as rings, bracelets, necklaces and watches.
9
Keep the unit in good working order and condition. Replace damaged parts immediately.
9
Use only recommended parts. To use unapproved parts may be dangerous and will invalidate your warranty.
9
The Roadstart must only be opened and checked by qualified service personnel. DO NOT disassemble the unit for any reason.
9
Keep children and unauthorised persons away from the work area.
9
Keep work area clean and tidy and free from unrelated materials. Ensure that there is adequate lighting.
9
If the Roadstart receives a sharp knock or blow, it must be checked by a qualified service agent before being used.
9
NOTE: If the internal battery is leaking DO NOT use and replace battery immediately.
Isolate the spillage and clean appropriately.
9
WARNING!: Battery acid can cause skin damage/burns, respiratory issues, eye damage and throat irritation so please ensure all
‰
precautions are taken place.
DO NOT smoke or allow a spark, or flame in the vicinity of the battery or engine.
8
DO NOT drop any metal item onto the battery as it may spark or short circuit the battery, which could cause an explosion.
8
DO NOT use Roadstart to recharge dry cell batteries that are commonly used with home appliances.
8
DO NOT charge or boost a frozen battery.
8
DO NOT use attachments other than those recommended.
8
DO NOT pull or carry the unit by its cables and DO NOT pull the negative and positive clamps from the battery terminals.
8
DO NOT operate in vicinity of flammable liquids or gases.
8
DO NOT recharge the unit with a charger / cables that are damaged. Replace immediately.
8
DO NOT use this product to perform a task for which it is not designed.
8
DO NOT store the unit in damp or wet locations or where the temperature may exceed 50°C.
8
DO NOT submerge the unit in water.
8
DO NOT use whilst under the influence of drugs, alcohol or intoxicating medication.
8
DO NOT leave the unit in a totally discharged state for an extended period of time as this may result in permanent damage.
8
DO NOT cross-connect the power leads from the Roadstart to battery. Ensure positive is to positive and negative is to negative.
8
Children from age 8 years and above, persons with reduced physical, sensory, or mental capabilities those with lack of experience
and knowledge can use the appliance, if they have been given supervision or instruction concerning use of the appliance in a safe
way to understand the hazards involved.
Children shall NOT play with the appliance.
8
Cleaning and user maintenance on the appliance shall not be made by children without supervision.
8
The appliance shall be disconnected from its power source during service and when replacing parts and, if that the removal of the
9
plug is foreseen, it shall be clearly indicated that the removal of the plug has to be such that an operator can check from any of the
points to which he/she has access that the plug remains removed.
Ensure that the unit is fully charged before storage. Keep the unit fully charged on a regular basis.
9
1.2. ELECTRICAL SAFETY (with respect to mains chargers)
WARNING! It is the user's responsibility to check the following:
‰
Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and
9
all electrical connections for wear and damage. Sealey recommend that an RCD (Residual Current Device) is used with all electrical
products.
Electrical safety information. It is important that the following information is read and understood:
Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
9
© Jack Sealey Limited

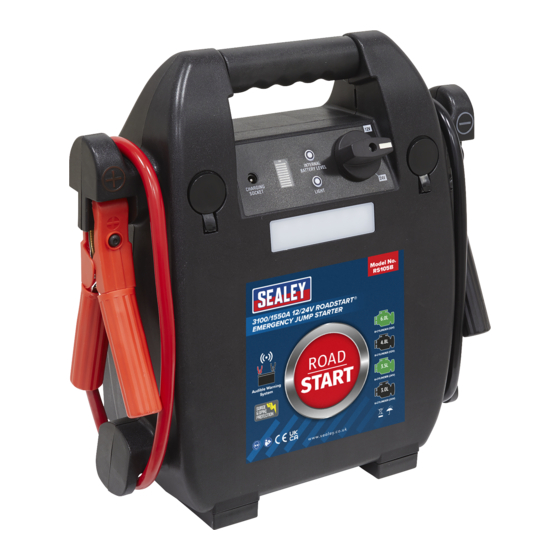

ROADSTART® EMERGENCY JUMP STARTER
3100/1550A 12/24V
MODEL NO:
Warning
Wear eye
protection
corrosive
substance
Original Language Version
RS105B.V2
Wear Electrical
protective shock
gloves hazard
Use in well
Keep in dry
ventilated
area protect
from rain areas
RS105B.V2 Issue 3
Keep away
from sources
of ignition
01/03/24
