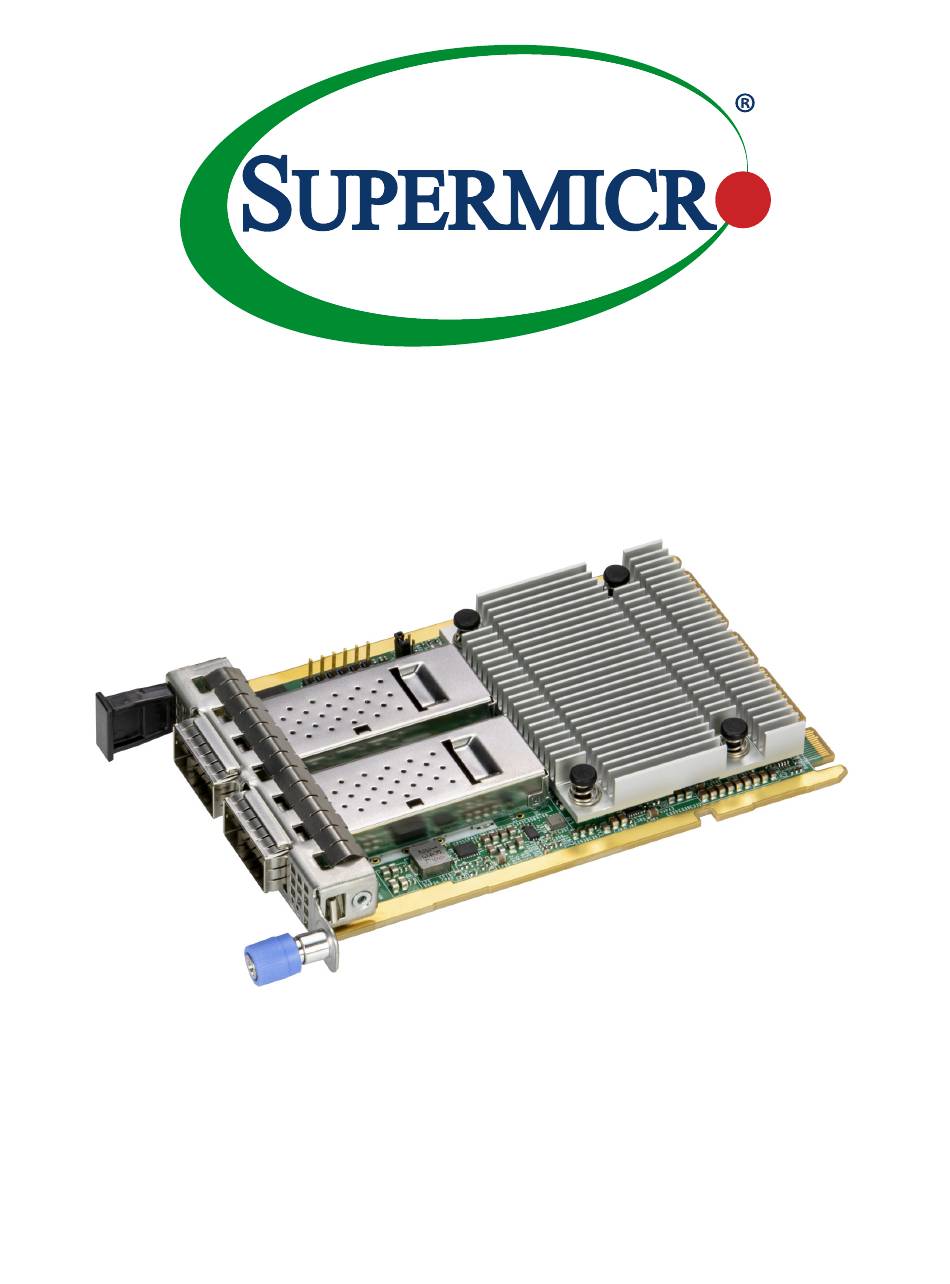

- Page 1 AOC-A200G-B2CM USER'S MANUAL Revision 1.0...
- Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
-
Page 3: About This Manual
Preface Preface About This Manual This user's guide is written for system integrators, IT technicians, and knowledgeable end users. It provides information for the installation and use of the AOC-A200G-B2CM add-on card. About This Add-On Card Supermicro Advanced I/O Modules (AIOM) are the latest form factor designed to provide a ®... -
Page 4: Returning Merchandise For Service
Super AOC-A200G-B2CM User's Manual Returning Merchandise for Service A receipt or copy of your invoice marked with the date of purchase is required before any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. -
Page 5: Important Links
• If you have any questions, contact our support team at: support@supermicro.com This manual may be periodically updated without notice. Check the Supermicro website for possible updates to the manual revision level. Naming Convention for Networking Adapters... -
Page 6: Contacting Supermicro
Super AOC-A200G-B2CM User's Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) Sales-USA@supermicro.com (Sales Inquiries) Government_Sales-USA@supermicro.com (Gov. Sales Inquiries) support@supermicro.com (Technical Support) RMA@supermicro.com (RMA Support) -
Page 7: Table Of Contents
Preface Table of Contents Chapter 1 Introduction 1.1 Overview ..........................9 1.2 Key Features ........................9 1.3 Specifications ........................10 1.4 Available SKUs ........................13 Chapter 2 Hardware Components 2.1 Add-On Card Image and Layout ..................14 2.2 Major Components ......................16 2.3 QSFP112 Ethernet Connections ..................17 2.4 Port and Port LED .......................18 2.5 Jumper Settings ........................19 2.6 PCIe 5.0 x16 AIOM Form Factor Connector ..............20... -
Page 8: Chapter 1 Introduction
Congratulations on purchasing your add-on card from an acknowledged leader in the industry. Supermicro products are designed with the utmost attention to detail to provide you with the highest standards of quality and performance. For product support and updates, please refer to our website at https://www.supermicro.com/en/products/networking/adapters. -
Page 9: Specifications
Chapter 1: Introduction 1.3 Specifications Networking Features • Eight SerDes capable of 100/50G PAM4 and 25G NRZ • QSFP112 • 2x200 GbE, 100/50/25 GbE • Auto-negotiation with auto-detect • IEEE-1588v2 • IEEE 802.3x flow control • IEEE 802.3ad Link Aggregation •... -
Page 10: Virtualization Features
Super AOC-A200G-B2CM User's Manual • Receive Segment Coalescing (RSC) • TCP Segmentation Offload (TSO) • Large Receive Offload (LRO) • Large Send Offload (LSO) • Receive Side Scaling (RSS) • Transmit Side Scaling (TSS) NIC Partitioning (NPAR) • 16 Physical Functions •... - Page 11 Chapter 1: Introduction TruFlow Flow Processing • Exact/Wildcard match flow lookup • VLAN insertion/deletion • NAT/NAPT/Mirroring Data Center Bridging • Priority-based flow control (PFC; IEEE 802.1Qbb) • Enhanced transmission selection (ETS; IEEE 802.1Qau) • Quantized Congestion Notification (QCN; IEEE 802.1Qau) •...
-
Page 12: Available Skus
Super AOC-A200G-B2CM User's Manual 1.4 Available SKUs Note: Note that this product is sold only as part of an integrated solution with Supermicro server systems. Product Part Number Bracket Included Description AOC-A200G-B2CM BKT-0170L 2-port 200 Gigabit Ethernet Adapter with a 0.5U height... -
Page 13: Chapter 2 Hardware Components
Chapter 2: Hardware Components Chapter 2 Hardware Components 2.1 Add-On Card Image and Layout AOC-A200G-B2CM Image... - Page 14 Super AOC-A200G-B2CM User's Manual LED2 LED4 LED1 LED3 JPAUX1 PORT2 PORT1 Broadcom ® BCM57608 AOC-A200G-B2CM DESIGNED IN USA REV:1.01 AOC-A200G-B2CM Layout...
-
Page 15: Major Components
Chapter 2: Hardware Components 2.2 Major Components The following major components are installed on the AOC-A200G-B2CM: AOC-A200G-B2CM Major Components Component Name Definition Broadcom BCM57608 200 GbE Ethernet LAN Controller ® J1/J2 Connector Cages JPAUX1 1–2: Enable AUX Power 3–4: DisableAUX Power... -
Page 16: Qsfp112 Ethernet Connections
2.3 QSFP112 Ethernet Connections QSFP112 Connectors AOC-A200G-B2CM has two Quad Small Form-Factor Pluggable 112 (QSFP112) connectors located on the add-on card. The QSFP112 connectors operate at up to 200 GbE. Plug the Direct Attached Copper (DAC) cable into the QSFP112 ports for network connections. -
Page 17: Port And Port Led
Chapter 2: Hardware Components 2.4 Port and Port LED QSFP112 Port The QSFP112 adapter port is located on the AIOM Form factor card. Connect a Direct Attach Copper cable or an LC Fiber Optic cable to the port to provide 200 Gigabit Ethernet communication. -
Page 18: Jumper Settings
Super AOC-A200G-B2CM User's Manual 2.5 Jumper Settings Connector Explanation of Jumpers Pins To modify the operation of the motherboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board. -
Page 19: Pcie 5.0 X16 Aiom Form Factor Connector
Insert the PCIe 5.0 x16 AIOM form factor connector into a PCIe 5.0 x16 AIOM form factor slot on a motherboard to use this AIOM form factor card. LED2 LED4 LED1 LED3 1. PCIe 5.0 x16 AIOM form factor connector JPAUX1 PORT2 PORT1 Broadcom ® BCM57608 AOC-A200G-B2CM DESIGNED IN USA REV:1.01... -
Page 20: Chapter 3 Installation
Super AOC-A200G-B2CM User's Manual Chapter 3 Installation 3.1 Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To avoid damaging your add-on card, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD. -
Page 21: Before Installation
Chapter 3: Installation 3.2 Before Installation To install the add-on card properly, be sure to follow the instructions below. 1. Power down the system. 2. Remove the power cord from the wall socket. 3. Use industry-standard antistatic equipment (such as gloves or wrist strap) and follow the instructions listed on page 20 to avoid damage caused by ESD. -
Page 22: Installing The Add-On Card (With 0.5U Bracket)
Super AOC-A200G-B2CM User's Manual 3.3 Installing the Add-on Card (with 0.5U bracket) Follow the steps below to install an add-on card into your system. If the system is fixed onto a rack, the removal of the server top cover is not required. If the system is not anchored to a fixed structure, it is recommended to remove the system top cover for ease of installation. - Page 23 Chapter 3: Installation Installing an AIOM module 1. Position the AIOM module in front of the empty slot and gently push it onto the metal bracket. The AIOM module should slide into the chassis until the card is securely seated in the connector.
- Page 24 Super AOC-A200G-B2CM User's Manual Installing an AIOM module (an AIOM slot with an AIOM slot cover) 1. Remove the AIOM slot cover by unscrewing the knob and screw that attaches the bracket to the chassis. Pull the bracket away and set it aside.
-
Page 25: Installing Drivers (For Broadcom Bcm57608)
Chapter 3: Installation 3.4 Installing Drivers (for Broadcom BCM57608) To install drivers for the AOC-A200G-B2CM add-on card for either Linux or Windows, please follow the instructions below. Before Installing the Drivers for the Linux Operating System Infiniband-diags is a set of utilities designed to help configure, debug, and maintain infiniband fabrics. - Page 26 Follow the steps below to install the drivers on the Linux operating system: 1. Download the Linux driver package file: netxtreme-bnxt_en-<ver>.tar.gz. Note: This driver can be found on either the Supermicro website, or by going to the Linux_Driver directory from the following site (https://www.supermicro.com/wdl/Net-...
- Page 27 Chapter 3: Installation Installing 200G Drivers for the Windows Operating System Follow the steps below to install the drivers on the Windows operating system: 1. From the FTP site or CDR-NIC LAN driver CD, go to the following directory: Broadcom >...
- Page 28 (Disclaimer Continued) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical sys- tems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
