Summary of Contents for JADEMAR LIGHTING JCP5-GBA

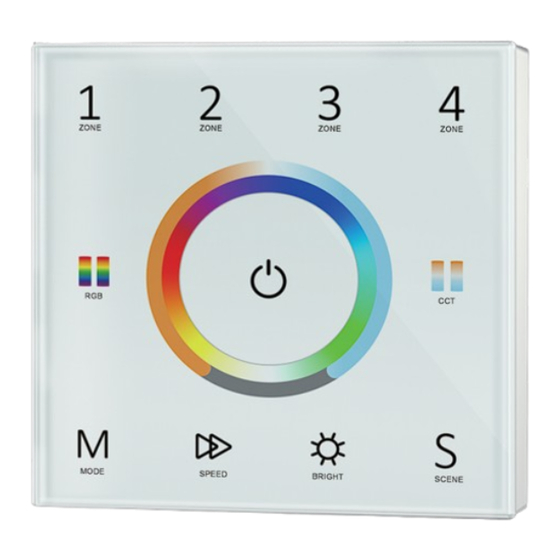

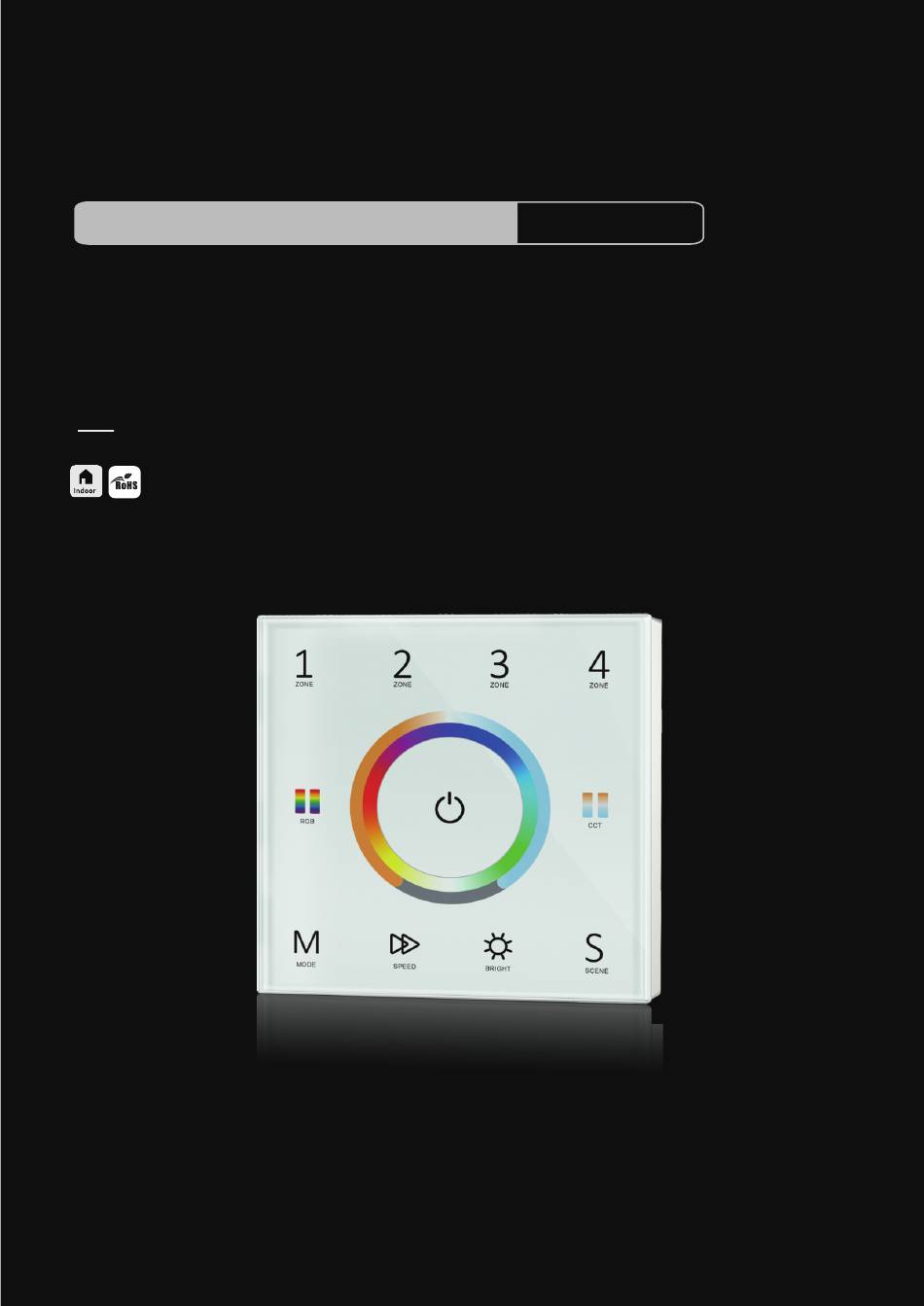

- Page 1 Wall Mounted Touch Panel Series Specification Jademar Lighting JCP5-GBA JCP5-GBA...
-
Page 2: Product Description
IP rating IP20 Certification RoHS Warranty 5 years（Tc＜85℃） Part Numbers: JCP5-GBA-WH (White) JCP5-GBA-BK (Black) Quotations: quotes@jademar.com To place an order: orders@jademar.com Informa on contained herein is subject to change without no ce. Tel: (305) 640.0465 ǀ Fax: (305) 640.0468 Revised 09/2024 WWW.JADEMAR.COM... -
Page 3: Base Plate
Dimensions, Mounting & Wiring 1. Mechanical Structures: AC input L AC input N INPUT 120VAC DMX OUTPUT DMX output + DMX output - DMX output - DMX output + DMX signal GND 2. Dimensions: 33.00 mm 86.00 mm Typical base as below: 52.00 mm European style 86 size... - Page 4 Key Functions & Operating Instructions Zone light type setting Z ONE Z ONE Z ONE Z ONE Each zone can match single color, dual color(WW/CW), RGB, RGBW, or RGB+CCT(WW/CW) controller or lamp. Touch power key to turn on light, turn off light, R GB then immediately long press power key 5 seconds, enter zone light setting: long press Zone 1/2/3/4 key 2 seconds, select current zone you want to change,...
- Page 5 DMX Feature 1. As DMX512 Master: After connect with DMX decoders, please set the DMX decoders address as below: Zone 1 Zone 2 Zone 3 Zone 4 Light color channel Light Type DMX address DMX address DMX address DMX address Single color 6-10 11 -15...
- Page 6 2. Touch Panel work as RF remote Touch panel 4 zone remote can match with RF controller for the corresponding light type. End user can choose the suitable match/delete ways. Two options are offered for selection: Operation Use the controller’s Match key Use Power Restart Short press match key, immediately press on/off...
