JADEMAR LIGHTING JHD06R Instruction Manual

JEM-30W/40W/60W
EMERGENCY BATTERY PACK
REMOTE CONTROL INSTRUCTIONS
PRODUCT DESCRIPTION

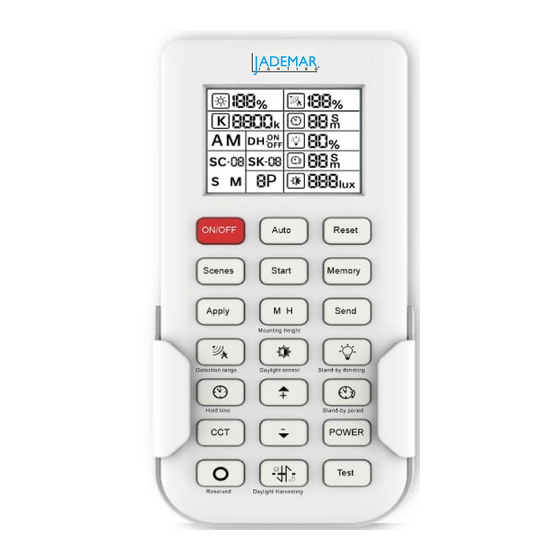

1. This remote control uses infrared signal transmission, please stay pointing
at the target sensor and keep controlling distance within 18M while using it.
2. The infrared signal of the remote control might get affected by the strong
natural light brightness, and the remote control may not be able to use or the
distance become closer; please try to shorten the distance to the sensor or use
it when natural brightness fades.
3. A er the LCD screen gets dark, it needs to be woken up again (any bu on
can) before use.
4. The remote control is powered by 2pcs AAA ba eries. When the words
displayed on the LCD screen is incomplete or unclear, it indicates the ba ery
may be dead, which will affect the remote performance. Please replace the
ba ery.
FEATURES
Ÿ Working Voltage: AAA ba ery * 2pcs (2.2-3V)
Ÿ Screen OFF Dura on: 60S
Ÿ Icon Flicking Dura on: 5S
Ÿ S(start) bu on ON Dura on: 10S
Ÿ M(Memory) bu on Flicking Dura on: 3S
Ÿ
Carrier Frequency: 38KHz±2KHz
Ÿ
Opera on Distance Max. 15M/49 (3V)
Emission Angle: ＜ 30 degree
Ÿ
Standby Current: ＜1.2uA
Ÿ
Working Current: ＜5mA
Ÿ
Peak Current: ＜30mA
Ÿ
Ÿ Working Temp: -20℃~+60℃
Ÿ Storage Temp：-30℃~+85℃
OPERATION GUIDE
1.) How to quickly set mul ple sensors to perform the same parameters?
Solu on A: At the first sensor - press AUTO to enter the SENSOR mode, press START to set parameters (detec on area, hold me, daylight threshold, standby dimming
level and standby period), press MEMORY to save parameters, and press APPLY to send parameters. You will see light OFF then ON for once as command's received. At
the other sensors - press AUTO to enter the SENSOR mode and press APPLY to send parameters. You will see light OFF-ON for once as command's received.
Solu on B: Use the SCENE func on if you have preset parameters - Press AUTO to enter the SENSOR mode, choose from the scene op ons (1, 2, 3, 4), and press SEND.
You will see light OFF-ON for once as command's received.
2.) In SENSOR mode, how to turn off the sensor func on(disable sensor func on)?
When the light is ON press ON/OFF to turn OFF the light, and press ON/OFF again to turn on the light, don't press any other bu ons.
When the light is OFF press ON/OFF to turn on the light, don't press any other bu on.
3.) How to perform SENSOR mode when sensors are already in ON/OFF mode?
Solu on A: Press AUTO to enter the SENSOR mode and perform the last parameter se ng. The corresponding parameters will be displayed on the LCD screen.
Solu on B: Press RESET to enter the SENSOR mode and perform factory se ng parameters. The corresponding parameters will be displayed on the LCD screen.
4.) How to enter and exit TEST mode?
Enter: In any mode, a er pressing TEST bu on, the sensor enters the TEST mode, means keeping the light ON for 2S, turns off the light, lights ON again a er detec ng
mo on and keeps 2S then OFF; keep running this way.
Exit: Press the ON/OFF bu on to turn off the light and exit the TEST mode directly; Or press the RESET bu on to exit the TEST mode, enter the SENSOR mode and
performing factory Se ngs; Or press the AUTO bu on to exit the TEST mode, enter the SENSOR mode and performing the last parameter se ng.
Quotations: quotes@jademar.com
To place an order: orders@jademar.com
Tel: (305) 640.0465 ǀ Fax: (305) 640.0468
WWW.JADEMAR.COM
PRODUCT DIMENSION
147mm（5.78"）
68.8mm（2.7"）
Informa on contained herein is subject to change without no ce.
20mm（0.78"）
6 5 m m（ 2 . 5 5 " ）
25.2mm（0.99"）
Revised 09/2024
