FUSION
APOLLO

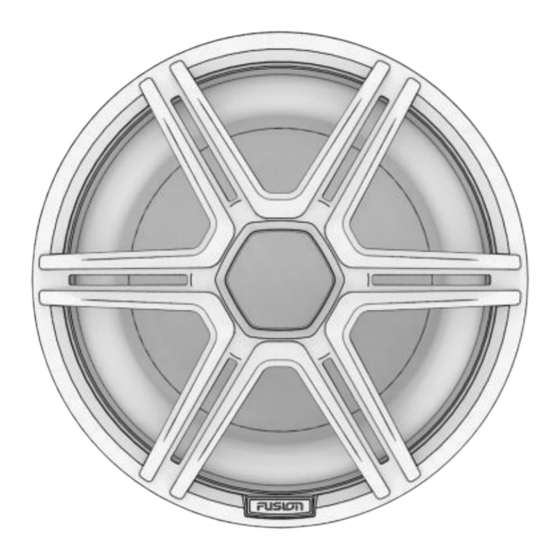

SUBWOOFER
™
®
INSTALLATION INSTRUCTIONS
Important Safety Information
WARNING
See the Important Safety and Product Information guide in the product box for product warnings and other
important information.
This device must be installed according to these instructions to avoid serious personal injury or possible
property damage.
Disconnect the vessel's power supply before beginning to install this device to avoid serious personal injury or
possible property damage.
CAUTION
It is strongly recommended that you have your audio system installed by a professional installer to ensure
optimum performance and to avoid personal injury or property damage.
Continuous exposure to sound pressure levels over 100 dBA may cause permanent hearing loss. The volume
is typically too loud if you cannot hear people speaking around you. Limit the amount of time you listen at high
volume. If you experience ringing in your ears or muffled speech, stop listening and have your hearing checked.
To avoid possible personal injury, always wear safety goggles, ear protection, and a dust mask when drilling,
cutting, or sanding.
NOTICE
When drilling or cutting, always check what is on the opposite side of the surface to avoid damaging the vessel.
You must read all installation instructions before beginning the installation. If you experience difficulty during
the installation, go to
support.garmin.com
for product support.
October 2024
GUID-37AC6926-57B8-4F99-ABDE-876D0F93127A v2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Garmin FUSION APOLLO
Summary of Contents for Garmin FUSION APOLLO
- Page 1 When drilling or cutting, always check what is on the opposite side of the surface to avoid damaging the vessel. You must read all installation instructions before beginning the installation. If you experience difficulty during the installation, go to support.garmin.com for product support. October 2024...
-
Page 2: Tools Needed
• Phillips screwdriver • Wire strippers • 12 AWG (3 through 4 mm ) or larger marine-grade, fully-tinned copper speaker wire You can purchase this wire from your Fusion or Garmin ® dealer: ◦ 010-12898-00: 7.62 m (25 ft.) ◦ 010-12898-10: 15.24 m (50 ft.) ◦... -
Page 3: Mounting The Subwoofer
(Speaker Wiring, page 4). NOTE: Avoid routing the speaker wire near sources of electrical interference. 12 For LED models, route the appropriate wire from the speaker location to the location of a Garmin Spectra ™ LED Controller or the battery (LED Wiring, page 5). -
Page 4: Speaker Wiring
Attaching the Grille to the Subwoofer 1 Locate the retention tabs on the edge of the subwoofer NOTE: When the subwoofer is installed with the connectors on the back at the bottom (with the Fusion logo on the front in the 6 o'clock position), the retention tabs are located at the 2 o'clock, 6 o'clock, and 10 o'clock positions on the edge of the subwoofer. -
Page 5: Led Wiring
It is recommended to install a Garmin Spectra LED Controller module with this speaker to turn the LEDs on and off, change the colors, and create lighting effects. See garmin.com... - Page 6 Connecting the LED Wires Directly If you do not install the recommended remote control, you can set the static color and tone of the LEDs by connecting specific color LED wires from the harness to the negative (-) terminal of a 12 Vdc power source. You must connect only the dark blue LED wire from the harness to the positive (+) terminal of the same power source to complete the circuit.
-
Page 7: Speaker Information
Speaker Information Cleaning the Subwoofer NOTICE When mounted correctly, the front of this subwoofer is protected against dust and water ingress under normal conditions. They are not designed to withstand high pressure water spray, which may occur when you wash down your vessel. -
Page 8: Dimension Drawings
All Models LED Supply Voltage (LED models only) From 10.8 to 16 Vdc Operating temperature range -5 to 55°C ( 23 to 131°F) Storage temperature range -20 to 70°C ( -4 to 158°F) Ingress protection rating IEC 60529 IP67 Audio: Amphenol AT Series ATP 2-way ™... - Page 9 Front View Measurement 10" Subwoofer 12" Subwoofer 275 mm (10 in.) 356 mm (14 in.) 247 mm (9 in.) 325 mm (12 in.) Optimum Enclosure Recommendations Specification 10" Subwoofer 12" Subwoofer Sealed enclosure volume 27 L (0.95 ft. ≥ 60 L (2.12 ft. Ported (vented) enclosure volume 45 L (1.6 ft.) 250 L (8.83 ft.) Port diameter 104 mm (4.1 in.)
- Page 10 , the Garmin logo, Fusion ® , the Fusion logo, and True-Marine ™ are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. These trademarks may not be used without the express permission of Garmin. Amphenol ™...
