Eco Sensor ES603B User Manual

ES603B HF Motion Sensor User Manual
(new version of the ES608B)
General
The ES603B is an active motion sensor that emits high-frequency waves (5.8GHz).
The sensor detects the change in the echo return, and is sensitive to movement
in its detection zone.
The ES603B is designed to be used in a device or system and must not be
operated without appropriate protective covering.
If, after reviewing this guide, you require additional information or assistance
please contact Eco Heat Equipment at info@ecosensor.co.za, +27 (0)861 999
887, or www.ecosensor.co.za.
Technical Specifications
§ Voltage: 220 – 240V/AC
§ Frequency: 50/60Hz
§ Working temperature: -15°C to 70°C
§ Load: Incandescent max: 1 000W
Fluorescent max: 600W
LED max: 300W
§ Detection Range: 2 – 10m
§ Detection Angle: 360°
§ Light level: 10 – 500 LUX
§ Time setting: 10 seconds – 30 minutes
§ Installation height: 2 – 4m (max)
§ Motion Sensor HF system: 5.8GHz CW radar, ISM band
§ Motion Sensor transmission power: <0.2mW RF power
§ Dimensions: 71.8mm* (L) x 41mm (W) x 39.8mm(H)
(* excludes mounting foot – total length 65.5mm)
Safety
Any incorrect use or installation procedure not recommended by the
manufacturer may cause fire, electrical shock or injury to persons.
Disconnect power when working on electrical outlets or components.
Controlling a load in excess of the specified ratings will damage the unit and
lights and could pose risk of fire and electric shock.
Do not install this unit to control a power socket.
WARNING: THE ES608B IS DESIGNED TO BE A COMPONENT IN A DEVICE OR SYSTEM AND IS NOT
SUITABLE TO BE USED IN ITS CURRENT FORM. ENSURE THE USE OF THE ES608B IS IN ACCORDANCE
WITH NATIONAL AND LOCAL ELECTRICAL CODES AND STANDARDS.
EQUIPMENT (such as access control systems, alarms, Wi-Fi routers, BMS etc.) WITH THE SAME
BANDWIDTH AS THE SENSOR CAN CAUSE INTERFERENCE WITH THE SENSOR'S BEHAVIOUR.
Note: Do not install the motion sensor on unstable or vibrating surfaces, or near
doors and windows where outside movement may be detected. Motion may
be detected through walls, ceilings, doors, drywall, wood or plastic.
Sensor calibration:
Note: Allow up to 1 minute for the motion sensor to recalibrate after it has been
connected for the very first time. This is only necessary during installation or when
the mains supply is disconnected.
Note: After the connected device switches OFF, it takes approximately 4
seconds before it is able to start detecting movement again. The connected
device will only switch on in response to movement once this period has
elapsed.
Settings
The three adjustments settings are as follows:
Detection range:
Time setting range:
Lux (light) sensitivity:
There are 8 settings on the motion sensor that control the range, time and lux.
Step 1 – Adjust the detection range of the motion sensor
The detection range is the term used to describe the radius of the circular
detection zone produced on the ground after mounting the unit at a height of
about 2.5m.
ON position = "1"
OFF position = "0"
© Eco Heat Equipment – March 2023
2m to 10m
10 sec to 30 min
10 to 500 LUX

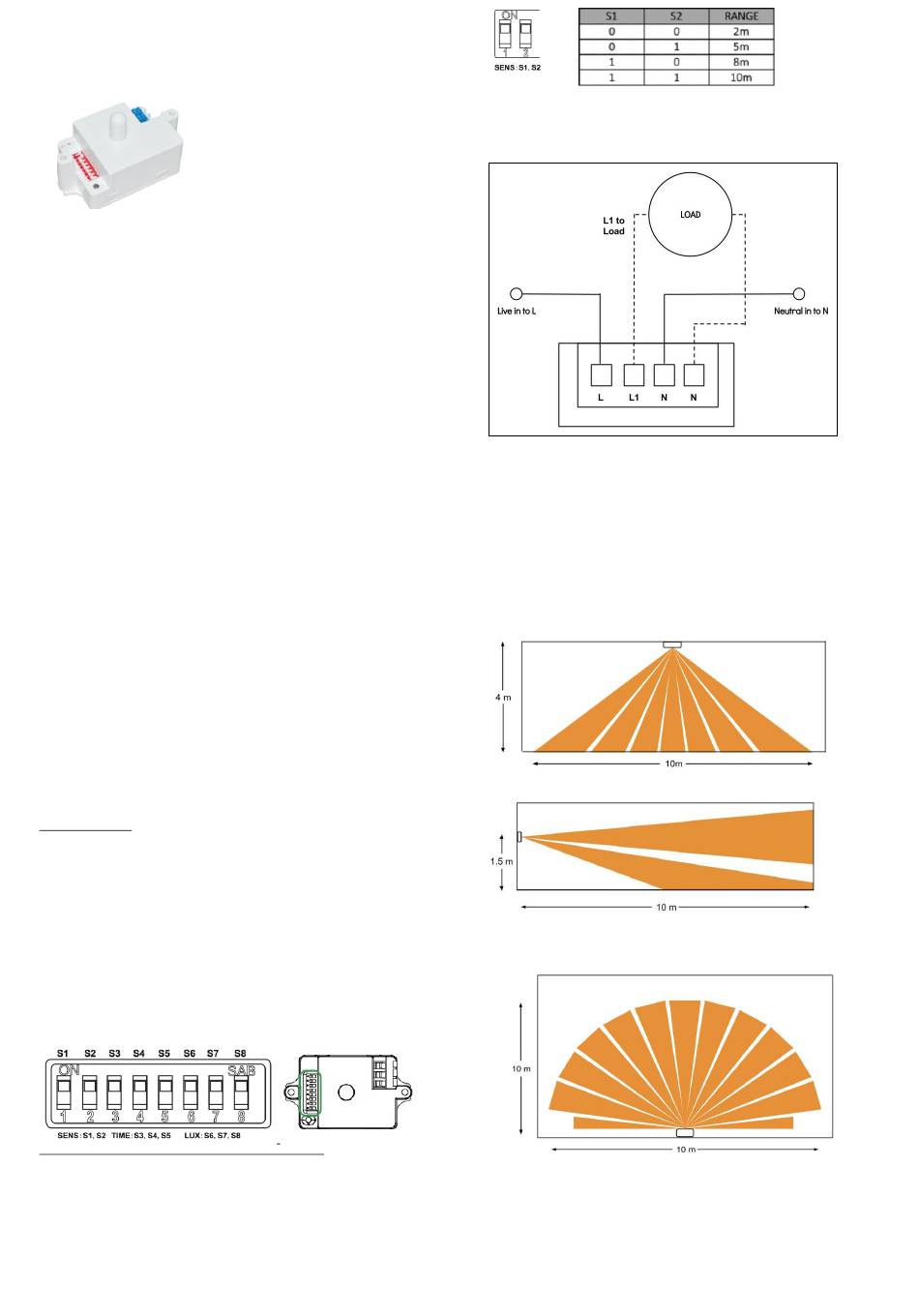

Wire Diagram
Operation and Field of View
The motion sensor detects motion within its coverage area and controls the
associated load connected to the sensor. For best performance, persons or
objects moving towards the sensor are ideal. Detection is possible through
wooden doors, panes of glass, dry wall, ceiling tiles, or thin brick walls. Beware of
windows facing passages or roads.
Ceiling Mount
Wall Mount (side view)
Wall Mount (top view)
