Eco Sensor ES606B User Manual

ES606B High Frequency Ceiling Mount Motion Sensor
User Manual
General
The ES606B is a ceiling mount motion sensor using high frequency technology
sensing.
This sensor is ideal for larger areas, such as open plan offices, warehouses and
large rooms.
If, after reviewing this guide, you require additional information or assistance
please contact Eco Heat Equipment at info@ecosensor.co.za, +27 (0)861 999 887,
or www.ecosensor.co.za.
Technical Specifications
Voltage: 220 – 240V/AC
Frequency: 50/60Hz
Working temperature: -15°C to 70°C
Load: Incandescent max: 1 000W
Fluorescent max: 600W
LED max: 300W
Detection Range: 2 – 10m radius
Detection Angle: 360°
Light level: 10 – 500 LUX
Time setting: 10 seconds – 30 minutes
Installation height: 2.5 – 3.5m
HF system: 5.8GHz CW radar, ISM band
Transmission power: <0.2mW RF power
Dimensions: 95mm diameter x 42mm (H)
Safety
Any incorrect use or installation procedure not recommended by the
manufacturer may cause fire, electrical shock or injury to persons.
Box Contents
Your box should contain the following items:
Sensor
WARNING:
Controlling a load in excess of the specified ratings will damage the unit and lights
and could pose risk of fire and electric shock.
Do not install this unit to control a power socket.
Installation Instructions
WARNING: ALL WIRING MUST BE DONE IN ACCORDANCE WITH NATIONAL AND
LOCAL ELECTRICAL CODES AND STANDARDS.
Note: Do not install the motion sensor on unstable or vibrating surfaces, or near
doors and windows where outside movement may be detected. Motion may be
detected through ceilings, drywall, wood or plastic.
Consider the vibration of the climate control device, in some cases the sensor may
need to me mounted further away due to vibration. Vibrating surfaces can cause
the sensor to misbehave.
1. Turn power off at circuit breaker or fuse
2. Remove top cover from base of sensor by turning anti-clockwise
3. Hold base against ceiling and mark the two drill holes, paying attention to
any existing wiring
4. Drill holes into the surface
5. Feed the power cables through the base hole
6. Attached the unit to the surface
7. Connect wires as per diagram
8. Adjust sensor settings
9. Replace cover, ensuring the LED is visible through the window, and turn
clockwise to secure
10. Restore power at circuit breaker or fuse
Sensor calibration:
Note: Allow up to 1 minute for the motion sensor to recalibrate after it has been
connected for the very first time. This is only necessary during installation or when
the mains supply is disconnected.
Note: After the light switches OFF, it takes approximately 4 seconds before it is able
to start detecting movement again. The light will only switch on in response to
movement once this period has elapsed.
–
© Eco Heat Equipment January 2016
Operation and Field of View
The motion sensor detects motion within its coverage area and controls the
associated lighting connected to the sensor. For best performance, persons or
objects moving towards the heater are ideal. Detection is possible through
wooden doors, panes of glass, dry wall, ceiling tiles, or thin brick walls. Beware of
windows facing passages or roads.
Sensor detection range from side: large motion
Sensor detection range from top: large motion
Motion Sensor Settings and Adjustments
The motion sensor is a high frequency (HF) type electronic occupancy detector,
which in turn switches the lights when connected to the motion sensor. There are
three adjustments that can be made to influence the operation of the motion
sensor:
1. RANGE: motion detection range
2. TIME: time delay after motion until shut off
3. LUX/LIGHT: level of ambient light sensitivity
The four adjustments settings are as follows:
Detection range:
Time setting range:
Lux (light) sensitivity:
1 of 2

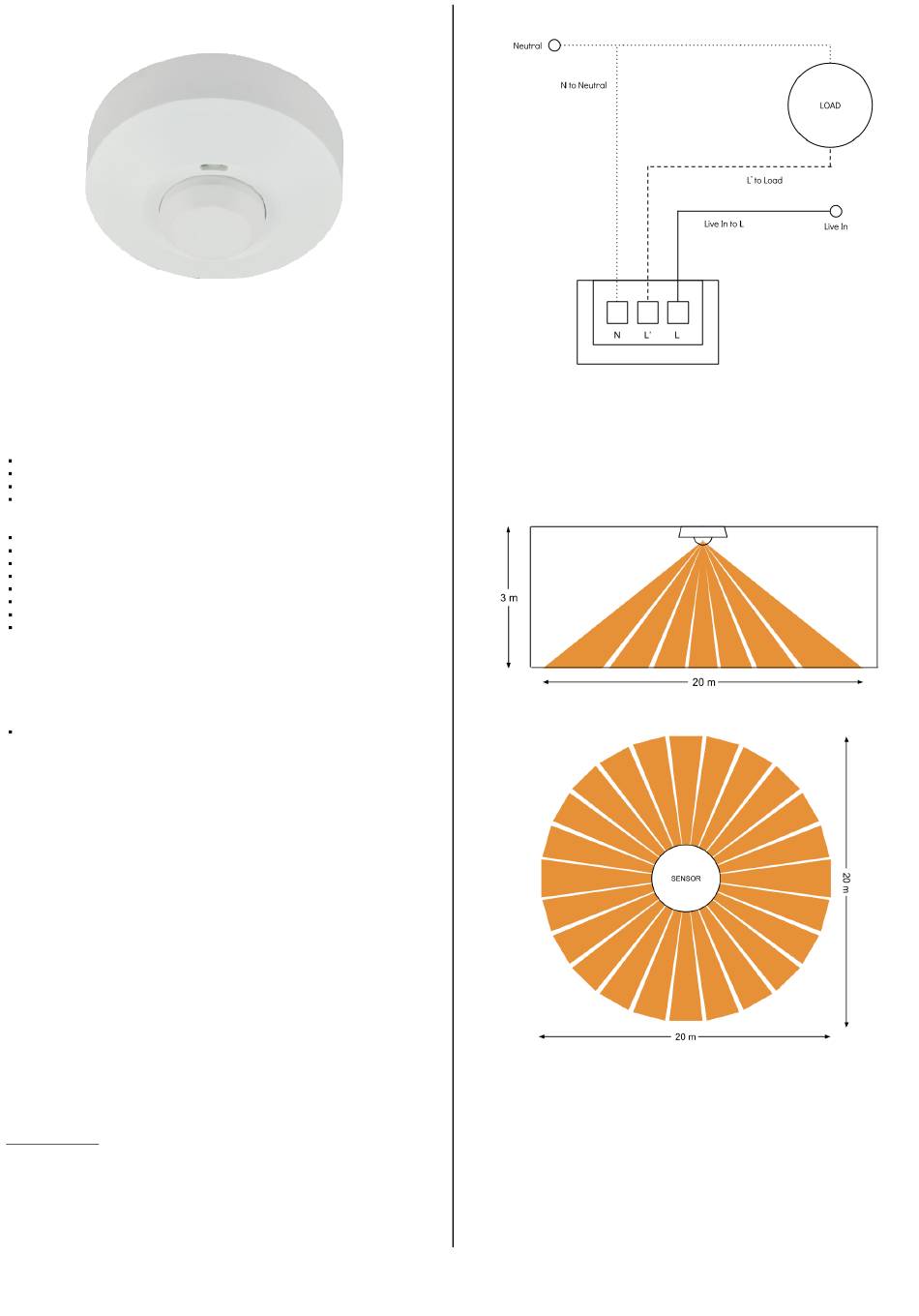

Installation wire diagram
2m to 10m
10 sec to 30 min
10 to 500 LUX
