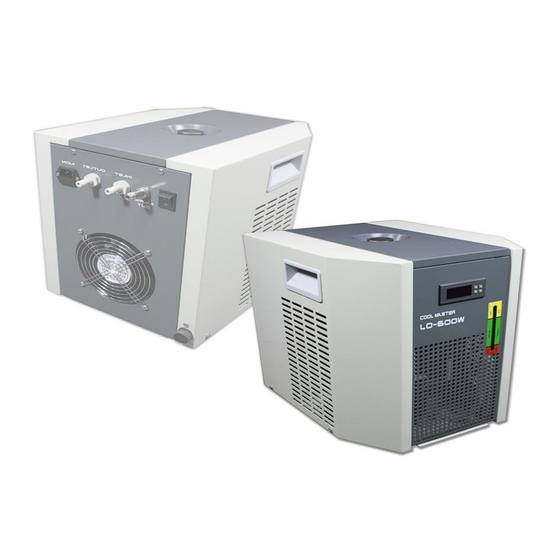

LO-600W Water Chiller Operation Manual
Specifications Water Chiller LO-600W
Cooling Power: 600 Watt
BTU: 2760 Btu/h
Input power: AC 110V, 60Hz
Current; 2.6 A
Compressor power: 0.45HP, 398 Watt
Freon: R134A
Pump power: 30 W
Lift (cut off) : 5m (16 ft)
Rate: 10L/min, 158 GPH
Inlet/Outlet size: 10 mm
Ambient Temp.: ≤35'C (95'F)
Chilled Water Temp. 12~32'C
Weight: 18KG (45lb)
Dimension: 400×400×3550mm (16" x 16.0" x 14")
Advertisement
Related Manuals for LIGHT OBJECT LO-600W
Summary of Contents for LIGHT OBJECT LO-600W

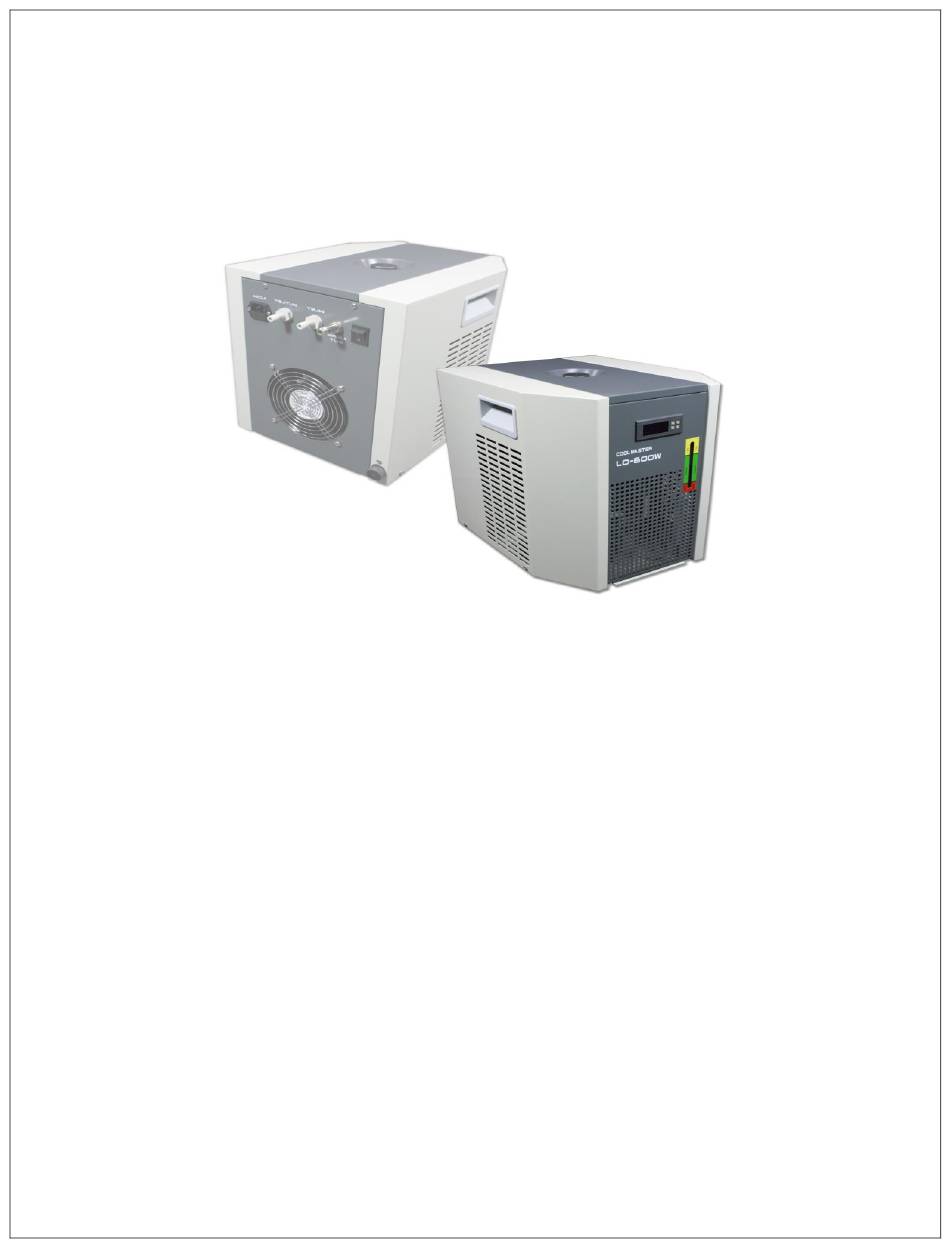

- Page 1 LO-600W Water Chiller Operation Manual Specifications Water Chiller LO-600W Cooling Power: 600 Watt BTU: 2760 Btu/h Input power: AC 110V, 60Hz Current; 2.6 A Compressor power: 0.45HP, 398 Watt Freon: R134A Pump power: 30 W ...
- Page 2 8) Operate the unit by trained personnel only. Introduction The LO-600W is an industrial grade water chiller with a high efficiency compressor running on R134A environmental friendly Freon. Two control modes, Intelligence and Constant, provide a fast and accurate control to the change of temperature.
-
Page 3: Ac Power Outlet
COOLING WATER OUTLET AC POWER OUTLET COOLING WATER INLET ALARM OUTPUT TERMINAL POWER SWITCH (ON/OFF) COOLING FAN (AIR OUTLET) DRAIN Startup procedures Before proceeding, make sure that all parts and components of the machine are intact. 1) Remove the cap on the top of the unit and fill with water until the water level reaches the green (normal) zone. - Page 4 Quick Start Guide for Controls Hold SET and the ▲ button for approx. 5 seconds. This will lead to where you put in the password for the machine. The password set on the machine is 8. Input the correct password and it will lead to the next menu. If the password is incorrect, it will bring the display back to the home screen.
- Page 5 3) ▲▼ keys are for adjusting the display status of the controller, parameter selection and adjustment. 4) RST key: enter key that applies settings and returns back to home screen. 5) SET key: function setting key, shows the temperature difference value. 2.
-
Page 6: Troubleshooting
5. General settings adjustment Press SET button (SET to enter into the user-defined state. D1 will be flashing to indicate that the controller is in parameters setup status. 1) Under intelligent mode, the control panel displays the temperature difference value between water and air (F2).
