Table of Contents

Installation/Operating Instructions

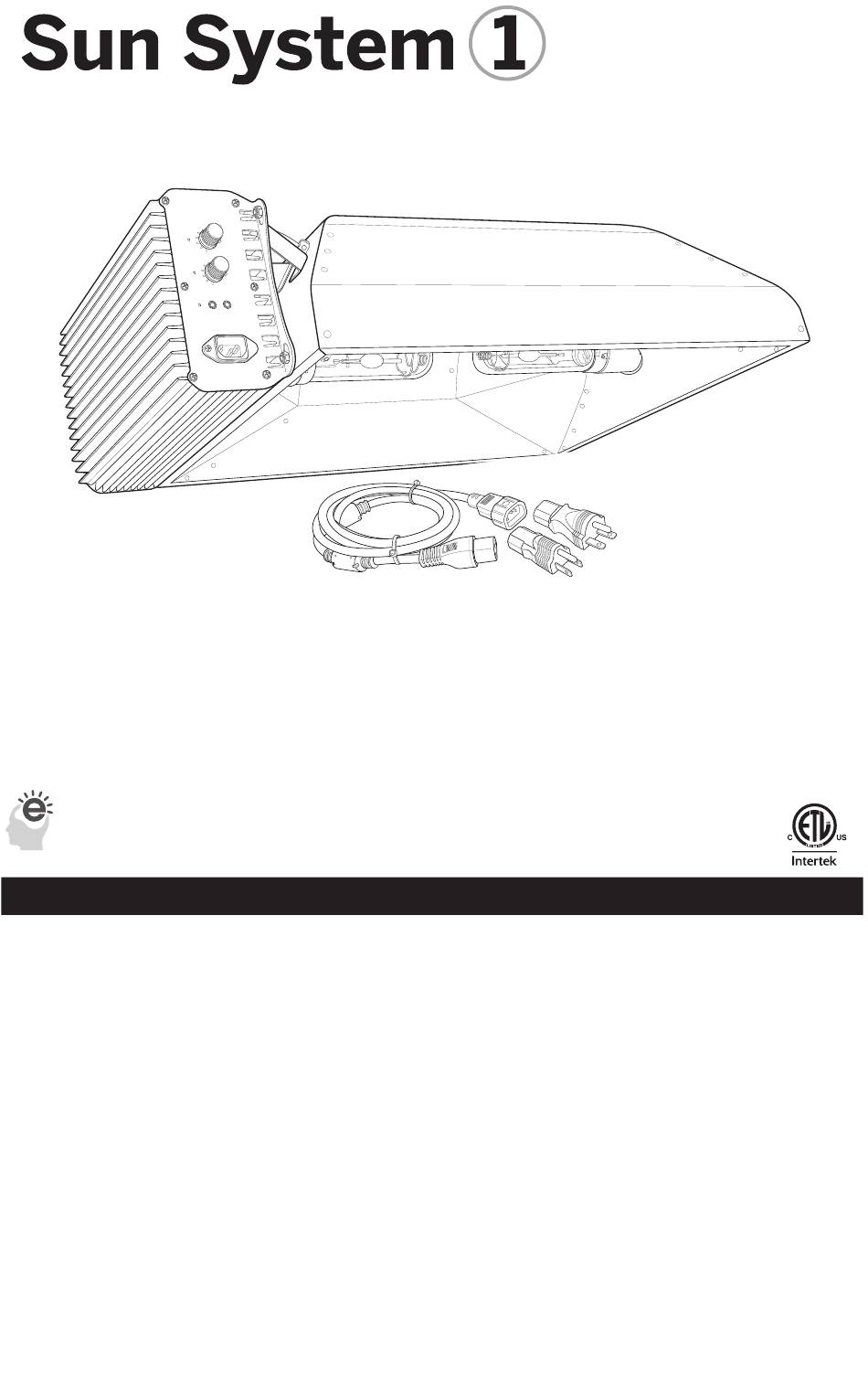

630 WATT LEC BOSS COMMERCIAL FIXTURE. 120-240 VOLT OR 277 VOLT OR 347 VOLT
PRODUCT# 906628, 906634, 906630, 906636, 906632 & 906638
(Part# 906628 and Part# 906634) Includes Convertible Smart Volt
Power Cord 120-240 volt 6.5 ft. with 120 and 240 volt plugs.
(Part# 906630 and Part# 906636) Includes 277 V fixture includes 6 ft power cord
with L7-15P twist lock plug.
(Part# 906632 and Part# 906638) 347 volt features a hard-wired 6 foot 347 volt
power cord with a L24-20p (347 volt 20 amp) twist lock plug.
ETELLIGENT
CONTROLLER
compatible
READ THESE INSTRUCTIONS BEFORE FIRING UP YOUR BALLAST
KEEP ORIGINAL PACKAGING— all returns need to be in the original packaging
in order to avoid product damage during shipping. Any damage to products not in their
original packaging will not be covered under warranty.
SAFETY FIRST! Failure to observe the following safety warnings may result in
serious injury. In addition, failure to observe these safety warnings will result in a
waiver of all liabilities and will void all warranties.
WARNING
 If the exterior of the lamp is damaged, replace lamp immediately.
 When re-lamping, make sure lamp has time to cool before touching.
 Make sure power cord is connected properly.
 Disconnect power before re-lamping.
 DO NOT hang by power or lamp cord.
 DO NOT make contact with the interior of the socket while power is on.
 DO NOT operate light systems in wet locations.
 D O NOT plug system into supply voltage other than what is designated on ballast.
 D O NOT attempt to rewire or reconfigure your system, it will void warranty and
could cause serious safety hazards (i.e. power cord, lamp cord, lamp socket or ballast).
 Keep away from children.
Sun System
1 LEC
Ballasts are controller-compatible
®
®
with signal ports for on /off /dimming functions
( Etelligent
controller sold separately. Part # 902245 )
™
630 WATT LEC BOSS
®
COMMERCIAL FIXTURE
CONVERTIBLE
SMART VOLT
DUAL
®
FERRITE POWER CORD
easily converts into either a 120 or
208/240 volt 6.5 foot power cord
Dual Ferrite
®
