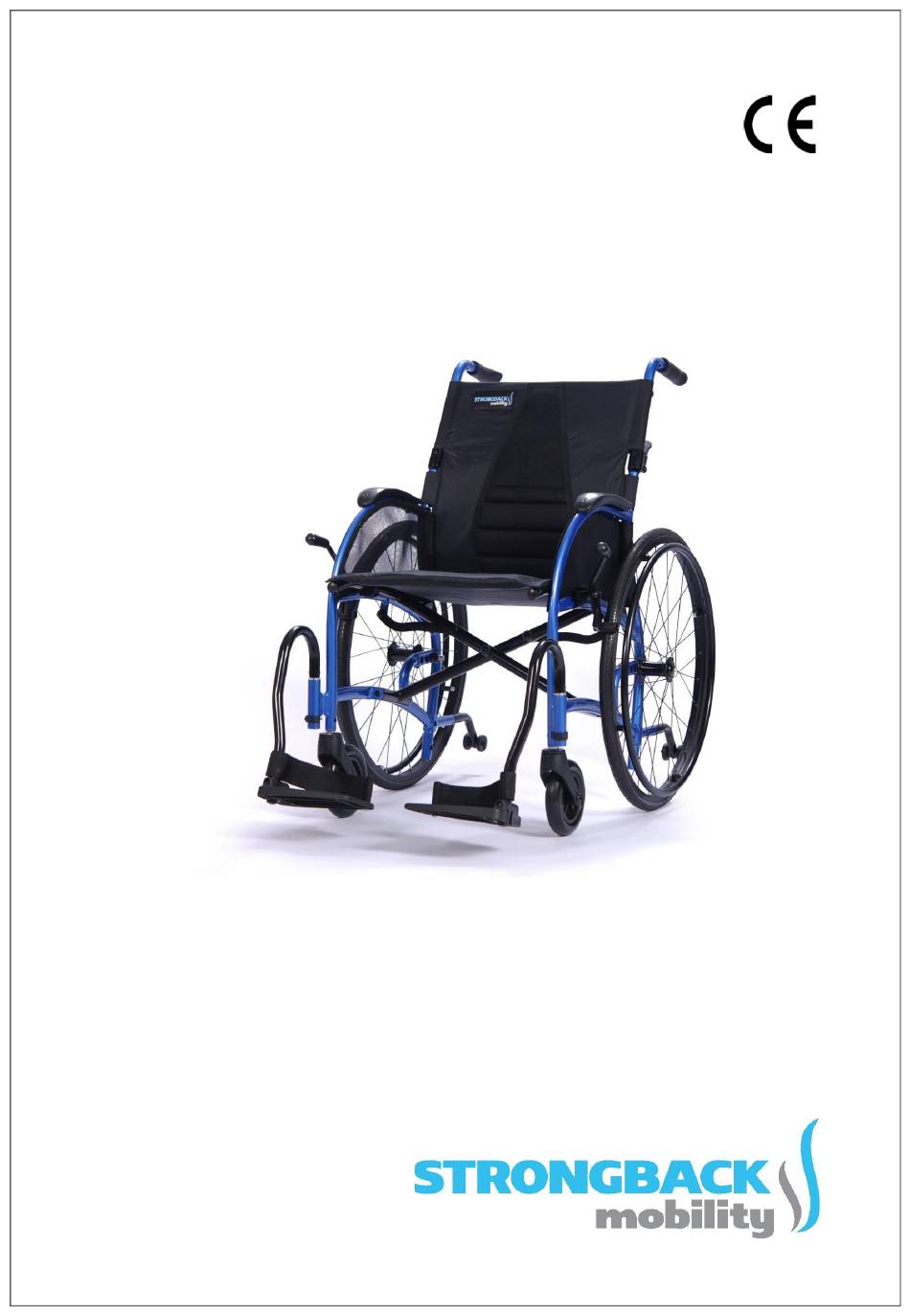

  • Page 1 STRONGBACK 22S STRONGBACK 24 Lightweight Wheelchair Instructions for use...
  • Page 2 STRONGBACK 22S / STRONGBACK 24 Version 1.0 Revision: April 2021 Item No: UM100...

  • Page 3: Table Of Contents

    STRONGBACK 22S / STRONGBACK 24 Contents Introduction ..........................1 Safety instructions .........................1 Safety instructions for use ....................2 Safety instructions – preventing tipping ................3 Transportation in motor vehicles ...................3 General information ......................3 Signs and symbols ......................3 Intended purpose ......................3 3.2.1 Indications for use ....................4 3.2.2...
  • Page 4 STRONGBACK 22S / STRONGBACK 24 Using the attendant brakes ..................17 Using the Flip-Back Armrests ..................19 Maintenance and service ....................19 Checks prior to each use ....................19 Monthly checks ......................20 Replacing parts ......................20 Spare parts and accessories ..................20 Cleaning and disinfecting .....................20 Storing the wheelchair ....................20...

  • Page 5: Introduction

    We would like to thank you for the trust you have placed in us in purchasing this wheelchair. By opting for the STRONGBACK 22S / STRONGBACK 24 with its revolutionary STRONGBACK system, you have chosen a top-quality, lightweight wheelchair, that has been specially designed to ensure your sitting position is both comfortable and ergonomic.

  • Page 6: Safety Instructions For Use

    STRONGBACK 22S / STRONGBACK 24 2.1 Safety instructions for use • Arrange for an expert to show you how to use the wheelchair before using it for the first time. • In order to avoid potential falls or dangerous situations, practice using your new wheelchair on a flat, manageable surface.

  • Page 7: Safety Instructions - Preventing Tipping

    3.2 Intended purpose The STRONGBACK 22S / STRONGBACK 24 is designed solely for the purposes of transporting a physically disabled person and improving their mobility. It has been designed for both indoor and outdoor use.

  • Page 8: Indications For Use

    3.5 Declaration of conformity As the manufacturer of the product, Strongback Mobility AG hereby declares that the STRONGBACK 22S / STRONGBACK 24 fully conforms to the requirements of European Regulation (EU) 2017/745.

  • Page 9: Product Description

    STRONGBACK 22S / STRONGBACK 24 Product description The STRONGBACK 22S / STRONGBACK 24 is a lightweight folding wheelchair with integrated ergonomic back support (lumbar support). It is pre-assembled and delivered in a cardboard box. After unpacking, if possible, keep the cardboard box and other packing materials, as they may be required for storing the wheelchair at a later date.

  • Page 10: Overview

    STRONGBACK 22S / STRONGBACK 24 4.3 Overview 1. Push handles 2. Backrest with integrated lumbar support 3. Folding back release hinge 4. Drive wheel 5. Handrim 6. Wheel lock 7. Castor 8. Footplate with heel strap (can be folded up) 9.

  • Page 11: Models With Attendant Brakes Or Drum Brakes

    STRONGBACK 22S / STRONGBACK 24 4.3.1 Models with attendant brakes or drum brakes 14. Attendant brake 15. Drum brake 4.3.2 Models with flip-back arms 13. Armrest (flip-back) April 2021...

  • Page 12: Adjustments

    STRONGBACK 22S / STRONGBACK 24 Adjustments The adjustments described below should be carried out in consultation with your specialist medical aid supplier. You may also be able to make these adjustments yourself if you have sufficient previous knowledge and have been given clear instructions from the supplier.

  • Page 13: Adjusting The Axle Position Of The Drive Wheels

    STRONGBACK 22S / STRONGBACK 24 • To adjust the support for the lower spine to a higher position, tighten the middle fasteners (2) and loosen the lower fasteners (3). • To adjust the support for the lower spine to a lower position, tighten the lower fasteners (3) and loosen the middle fasteners (2).

  • Page 14: Adjusting The Wheel Locks

    Caution! Adjustments to the axle position should be exclusively carried out by specialist staff trained by Strongback Mobility or their contractual partners and not by the purchaser or wheelchair user. This kind of adjustment involves repositioning the wheel locks, so any incorrect adjustment could significantly increase the risk of accident or injury.
  • Page 15 STRONGBACK 22S / STRONGBACK 24 Caution! Make sure the wheel lock always locks the wheel securely when engaged (lever pushed forward) under all conditions. Serious injury may result if the wheel lock is not effective! It is advisable that only specialist staff carry out wheel lock adjustments.

  • Page 16: Handling

    STRONGBACK 22S / STRONGBACK 24 Handling 6.1 Unfolding the wheelchair Unfold the frame of the wheelchair by pushing down evenly on the outer edges of the seat using both hands (1) until the seat is fully extended (2). Caution! Do not hold the sides of the seat while pushing down. You could trap your fingers! Hands and fingers must remain on top of the seat while pushing down.

  • Page 17: Folding The Wheelchair

    STRONGBACK 22S / STRONGBACK 24 6.2 Folding the wheelchair Fold the backrest by using both hands to press the black plastic levers on the folding back release hinges against the frame (1) before folding the upper part of the backrest down evenly on both sides (2).

  • Page 18: Removing The Drive Wheels

    STRONGBACK 22S / STRONGBACK 24 6.3 Removing the drive wheels The drive wheels are fitted with a quick-release axle. The wheels can be removed and refitted without tools. To remove the wheels, press the locking button (1) and remove the drive wheel from the frame.
  • Page 19 STRONGBACK 22S / STRONGBACK 24 The lateral locked position is only intended for use when the user of the wheelchair is getting in and out of the chair. The chair should not be moved with the footrests locked in this position as the footrests may get caught on an obstacle or obstruction.

  • Page 20: Removing The Footrests

    STRONGBACK 22S / STRONGBACK 24 6.5 Removing the footrests The footrests can be completely removed from the wheelchair by pulling the plastic clip with its retaining pin (1) horizontally out of the tube. The whole of the footrest can then be pulled up and out of the footrest mounting.

  • Page 21: Using The Wheel Locks

    The wheel locks should not be used to reduce speed while moving. 6.8 Using the attendant brakes Some STRONGBACK 22S / STRONGBACK 24 models come with attendant brakes. To operate the brakes, simply squeeze the attendant brake lever (1). April 2021...
  • Page 22 STRONGBACK 22S / STRONGBACK 24 The attendant brakes can be locked in one of the following two ways (depending on the type of attendant brake installed on your wheelchair): • Push the lower handle straight down until it stays in the locked position (2).

  • Page 23: Using The Flip-Back Armrests

    STRONGBACK 22S / STRONGBACK 24 6.9 Using the Flip-Back Armrests Some STRONGBACK 22S / STRONGBACK 24 models come with flip-back armrests. To operate the flip-back armrests, simply lift the armrest and fold it back until it is vertical. Flipping the armrests backwards will allow for easy transfer in and out of the chair.

  • Page 24: Monthly Checks

    STRONGBACK 22S / STRONGBACK 24 • Check the wheelchair for visible signs of damage, e.g. damage to the frame, backrest, seat and backrest upholstery, wheels, footplates, etc. • Check the seat and backrest for material defects, tears or loss of tension in the material.

  • Page 25: Disposal

    • Padding and upholstery: Polyester fabric with PVC coating and foam material 7.8 Re-using the wheelchair The STRONGBACK 22S / STRONGBACK 24 is suitable for re-use by another user. The wheelchair should be thoroughly cleaned and disinfected in accordance with the care and hygiene instructions included here.

  • Page 26: Technical Specifications

    STRONGBACK 22S / STRONGBACK 24 Technical specifications Model STRONGBACK 22S STRONGBACK 24 Seats 16” / 40 cm 18” / 45 cm 20” / 50 cm 16” 18” 20” Seat width 41 cm 45 cm 50 cm 40” 40” 40” Total length...

  • Page 27: Specialist Repairs And Servicing

    STRONGBACK 22S / STRONGBACK 24 10 Specialist repairs and servicing We recommend that you have your STRONGBACK 22S / STRONGBACK 24 inspected by your specialist retailer at least once a year. In the event of malfunctions or defects, the wheelchair should be returned to the dealer for immediate rectification / repair.
  • Page 28 Firststrasse 15 8835 Feusisberg / Switzerland +41 43 5415254 info@strongbackmobility.com int.strongbackmobility.com Europe United States of America Strongback Mobility Europe GmbH Strongback Mobility USA Erkrather Straße 401 1317 Conrad Lane 40231 Düsseldorf / Germany Virginia Beach, VA 23454 / USA +49 211-97633839 + 1 (757)349-7790 europe@strongbackmobility.com...
