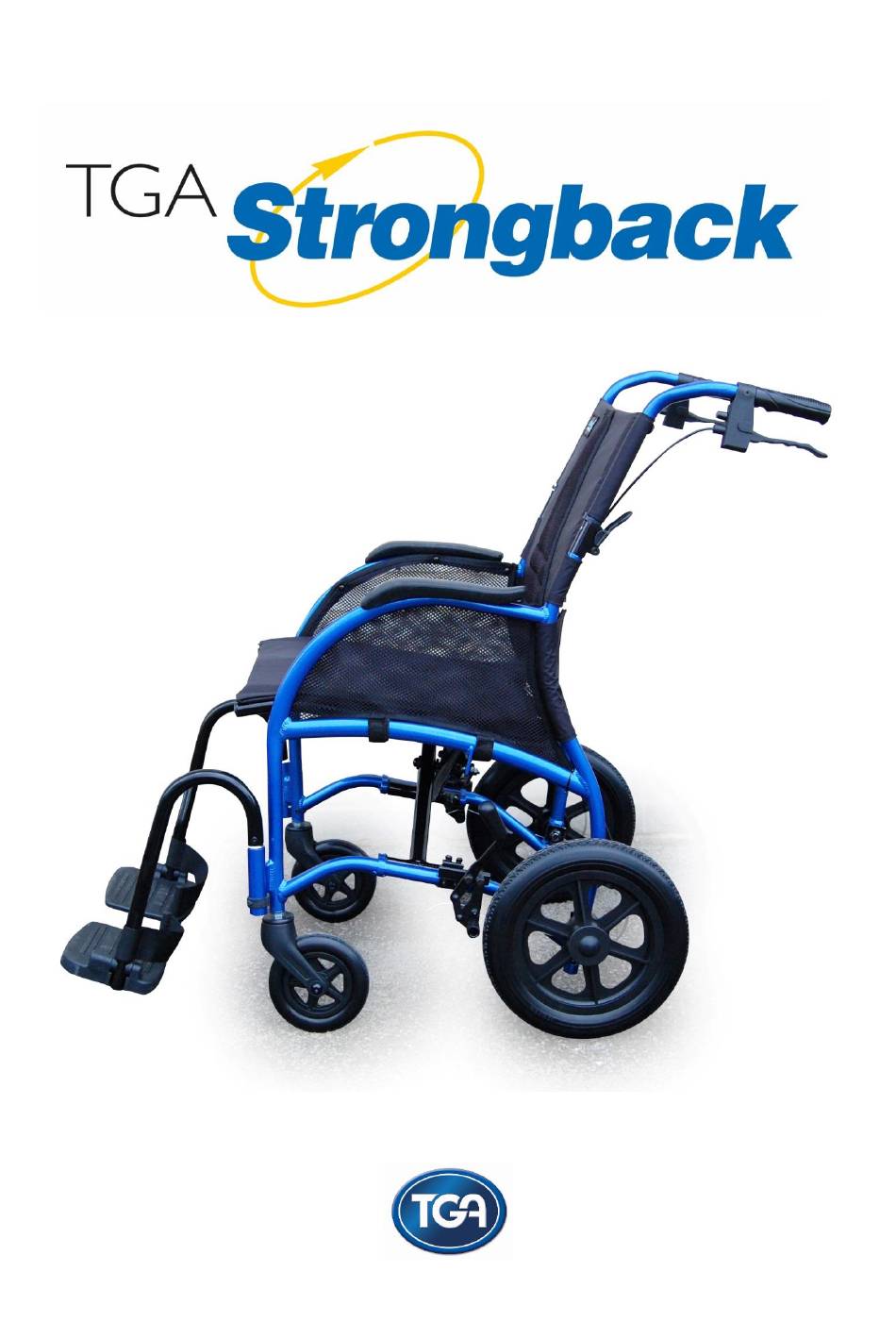

- Page 1 Operating Instructions and Owner’s Handbook...
-
Page 2: Table Of Contents
Table of Contents Page Introduction Warnings For Wheelchair Users For the Assistant Transport in Motor Vehicles Balance Description of the Product Usage and Adjustments Tips for Helpers Unfolding the Wheelchair Folding the Wheelchair The Brakes The Footrests Getting In and Out Sitting and Moving in the Chair Adjusting the Backrest Getting Around... -
Page 3: Introduction
Introduction Congratulations on purchasing a superior-quality wheelchair that will help you to sit comfortably in an ergonomically healthy position. Please read these instructions carefully before using your new wheelchair. Make sure that all of your helpers have read the manual as well. -
Page 4: For The Assistant
For the Assistant • Each helper must have enough strength to move the wheelchair including its user. This also means they must be strong enough to tip the wheelchair backwards in order to overcome obstacles such as getting up and down sidewalks. Also, the assistant must be able to detect any obstacles. -
Page 5: Description Of The Product

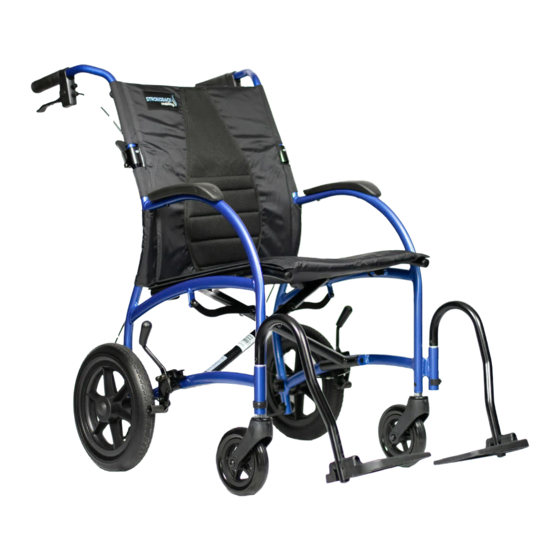

Description of the Product This TGA transit wheelchair by Strongback Mobility is a ready to use, completely assembled and, above all, a comfortable wheelchair with integrated ergonomic back support. Additionally, the wheelchair is very easy to transport because it is ultra-light-weight and can be folded into a very compact configuration. -
Page 6: Usage And Adjustments
Usage and Adjustments Generally, the TGA transit wheelchair is intended for transport and sitting of people with walking and / or standing weaknesses. The wheelchair has integrated support in the backrest, which simplifies and promotes ergonomically correct sitting. Tips for Helpers •... -
Page 7: Folding The Wheelchair
Folding the Wheelchair 1. Press the release paddle on both sides at the rear of the frame downwards (see the picture below). 2. Pull the handles backwards and fold them down. 3. Fold the plastic footplates upwards. 4. Swing the footplate tubes out and backwards against the frame. The Brakes The wheels are locked when the handle is pushed completely down and forward. -
Page 8: The Footrests
The Footrests The footrests can be swung out and the black plastic foot plate can be folded down (parallel to the ground) or up. Pull the footrest tube at the apex upward in order to release the current position and rotate the tube in the desired position. When you let go, the footrest will lock automatically in the folded or open position. -
Page 9: Adjusting The Backrest
Adjusting the Backrest The backrest is delivered completely assembled and is comfortable for most wheelchair users without need of adjustment. However, it is easy to adjust the backrest to individual preferences. To do this, simply open the Velcro flaps (pictured and numbered below) and make them tighter or looser, depending on the desired effect. -
Page 10: Getting Around
Getting Around The wheelchair is designed for getting around with an assistant. The manoeuvrability of the wheelchair is excellent because the front wheels are smaller and the wheelchair is light and easy to rotate. The user's arms are best kept in the lap or on the armrests to prevent any risk of injury during transportation. -
Page 11: Obstacles
Obstacles Obstacles on the path and uneven terrain of all kinds can damage the wheelchair and could lead to a fall. In order to keep this risk as small as possible, please note the following: • Pay attention to the condition of the road / path - look far ahead and adjust the walking speed to the circumstances. -
Page 12: Maintenance And Services
Maintenance and Services Regularly check the condition of your wheelchair. If you discover a problem, please have it fixed immediately by an expert. At least once a year, the wheelchair should be serviced by a qualified person. Before the first use and after any maintenance or adjustment ALWAYS check: •... -
Page 13: Guarantee
Guarantee The frame of your new TGA transit wheelchair is guaranteed for 2 years against defects in manufacturing and materials. The seat, footrests and other auxiliary parts are guaranteed for 12 months against faulty workmanship or material. Contact your vendor for all questions regarding damage. -
Page 14: Contact
Contact TGA Mobility Woodhall Business Park Subdury Suffolk CO10 1WH Tel: 01787 882244 www.tgamobility.co.uk Available Models for the TGA Transit Wheelchair Model 1300004 1300003 Seat width [cm] Back wheel [cm] Weight [kg] 11.3 11.3... -
Page 15: Annex
Annex Technical Data Details of the TGA Transit Wheelchair Model 1300004 1300003 Length folded [cm] Width folded [cm] Height folded [cm] Length open [cm] Width open [cm] Height open [cm] All measurements are approximate values Additional technical data • Static stability downhill: 7°... -
Page 16: Symbols
Symbols Date of manufacture - Indicates the date when the medical device was manufactured. Batch code - Indicates the manufacturer's batch code so that the batch or lot can be identified. Consult instructions for use - Indicates the need for the user to consult the instructions for use. - Page 17 Thank you for purchasing the TGA Strongback...
- Page 18 Notes:...
- Page 19 NOTES:...
- Page 20 TGA Electric Leisure Ltd Woodhall Business Park Sudbury Suffolk CO10 1WH 01787 882244 www.tgamobility.co.uk TGA Electric Leisure Ltd reserves the right to change specification and/or prices without prior notification or warning INS19v1...
