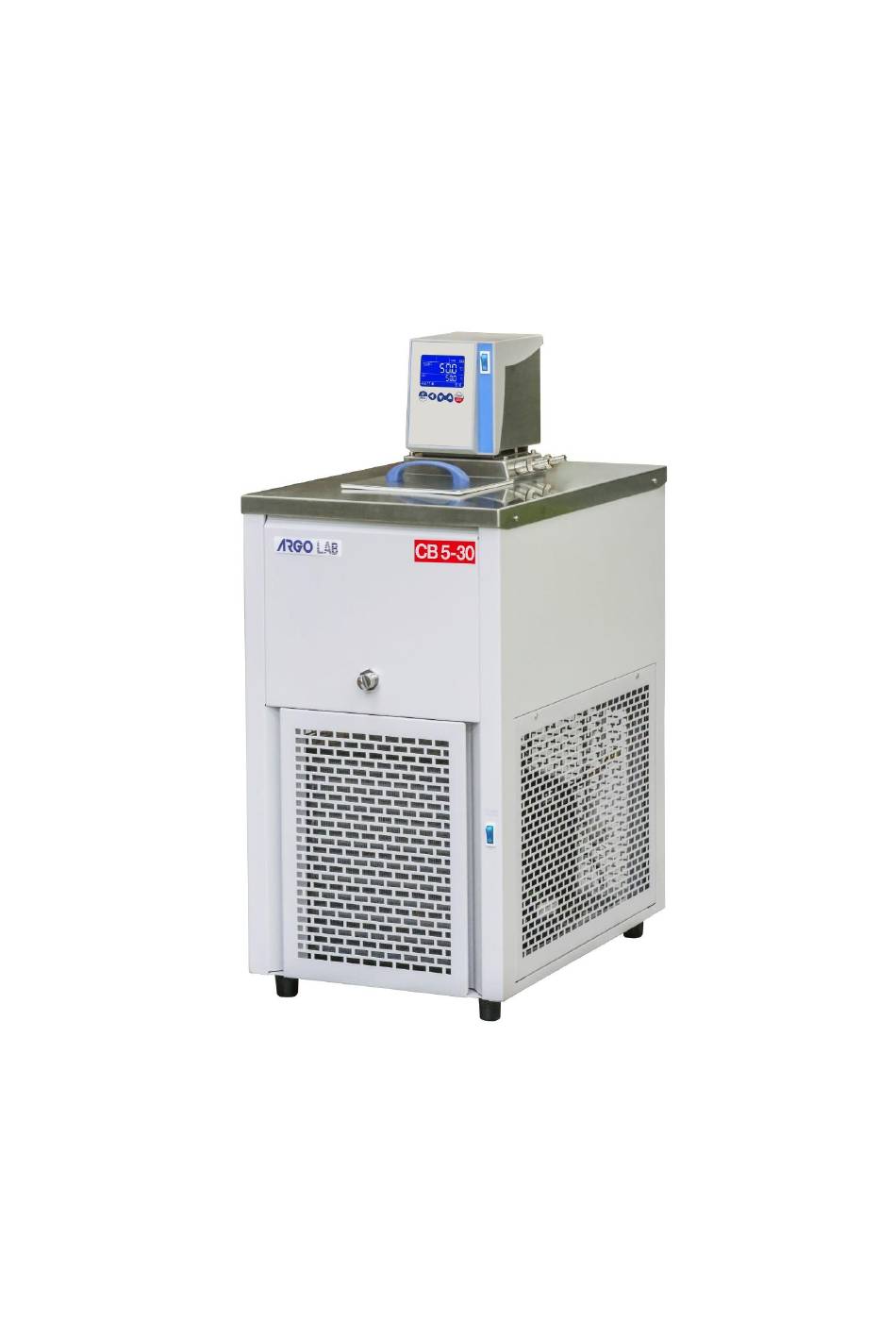

CIRCULATING BATHS
User Manual
CB 5-10/CB 5-20/CB 5-30

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CB 5-10 and is the answer not in the manual?

Questions and answers

Related Manuals for Argo Lab CB 5-10

Summary of Contents for Argo Lab CB 5-10

  • Page 1 CIRCULATING BATHS User Manual CB 5-10/CB 5-20/CB 5-30...

  • Page 2: Table Of Contents

    Circulating baths CB – User Manual Index Warranty ..........................1 Contents of package ........................ 1 First use ........................... 1 Getting started ........................1 Tank filling ........................1 Tube connection for external circulation ................2 Instrument parts ........................ 3 Display and commands ......................4 Operation ..........................

  • Page 3: Warranty

    Circulating baths CB – User Manual Warranty Thank you for purchasing this instrument. In normal use conditions, the instrument is guaranteed for a period of 24 months from the date of purchase. The warranty is valid only if the product is original. It does not apply to any product or parts of it that have been damaged due to incorrect installation, improper connections, improper use, accident or abnormal conditions of operation.

  • Page 4: Tube Connection For External Circulation

    Circulating baths CB – User Manual Operating level Picture 1 The circulating bath is designed to be used exclusively with non- flammable Class I fluids (DIN 12876-1). Never use the instrument without fluid in the tank. Periodically check the tank to make sure that the level of the liquid is within acceptable levels. Fill always the tank using the same fluid already present in the tank.

  • Page 5: Instrument Parts

    Circulating baths CB – User Manual 3.4 Instrument parts Main ON/OFF switch Display Adjustment keys Cover Tank Tank discharge ON/OFF Cooling system Cooling system grid Picture 3 External probe connection External probe Picture 4 Ver. 1.1 – 20/02/2018...

  • Page 6: Display And Commands

    Circulating baths CB – User Manual Display and commands Timer Liquid level Real temperature Cooling ON Heating ON temperature Sound alarm Running ON disabled Picture 5 Visual alarm COMMANDS DESCRIPTION The SET / PROG key permits to set the operating parameters. In combination with the SHIFT key, it allows access to the menu with a password (see paragraph 5.7).

  • Page 7: Operation

    Circulating baths CB – User Manual Operation 5.1 Switching on the instrument Before connecting the power supply cable to a socket, it is necessary to fill the tank (see paragraph 3.2). Turn on the instrument by pressing the button main ON / OFF. The button and the display light up. The display shows the initialization sequence and then the instrument is ready for use.

  • Page 8: Start/Stop Cycle

    Circulating baths CB – User Manual NOTE: the value “00:00” indicates the operating mode "continuous", that means once you start the operating cycle by the START / STOP button, it continues maintaining the set temperature until it is stopped manually (START/STOP If you set a value of time, such as 1 hour, the instrument will reach the set temperature and will maintain it for an hour.

  • Page 9: Functions With Password Access

    Circulating baths CB – User Manual 5.7 Functions with password access 5.7.1 Access to menu with password Simultaneously pressing the SET / PROG and SHIFT for few seconds, you can access some functions and parameters that are password protected. To access these submenus and avoid mistakenly entering in the operating parameters setting, it is recommended to firstly press the SHIFT key, keep it pressed, and then press the SET / PROG for few seconds.

  • Page 10: Restart Mode After Absence Of Power Supply

    Circulating baths CB – User Manual On the top right part of display the parameter “tm” (temperature max) and the maximum expected value for the kind of instrument (different for oven and incubator) appear. Set the maximum temperature value you want the instrument doesn’t exceed during work cycle by keys.

  • Page 11: Temperature Offset On Single Point, On Entire Ramp, On Room Temperature Sensor

    Circulating baths CB – User Manual We recommend to do not change this value unless absolutely necessary, because temperature fluctuations more or less than the set one, especially in models with natural convection, are normal and thus reducing dramatically the value of AL, it would risk do go frequently and unnecessarily alarmed the instrument.

  • Page 12: Tank Emptying

    Circulating baths CB – User Manual Tank emptying When it is desired to empty the tank it is essential that the heating element is no longer powered and has first been cooled. Before proceeding with the fluid removal operations, wait until it has cooled down sufficiently.

  • Page 13: Check Of The Refrigeration Units Compartment, Heat Sinks And Cooling Fans

    Circulating baths CB – User Manual 7.1 Check of the refrigeration units compartment, heat sinks and cooling fans For the checking of the refrigeration units compartment and its components it is necessary to stop the working cycle and switch off the machine by the ON/OFF button on the side control panel and disconnect the power cord from the power socket.

This manual is also suitable for:

Cb 5-20Cb 5-30
