AXA DDS 1 Quick Start Manual

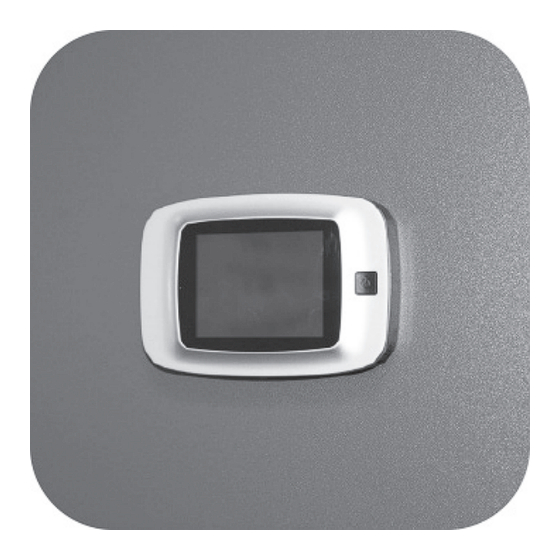

Digital door spy
Information
You have just acquired a high quality AXA product. The
instructions below must be followed closely in order to
effectively assemble and operate this product.
125
Use
Outside doors (door thickness 38 - 110 mm)
Package contents
(1x) Digital door spy
1.
(1x) M3 x 8 mm bolt
2.
(4x) AAA Batteries
3.
(1x) Mounting plate
4.
3
4
User manual
On/Off key:
Press On/Off key ot turn the appliance on for 10 seconds.
Low battery:
When low battery icon is visible at right bottom display,
the batteries should be replaced.
18,5
(1x) Washer
5.
(1x) Camera
6.
(3x) Mounting sleeve
7.
(1x) Mounting key
8.
6
7
5
8
DDS 1
Assembly tools (recommended):
Tape measure, (battery) drill or screw machine, Ø 14 mm drill
bit, pencil or awl.
Assembly place
85
1
2
Specifications
Door thickness:
Camera hole size:
Sensor:
LCD screen:
Power:
Dimensions (wxhxd):
Weight:
Placing the
batteries
38-110 mm
Ø14 -22 mm
0.3 Mega Pixels CMOS
3.2 inch TFT
4x AAA batteries
125 x 68 x 15 mm
180 gram
