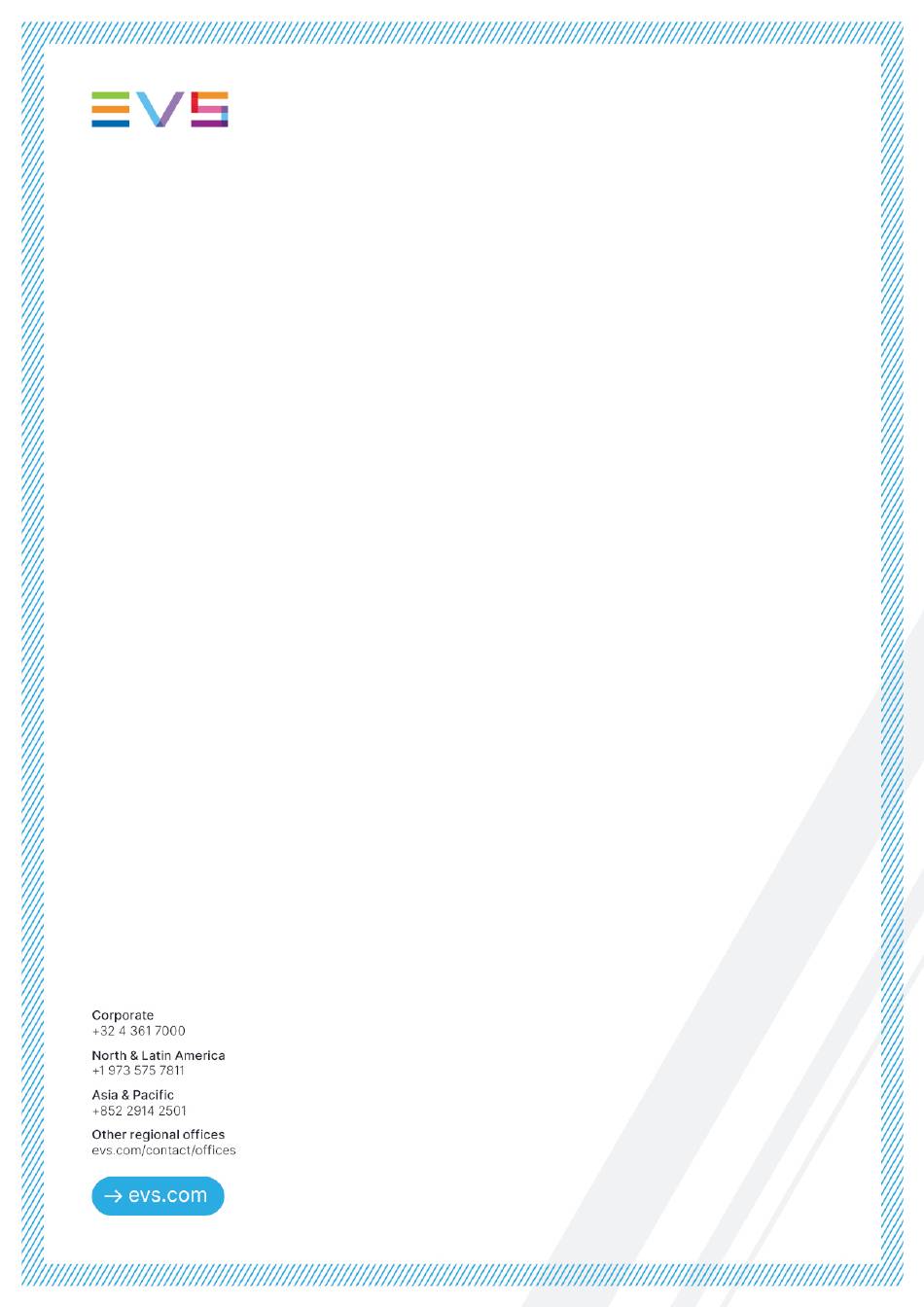

- Page 1 HARDWARE MANUAL DB Server 1U 2023-01-04 | TR-DBS1-6251S...
- Page 3 You will find the full list of addresses and phone numbers on the following webpage: https://evs.com/contact/offices. User Manuals on EVS Website The latest version of the user manual, if any, and other user manuals on EVS products can be found at the EVS download center, on the following webpage: https://download-area.evs.com. TR-DBS1-6251S | 2023-01-04 |...

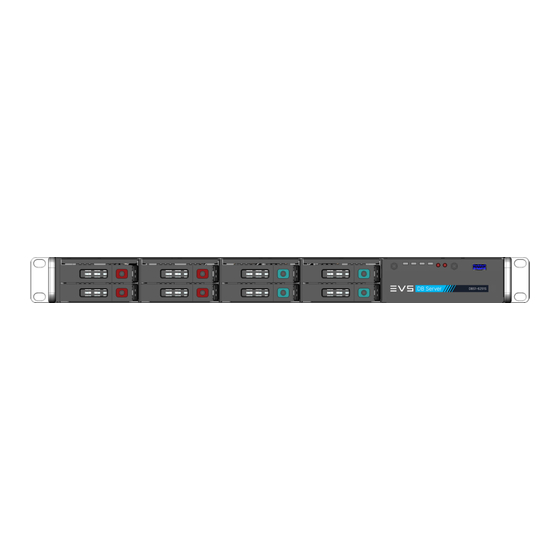

- Page 5 HARDWARE MANUAL Introduction This technical document provides an overview of the different hardware configurations and a brief description of the connectors. Commercial References Base Configuration • DBS1-6251S: 1U High Performance Live PAM DB Server Front View Rear View Options • DBS1-10G-RJ45: 1U High Performance Live PAM DB Server Rear View •...
- Page 6 SFP+ modules from other manufacturers may be used, but EVS cannot guarantee full functionality. | DB Server 1U...
-
Page 7: Power Supply & Consumption
(c) One module can be changed when the server is running, as long as the other module is still powered. In case of failure, please order a new PSU directly from EVS. If you order one housing, it will also include two modules. -
Page 8: Chassis Dimensions
Chassis Dimensions 482.60 19.00 465.00 18.31 43.65 1.72 31.75 1.25 5.95 0.23 435.00 17.13 666.00 26.22 607.00 23.90 54.00 2.13 447.00 17.60 | DB Server 1U... -
Page 9: Sound Power Level
HARDWARE MANUAL Weight 12.3 kg / 26.46 lb Sound Power Level • Idle: 57.5 dB • Load at 100%: 72.5 dB Hardware & Operating System Motherboard: Single CPU CPU: 1x 8-core CPU at 3.1 GHz with HyperThreading RAM: 64 GB DDR4 ECC 3200 Storage : 4x1.6TB SSD (U.3, 2,5'', enterprise class) OS + SQL: Windows Server 2019 Standard Edition (64 bits) + Windows SQL Server 2019 Standard Edition... - Page 10 ) with 2x 10 Gigabit Ethernet ports (SFP+)(JFC ) with DBS1-10G-RJ45 option DBS1-10G-SFP+ option (*) JFC: Jumbo Frame capable • DBS1-10G-RJ45: 1U High Performance Live PAM DB Server • DBS1-10G-SFP+: 1U High Performance Live PAM DB Server | DB Server 1U...
-
Page 11: Rack Mounting Instructions
HARDWARE MANUAL Rack Mounting Instructions The following or similar rack-mount instructions are included with the installation instructions: Elevated Operating Ambient If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature specified on the apparatus.
