Page 1: High-Throughput Power Server User Manual
JASMINER X16 High-Throughput Power Server User Manual JASMINER X16 High-Throughput Power Server User Manual Total 15 pages January 2024... -
Page 2: Table Of Contents
JASMINER X16 High-Throughput Power Server User Manual Catalogue High-Throughput Power Server User Manual ...........1 I. Product overview ..................3 II. Check before use ..................4 1. Check before use ................... 4 2. Note on use .................... 4 III. Basic instructions ..................5 1. -
Page 3: Product Overview

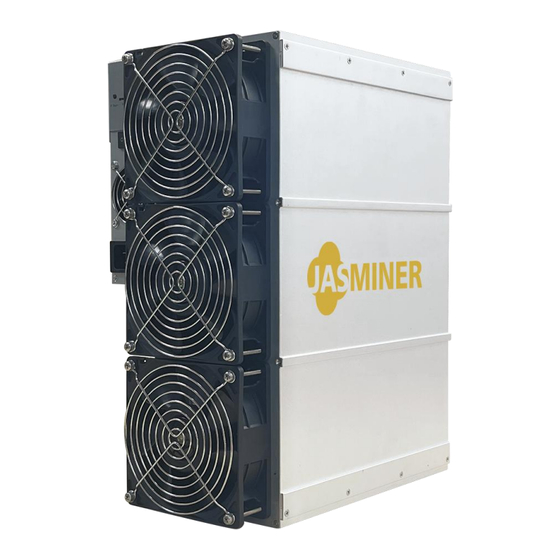

JASMINER X16 High-Throughput Power Server User Manual JASMINER X16-P High Throughput Power Server Instructions I. Product overview High-throughput server (model: JASMINER X 16-P) is coming from Sunlune Technology Development (Beijing) Co., Ltd. Which based on independent research and development of JASMINER X 16 memory and computing... -
Page 4: Check Before Use
JASMINER X16 High-Throughput Power Server User Manual II. Check before use 1. Check before use After unpacking the new machine, please check whether the equipment shell is deformed or the interface is damaged. If there is any damage, please contact the after-sales service for treatment. -
Page 5: Basic Instructions
JASMINER X16 High-Throughput Power Server User Manual III. Basic instructions 1. Equipment Caution: Please place the machine according to the placement shown above, do not place the machine in a confined space for operation; For your safety, it is forbidden to disassemble any screws or fasteners on the product;... -
Page 6: Specification Of Equipment
JASMINER X16 High-Throughput Power Server User Manual 2. Specification of equipment Basic information Appearance Size 374mm(H)×143mm(W)×293mm(L) Weight 14 kg Specification Processor JASMINER X 16 Memory Bandwidth 1TB/s Network RJ 45 Ethernet at 10 / 100 / 1000M(Using shielded Ethernet cables) -
Page 7: Interface And Description
JASMINER X16 High-Throughput Power Server User Manual 3. Interface and description TF card The TF card slot Using IP Report software, the high-throughput server IP IP Report will be feedback to computer Network cable interface Reset Restore the factory setting button... -
Page 8: Use And Setup
Configure the machine by JASMINER IP group control software. Download the IP group control management software from following path: JASMINER website → support → Installation → guide & firmware → other → software & firmware; Install the JASMINER program (IP group control management software) on Windows OS, double-click to run, and note that the computer needs to be in the same network segment with the machine;... - Page 9 JASMINER X16 High-Throughput Power Server User Manual Check the machine needs to be configured Copy and paste the obtained minining pool address at the Pools, and then copy and paste the sub-account (worker) at the wallet / account (if you choose...
- Page 10 JASMINER X16 High-Throughput Power Server User Manual Single mining ETC, select ETC algorithm, dual-mining select ETC + ZIL dual- mining (note that previous address and algorithm selection should be the same) Select the working frequency, the default is Efficiency, you can also select...
- Page 11 JASMINER X16 High-Throughput Power Server User Manual Click the Configure to start the machine configuration View the hashrate After the machine runs about 10 min, you can see the corresponding hashrate information.
- Page 12 JASMINER X16 High-Throughput Power Server User Manual The configuration to this high-throughput server is complete and the machine works properly. By this point the configuration of the high throughput server is complete and the machine is ready to work. [Other Settings] Double-click the device in the group control software to enter the web page to modify and set up.
-
Page 13: Configure Without Group Control Software
JASMINER X16 High-Throughput Power Server User Manual 3. Configure the high-throughput power server from the Backend Console without group control software A) Enter the IP address of the machine in any web browser and press the Enter key to open the machine‘s Backend Console. - Page 14 JASMINER X16 High-Throughput Power Server User Manual B) Enter the "Setings → Miner" configuration interface to modify the mining pool settings, and let the machine starts to providing hashrate. Enter the preferred and two alternative mining pool address, account number and password, and refer to the mining pool tutorial;...
- Page 15 JASMINER X16 High-Throughput Power Server User Manual C) After runs about 20 minutes, you can view the corresponding hashrate information on the Status page. Configuration to this high-throughput server is c ompleted.
