MV800 Simple Incremental PG Card
(with STO Function) User Manual

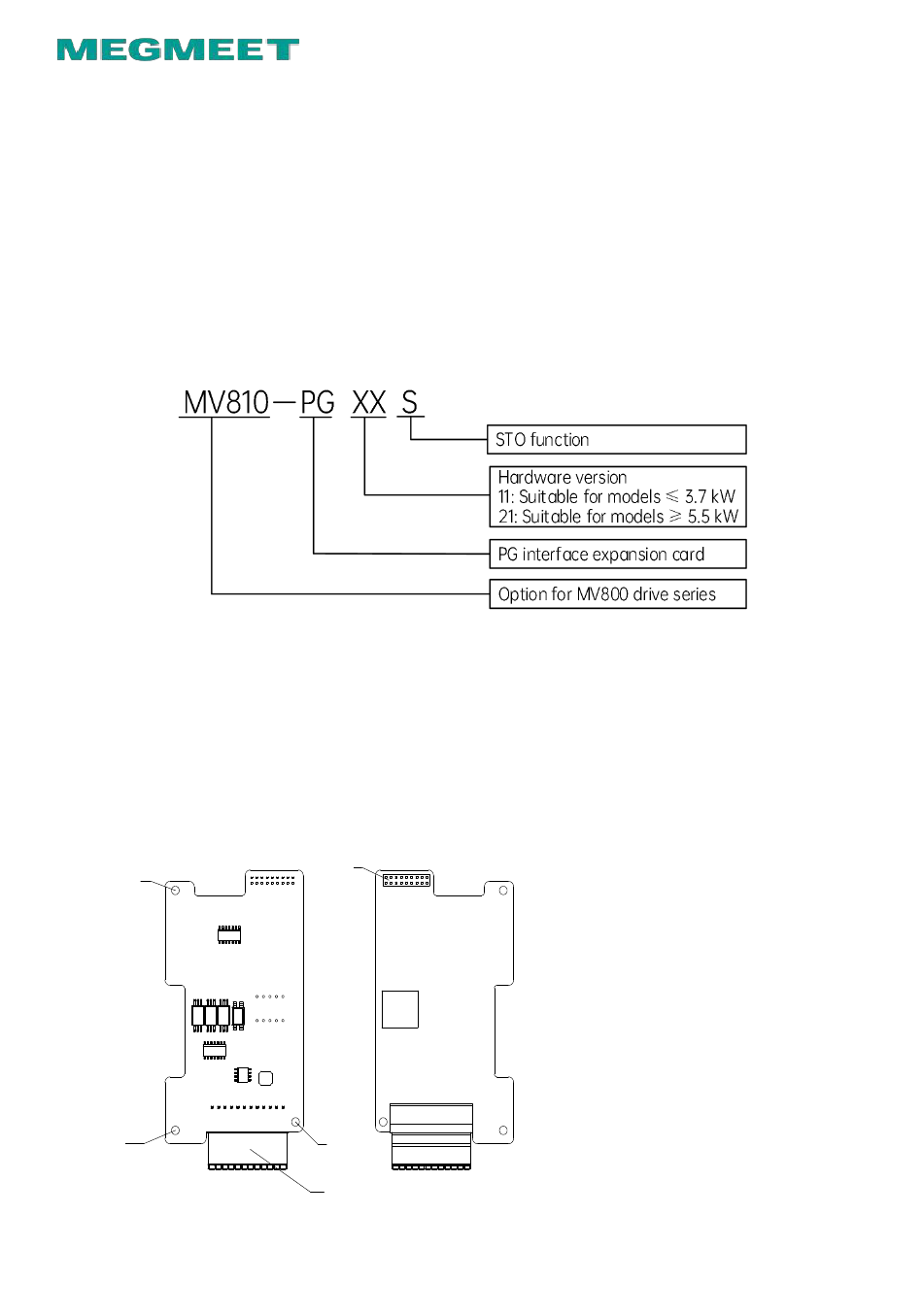

1 Product Information
1.1 Naming rule
1.2 Function description
MV810-PG*1S is an accessory card for the MV800 series AC drive, which provides
encoder interfaces, with differential ABZ input and open-collector input, serving
as the speed or position feedback. It has two ways of STO signal input to achieve
Safe Torque Off for the AC drive.
1.3 Product appearance
1
1
Fig. 1-1 PG*1S appearance (for models of 3.7 kW and below)
3
1
2
1
BOM code: R********
1. Positioning hole
2. Connection terminals
3. Interface connected to a drive
Version: V00
Advertisement
Related Manuals for Megmeet MV800
Summary of Contents for Megmeet MV800
- Page 1 1.1 Naming rule 1.2 Function description MV810-PG*1S is an accessory card for the MV800 series AC drive, which provides encoder interfaces, with differential ABZ input and open-collector input, serving as the speed or position feedback. It has two ways of STO signal input to achieve Safe Torque Off for the AC drive.
-
Page 2: Terminal Description
1. Positioning hole 2. Connection terminals 3. Interface connected to a drive Fig. 1-2 PG*1S appearance (for models of 5.5 kW and above) 1.4 Terminal description The following figure shows the terminal marks of MV810-PG*1S. STO2 GND STO1 GND +24V 5/12V Fig. -
Page 3: Signal Description
Type Mark Name Function description Specifications Provides power supply Output voltage: for external encoders +5 V / 12 V Encoder power (reference ground 5/12V Max. output supply GND) current: 5 V or 12 V selected 200 mA / 150mA through P04.04. When not using the STO function, you can Output voltage:... - Page 4 Fig. 1-4 ABZ signal 1.6 STO wiring diagram (1) Internal 24 V wiring diagram A C d riv e + 2 4 V S T O 1 S T O 2 G N D (2) External 24 V wiring diagram AC drive +24V STO1...
-
Page 5: Installation
The installation position, installation interface and installation steps for MV810-PG*1S are described below. 2.1 Installation position of PG card MV800 series AC drive provides two positions for expansion cards and options, as shown in Fig. 2-1 position 1 and position 2 (taking enclosure B as an... - Page 6 2.2 Installation interface of PG card The electrical interface of PG*1S card is connected to the MV800 AC drive as shown in Fig. 2-2. Fig. 2-2 Installation interface of PG card 2.3 Installation steps of PG card Installation method: Reverse side mounting (PG*1S card)
- Page 7 图a 图b 图c 图d 图e 图f Fig. 2-3 Position 1 - PG card installation steps...
- Page 8 Shenzhen Megmeet Electrical Co., Ltd. Address: 5th Floor, Block B, Unisplendor Information Harbor, Langshan Road, Nanshan District, Shenzhen, 518057, China Tel: +86-755-86600500 Fax: +86-755-86600562 Zip code: 518057 Website: https://www.megmeet.com Service email: driveservice@megmeet.com All rights reserved. The contents in this document are subject to change without notice.
