MV800 IO Expansion Option User Manual
1 Product Information
1.1 Designation rule
1.2 Functions and specifications
MV810-IO01 option provides IO expansions for the MV800 drive series. Its
functions and specifications are described below:
1.2.1 Function features
(1) Three DI expansions
(2) Two relay output expansions
(3) Provides external 24V
(4) Eurostyle pluggable terminal blocks
1.2.2 Technical specifications
Product
Terminal
Simple IO
expansion
DI9–DI11
option
power supply
DC
Multi-function input terminals set by P41.00–P41.02;
Support NPN/PNP input, selected by P41.03, active
level: 9 to 30 V;
Power supplied by the option's terminal (24V
external 24 V DC (see wiring details in 4.2.2.4 of the
full edition of the drive's user manual);
Support filtering and switch-on/off delay.
1
Specifications
Version: V01
) or
DC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MV800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Megmeet MV800

Summary of Contents for Megmeet MV800

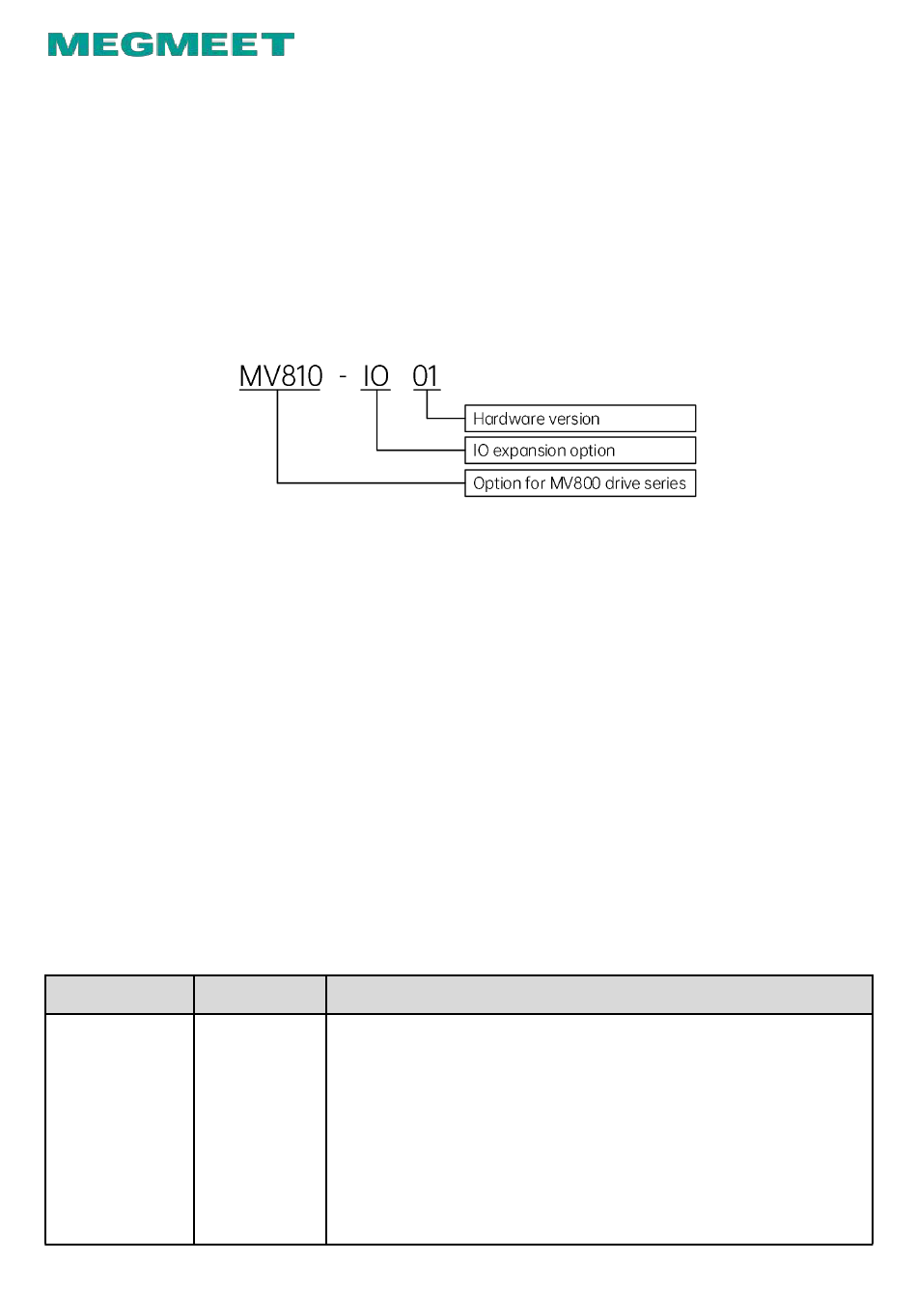

  • Page 1 Version: V01 1 Product Information 1.1 Designation rule 1.2 Functions and specifications MV810-IO01 option provides IO expansions for the MV800 drive series. Its functions and specifications are described below: 1.2.1 Function features (1) Three DI expansions (2) Two relay output expansions...

  • Page 2: Led Indicator Description

    Multi-function output terminals set by P41.13–P41.14; RO2 contains one TA2/TB2 (normally closed), one TA2/TC2 (normally open); contact capacity: 250 V AC/3 A，30 V DC/1 A; RO2–RO3 RO3 contains one TA3/TC3 (normally open); contact capacity: 250 V AC/2 A，30 V DC/1 A; Support output polarity and switch-on/off delay (see wiring details in 4.2.2.6 of the full edition of the drive’s user manual).

  • Page 3: Function Codes

    1.3.3 Function codes Table field Description Default value It is the factory setting value of the function code. ○: indicates the function code can be modified in the running status. ×: indicates the function code can be modified in the stop Property status.
  • Page 4 Function Default Name Description Property code value command (UP) 15: Frequency decrease command (DN) 16: External fault NO input 17: External fault NC input 18–72: Refer to the full edition of the drive’s user manual 0: Digital terminal open-circuit Terminal voltage 0 V P41.03 open-circuit...
  • Page 5 Function Default Name Description Property code value DI10 P41.09 switch-on 0.0 s ○ delay time DI10 P41.10 switch-off 0.0 s ○ delay time DI11 P41.11 switch-on 0.0 s ○ delay time DI11 P41.12 switch-off 0.0 s ○ delay time RO2 output 0: Disabled P41.13 ○...
  • Page 6 Function Default Name Description Property code value 17: AC drive ready to run (RDY) 18: AC drive fault 19–47: Refer to the full edition of the drive’s user manual Ones: 0: RO2 positive logic active Output 1: RO2 negative logic active terminal Tens: P41.15...

  • Page 7: Installation Position

    The installation position, interface and steps of MV810-IO01 are described below: 2.1 Installation position MV800 drive series provides two positions for installation of accessory cards and options: position 1 and position 2 in the right figure (taking enclosure B as...

  • Page 8: Installation Steps

    2.3 Installation steps Installation method: front side mounting of IO option (1) When the drive is powered off, press the granulated part on the middle-upper of the lower cover, slide it down firmly to take down the cover, as shown in Fig. 2-a.
  • Page 9 SHENZHEN MEGMEET ELECTRICAL CO., LTD. Address: 5th Floor, Block B, Unisplendor Information Harbor, Langshan Road, Nanshan District, Shenzhen, 518057, China Tel: +86-755-86600500 Fax: +86-755-86600562 Zip code: 518057 Website: https://www.megmeet.com/ Service email: driveservice@megmeet.com All rights reserved. The contents in this document are subject to change without notice.
