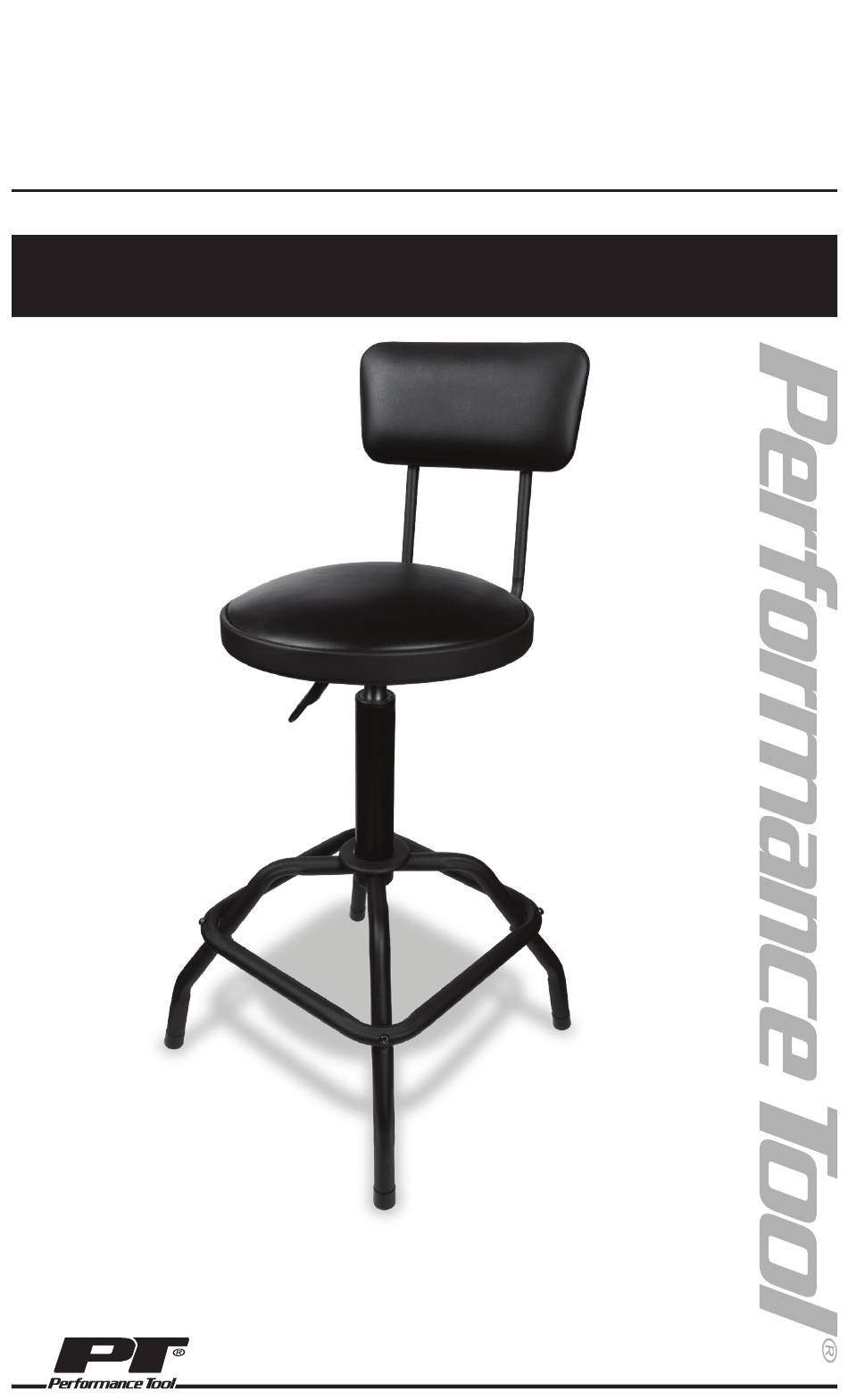

PNEUMATIC SHOP
STOOL WITH BACKREST
Item Number W85016
WARNING: READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS AND

WARNINGS BEFORE OPERATING THIS TOOL. FAILURE TO DO SO MAY
RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND WILL
VOID WARRANTY.
OWNER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the W85016 and is the answer not in the manual?

Questions and answers

Summary of Contents for Performance Tool W85016

  • Page 1 PNEUMATIC SHOP STOOL WITH BACKREST Item Number W85016 OWNER'S MANUAL WARNING: READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS AND WARNINGS BEFORE OPERATING THIS TOOL. FAILURE TO DO SO MAY RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND WILL VOID WARRANTY.
  • Page 2 SAFETY GUIDELINES / DEFINITIONS This instruction manual is intended for your benefit. Please read and follow the safety, warnings and assembly steps described within to ensure your safety and satisfaction. The contents of this instruction manual are based upon the latest product information available at the time of publication.
  • Page 3: Specifications

    SPECIFICATIONS: Seat Diameter.............13-1/2 in. (34.3 cm) Seat Height .........From 25 to 32 in. (63.5 to 81.3 cm) Foot Rest to Floor ............. 8 in. (20.32 cm) Weight ................13.64 lb. (6.18 kg) Load Capacity..............330 lb. (150 kg) Specifications are subject to change without notice. CONTENTS No.
  • Page 4 ASSEMBLY INSTRUCTIONS NOTE: Lay out all contents and be sure nothing is missing. 1. Insert one of the legs (4) onto one end of 2. Insert a 3/4 in. screw (9) into the aligned the center spindle (3) and align the holes holes and hand tighten only.
  • Page 5 ASSEMBLY INSTRUCTIONS CAUTION: Cylinder is under high pressure. 5. Place base cap (10) over cylinder opening 6. Remove the pneumatic cylinder (2) from at top of center spindle. box, and carefully remove the plastic cap on top of the release button. Insert large end into the opening in the center of the center spindle and leg assembly.
  • Page 6 ASSEMBLY INSTRUCTIONS 8. Insert one of the backrest supports (11) into the backrest (12) by pressing the pin lock down, while sliding the support in, until the pin lock releases. Repeat for the other support. WARNING: Be sure the backrest supports 9.
  • Page 7 13.5 in. / 34.3 cm Press lever down to lower seat & pull lever up to raise seat...
  • Page 8 PERFORMANCE TOOL® does not authorize any other person to make any warranty or to assume any liability in connection with its products.
