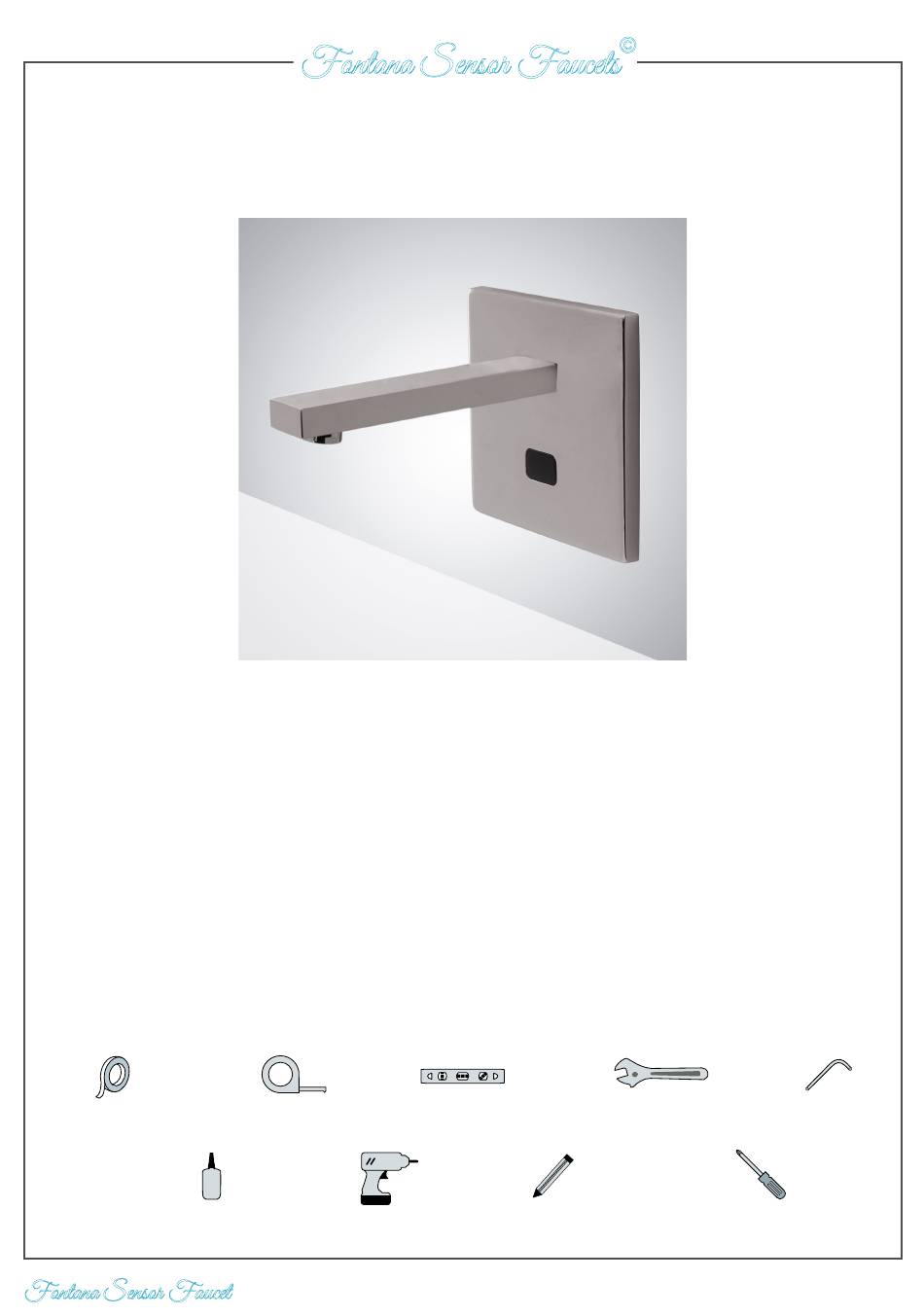

FONTANA COMMERCIAL BRUSHED NICKEL WALL
MOUNTED XT5 AUTOMATIC SENSOR FAUCET
BEFORE YOU BEGIN
Before you begin, please read the installation instructions below. Observe
all local building and safety codes.
Unpack and inspect the items for any shipping damages. If you find
damages, do not install.
Please note all products must be installed by a professional and certified
plumber otherwise warranty might be voided.
POSSIBLE TOOLS REQUIRED*
Plumbers Tape
Thread Sealant
Fontana Sensor Faucet
Fontana Sensor Faucets
INSTALLATION INSTRUCTIONS
Installations created by:
Company - Mecapre
Email - preeti@mecapre.com ,
preeti.eworks@gmail.com
Skype - sagar_preeti
www.mecapre.com
Tape Measure
Drill
Level
Adjustable Wrench
Pencil or Marker
1
©
Product code: FSXT50B
Hex Wrench
Screwdriver
fontanasensorfaucets.com
Customer Service: 800-684-4489
*not included
