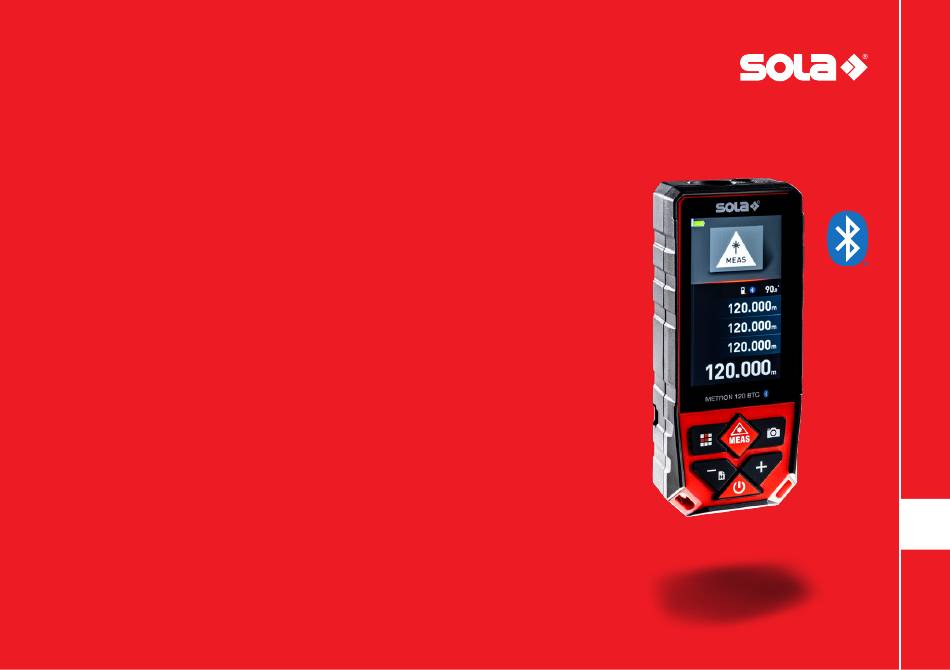

  • Page 1 Operating Instructions METRON 120 BTC Laser distance meter with Bluetooth www.sola.at...
  • Page 2 (Translation of Original Version) About this Manual Congratulations on the purchase of your new METRON 120 BTC! You have acquired a SOLA measurement device, which can make your work easier, faster, and more precise. To utilize the complete functionality range of this measurement device, and to ensure safe operation, please observe the following instructions: ∙...
  • Page 3: Table Of Contents

    Passion for Precision Contents Getting Started 1. General Information 2. Delivery Contents and Accessories Operation Maintenance, Storage, and Transportation 3. Description 4. Technical Data 10. Troubleshooting 5. Safety Instructions 11. Disposal 12. Manufacturer’s Guarantee 6. Laser Safety / Classification www.sola.at...
  • Page 4: General Information

    General Information 1. General Information 1.1 Signal Words and their Meaning 1.2 Pictograms and Other Information DANGER 1.2.1 Warning Signs Do not throw battery into For an imminent danger that could lead the fire. to serious injury or death. Warning of dangers in general WARNING For a possibly dangerous situation that Do not heat battery above...
  • Page 5: Delivery Contents

    Delivery Contents 2. Delivery Contents METRON 120 BTC Delivery Contents 1 × Laser distance meter 1 × Charging/data cable 3 × 1.2 V Ni-Mh rechargeable batteries (3 x 850 mAh) 1 × Belt case 1 × Strap 1 × Quick start...
  • Page 6: Description

    Description 3. Description 3.1 Device Components and Function Buttons Display Camera Measurement Functions Subtract/back/measurement memory Add/forward ON/OFF Tripod connection 1/4" Battery compartment Side button measurement Settings...
  • Page 7 Description 3.1 Device Components and Function Buttons USB-C connection Camera opening Laser emission opening Laser reception opening...
  • Page 8 Description 3.2 Display Battery status Digital vial Measuring edge Measurement function Bluetooth Inclination laser distance meter Measurement 1 Measurement 2 Measurement 3 Measurement result...
  • Page 9 Description 3.3 Navigation Scroll back to menu item Scroll to next menu item Confirm menu item Select next selection option Select previous option Settings...
  • Page 10 Description 3.4 Settings 0.000 Meters, three decimal places White background Display background Meters, four decimal places 0.0000 Black background (only available in single measurement mode) Millimeters Units of measure The device starts measuring after Feet 5 seconds. The time-delayed Measurement memory Inches measurement can be enabled in any function.
  • Page 11 Description Measurement Memory Tolerance Menu Measured value memory for up to 1,000 photos and/or measured Setting a base value (tolerance) that is added to, or subtracted from, values. each measurement result when being measured. Switch between Cursor to Cursor to Open menu data values and the left...
  • Page 12 Description 3.5 Intended Use The device is designed to measure distances. The display shows the The range depends on the model of the laser distance meter, measurement, the setting, as well as the device status. An emitted the reflectivity, and the quality of the reflective surface. laser beam is directed towards a reflective surface and sent back to the laser distance meter.
  • Page 13: Technical Data

    Technical Data 4. Technical Data 4.1 General Storage temperature –20 °C to +60°C Usage area 0.05 to 120 m* Tripod connection 1/4" Measuring tolerance ±1.5 mm** Dimensions 130 × 54 × 28 mm Protection class IP65 Weight with batteries 190 g Laser class Laser type 630–670 nm <...
  • Page 14 Technical Data 4.2 Functions Length measurement Min./max. measurement Continuous measurement Area measurement Volume measurement Indirect distance measurement Stake out function Circular area measurement...
  • Page 15 Technical Data 4.2 Functions Cylinder volume measurement Triangular area measurement 2-point trapezoidal measurement 3-point trapezoidal measurement Indirect measurement via angle Automatic distance measurement Indirect 3-point measurement (1) Indirect 3-point measurement (2) Indirect 2-point measurement...
  • Page 16: Safety Instructions

    The operator shall ensure that the product is not utilized any ∙ The METRON 120 BTC is suitable for continuous use in an further if defects become evident, and they will have the product atmosphere which can be inhabited by humans.
  • Page 17 Do not use damaged equipment. 5.4.1 General WARNING ∙ Repairs must only be performed by SOLA. Missing or incomplete instructions may result in improper or incorrect use. This can cause accidents with serious damage 5.4.2 Batteries to persons, property, assets, and the environment.
  • Page 18 Safety Instructions WARNING ∙ Do not solder the batteries in the device. High ambient temperatures and immersion into liquids can ∙ Do not mix old and new batteries, and do not mix batteries from cause batteries and rechargeable batteries to leak, explode, different manufacturers or with a differing type designation.
  • Page 19 Safety Instructions 5.5 Electromagnetic Compatibility (EMC) 5.5.2 Interference with the METRON 120 BTC by Other Devices ∙ Although the product meets the strict requirements of the relevant ∙ The electromagnetic compatibility is the ability of the product directives and standards, SOLA cannot entirely exclude the...
  • Page 20: Laser Safety / Classification

    Laser Safety / Classification 6. Laser Safety / Classification The METRON 120 BTC emits a visible laser point. WARNING The product corresponds to laser class 2 according to Looking directly into the beam with optical aids (e.g. binoculars, DIN EN 60825-1:2014+A11:2021.
  • Page 21: Getting Started

    Getting Started 7. Getting Started 7.1 Batteries WARNING The device uses 3 × 1.2 V Ni-Mh rechargeable batteries If you are using non-rechargeable batteries, please DO NOT (3 × 850 mAh). The rechargeable battery charge status is charge them via USB. Damage caused by the incorrect charging shown on the display.
  • Page 22 Getting Started 7.2 Belt Case The laser distance meter can be stowed in a belt case for transport. The device must be removed from the case for measurement.
  • Page 23: Operation

    Operation 8. Operation 8.1 Basic Functions 8.1.4 Target Cross 8.1.1 Charging the Rechargeable Batteries The rechargeable battery charge status is shown on the display. If the search cross is red in camera mode, the viewfinder is still Charge the rechargeable batteries when the symbol is permanently adjusting and no measurement can be taken until the search cross flashing on the screen.
  • Page 24 Operation 8.1.7 Measurement Memory 8.2.2 Min./Max. Measurement The laser distance meter has a measured value memory and can Switch on the laser distance meter. store up to 1,000 measured values. Direct the laser point at the target. Press and hold the “Measure” button 8.1.8 Operating Instructions for 2 seconds.
  • Page 25 Operation 8.2.4 Area Measurement 8.2.5 Volume Measurement Switch on the laser distance meter. Switch on the laser distance meter. Call up the area measurement function Call up the volume measurement and follow the instructions. function and follow the instructions. Using the “Measure” button, measure Using the “Measure”...
  • Page 26 Operation 8.2.6 Indirect Distance Measurement 8.2.7 Stake Out Function Switch on the laser distance meter. This function allows you to measure and Call up the indirect distance mark equal distances very quickly: measurement function and follow the instructions. Switch on the laser distance meter. The device calibrates itself for 5 seconds Call up the stake out measurement and should be placed on as flat a...
  • Page 27 Operation The following buttons are available for entering the stake out Once the values have been entered, the stake out measurement measurement (from section 8.2.7): starts. The indications on the display will help you as a guide: Displays the distance to the point to be marked.
  • Page 28 Operation Carry out the measurement by moving the device slowly along 8.2.8 Circular Area Measurement the stake out line. When the laser distance meter reaches target Switch on the laser distance meter. A, you will hear a beep (if enabled). Mark the point when the Call up the circular area measurement upper value is zero (pay attention to the measuring edge of the function and follow the instructions.
  • Page 29 Operation 8.2.10 Triangular Area Measurement 8.2.12 3-Point Trapezoidal Measurement Switch on the laser distance meter. Switch on the laser distance meter. Call up the triangular area measurement Call up the 3-point trapezoidal function and follow the instructions. measurement function and follow Using the “Measure”...
  • Page 30 Operation 8.2.13 Indirect Measurement via Angle 8.2.14 Automatic Distance Measurement Switch on the laser distance meter. Switch on the laser distance meter. Call up the indirect distance Direct the laser point at the target. measurement via angle function Press the “Measure” button. and follow the instructions.
  • Page 31 Operation 8.2.15 Indirect 3-Point Measurement (1) 8.2.16 Indirect 3-Point Measurement (2) Switch on the laser distance meter. Switch on the laser distance meter. Call up the indirect 3-point measurement Call up the indirect 3-point measurement function and follow the instructions. function and follow the instructions.
  • Page 32 Operation 8.2.17 Indirect 2-Point Measurement Switch on the laser distance meter. Call up the indirect 2-point measurement function and follow the instructions. Using the “Measure” button, measure the two indicated measurement points in succession as for a single measurement. After completing the measurement, the distance between the first and second measurement points is automatically calculated and displayed in the bottom line of the display.
  • Page 33: Maintenance, Storage, And Transportation

    Maintenance, Storage, and Transportation 9. Maintenance, Storage, and Transportation 9.1 Cleaning 9.3 Transport ∙ Wipe off the dirt with a soft damp cloth. ∙ The device may be damaged if it falls or is subjected to ∙ Check the outlet openings of the laser distance meter regularly, strong vibrations.
  • Page 34: Troubleshooting

    Troubleshooting 10. Troubleshooting Error Possible Cause Remedy Take the measurement again. When doing so, pay attention to Calculation error the measurement sequence and the positioning of the device. Excessive power consumption Please contact your dealer. Low rechargeable battery level Charge the rechargeable batteries or change to normal batteries. The reception of the reflective signal is too weak Repeat the measurement on another surface with better reflective or the measurement time is too long.
  • Page 35: Disposal

    Disposal 11. Disposal ∙ If disposed of improperly third parties may possibly be seriously Your SOLA dealership will accept returned batteries as well as injured and the environment polluted. old equipment, and will ensure proper disposal. ∙ Burning plastic components generate toxic fumes which may impair health.
  • Page 36: Manufacturer's Guarantee

    Manufacturer’s Guarantee 12. Manufacturer’s Guarantee “The manufacturer warrants to the original purchaser stated on the If the guarantee claim is justified, the manufacturer shall bear the guarantee card, freedom from defects of the device for a period of transport costs. The duration of the guarantee will not be extended two years, with the exception of batteries, from such time as the through repair or spare parts work which is carried out within the device is handed over.
  • Page 37 Passion for Precision SOLA-Messwerkzeuge GmbH SOLA-Messwerkzeuge GmbH & Co. KG SOLA Suisse AG Unteres Tobel 25 Heuriedweg 69 Grenzstrasse 24 6840 Götzis, Austria 88131 Lindau, Germany 9430 St. Margrethen, Switzerland T +43 5523 53380-0 T +49 8382 28585 T +41 71 740 1616 sola@sola.at, www.sola.at...
