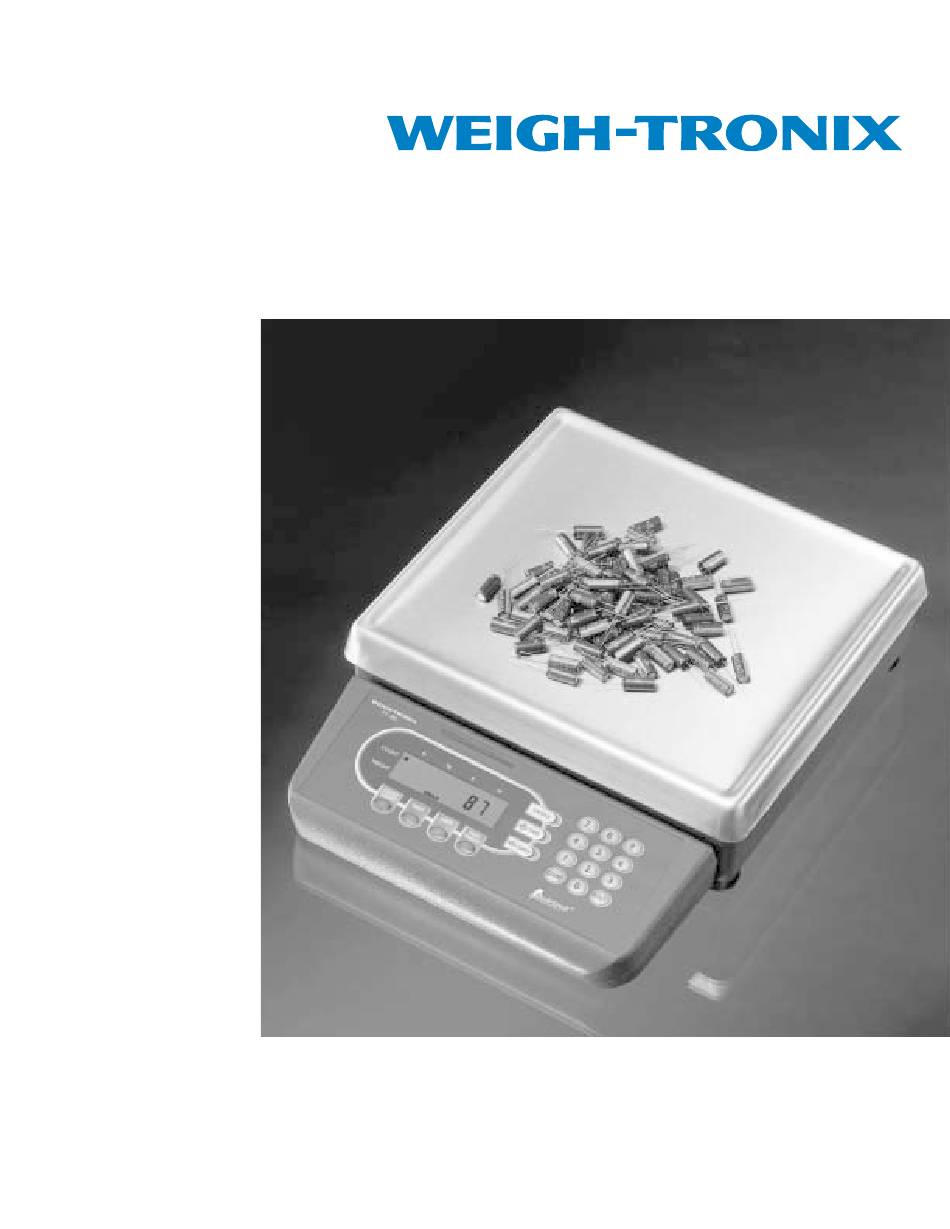

- Page 1 PC-805 Parts Counter User’s Manual...
- Page 2 03/15/01 805_U.P65 PN 29717-0011D Printed in USA...
-
Page 3: Table Of Contents
Table of Contents Table of Contents ..................3 Specifications ................... 4 Introduction ....................5 Keyboard and Display ................5 Key Functions ................6 Scale Setup and Operation ..............6 Scale Setup ................... 6 Unpacking the scale ............6 Battery power option ............6 Installing the scale .............. -
Page 4: Specifications
Specifications Capacity Normal Resolution Expanded Resolution Capacities and Resolutions: Overcapacity Limits: Internal Resolution: Filters: Display: Power: Output: Operating environment:... -
Page 5: Introduction
Introduction Keyboard and Display Figure 1 PC-805 Keyboard and Display... -
Page 6: Key Functions
ZERO Key Functions TARE SAMPLE COUNT/WEIGHT PRINT UNITS PIECE WEIGHT CLEAR RECALL/. RECALL/. Scale Setup and Operation Scale Setup Unpacking the scale Battery power option Installing the scale... -
Page 7: Operation As A Scale
Operation as a Scale UNITS ZERO Important! TARE PRINT Operation as a Counting Scale Bulk Sampling SAMPLE SAMPLE ZEro no ZEro... -
Page 8: Dribble Sampling
Important! Add 10 COUNT/WEIGHT StAndbY Add XXX SAMPLE StAndbY COUNT/WEIGHT Dribble Sampling SAMPLE SAMPLE ZEro Important! no ZEro Add 10... -
Page 9: Negative Sampling/Counting
SAMPLE SAMPLE StAndbY Add XXX SAMPLE StAndbY Negative Sampling/Counting TARE SAMPLE SAMPLE TARE Entering a Known Piece Weight PIECE WEIGHT... -
Page 10: Recalling A Piece Weight
RECALL Recalling a Piece Weight PIECE WEIGHT COUNT/WEIGHT Entering a Known Tare TARE Weight Recalling a Tare Weight TARE COUNT/WEIGHT Using the CLEAR Key CLEAR CLEAR TARE CLEAR PIECE WEIGHT CLEAR... -
Page 11: Serial Communications
Serial Communications Cable Pinouts 9-pin Female Scale Name Direction Preset Print Formats Imp Printer Format 0 WWWW.WW<CR><LF> Imp Printer Format 1 WWWW.WW<SP>UU<CR><LF> Imp Printer Format 2 'G'<SP>GGGG.GG<SP>UU<CR><LF> 'T'<SP>TTTT.TT<SP>UU<CR><LF> 'N'<SP>WWWW.WW<SP>UU<CR><LF> Imp Printer Format 3 I<SP>WWWW.WW<CR><LF>... - Page 12 N<SP>CCCC<SP>PCS<CR><LF> Imp Printer Format 4 I<SP>WWWW.WW<SP>UU<CR><LF> Imp Printer Format 5 = WWWW.WW<SP>UU<CR><LF> ( Count = CCCCCCC<CR><LF> Piece Wt = .PPPPPP<SP>UU<CR><LF> Imp Printer Format 6 sxxxxx.xx uu<CR> s Imp Printer Format 7 COUNT: CCCC<SP>PCS<CR><LF> 1410 Printer Fixed Format Label Output...
-
Page 13: Computer Protocol
Computer Protocol COMMAND RESPONSE DESCRIPTION CA<CR> none Clear Sample CC<CR> cc_xxxxx<CR> Request piece count CP<CR> cp_xxxxxx_uu<CR> Request piece weight value CM<CR> none Switch to count mode DIxxxxxxxx<CR> none Display Message xxxx (message is 8 characters max) IC<CR> none Reset Scale (warm start) PWx.xxxxx_uu<CR>... -
Page 14: Error Messages
Scale Status Byte H: Scale Status Byte M: Scale Status Byte L: Error Messages NO CAL ------- ZERO... - Page 16 Weigh-Tronix 1000 Armstrong Dr. Fairmont, MN 56031 USA Telephone: 507-238-4461 Facsimile: 507-238-4195 e-mail: industrial@weigh-tronix.com www.wtxweb.com Weigh-Tronix Canada, ULC 217 Brunswick Blvd. Pointe Claire, QC H9R 4R7 Canada Telephone: 514-695-0380 Facsimile: 514-695-6820 Weighing Products & Systems Weigh Bar ® is a registered trademark of Weigh-Tronix Inc.
