Summary of Contents for Avery Weigh-Tronix PC-805

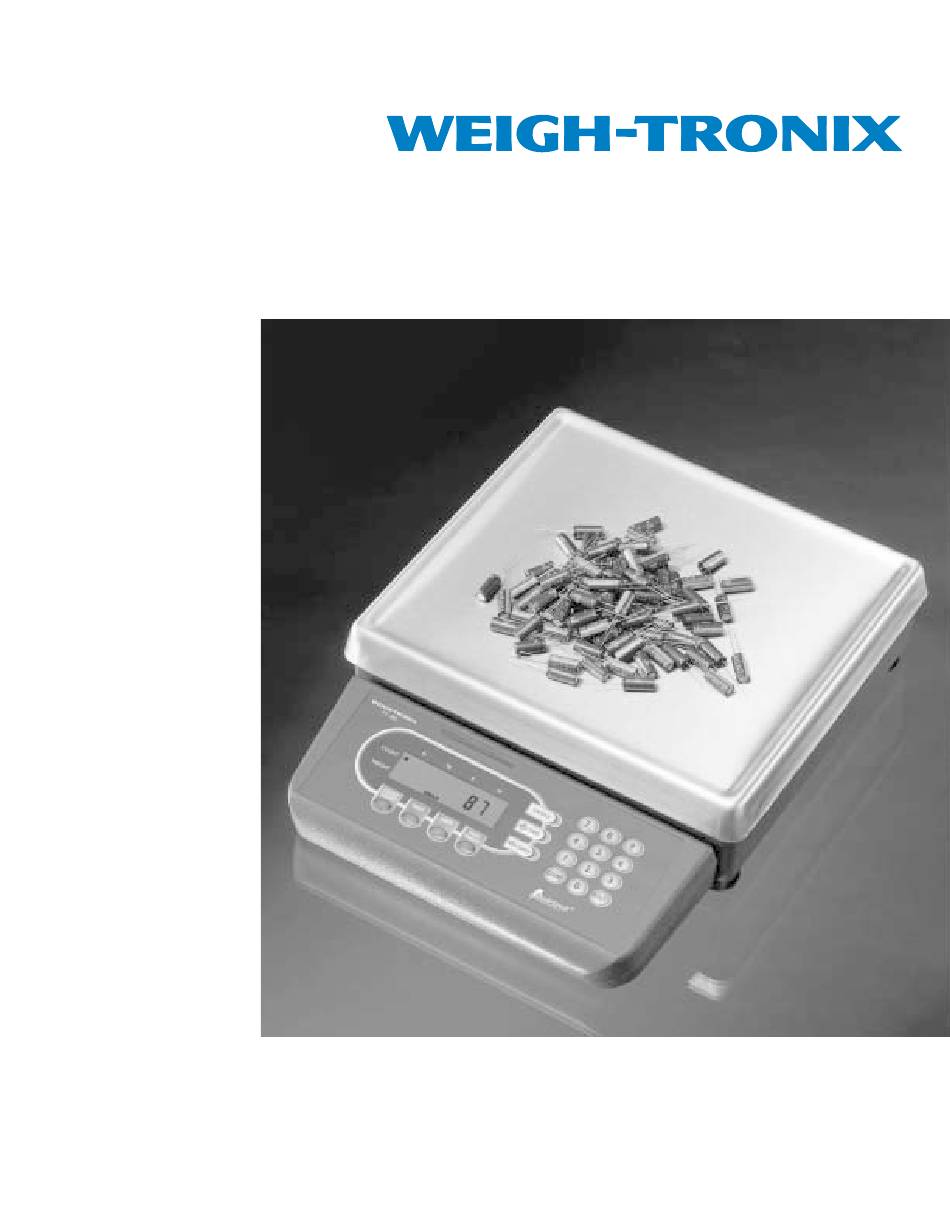

  • Page 1 PC-805 Parts Counter Service Manual...

  • Page 3: Table Of Contents

    ConFig. (Configuration) Menu............... 11 Error Messages ................... 14 Serial Communications ................14 Cable Pinouts ..................14 Preset Print Formats ................. 15 1410 Printer Fixed Format Label Output ..........16 Computer Protocol ................17 Disassembly Instructions ................19 PC-805 Technical Illustrations ............... 21...

  • Page 4: Specifications

    Specifications...

  • Page 5: What's In This Manual

    What's In This Manual? Accessing Menus and Modes PRINT Table 1 Switch settings Figure 1 Switch SW1 location...

  • Page 6: Scale Menu

    Scale Menu SCALE To move , press the SAMPLE key. To move , press the TARE key. To move , and to choose an option, press the ZERO key. Press COUNT/WEIGHT key to go up one menu level. * = factory default value Press any key SAMPLE to abort the...

  • Page 7: Calib (Calibration)

    CALib CALib (Calibration) CALib The scale defaults to 10,000d resolution after calibration. PoUnd 1000 g Table 2 Alternate Span Weights Scale Capacity Alt 1 Alt 2 LoAd 0 bUSY LoAd Abort CALib LoAd X bUSY bUSY donE CALib ConFig (Configuration) 0 rAngE 0 Start Azt rng...

  • Page 8: Restart (Restart)

    ovr CAP StAblE rESo FiLtEr UPdAtE dEFAULt LFiLt ® done ConFig rEStArt (Restart) SEAL (Seal) SEALEd done (Done) SCALE...

  • Page 9: Diagnostic Menu

    Diagnostic Menu To move , press the SAMPLE key. To move , press the TARE key. To move , and to choose an option, press the ZERO key. Press COUNT/WEIGHT key to go up one menu level. shows voltage compression tension shows raw performs...
  • Page 10 Count SERIAL dISPLAY bUttonS bUttonS HI RESA HI RESn...

  • Page 11: Config. (Configuration) Menu

    Config. (Configuration) Menu Figure 4 Configuration menu...
  • Page 12 UnitS Spl Lo AccY-Lo Spl-typE PIE-rnd Serial dEVICE bAUd dAtAbit PAritY AdvAnCE...
  • Page 13 ForNat Auto donE Serial IdLE Latch Backlight donE ConFig...

  • Page 14: Error Messages

    Error Messages Serial Communications Cable Pinouts 9-pin Female Scale...

  • Page 15: Preset Print Formats

    Preset Print Formats 'G'<SP>GGGG.GG<SP>UU<CR><LF> 'T'<SP>TTTT.TT<SP>UU<CR><LF> 'N'<SP>WWWW.WW<SP>UU<CR><LF>...

  • Page 16: 1410 Printer Fixed Format Label Output

    1410 Printer Fixed Format Label Output...

  • Page 17: Computer Protocol

    Computer Protocol COMMAND RESPONSE DESCRIPTION CA<CR> none Clear Sample CC<CR> cc_xxxxx<CR> Request piece count CP<CR> cp_xxxxxx_uu<CR> Request piece weight value CM<CR> none Switch to count mode DIxxxxxxxx<CR> none Display Message xxxx (message is 8 characters max) IC<CR> none Reset Scale (warm start) PWx.xxxxx_uu<CR>...

  • Page 19: Disassembly Instructions

    Disassembly Instructions Figure 5 Spacer locations...

  • Page 21: Pc-805 Technical Illustrations

    PC-805 COUNTING SCALE 10 lb / 5 kg cap. , 12” x 14” BASE PARTS AND ASSEMBLY ITEM DESCRIPTION W-T P/N Remote Display Cable Assy 1140-11832 Shroud (10 lb.) 1076-16136 Quartzell Assy 7153-15694-05 Quartzell EPROM (not shown) 51757-0016 Screw, #10-32 x .25"L...
  • Page 22 PC-805 COUNTING SCALE DRAFT SHIELD (optional) (10 lb. / 5 kg. 12” x 14” BASE VERSION ONLY) PARTS AND ASSEMBLY ITEM DESCRIPTION W-T P/N SUPPORT POST 1058-15413 SHIELD DOOR 1069-15404 SHIELD TOP PANEL 1069-15403 SHIELD REAR PANEL 1069-15406 SHIELD SIDE PANEL...
  • Page 23 PC-805 COUNTING SCALE 50 lb / 25 kg , 100 lb / 50 kg cap. , 12” x 14” BASE PARTS AND ASSEMBLY ITEM DESCRIPTION W-T P/N Remote Display Cable Assy 1140-11832 Shroud (dished) 1076-14741 Quartzell Assy (50lb / 25kg cap.) 7153-15694-32 Quartzell Assy (100lb / 50kg cap.)
  • Page 24 PC-805 COUNTING SCALE SYSTEM WIRING BLOCK DIAGRAM...
  • Page 25 PC-805 COUNTING SCALE MAIN PC BOARD / DISPLAY BD / KEYPAD OVERLAY...
  • Page 26 PC-805 COUNTING SCALE BATTERY INSTALLATION (Battery Kit P/N 29676-0010)
  • Page 27 PC-805 COUNTING SCALE SCALES BASES DIMENSIONAL OUTLINE 12” x 14” BASE...
  • Page 28 PC-805 COUNTING SCALE WALL-MOUNT BRACKET AND REMOTE TOWER (OPTIONAL) PARTS AND ASSEMBLY ITEM DESCRIPTION W-T P/N Tower Support Channel 49658-0010 Tower Support Channel 49658-0028 Screw,#6 x 3/8” L 14473-0249 Grommet 15347-0018 Tower Channel (9”) 49659-0019 Tower Channel (18”) 49659-0027 Screw,#10 x ½” L...
  • Page 29 PC-805 COUNTING SCALE BATTERY CHARGER (OPTIONAL) PARTS LIST ITEM DESCRIPTION W-T P/N Battery Charger PC BD Assy 50093-0011 Base Plate Assy 45911-0045 Grommet 15347-0018 Standoff, M/Fem, #6 x 7/8” L 15437-0472 Screw,#6 x 3/8” L 14473-0249 Lock Washer, #6 14474-0032 Screw,#4 x 1/4”...
  • Page 30 Weigh-Tronix Weigh-Tronix Canada, ULC Weigh Bar ® is a registered trademark of Weigh-Tronix Inc. 03/15/01 805_S.P65 PN 29718-0010e2 Printed in USA...
