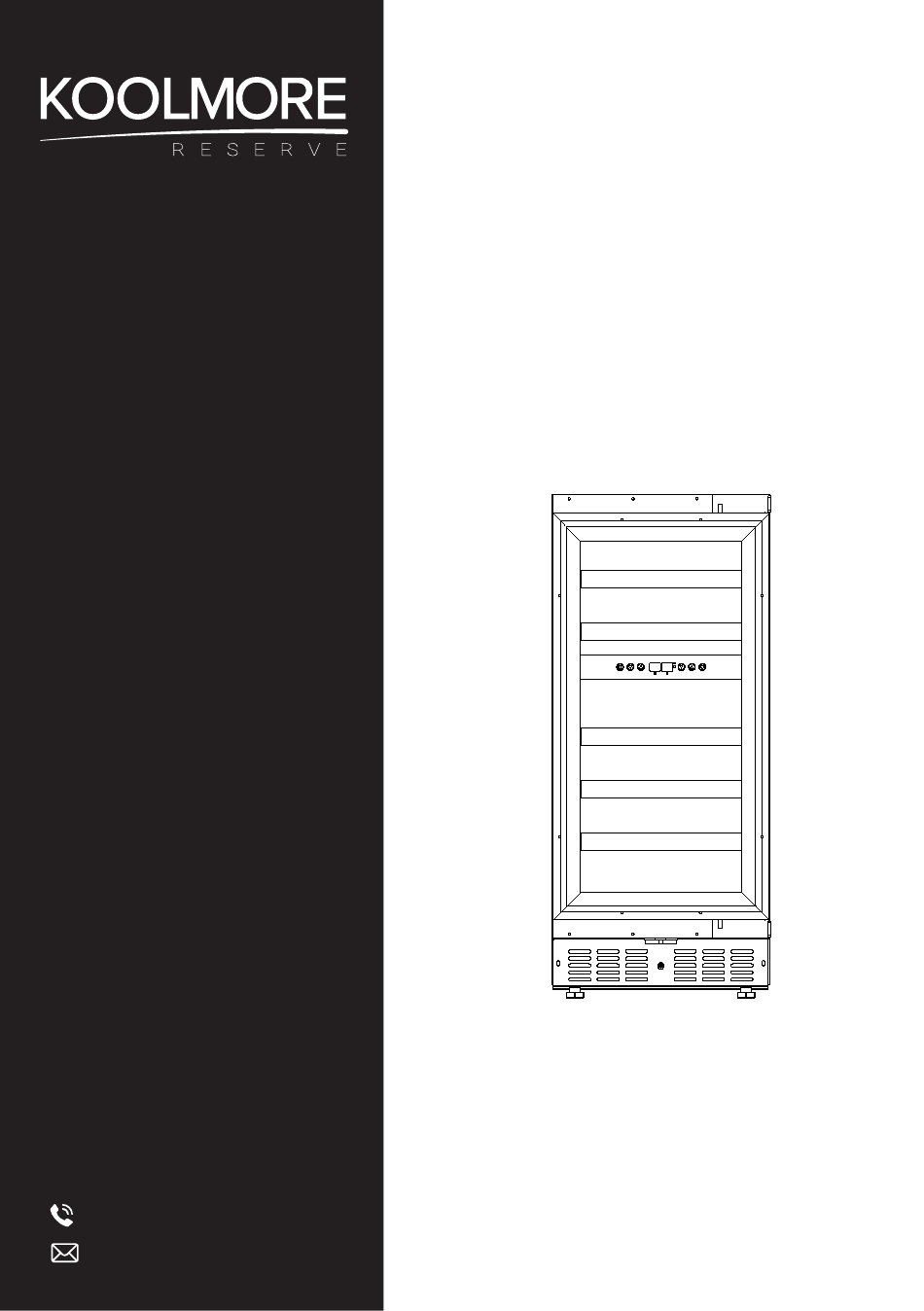

USER MANUAL
KOOLMORE RESERVE
WINE COOLER
PANEL READY
Models:
KM-CW28DZ-BPR, KM-CW28DZ-WPR, KM-CW46DZ-BPR
KM-CW46DZ-BPR, KM-CWB24-BPR, KM-CWB24-WPR
Before using, please read the operating instructions carefully to
ensure proper application and achieve satisfactory results.
Advertisement
Table of Contents
Related Manuals for KoolMore KM-CW28DZ-BPR
Summary of Contents for KoolMore KM-CW28DZ-BPR
- Page 1 USER MANUAL KOOLMORE RESERVE WINE COOLER PANEL READY Models: KM-CW28DZ-BPR, KM-CW28DZ-WPR, KM-CW46DZ-BPR KM-CW46DZ-BPR, KM-CWB24-BPR, KM-CWB24-WPR For any service related issues, please contact us: 718-576-6342 Before using, please read the operating instructions carefully to support@koolmore.com ensure proper application and achieve satisfactory results.
- Page 2 Stay informed with the latest information for your KoolMore Reserve Appliance. If you need any assistance or have questions, our customer support team is here to help.
- Page 3 SAFETY When using an electrical appliance, basic precautions should always be followed, including the following to reduce the risk of fire, electric shock, and injury to persons, including the following: • Read all instructions carefully, even if you are quite familiar with the appliance. •...
- Page 4 least 1 cubic meter for every 8 g of refrigerant. The building up of room space is calculated on the data plate inside the appliance. It is hazardous for anyone other than an authorised service person to carry out servicing or repairs to this appliance. In Queensland and Australia, the authorised person must hold a Gas Work Authorization for hydrocarbon refrigerants, before carrying out servicing or repairs which involve the removal of covers.
-
Page 5: Disposal Instructions
injury if not handled with care. • Use two or more people to move and install the appliance. Failure to do so can result in back or other injury. • Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or explosion. -
Page 6: Product Features
PRODUCT FEATURES • Built-in or Free-standing installation with single, dual or three temperature zone, depending on your model. • Continuously variable electronic temperature control with digital display and SMARTLIGHT touchpad input. • Temperature can be set from 5° to 20°C (41° to 68°F) for either compartment and can be displayed in either Fahrenheit or Celsius degrees. -
Page 7: Before Using Your Appliance
INSTALLATION BEFORE USING YOUR APPLIANCE • Remove all exterior and interior packing. Clean the interior surface with lukewarm water using a soft cloth. The unit may have residual odors at first, they will disappear as the unit cools. • Before connecting the appliance to the power source, let it stand upright for at least 24 hours. This will reduce the possibility of a malfunction in the cooling system caused by handling during transportation to ensure that oil flows back into the compressor. -
Page 8: Risk Of Damage
disperse unhindered. Otherwise the appliance has to work harder, resulting in an increase in electricity consumption. NOTE: When pushing the appliance into the niche, make sure that the mains cable does not get trapped. Width A (in) B (in) C (in) D (in) 5.91 in Wide 5.83... -
Page 9: Electrical Connection
WARNING: To ensure the proper functioning of the appliance, air vents should never be blocked or covered. DESIGN 2 – Air at the back of the unit gets warm. The unit is equipped with an integrated ventilation system to disperse the warm air automatically. Air intake is provided underneath the appliance door and the air escapes at the top of the door. -
Page 10: Installing The Handle
Note: In locations where there is frequent lightning, it is advisable to use surge protectors. Do not connect the appliance to the mains electricity supply by an extension lead. Extension leads do not guarantee the required safety of the appliance (e.g. danger of overheating). The appliance must not be connected to an inverter and must not be used with a plug adapter as these can cause damage to the appliance’s electronic unit. - Page 11 DESIGN 1 – For built-under models Remove the bottom hinge (1) by unscrewing the four lock screws (2). Be careful to hold the glass door firmly after removing the screws. (Fig. 1) Gently pull down to remove the glass door from the right top hinge and place it on a padded surface to avoid the risk of damage.
- Page 12 Screw the alternative left top hinge (11), included in the fittings, on the left hand side of cabinet. (Fig. 4) Unscrew and transfer hinge pin (6) and/or door supporter (5) to the opposite bottom hinge. (Fig. 2) Unscrew and transfer the door adapter (9) and/or lock catch (8) to the top designated positions of the door.
-
Page 13: Anti-Tip Bracket Installation
Rotate the glass door 180° and refit the glass door to the opposite side. Then screw and tighten it after the door is leveled. DESIGN 6 – For freestanding models Remove the bottom hinge (3) by unscrewing the four lock screws (4). Be careful to hold the glass door firmly after removing the screws. -
Page 14: Operation
OPERATION OPERATING YOUR APPLIANCE This appliance is designed for operation at certain ambient temperatures. The climatic class is specified on the rating plate. Climatic class Ambient room The appliance may not work properly if it is left for a temperatures long period at a temperature outside the specified +50°F to +89.6°F range. - Page 15 Display Displays the digital temperature and service indicators. Light Indicator / Multi-key Function The interior light indicator is the dot at the bottom right of the display. The interior light indicator will light up in showcase mode. The interior light indicator will flash when the multi-key function is selected. To perform the multi-key function, lightly touch and hold the first key, then touch the rest key for at least 5 seconds and then release all keys.
-
Page 16: Settings Mode
Is for the UPPER temperature zone and is for the LOWER temperature zone. Is for the LEFT temperature zone and is for the RIGHT temperature zone. Light Indicator / Multi-key Function The interior light indicator is the dot at the bottom right of the display. The interior light indicator will light up in showcase mode. -
Page 17: Temperature Display
Display Brightness • Lightly touch and hold the UP key for 5 seconds to enter Settings mode and then touch the POWER key once. • Use the UP and DOWN keys to select the brightness of the display when the door is close. When the door is open, the display brightness returns to its normal level. -
Page 18: Temperature Alarm
In the event of a power interruption (e.g., power surge or breaker switch), the unit retains the previous temperature settings. When power is restored, the cabinet temperature will return to the same setting temperature as before the power interruption, ensuring your wine is stored at the desired temperature. TEMPERATURE ALARM: •... - Page 19 seconds if you don't pull the door open manually. • Avoid blocking or holding the door during opening or closing to prevent damage to the auto door open system. INTERIOR LIGHT / TriColor LIGHTING: • The interior lighting in the unit helps you view your wine labels and enhances the display of your wine collection.
-
Page 20: Operating Noises
In this mode, the compressor and all fan motors are switched OFF, while the lights remain ON. For models with LED Displays, you can activate Eco Demo mode by touching and holding the "UP," "DOWN," and "LIGHT" keys simultaneously for at least 5 seconds. Eco Demo mode can be canceled by repeating the same process. - Page 21 WINE SERVING TEMPERATURE CHART: • The text mentions that all wines mature at a constant temperature set between 52°F to 57°F. • It provides a chart indicating the recommended serving temperatures for various types of wine. However, the specific temperatures are not provided in this text. If you are interested in the temperature recommendations for different types of wine, you may need to refer to additional sources or wine guides.
-
Page 22: Maintenance
MAINTENANCE A warning is provided to emphasize the importance of unplugging the appliance during service and cleaning to prevent electrical shock or other personal injury. REMOVING SHELVES: Instructions are given on how to remove shelves from the rail compartment: Move the shelf to the position where the notches of the wooden shelf are exactly under the plastic rack stops on both sides. -
Page 23: Cleaning Your Appliance
ACTIVE CHARCOAL AIR FILTER: • The active charcoal air filter (if your model is equipped with it) is located in the back of the compartment. • The active charcoal filter ensures optimum air quality by filtering incoming air and absorbing unwanted odors. -
Page 24: Moving Your Appliance
• Turn off the appliance and unplug it. • Clean and dry the interior thoroughly. • To prevent odor and mold growth, leave the door open slightly, and if necessary, block it open. MOVING YOUR APPLIANCE: When moving your appliance, follow these steps: •... -
Page 25: Troubleshooting
TROUBLESHOOTING PROBLEMS WITH YOUR APPLIANCE You can solve many common problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling customer service. PROBLEM POSSIBLE CAUSE REMEDY Nothing works. - Page 26 The door will not close properly. The appliance is not properly Level the appliance with the level. The door was reversed adjustable feet. Level the and not properly re-installed. appliance with the The gasket is dirty. The shelves adjustable feet. Check the are out of position.
-
Page 27: Limited Warranty
At its sole discretion, Koolmore Supply Inc. may decide to replace the product. In such an event, your replace- ment appliance will carry the warranty for the remaining term of the original unit's warranty period.
