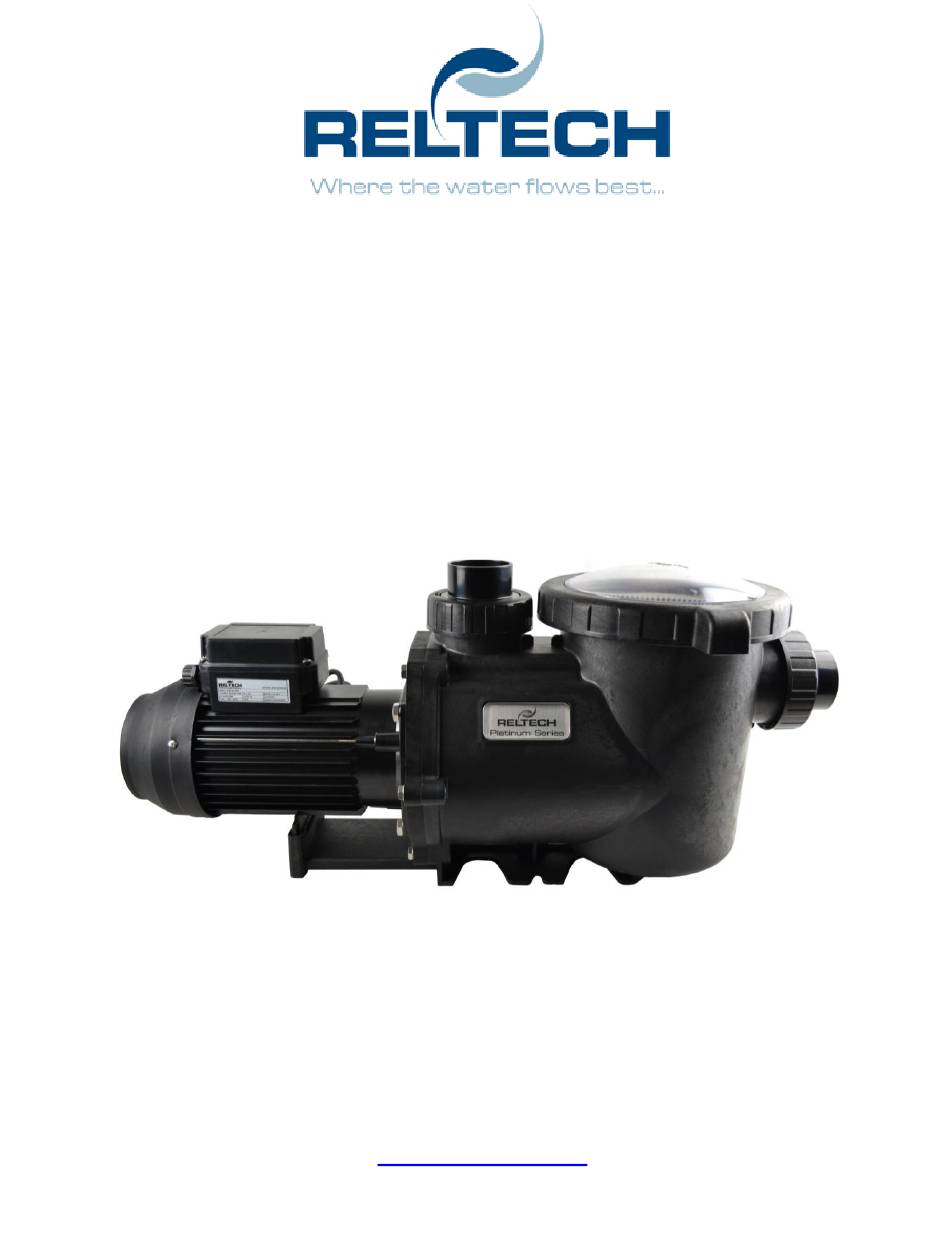

- Page 1 PLATINUM SERIES PLT100, PLT150, PLT200, PLT300 EXTRA LARGE POOL & SPA PUMP INSTALLATION AND OPERATION MANUAL Reltech Australia Pty Ltd 43-45 Kylta Rd West Heidelberg Vic 3081 Ph: (03) 9459 3838 Fax: (03) 9459 4038 www.reltech.com.au Page 1 of 9...
- Page 2 ➢ The fittings on this product are constructed of ABS. Some PVC jointing compounds are incompatible with ABS. Check compound suitability before use. ➢ RELTECH recommends that all installations are fitted with earth leakage or residual current protection devices. ➢...
-
Page 3: Features And Benefits
RELTECH’S advanced pump technology provides reliable and efficient performance that lasts. RELTECH pool and spa pump are designed with high flow and the head pressures are ideally suited for the modern pool or spa with extensive equipment. -
Page 4: Weather Protection
Enclosures should be ventilated to allow a free flow of air for the fan cooled motor. Power Connection RELTECH Platinum Series pool and spa pumps are suitable for connection to a nominal 240-volt 50Hz power supply. The motor is equipped with a flex and 3-pin plug. If a power outlet is not available within 2 meters of the pump, a 3-pin power point in a safe, dry place may need to be provided by an electrician. -
Page 5: Pipe Connection
Pipe Connection A barrel union is provided for connecting to the piping from the pool. The pumps are designed to accept the following PVC Pipes: • Inlet PVC Position 50mm pipe ID or 65mm fitting ID PVC pressure pipe fittings •... -
Page 6: Pump Operation
Motor is burnt out - burning smell is evident. Replacement is required. If you are unable to resolve any installation or operation difficulties with your RELTECH Platinum Series pool and spa pump, contact the supplier from whom the pump was purchased or you’re nearest Authorized RELTECH Pool Equipment Service Centre. - Page 7 ➢ Barrel unions need to be hand tightened. No sealant, glues or silicones are required. ➢ When making any enquiries about your RELTECH Platinum Series pool and spa pump be certain to quote the model number from the nameplate located on motor.
- Page 8 7 days of the recognised fault. Reltech will at its option, repair or replace any defective parts. Component failure must be due solely to a defect in materials or workmanship. This warranty does not apply if failure is due to any abuse, misuse, improper installation or accident or to any of the following: •...
- Page 9 PLEASE NOTE: ➢ This literature is not a complete guide to product usage. Further information is available from your RELTECH dealer, RELTECH Customer Service Centre and from the relevant product Installation and Operating Instructions. ➢ This data sheet must be read in conjunction with the relevant product Installation and Operating Instructions and all applicable statutory requirements.
