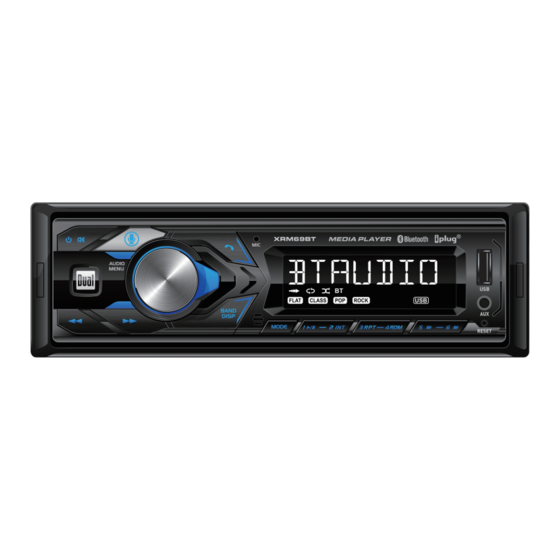

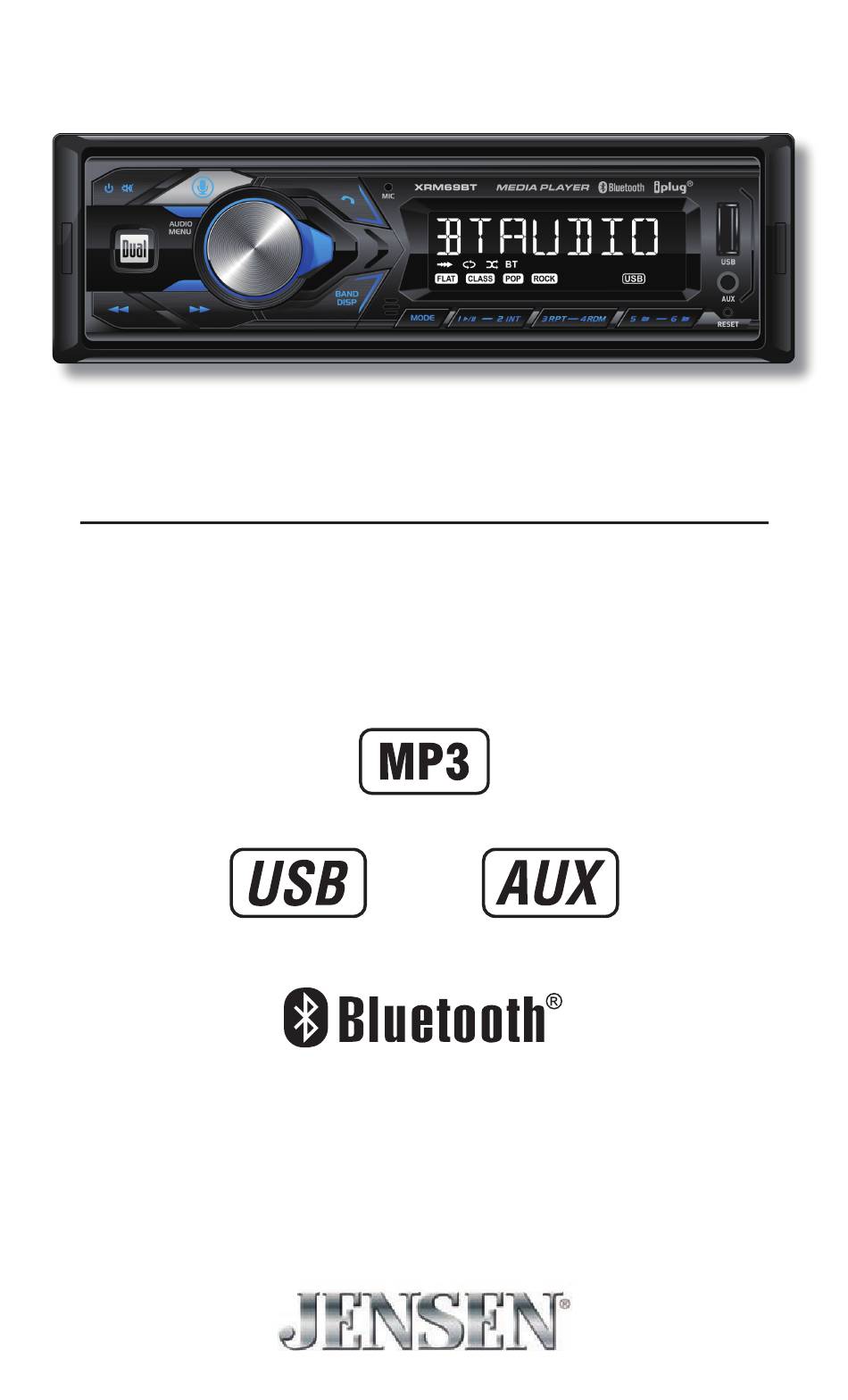

- Page 1 XRM69BT INSTALLATION/OWNER'S MANUAL AM/FM Receiver with Bluetooth and Fixed Face...
- Page 2 XRM69BT INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
-
Page 3: Wiring Diagram
XRM69BT INSTALLATION Wiring Diagram 10 AMP AGC Fuse FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The unit uses one 10 amp AGC fuse located beside... -
Page 4: Control Locations
XRM69BT OPERATION Control Locations Power Auxiliary Input Preset 2 / Intro Mute Reset Preset 1 / Play/Pause Voice Control Preset 6 / Folder Up Mode Volume Knob Preset 5 / Folder Down Band/Display Bluetooth Talk Preset 4 / Random Tune Up... -
Page 5: General Operation
XRM69BT OPERATION General Operation Power On/Off Press the button to turn the unit on. Press again to turn the unit off. Changing Modes Press MODE to select between Radio, USB, Bluetooth, AUX. Modes of operation are shown in the display. -
Page 6: Am/Fm Tuner Operation
XRM69BT OPERATION AM/FM Tuner Operation Seek Tuning Press TUNE or TUNE to seek to the previous or next strong station. Manual Tuning Press and hold TUNE or TUNE to enter manual tuning mode, then press TUNE or TUNE momentarily to change radio frequency up or down one step at a time. -
Page 7: Usb Operation
XRM69BT OPERATION USB Operation To play MP3 files, insert a USB device containing MP3 files. Playing MP3 Files Press TUNE to skip to the beginning of the next track. Track Select Press TUNE to skip to the beginning of the previous track. -
Page 8: Bluetooth Operation
Device from your Bluetooth device. Refer to the owner’s manual for your device for more details. The device name is “JENSEN Media Player”. The Bluetooth passcode is "1234”. Note: The head unit can be in any mode of operation when pairing is performed. -
Page 9: Troubleshooting
XRM69BT OPERATION Troubleshooting Problem Cause Action Yellow wire not connected or incorrect Check connections for proper voltage Red wire not connected or voltage (11~16VDC) Unit will not turn on incorrect voltage (no power) Black wire not connected Check connection to ground... -
Page 10: Limited One Year Warranty
XRM69BT OPERATION Limited One Year Warranty This warranty gives you specific legal What to do? rights. You may also have other rights 1. Before you call for service, check the which vary from state to state. troubleshooting guide in your owner’s manual. -
Page 11: Fcc Compliance
XRM69BT OPERATION FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 12: Specifications
XRM69BT OPERATION Specifications Tuning range: FM Tuner 87.5MHz-107.9MHz Usable sensitivity: 8.5dBf 50dB quieting sensitivity: 10dBf Stereo separation @ 1kHz: >30dB Frequency response: 30Hz-13kHz Tuning range: AM Tuner 530kHz-1710kHz Usable sensitivity: <42dBu Frequency response: 30Hz-2.2kHz Speaker output impedance: General 4~8 ohms... - Page 13 XRM69BT OPERATION Notes...
- Page 14 Dual Electronics Corp. Toll Free: 888-921-4088 www.jensenmobile.com ©2024 Dual Electronics Corp. All rights reserved. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. ® Other trademarks and trade names are those of their respective owners. NSA0724-V01...
