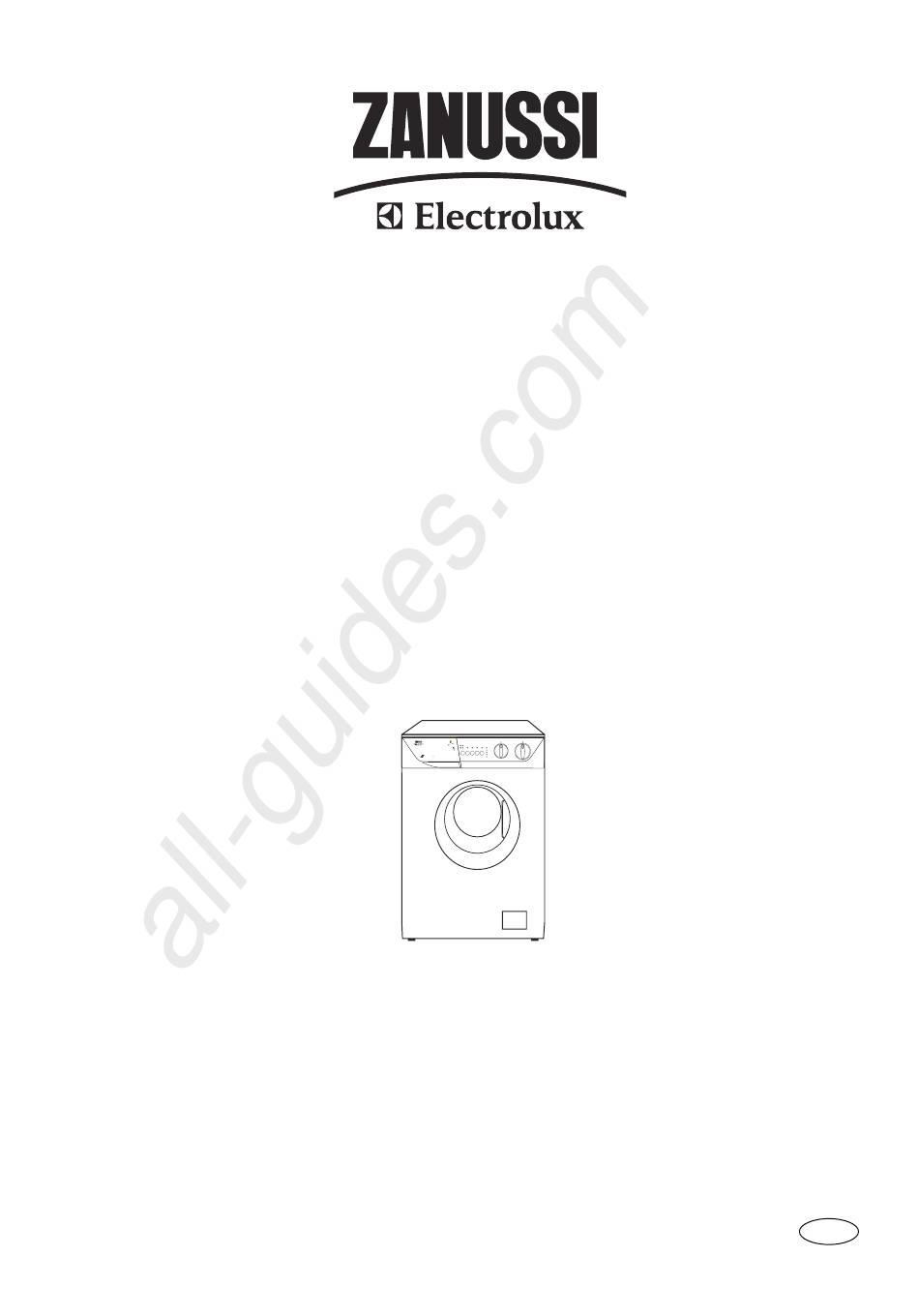

WASHING MACHINE
132989080
All manuals and user guides at all-guides.com
ZWF 1020W
ZWF 1220W
ZWF 1220S
ZWF 1420W
Whites
95°
Handwash
30°
Whites Economy
60°
Wool
40°
Coloured Economy
40°
Wool Cold
Colour care
30°
Miniprogram
30° / 30 ‘
Synthetics
60°
Synthetics
40°
Rinses
Synthetics
30°
Drain
Half
Easy
Start/
Delicates
40°
Off
O
Spin
Options
Load
Iron
Pause
E SSENTIAL
1000
AQUAC YCLE
INSTRUCTION BOOKLET
Spin
Programme
ZWF 1020
W
12 H
8 H
Delay
Start
4 H
2 H
Washing
End
GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Zanussi ZWF 1020W and is the answer not in the manual?

Questions and answers

Related Manuals for Electrolux Zanussi ZWF 1020W

Summary of Contents for Electrolux Zanussi ZWF 1020W

  • Page 1 All manuals and user guides at all-guides.com WASHING MACHINE ZWF 1020W ZWF 1220W ZWF 1220S ZWF 1420W Spin Programme ZWF 1020 Whites 95° Handwash 30° Whites Economy 60° Wool 40° Coloured Economy 40° Wool Cold Colour care 30° Miniprogram 30° / 30 ‘ Synthetics 60°...

  • Page 2: Important Safety Information

    All manuals and user guides at all-guides.com Important Safety Information It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant warnings.

  • Page 3: Table Of Contents

    All manuals and user guides at all-guides.com Contents Maintenance and Cleaning For the User 18-19 Descaling Important Safety Information After each wash Maintenance Wash Your New Washing Machine External cleaning Description of the Appliance Cleaning the dispenser drawer Detergent dispenser drawer Cleaning the drawer recess Child safety feature Cleaning the pump...

  • Page 4: Your New Washing Machine

    All manuals and user guides at all-guides.com Your New Washing Machine Your new washing machine meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. The programme selector dial combines the In the interest function of programme and temperature selection, of the environment making it easier to set the programme.

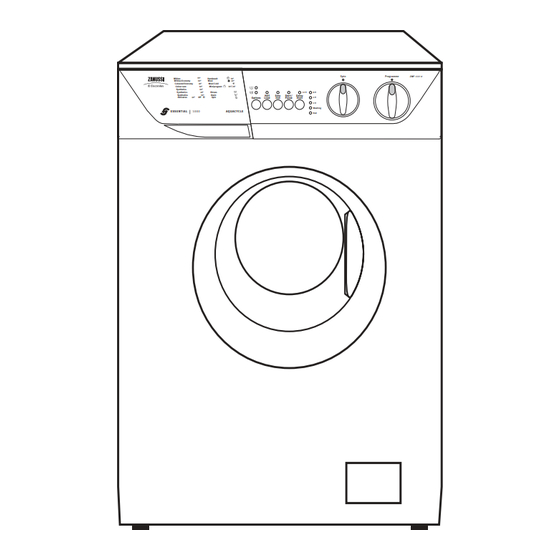

  • Page 5: Description Of The Appliance

    All manuals and user guides at all-guides.com Description of the Appliance 1Detergent dispenser drawer 2 Programme guide Spin Programme ZWF 1020 Whites 95° Handwash 30° Whites Economy 60° Wool 40° 3 Control panel Coloured Economy 40° Wool Cold Colour care Miniprogram 30°...

  • Page 6: The Control Panel

    All manuals and user guides at all-guides.com The Control Panel Spin Programme ZWF 1020 Handwash Whites 95° 30° Whites Economy 60° Wool 40° Coloured Economy 40° Wool Cold Colour care 30° Miniprogram 30° / 30 ‘ Synthetics 60° Synthetics 40° Rinses 12 H Synthetics...
  • Page 7 All manuals and user guides at all-guides.com 8 Spin speed selector dial If you have already pressed the START/PAUSE button, and you wish to cancel the delay time, proceed as This dial allows you to reduce the final and the follows: intermediate spin speeds or to select the NO SPIN •...

  • Page 8: Programme Information

    All manuals and user guides at all-guides.com The selector dial can be turned either clockwise or Spin anticlockwise. Position 60E and E40 corresponds to the ENERGY Separate spin for hand washed garments and after SAVING programme for cotton, position to cold programmes with Rinse Hold option .

  • Page 9: Operating Sequence

    All manuals and user guides at all-guides.com Operating Sequence 3. Select the required programme Before the first wash, we recommend that you pour 2 litres of water into the main wash compartment Turn the programme selector dial to the 95 programme. the detergent drawer in order to activate the ECO valve.

  • Page 10: Select The Required Option

    All manuals and user guides at all-guides.com 5. Select the required option(s) 8. Altering a programme Select or Easy Iron if required, the corresponding You can alter the programme before it starts. light illuminates. When the programme has started, you can only reset it by turning the programme selector dial to O and then you can select the new programme.

  • Page 11: Washing 2 Kg Of Mixed Fabrics At 40°C

    All manuals and user guides at all-guides.com 4. Select the required WASHING 2 KG OF MIXED FABRICS AT 40°C programme Suppose you have 2 kg of lightly soiled mixed fabrics to wash. They are rather delicate fabrics and should not be Turn the programme selector dial to the 40 programme.

  • Page 12: At The End Of The Programme

    All manuals and user guides at all-guides.com The WASHING pilot light illuminates. The machine starts operating. Start/ Pause 8. At the end of the programme The machine stops automatically. If the Rinse Hold option has been selected, the phase light END is on and the door is blocked to indicate that the water must be emptied out before opening the door.

  • Page 13: Washing Hints

    All manuals and user guides at all-guides.com Washing Hints Do NOT overload the machine. Weigh the laundry the For wool, use gentle detergent only in small first few times you use the appliance. quantities. Bleach is very corrosive; it should be used with care The average weights of the most common items are and kept out of reach of children.

  • Page 14: Which Detergent

    All manuals and user guides at all-guides.com And in which form? Which detergent?..Not only are there different types of detergent, but they To ensure you obtain the best wash results from your are also available in different forms. Whether you chose appliance, it is important to use the right detergent in a powder or liquid in traditional or compact form is your everyday wash, and only detergents recommended...

  • Page 15: Wash Care Symbols

    All manuals and user guides at all-guides.com Wash Care Symbols Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct programme on your washing machine.

  • Page 16: Washing Programmes

    All manuals and user guides at all-guides.com Washing Programmes Programmes for cotton and linen and synthetics Progr. Degree of soil Wash programme/ Programme Possible Max. Description time and type of laundry Washing symbol dial position options load mins. Wash at 95°C HALF LOAD For heavy soiled cotton 5 kg...
  • Page 17 All manuals and user guides at all-guides.com Washing Programmes Programmes for delicates , handwash wool and Miniprogram Progr. Wash programme/ Degree of soil Programme Possible Max. Description time dial position Washing symbol and type of laundry options load mins. Wash at 40 °C Delicate fabrics, for 3 rinses SPIN...

  • Page 18: Maintenance And Cleaning

    All manuals and user guides at all-guides.com Maintenance and Cleaning Before any maintenance or cleaning is carried out you must DISCONNECT the appliance from the electricity supply. Descaling The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the C0072 C0073 machine.

  • Page 19: Cleaning The Water Inlet Filter

    All manuals and user guides at all-guides.com cover and remove it. Always keep a rag nearby to dry Clean the filter using a hard bristle brush. up spillage of water when removing the cover. Tighten up the inlet hose. P1115 P1090 Remove any objects from the pump impeller by •...

  • Page 20: Something Not Working

    All manuals and user guides at all-guides.com Something Not Working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Force Centre, please carry out the checks listed below. During machine operation it is possible that the END light flashes to indicate that the machine is not working.

  • Page 21: Service And Spare Parts

    For Customer Service in Ireland please contact us at the guarantee documentation is required for in- address below: guarantee service calls. Zanussi Electrolux Electrolux Group (Irl) Ltd Long Mile Road Dublin 12 Republic of Ireland Tel: +353 (0)1 4090751 Mod...

  • Page 22: Customer Care Department

    Standard guarantee conditions Appliances found to be in use within a commercial environment, plus those which are subject to rental We, Zanussi Electrolux, undertake that if, within 12 agreements. months of the date of the purchase, this ZANUSSI Products of Zanussi Electrolux manufacture which ELECTROLUX appliance or any part thereof is proved are NOT marketed by Zanussi Electrolux.

  • Page 23: Installation Instructions

    All manuals and user guides at all-guides.com Installation Instructions It is dangerous to alter the specifications or attempt to modify this product in any way. Care must be taken to ensure that the appliance does not stand on the electrical supply cable. Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

  • Page 24: Unpacking

    All manuals and user guides at all-guides.com Unpacking Positioning Install the machine on a flat hard floor. All transit bolts and packing must be removed Make sure that air circulation around the machine is not before using the appliance. impeded by carpets, rugs etc. Check that the machine does not touch the wall or other kitchen units.

  • Page 25: Water Drainage

    All manuals and user guides at all-guides.com If you cannot make the cold water connection direct The upright standpipe should have a minimum length of from the rising mains, you may be able to operate the 30cm (12'') from the bottom of the elbow to the top of appliance from your cold water storage system.

  • Page 26: Levelling

    All manuals and user guides at all-guides.com Levelling In the interest of the environment Level the washing machine by raising or lowering the feet. The feet may be tight to adjust as they incorporate Washing machines and dishwashers should be a self locking nut, but the machine MUST be level and connected to the FOUL drainage system, the water will stable.

  • Page 27: Electrical Connection

    All manuals and user guides at all-guides.com Electrical connection The wire coloured brown must be connected to the terminal marked «L» or coloured red. Any electrical work required to install this appliance Upon completion there must be no cut, or stray strands should be carried out by a qualified electrician or of wire present and the cord clamp must be secure over competent person.
  • Page 28 From the Electrolux Group. The world’s No. 1 choice The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx.
