SuperEye MD6027 Owner's Manual

Hide thumbs

Advertisement

Table of Contents

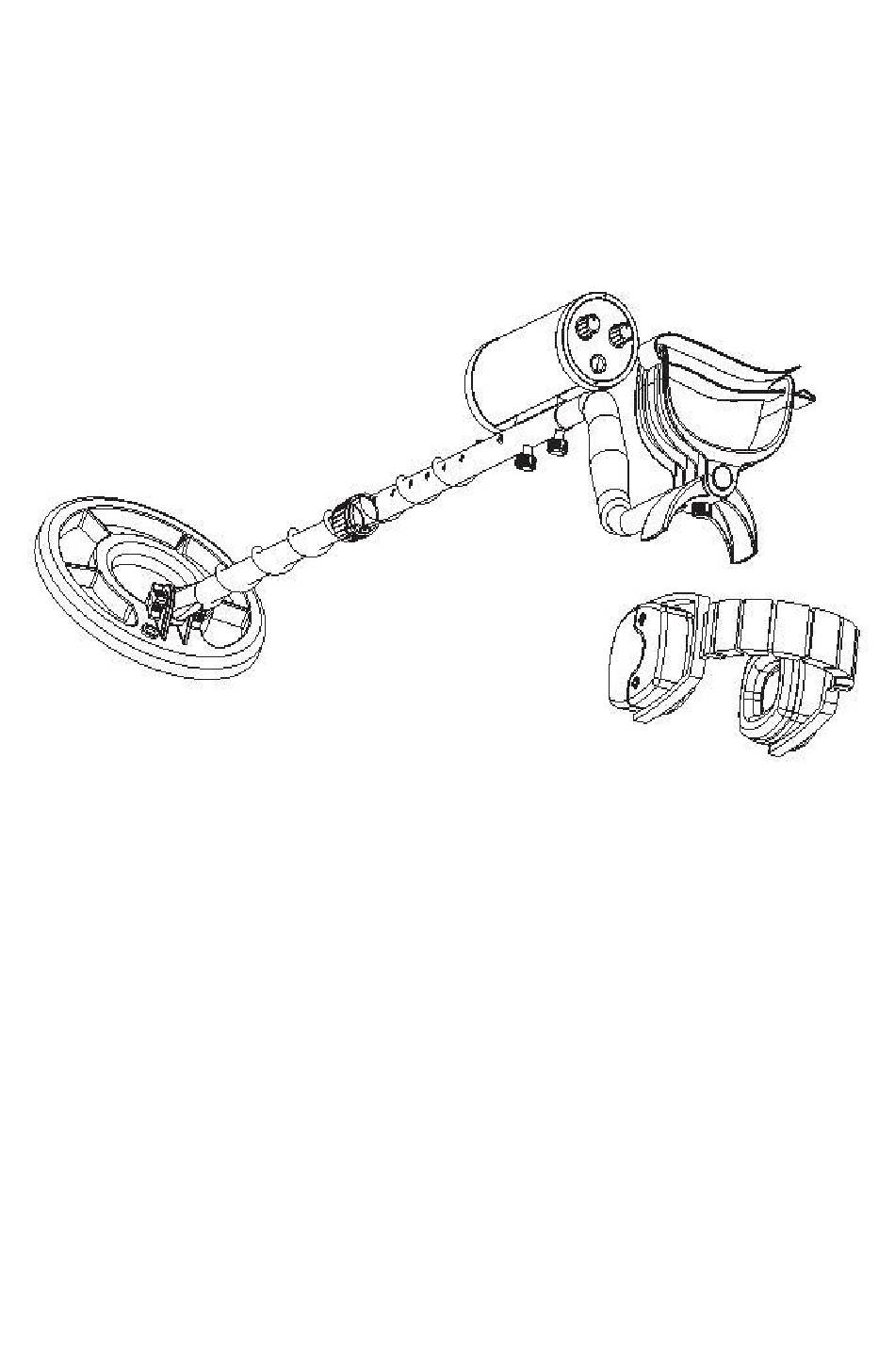

MD027 Metal Detector
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MD6027 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SuperEye MD6027

Summary of Contents for SuperEye MD6027

  • Page 1 MD027 Metal Detector Owner’s Manual...

  • Page 2: Specification

    The detector is a metal detector with both motion and non-motion modes. In the motion mode, it has higher sensitivity, and it has different colors of LED to indicate metal types, helping the operator to find lost coins, gold/silver jewels, and other metal objects.
  • Page 3 Assembly 1. Take out the aluminium stem and search coil from the packing box(see Fig.1). Fig.1 2. Unscrew the lock knob on the search coil,and take off the bolt.Attach the lower stem to the search coil, and lock it(see Fig.2). Note: the rubber gasket should be placed properly.
  • Page 4 3. Take out the upper stem, the middle stem and the control box from the packing box.Press the silver button on the upper stem,and insert it into the middle stem. Let the silver button align with the two holes of the middle stem. (see Fig.3) Fig.3 4.
  • Page 5 6. Relax the Lock Nut on the middle stem. According to need, the operator can adjust the length of the aluminum rod, by aligning the silver button on the lower stem into a group of holes on the middle stem. Wrap the cable around the aluminium stem, tighten moderately, so that the cable does not shake (see Fig.6).
  • Page 6 Note: If not used for a long time, please remove the battery. In case the leakage of the battery will destroy the detector. Depending on the battery capacity, a 9V alkaline battery can be used for more than 20 hours. Panel and controller Panel(see Figure.9) Fig.9...

  • Page 7: Quick Start

    LED and sound indication table Sound Color LED State Green light flashes at Sound short DU tone at MOTION works normally. interval interval Red light flashes Long low tone In the MOTION mode, it quickly finds ferrous metal. Green light flashes Long medium tone In the MOTION mode, it quickly...
  • Page 8 1. Turn On Rotate the “SENS” knob clockwise to turn on the detector, rotate the “MODE-DISC” clockwise to the position of DISC. The green light flashes twice , the speaker sound “dudu” tone. Then the green light flashing and the “Du” tone sound occasionally, the detector is ready to detect now.
  • Page 9 balance, the detector gives out blue light and sound DU tone at interval, the detector enters the NON-MOTION mode. The operator can move the search coil slowly to detect. Note that in the NON-MOTION mode, the detector does not have the ability to identify metal categories.
  • Page 10 1. Move the search coil When moving, you should move the search coil in a steady speed, not unsteadily. Fig.12 Let the search coil be parallel with about 1/2 inch from the surface, not to swing it like a pendulum to move it up and down from the ground(See Fig.12,13). Fig.13 NON-MOTION mode In water or on the uneven ground, it is difficult to move the search coil quickly.

  • Page 11: Maintenance

    CAUTION 1. In heavy traffic area, please do not wear earphone, in case an accident. 2. Keep away from the region where may bury the electrical line, cable line or pipeline, in particular, the pipes that are full of flammable gases and liquids. Do not detect in the military area where may bury bombs or gas explosives.

  • Page 12: Troubleshooting Guide

    TROUBLESHOOTING GUIDE SYMPTOM SOLUTION No power, no boot sound. 1.Be sure that the batteries are installed correctly. 2.Replace the batteries. Sound a successive “DU” “DU” 1.Make sure that there is no other metal tone detector operating around. Sound an irregular tone. 1.Don’t use it indoors, because there is many metals there.
