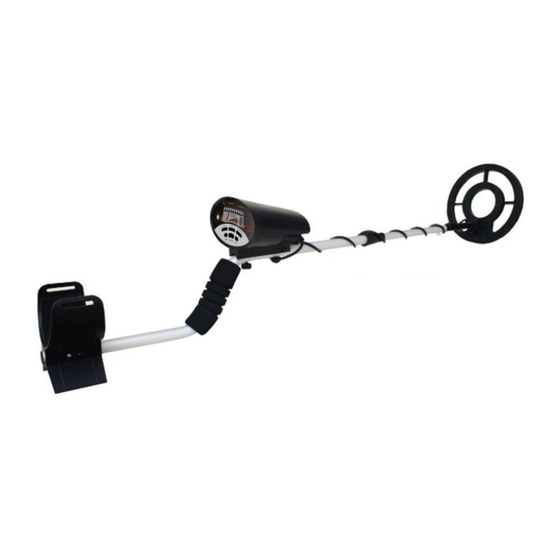

MD 6035 METAL DETECTOR OWNER'S MANUAL
MD6035 metal detector is a fully functional, detection capability, professional equipment for
treasure hunter lovers. Through electronic technology, MD6035 gets the most difficult step
automatic, the detection results can display on the LCD. It will simplify the operation, and will
increase the fun of treasure-hunting.
Read this manual carefully before using. Most importantly, review the Quick-Star Demo and
Basic Operation.
TABLE OF CONTENTS
Terminology
Specification
Assembly
Batteries
Panel and LCD
Controller
Quick-star
Basic operation
Caution
Trouble shooting
TERMINOLOGY
The following terms are used throughout the manual, and are the common terminology among
metal detector.
Motion Mode
This is one of the operation modes in the metal detector technology. It means you have to
move the search coil to find your target. In general, motion mode can reduce the effect of the soil
mineralization, and will have better discrimination ability.
Non-motion Mode
This is the other operation mode in the metal detector technology. When searching, you
needn't move the search coil continuously, as long as the search coil approaches the metal to a
certain distance, you would achieve the detection. In the non-motion mode, the detector can't
discriminate the metal types.
Elimination
To eliminate a particular metal is the set of the operator. During searching, when the specified
metal passes through the search coil, the detector will not emit a tone, nor light up an indicator.
Discrimination
When the detector emits different tones or gives different indications to different types of
metals, and when the detector "eliminates" certain metals, we refer to this as the detector
"discriminating" among different types of metals. Discrimination is an important feature of
professional metal detectors.
Iron
Iron is a common metal; it's usually not the detection target. Example of undesirable iron
