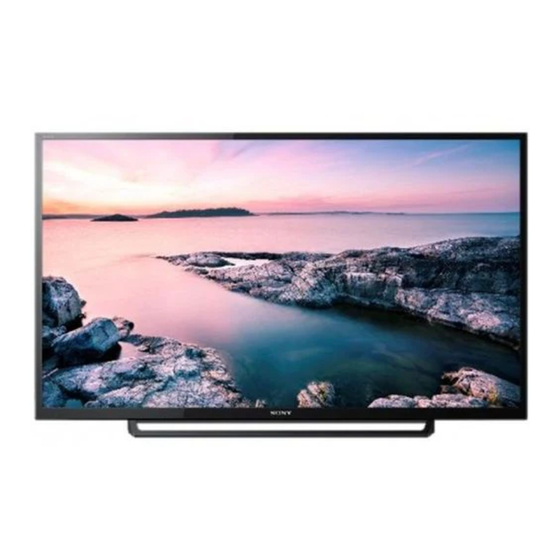

Sony BRAVIA KDL-32R324F Operating Instructions Manual

Sony BRAVIA KDL-32R324F Operating Instructions Manual

Advertisement

Quick Links

Television
Operating Instructions
KDL-32R324F
Parts and Controls
Watching TV
Navigating through Home Menu
Viewing Pictures from Connected
Equipment
Additional Information
4-734-615-11(1)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BRAVIA KDL-32R324F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sony BRAVIA KDL-32R324F

  • Page 1 4-734-615-11(1) Television Parts and Controls Operating Instructions Watching TV Navigating through Home Menu Viewing Pictures from Connected Equipment Additional Information KDL-32R324F...
  • Page 2: Table Of Contents

    Table of Contents Safety Information ..... 3 Viewing Pictures from Precautions ......5 Connected Equipment Connection Diagram .
  • Page 3: Safety Information

    Introduction Installation/Set-up Thank you for choosing this Sony product. Install and use the TV set in accordance with the instructions Before operating the TV, please read this manual thoroughly and below in order to avoid any risk of fire, electric shock or damage retain it for future reference.
  • Page 4 8 mm - 12 mm with the plug that fits into the AC power outlet (mains socket).  Use only Sony supplied AC power cords (mains lead), not those of other brands.  Insert the plug fully into the AC power outlet (mains socket).
  • Page 5: Precautions

    Ask your dealer or Sony service centre to have it checked by qualified service personnel. Environments: When: •...
  • Page 6: Optional Equipment

    Optional Equipment Keep optional components or any equipment emitting electromagnetic radiation away from the TV set. Otherwise picture distortion and/or noisy sound may occur. Caution about handling the remote control • Observe the correct polarity when inserting batteries. • Do not use different types of batteries together or mix old and new batteries.
  • Page 7: Parts And Controls

      + / – / (Volume / Item select) • Increases/decreases the volume, or Parts and Controls selects the next (+) or previous (–) channel when the CH Up/Down notification is displayed by pressing the CH/INPUT button. • Moves the selected input source up/down when the input select menu is displayed by pressing the CH/INPUT button.
  • Page 8: Remote Control

    Device Control: Use the [Device Control] to operate Remote Control equipment that is compatible with BRAVIA Sync Control. Select options from [Home The remote control shape, location, (Menu)], [Options], [Content List] and [Power availability and function of remote control Off] to operate the equipment. button may vary depending on your Speakers: region/country/TV model.
  • Page 9  ////// • Operate the connected BRAVIA Sync- compatible equipment. • These keys also can be used to operate USB media playback.  / (TV standby) Turns the TV on or switches to standby mode.  (Wide Mode) Adjusts the screen display. Press repeatedly to select the desired wide mode (page 10).
  • Page 10: Watching Tv

    Changing the Viewing Style Watching TV Changing the Wide Mode Press / on the TV or remote control to turn on the TV. Press repeatedly to select the wide mode. Press DIGITAL/ANALOG to switch between digital and analogue modes. [Wide Zoom]* [Normal] Press the number buttons or PROG +/–...
  • Page 11: Navigating Through Home Menu

    Digital EPG Navigating through Home Menu Press GUIDE in digital mode. The HOME button allows you to access a variety of TV settings and features. Press HOME.     Press then to select a programme. Applications   Using the TV as a Photo Frame Mode Press to select an option, then...
  • Page 12: Listening To Fm Radio

    To save power, the TV continually plays back in You can enjoy photo/music/video files stored in Photo Frame Mode for up to 24 hours before a Sony digital still camera/camcorder/ powering off automatically. After automatic smartphone (depending on models)* through a power off, do not use Photo Frame Mode for at USB cable or USB storage device on your TV.
  • Page 13 AAC, Dolby Digital, Dolby The data on the USB device may be damaged. Digital Plus, DTS • Sony will not be held liable for any damage to, or loss of, data on the recording media due to a malfunction USB Music format of any connected devices or the TV.
  • Page 14: Settings

    Cinema Drive Settings Provides improved picture movement when playing BD (Blu-ray Disc), DVD or VCR images taken on film. Select [Auto] to System Settings represent original film-based content as it Note Note • The options you can adjust vary depending on the •...
  • Page 15: Intelligent Volume

    Sound Advanced Settings Dynamic Range: Compensates for Sound Mode differences in the audio level Select according to content you want to between different channels. enjoy. Note • The effect may not function or may vary Reset depending on the programme regardless of Reset [Equaliser], [Clear Voice], [Intelligent the [Dynamic Range] setting.
  • Page 16: Channel Setup

    Channel Set-up Digital Set-up Digital Tuning: Analogue Set-up Digital Auto Tuning Analogue Auto Tuning: Tunes in all the Tunes in the available digital channels. available analogue channels. Usually This option allows you to retune the TV you do not need to do this operation after moving house, or to search for because the channels are already new channels that have been launched...
  • Page 17: Parental Lock

    Audio Set-up: FM Radio Set-up Audio type (Audio description) Presets up to 30 FM radio stations that can Normal be received in your area. Provide normal audio type. Auto Tuning: Allows you to Audio Description automatically tune and store all the Provides audio description (narration) available channels.
  • Page 18 AV and above: To lock “Adult/ Digital Programme Block Violence” and above programmes. Locks a digital channel from being R and above: To lock “Restricted” watched. To view a blocked channel, and above programmes. select [Unblocked]. No block: No programmes need a password to view.
  • Page 19 Clock/Timers Start-up Logo Sets the timer and clock. Select [On] to display the logo when the TV is turned on. Select [Off] to disable it. Sleep Timer: Sets the time in minutes that you would like the TV to remain LED Indicator on before shutting off automatically.
  • Page 20 Control. When set to [On], the Provides information of your TV’s model, following functions are available. If software, and others. For details, see the specific Sony equipment that is page 21. compatible with BRAVIA Sync Control is connected, this setting is applied to the connected equipment automatically.
  • Page 21: Customer Support

    Power Saving Reduces power consumption of the TV by adjusting the backlight. When you select [Picture Off], the picture is switched off. The sound remains unchanged. Idle TV Standby Turns the TV off after it has been kept idle for the preset length of time.
  • Page 22: Viewing Pictures From Connected Equipment

    Viewing Pictures from Connected Equipment Connection Diagram You can connect a wide range of optional equipment to your TV. Note • Depending on TV model, connecting a large USB device may interfere with other connected devices beside it. • When connecting a large USB device, connect only 1 USB jack. KDL-32R324F Power bank Home Audio System...
  • Page 23: Using Audio And Video Equipment

    (OPTICAL)* to output digital sound. • When connecting with an HDMI cable, be sure to use HighSpeed HDMI Cable with Cable Type Logo (Recommended SONY Cable). • When connecting mono equipment, connect the audio cable to the L (mono) jack.
  • Page 24: Additional Information

    To Customers: For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself. To Sony Dealers and Contractors: Provide full attention to safety during the installation, periodic maintenance and examination of this product.
  • Page 25 Make sure that the wall has enough space for the TV and is capable of supporting a weight of at least four times that of the TV. Refer to the following table on installing the TV to the wall. See page 29-30 (Specifications) for the TV’s weight. Standard mounting Screen centre point Unit: mm...
  • Page 26: Standard Mounting

    Attach the Attachment parts for Wall-Mount Bracket. Check the Attachment parts by referring to “1” of the Wall-Mount Bracket Installation Guide. Note • If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}. • Be sure to store the unused parts in a safe place for future use. Retain this manual for future reference. Standard mounting ...
  • Page 27: Troubleshooting

    The picture of a display unit is composed of If the problem persists, contact your dealer or pixels. Tiny black points and/or bright points Sony service centre with the number of times (pixels) on the screen do not indicate a the LED indicator flashes red (interval time is malfunction.
  • Page 28: Channels

    No sound or noisy sound Store Display Mode or Promoting Feature Logo appears on the screen  Check if the TV system setting is appropriate (page 15).  On the remote control, press RETURN then press HOME and select [Settings] [System Settings] [Set-up]...
  • Page 29: Specifications

    DIGITAL AUDIO OUT (OPTICAL) Two channel linear PCM, Dolby Digital, DTS Specifications AUDIO OUT / (Stereo mini jack) Headphone, Audio output, Subwoofer System Panel system USB port LCD (Liquid Crystal Display) Panel, LED backlight DC IN 5 V TV system DC IN 12 V/19.5 V Depend on your country/area selection AC adapter input: 19.5 V...
  • Page 30: Trademark Information

    Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories. • “BRAVIA”, and BRAVIA Sync are trademarks or registered marks of Sony Corporation. • “Blu-ray Disc”, “Blu-ray” and “Blu-ray Disc” logo are trademarks of Blu-ray Disc Association.
  • Page 32 Customer Support and Contact: © 2018 Sony Corporation Printed in Malaysia...
